WKS hybrid inverters are the ideal solution for supplying self-consumption power to a home or making an isolated site self-sufficient.
This inverter can supply consumers up to 5000WThe integrated 100A MPPT charge controller can supply up to 6000 Wp of panelsCan be connected to the public grid or a generator to recharge batteriesFully configurable via the inverter's LCD screenIn-house after-sales service, spare parts available.
Integrated Bluetooth application, Android application (WatchPower) available and removable LCD control module with multiple communications.
Inverter communicates with Pylontech batteries
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review

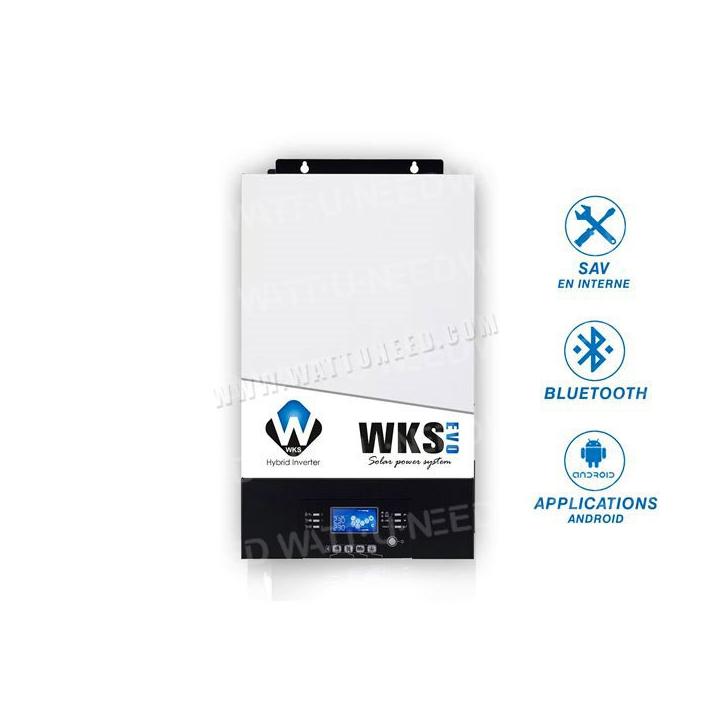

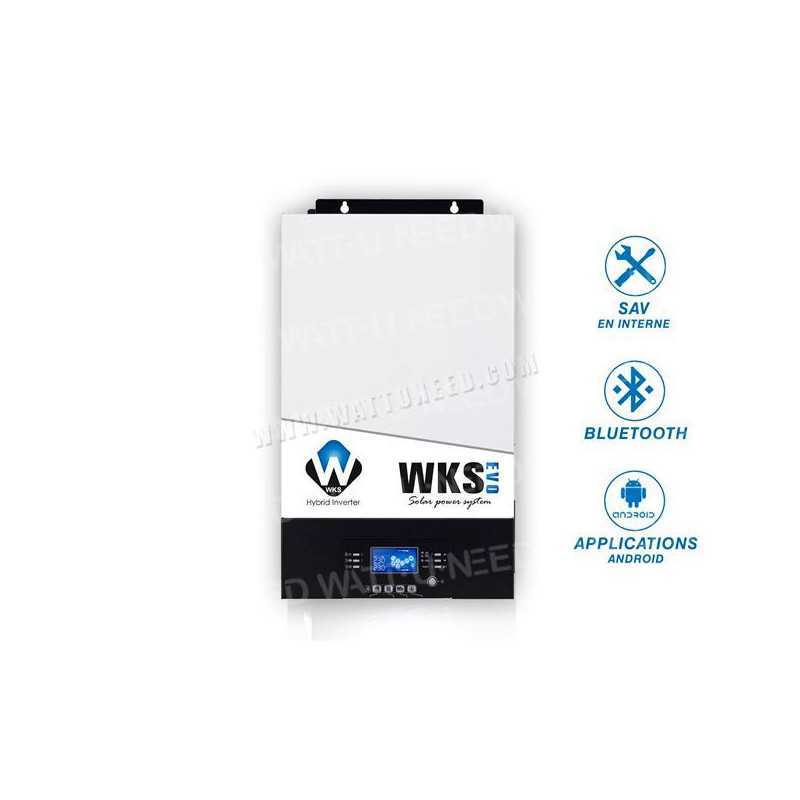

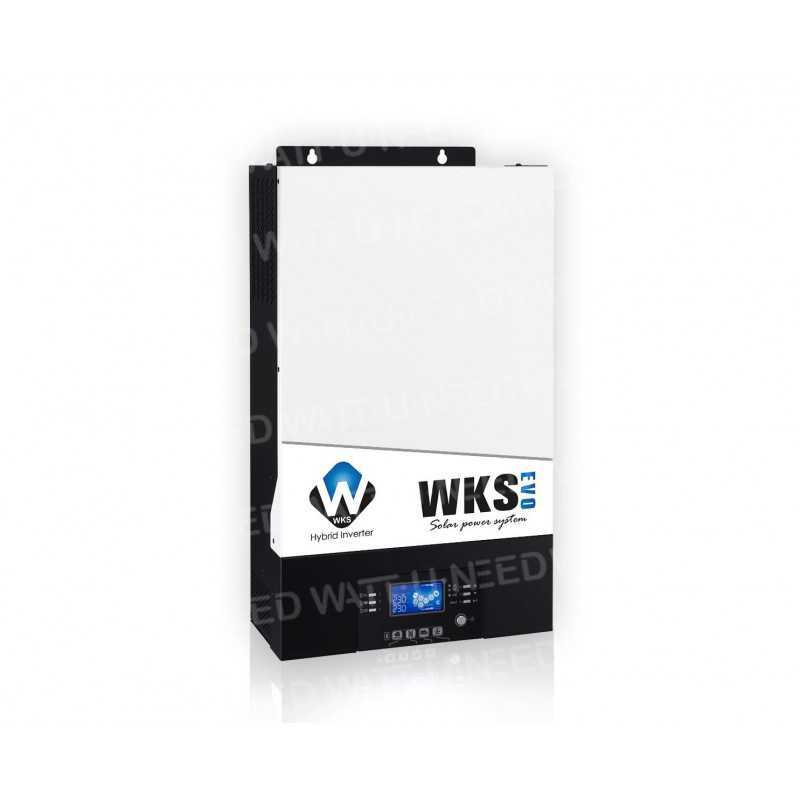

WKS Evo III 5kVA 48V hybrid inverter
Review sent
Your review cannot be sent
You are about to create a quotation for the kit WKS Evo III 5kVA 48V hybrid inverter.
This action will open the quotation app in a new tab.

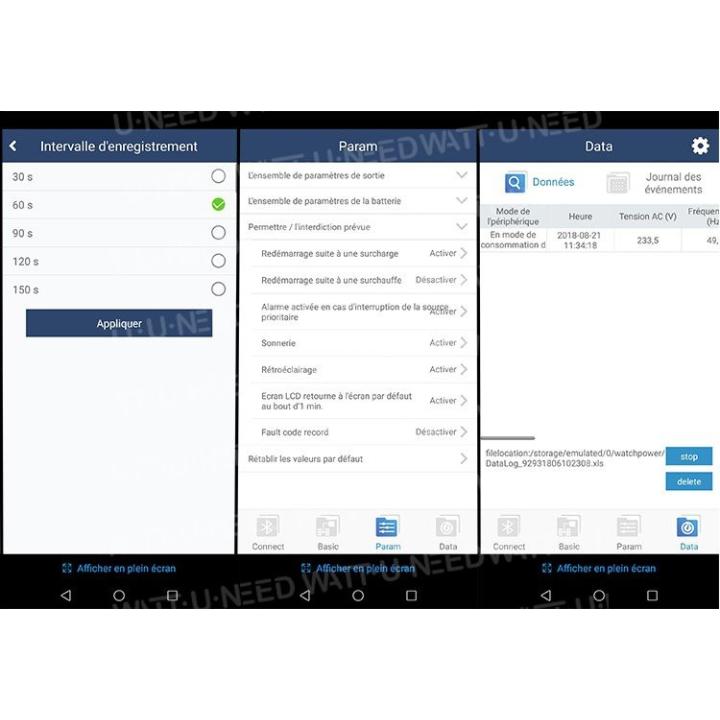

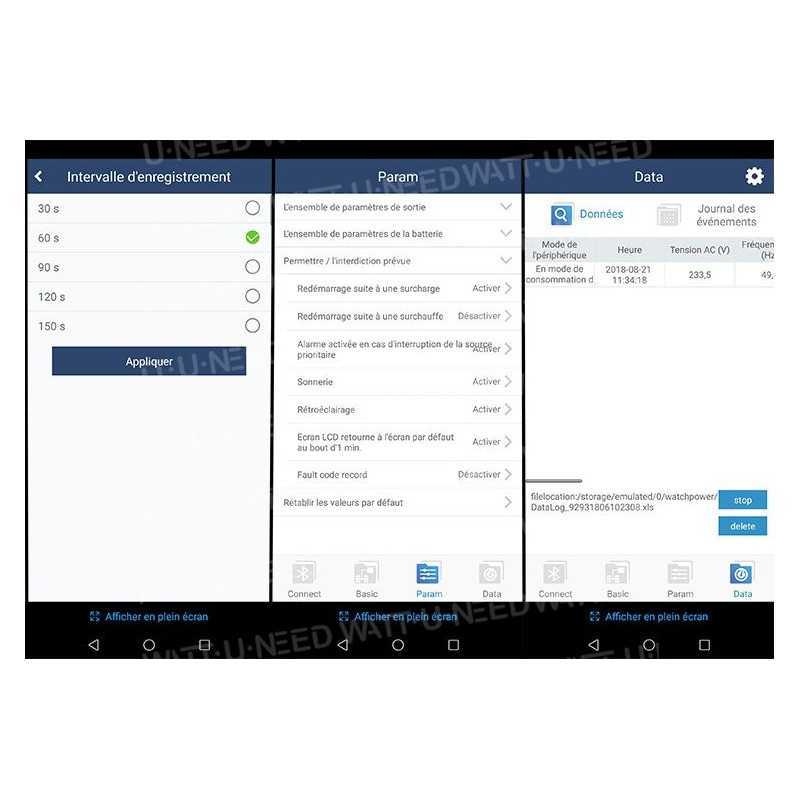

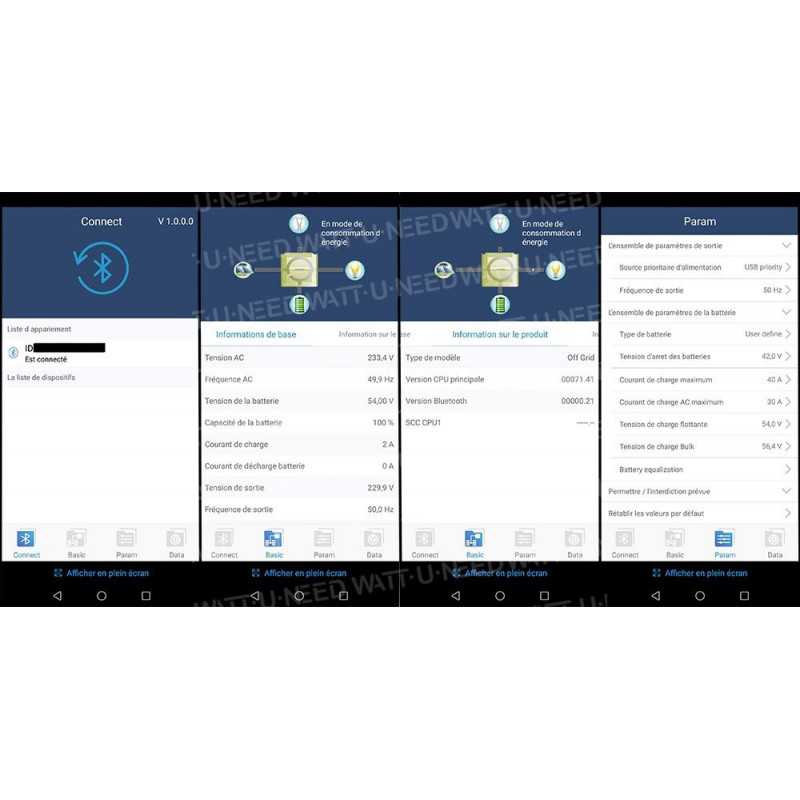

Parameterize your inverter and your system, check your production and record your data from your smartphone!
The WKS Evo's Bluetooth app gives you easy access to all your system information.
An example of the app's available pages is shown in the product images.
Enjoy continuous, reliable power, whether the grid is available or not. The energy produced by WKS inverters is directed and used intelligently for optimum performance. All priorities can be defined by the user: use of batteries, solar or AC source (grid or generator). In self-consumption, the energy produced by your panels fluctuates and does not correspond to consumption. The WKS inverter stores part of the solar output in the batteries for later use during the evening or night. On isolated sites, the WKS inverter can be connected to a generator to charge the batteries if they are empty and solar production is insufficient. This inverter is capable of working with several different energy sources, such as :
Example: for a consumption requirement of 3kW, you could have a configuration:
This multi-supply technique greatly reduces the number of batteries required, and extends their lifespan.
This inverter accepts up to 4000 Wp of photovoltaic panels, and can be connected to the grid or to another renewable energy source if solar production is insufficient.
Applications :
The inverter can be used as a back-up without photovoltaic panels. In this mode, the UPS takes on the role of UPS, protecting your appliances from grid outages.
The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.The electricity produced by these pure sinusoidal inverters is stable.
You can protect one or more rooms in your home via the distribution box.
In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.
A generator can be added to the inverter's AC input to provide emergency power.
The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.
The inverter never feeds power back into the grid.
As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!
The WKS is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.
The WKS integrates an MPPT charge controller delivering a maximum charge current of 80A.
The WKS also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling you to get the best performance from your photovoltaic panels. As well as providing a boost in power to an installation, it optimizes battery charging and extends their lifespan. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to match the voltage the battery can receive.

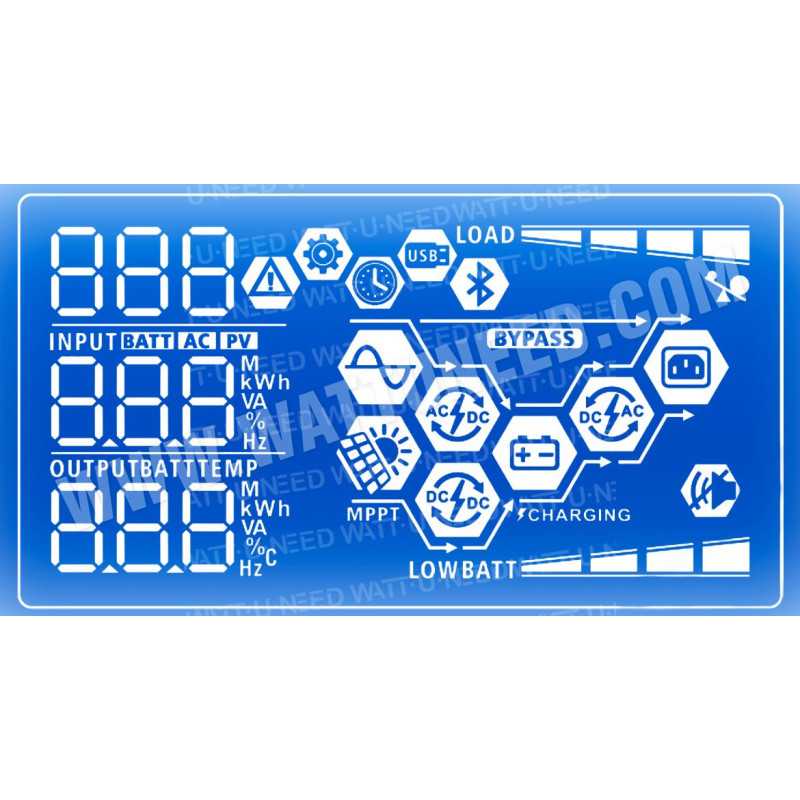

Indicates that the unit is connected to the mains
Indicates that the unit is connected to the photovoltaic panel
Indicates that the load is supplied by the mains
Indicates that the mains charger circuit is operating
Indicates that the solar charger circuit is working
Indicates that the DC/AC inverter circuit is working
Indicates that the unit alarm is deactivated
Indicates that Bluetooth is connected
Time display page
WatchPower 1.14
OUTPUT
M
10 000VA
0
3
6000
W
2
0°C
-15°C
