WKS Evo Circle 5.6 kVA 48V hybrid inverter


Powerful emergency power supply

Never let a power failure stop you with our 5600VA/5600W emergency power supply. It offers precise voltage regulation, high overload capacity and compatibility with computers and household appliances.

- Protection against voltage fluctuations
- High overload capacity
- Compatible with a wide range of computers and household appliances

100% secure payments

WKS Evo Circle 5.6 kVA 48V...


Présentation onduleur Circle

Discover the WKS EVO Circle, the next-generation solar inverter that will transform your energy experience!
Thanks to its advanced MPPT solar charge controller, this inverter optimizes and regulates the DC power of your solar panels to efficiently charge your battery bank. You can say goodbye to low battery worries. Its transformerless design guarantees reliable power conversion, all in a compact format that fits into any space.
With its integrated Wi-Fi function, you can monitor your UPS from your mobile app, viewing and recording data to track its operating status. And for even greater convenience, the inverter supports USB On-The-Go, simplifying parameter rewriting, data downloads and software updates.

Choose the WKS EVO Circle and enjoy smart, high-performance, connected solar power to simplify your everyday life!

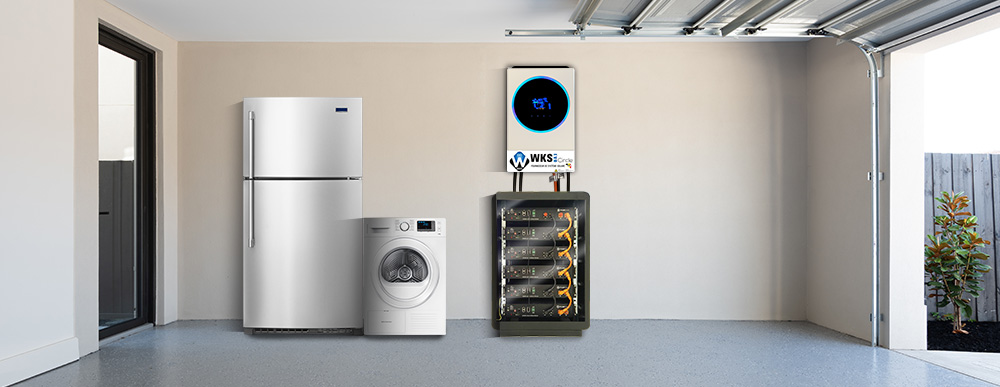

Mise en situation onduleur WKS Circle

- Pure sine wave MPPT solar inverter
- Customizable status LED ring with RGB lights
- Touch button with 4.3" color LCD display
- Wide DC input range
- Data log events stored in the inverter
- Integrated Wi-Fi for mobile monitoring (app available)
- Dedicated communication port for BMS
- Parallel operation with up to 9 units
- Choice of operating mode via timer
- 27 Amp output

Three RGB lighting effects

Icone circle

- Circular scrolling: Enjoy fast, continuous scrolling of the selected color in a circular motion.

- Wheel: Illuminate your space with twinkling lights in the color of your choice.

- Chasing: Create a captivating lighting effect by shining your chosen color up and down the circle.

- Setting battery charging current

- Possibility of limiting or prohibiting mains charging
- Input voltage from 110 to 280V (useful for fluctuating networks)
- Economy mode (self-consumption limitation)
- Fine-tuning of battery charging characteristics
- Automatic restart in the event of overload or overtemperature
- Possibility of limiting battery discharge to preserve battery life
- Configurable return voltage to battery mode
- Low battery warning

zoom écranMulti-energy power supply

Example: for a consumption requirement of 3kW, you could have a configuration:

  • 1 kW supplied by solar energy 2
  • kW supplied by batteries

This multi-supply technique greatly reduces the number of batteries required, and extends their lifespan.

This inverter accepts up to 6000 Wp of photovoltaic panels, and can be connected to the grid or to another renewable energy source if solar production is insufficient.

Applications :

  • Residential, commercial and telecommunications
  • Areas with unstable electricity supplies
  • Areas not connected to the grid

Use in back-up mode

Utilisation en mode back-up

The inverter can be used as a back-up without photovoltaic panels. In this mode, the UPS takes on the role of UPS, protecting your appliances from grid outages.

The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.
The electricity produced by these pure sinusoidal inverters is stable.

You can protect one or more rooms in your home via the distribution box.

Off-grid operation

Utilisation en mode Off-grid (hors réseau)

In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.

A generator can be added to the inverter's AC input to provide emergency power.

Utilisation en mode hybride

Hybrid operation

The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.

The inverter never feeds power back into the grid.

As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!

Convertisseur Pure SinusPure Sine converter

The WKS is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.

Maximum load current 120A

The WKS integrates an MPPT charge controller developing a maximum charge current of 120A.

Régulateur MPPT

MPPT controller

The WKS also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling you to get the best performance from your photovoltaic panels. As well as providing a boost in power to an installation, it optimizes battery charging and extends their lifespan. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to match the voltage the battery can receive.

icone horlogeChoice of operating mode via timer

You can determine the operating mode of your device using a timer. Set your own time window in the settings.
With this setting, you can define the priority of your inverter's output source, so you can, for example, choose to recharge your batteries during off-peak periods.



WatchPower 1.16SP3

WatchPower 1.16SP4


Data sheet

Inverter power
5600 VA
AC input voltage
170-280 VAC (for personal computers)
Selectable voltage range
90-280 VAC (for household appliances)
Frequency range
50Hz/60Hz (automatic detection)
AC voltage regulation (Batt. mode)
230 VAC +/- 5
Efficiency (peak)
Onde sinusoidal pure
AC output voltage
Overload protection (Battery)
66 VDC
Type of solar charger
Maximum PV generator power
MPPT range - Operating voltage
Maximum PV open circuit voltage
Maximum solar charging current
Floating charge voltage (Battery)
54 VDC
Coup de coeur WUN
Operating temperature
From -10°C to 50°C
Communication interfaces
USB/RS232/RS485/Wifi/Contact sec
5% to 95%a Relative humidity (non-condensing)
11.0 Kg / 12.0Kg
12 kg
Dimensions (L x W x D)
140x295x468 mm
