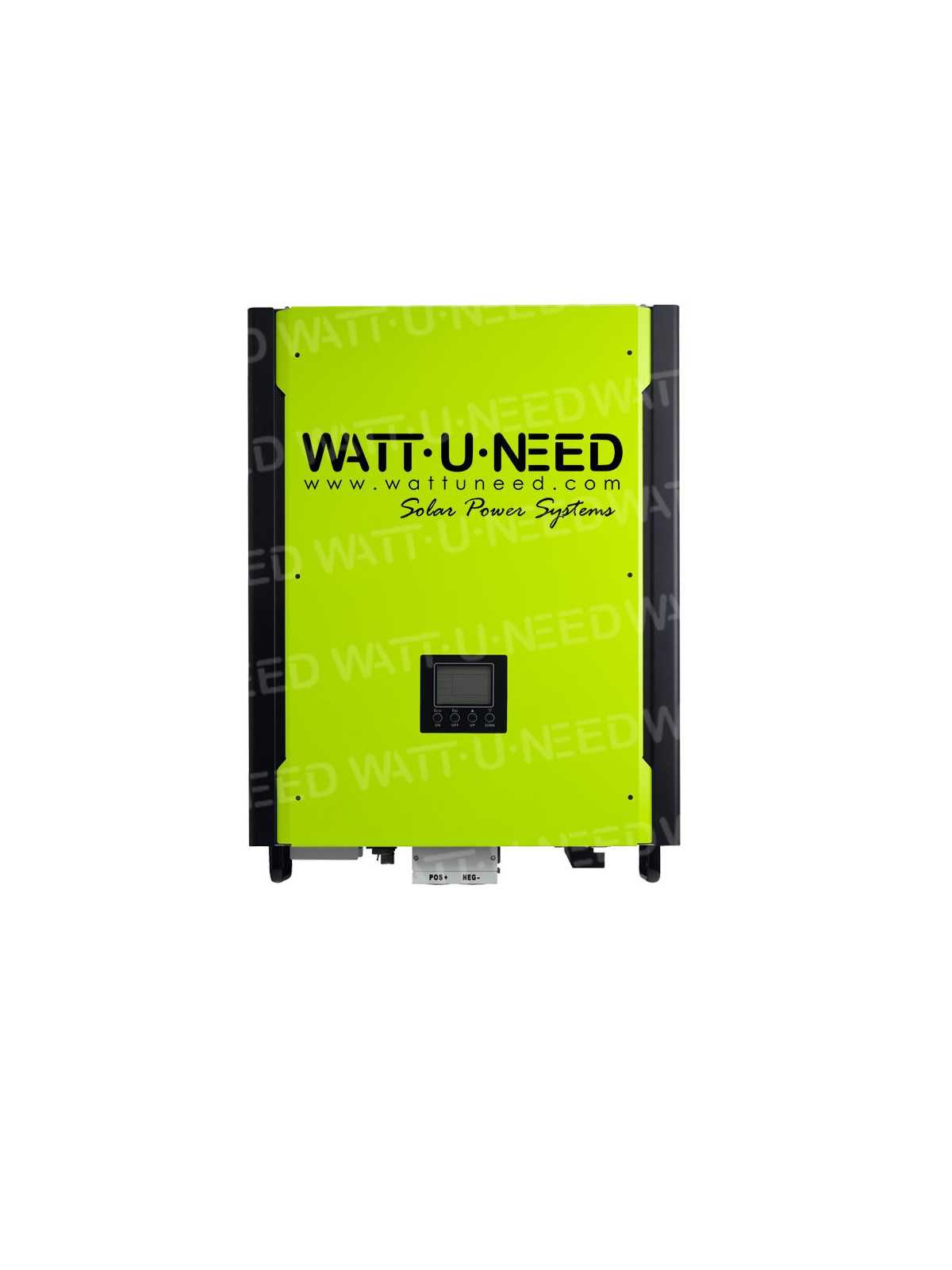

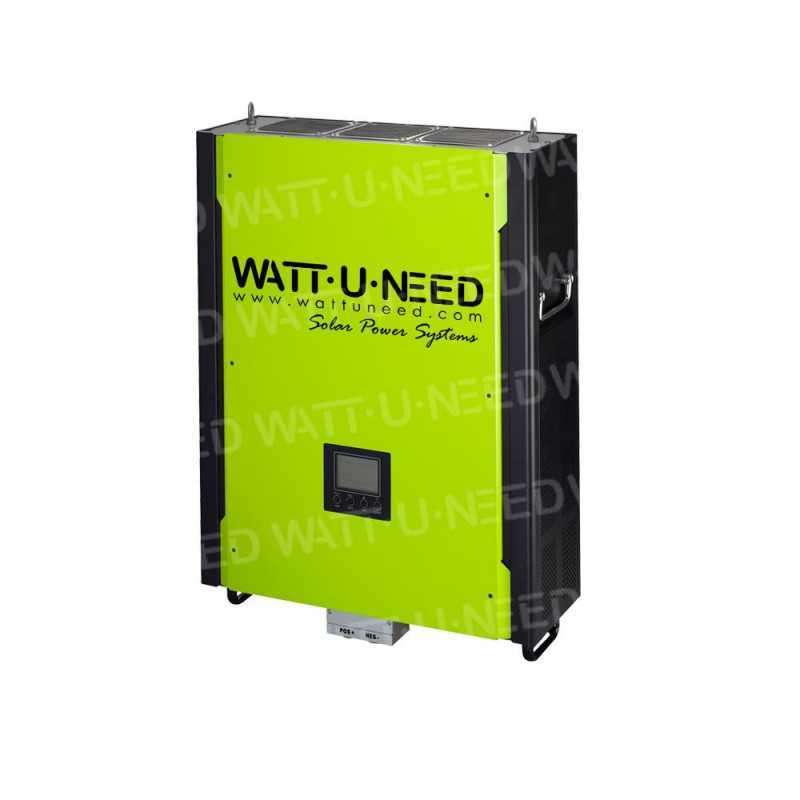

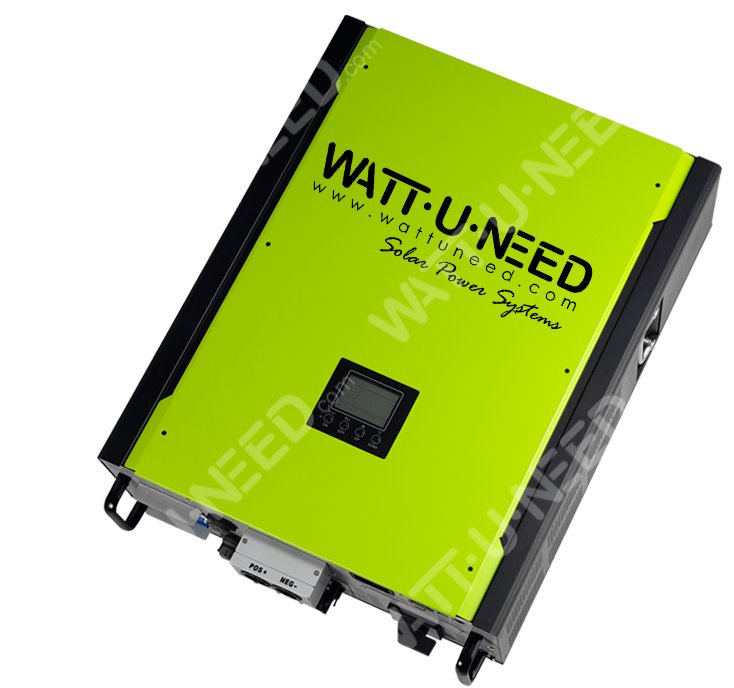

    Multisolar 15kW grid-injection-storage hybrid inverter
    Multisolar 15kW grid-injection-storage hybrid inverter
    Multisolar 15kW grid-injection-storage hybrid inverter
    Multisolar 15kW grid-injection-storage hybrid inverter
    Multisolar 15kW grid-injection-storage hybrid inverter
    Multisolar 15kW grid-injection-storage hybrid inverter
    Multisolar 15kW grid-injection-storage hybrid inverter

    Multisolar 15kW grid-injection-storage hybrid inverter

    €3,402.78
    Multisolar-15
    0712971128019

    - AC output power: 15000W
    - AC output Pur Sinus
    - Microprocessor-controlled
    - Independent MPPT trackers: 2
    - Backlit LCD display

    100% secure payments

    Multisolar 15kW...

    €3,402.78

    Onduleur hybride 15kW injection réseau - stockage MultisolarMultiSolar: Store the bare minimum in your batteries and feed it back into the grid, provided the batteries are full.

    Conversely, use the grid to make up for the shortfall in winter production, and top up the batteries when it rains.

    Optimize your production to the maximum and never worry about a power cut again.

    Connect up to 14850Wp to the PV input of the inverterb Hybrid

    Store and use your solar-generated electricity at a later date.

    graphique consommation multisolar 15 kw


    Onduleur hybride 15kW injection réseau - stockage MultisolarDescription

    High-performance three-phase MultiSolar inverter for hybrid power systems.

    Connect solar panels, batteries and, optionally, a mains input to power your system.

    Enjoy top performance thanks to two independent integrated mppt trackers, as well as user-friendliness thanks to its compact design and intuitive LCD display.

    • Pure sine wave output signal: 10kW
    • Max PV input power: 14850Wp
    • AC input: 3-phase
    • AC output: 3-phase
    • Microprocessor-controlled for greater stability
    • Multiple operations:
    • Grid-connected, off-grid and grid-connected with back-up power
    • Integrated mppt solair charger (two independent inputs)
    • Backlit LCD display for easy, interactive operation
    • Multiple means of communication
    • "Green" alternative to generators
    • User-adjustable battery charging current, up to 200A

    Remote control and UPS configuration

    Connect the UPS to your computer using the USB cable supplied.

    SolarPower software enables control and monitoring of multiple devices via LAN, Internet or USB.

    Alert notifications, pop-up screen, sms and email.


    Software

    SolarPower 1.17SP7

    configuration paramettre multisolar 15kW


    Features

    Phase
    phase in / 3 phase out
    Max. PV power22500 W
    Output power15000 W
    Max. load power15000 W
    Grid-connected operation
    Solar input (DC)
    Nominal DC voltage / Max. DC voltage
    720
    DC / 900 VDC
    Starting voltage / Min. working voltage320 VDC / 350 VDC
    MPP voltage range400 VDC - 800 VDC
    Number of MPP inputs / max. input current
    : 37.65A ; B:18.

    6

    A
    Consumer output (AC)
    Rated output voltage230 VAC (P-N)/400 VAC (P-P)
    Output voltage range184 - 264.5 VAC per phase
    Rated output current21.7 A per phase
    Power factor>
    0.99
    Efficiency
    Maximum conversion efficiency (DC/AC)96.00%
    European voltage efficiency 95,00%
    Off-grid operation
    AC input
    AC starting voltage / automatic restart voltage120 - 140 VAC per phase
    180 VAC per phase
    Input voltage range170 - 280 VAC per phase
    Max. AC input current.40
    A
    Solar input (DC)
    Max. DC voltage900
    VDC
    MPP voltage range350 VDC - 850 VDC
    Number of MPP inputs/max. input current
    : 37.65A; B:18.6A
    Battery mode output (AC)
    Nominal output voltage230 VAC (P-N)/400 VAC (P-P)
    Signal formPure sinus
    efficiency (DC/AC)91,00%
    Hybrid operation
    Solar input (DC)
    DC voltage nominal / DC voltage max.720
    VDC / 900 VDC
    Starting voltage / Min. working voltage320 VDC / 350 VDC
    MPP voltage range350 VDC - 850 VDC
    Number of MPP inputs / max. input current
    : 37.65A ; B:18.6A
    Consumer output (AC)
    Rated output voltage230 VAC (P-N)/400 VAC (P-P)
    MPP voltage range184 - 264.5 VAC per phase
    Rated output current21,
    A per phase
    AC input
    Starting voltage/Minimum working voltage120 - 140 VAC per phase
    180 VAC per phase
    Input voltage range170 - 280 VAC per phase
    Max. AC input current40
    A
    Battery mode output (AC)
    Nominal output voltage230 VAC (P-N)/400 VAC (P-P)
    efficiency (DC/AC)91.00%
    Batteries and charger
    Nominal DC voltage48 VDC
    Max. charging current
    Default 60A,

    5

    A -300A (adjustable)
    General specifications
    Physical specifications
    Dimensions P x W x H219 x 650 x 820 mm
    Weight62 Kg
    interface
    Communication portRS-232 / USB and CAN Interface
    Intelligent SlotSNMP,
    Modbus and AS-400 cards available as options
    Environment
    - 90% RH (non-condensing)
    Humidity
    to 55°C
    Working temperature
    - 1000 m
    Multisolar-15
    5 Items

    Data sheet

    Inverter power
    15000VA
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
    Width
    500 mm
    Height
    622 mm
    Thickness
    176 mm
    Weight
    62 kg

    Specific References

    UPC
    712971128019
    EAN13
    0712971128019
    New

    Download

    Fiche Technique Multisolar - FR

    Download (1013.88KB)

    Datasheet Multisolar - EN

    Download (1.37MB)
