    SolarEdge SE4K to SE27.6K SETAPP inverter

    SolarEdge triphase 10kW SetApp inverter - Special Belgium

    $2,619.4
    SE10K-RWH0IBNM4
    0768563816970

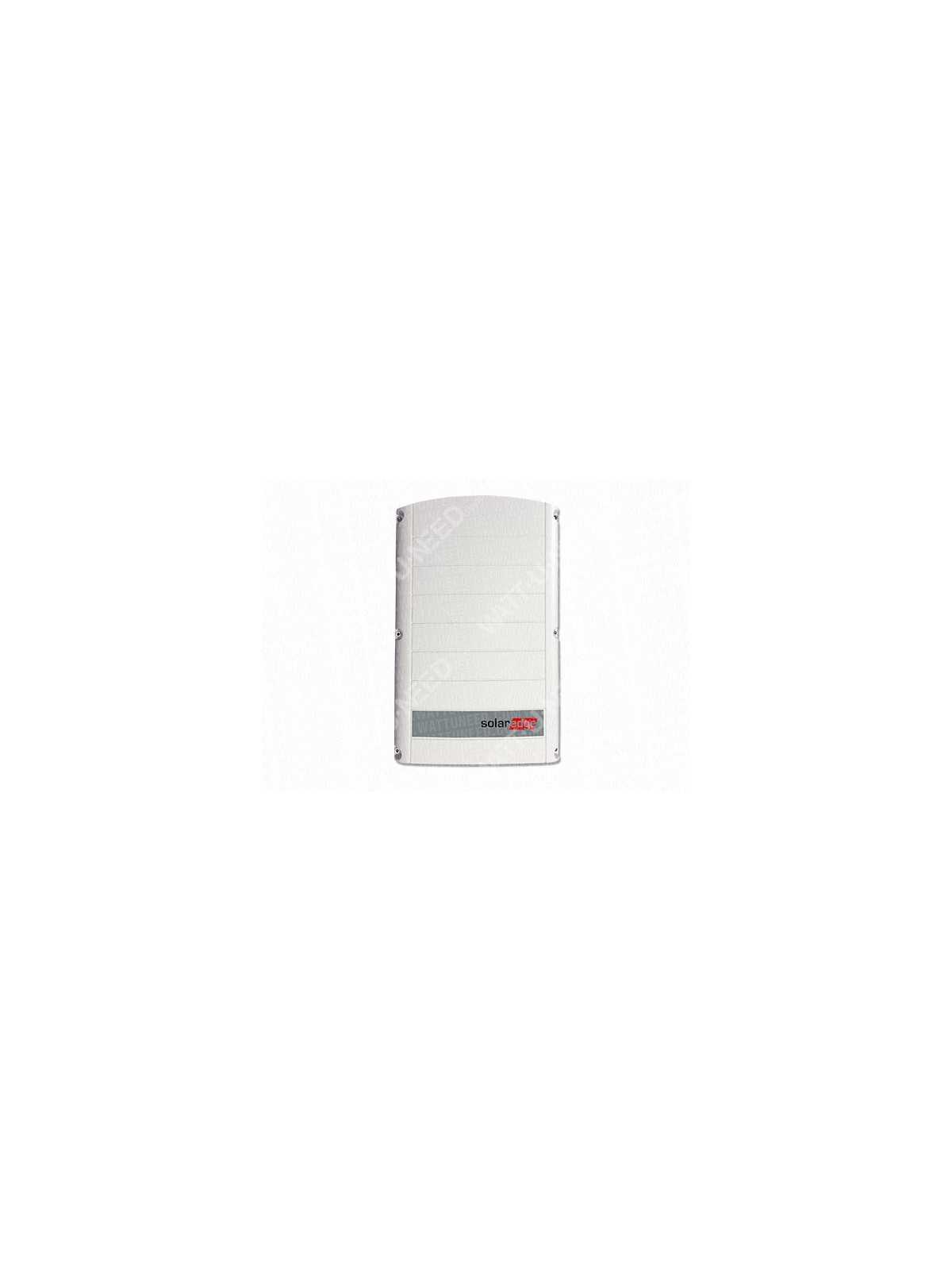

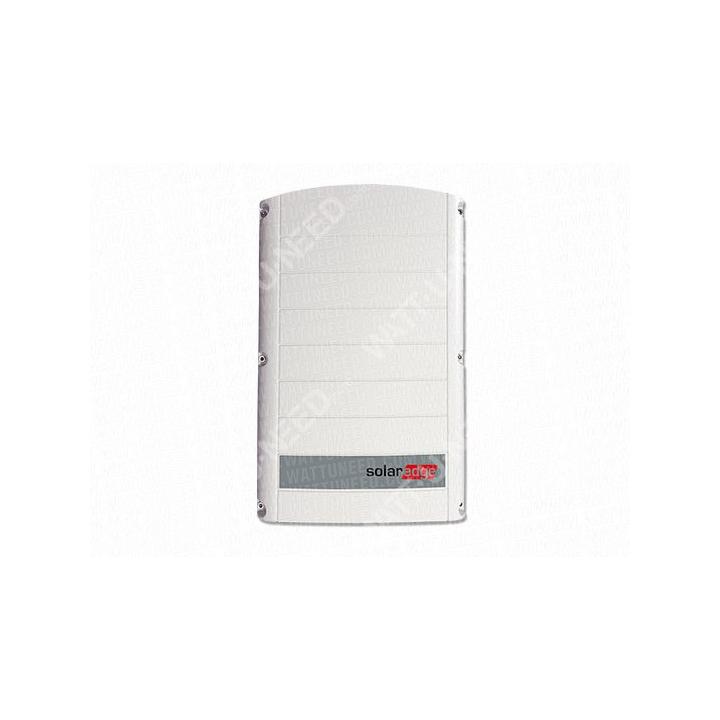

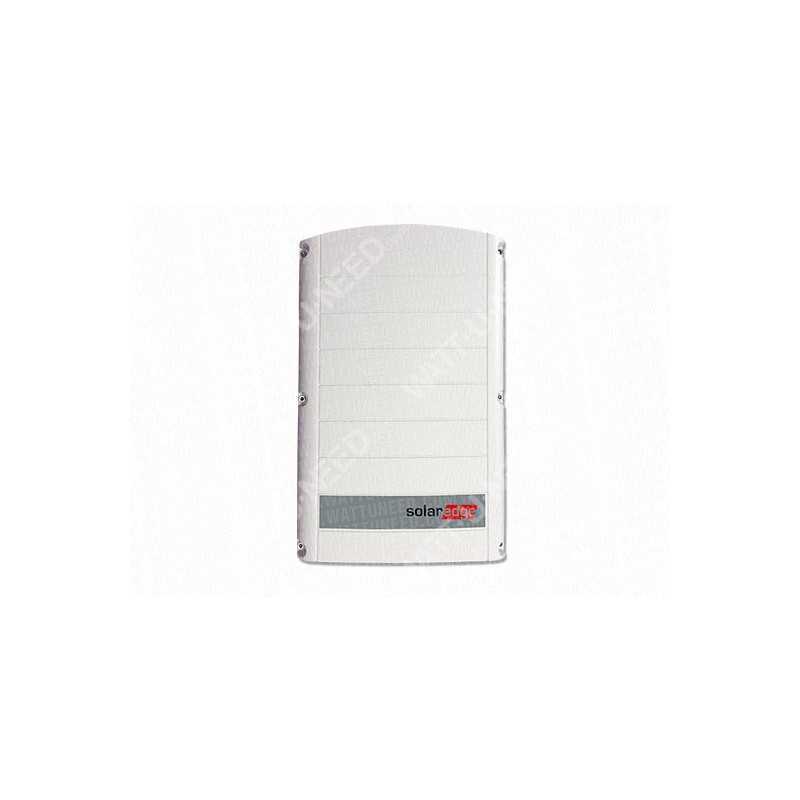

    SolarEdge 10kW SetApp: Maximize Your Solar Energy Production

    Discover the SolarEdge 10kW SetApp three-phase inverter, a high-performance and innovative solution for small commercial photovoltaic installations. With its cutting-edge technology and integration with SolarEdge power optimizers, this inverter guarantees optimal solar energy production and precise monitoring of your system.

    Why Choose It?

    • Maximum Performance: Enjoy an exceptional efficiency of 98.3% and optimized energy production, even in shading conditions.
    • Flexibility: Designed for the Belgian market with a 330% oversizing for greater design freedom.
    • Easy Installation: Compact, lightweight, and simple to install with the SetApp application.
    • Reliability: Benefit from an extended warranty and robust design for increased longevity.
    • Connected Monitoring: Track your installation's performance in real-time via the SolarEdge portal.

    Advantages of SolarEdge Technology:

    • Fixed Voltage: Optimal operation under all circumstances.
    • Module-Level Optimization: Maximum production, even in the shade.
    • Smart Monitoring: Precise tracking and quick fault detection.
    • Easy Installation: Fast commissioning with SetApp.
    • Belgium Adaptation: Designed to meet local needs.

    Optimize your solar energy production with the SolarEdge 10kW SetApp inverter.

    SolarEdge triphase 10kW...

    $2,619.4

    Onduleurs Triphasés

     High-performance three-phase inverter: HD-Wave technology

    Onduleur SolarEdge triphase 10kW SetApp - Special BelgiqueThe SolarEdge three-phase inverter combines sophisticated digital control technology with efficient power conversion architecture for superior solar energy harvesting and unmatched reliability.

    Fixed-voltage technology ensures that the solar inverter always operates at its optimum input voltage, regardless of the number of modules in a string or environmental conditions.

    A proprietary monitoring system has been integrated into the inverter, gathering performance data from the power optimizer of each PV module. This data can be transmitted over the web and accessed via the SolarEdge supervision platform for performance analysis, fault detection and troubleshooting of PV systems.

    For small commercial installations 330% oversizing especially for Belgium

    Specifically designed to work with power optimizers

    • Specially designed to allow increased oversizing of DC power
    • Superior efficiency (98.3%)
    • Inverter with quick and easy commissioning directly from a smartphone thanks to SolarEdge SetApp
    • Compact,
    • the lightest in its class and easy to install
    • Integrated, module-level monitoring
    • Internet communication via Ethernet or wireless
    • IP65 - outdoor and indoor installation
    • Fixed-voltage inverter for longer strings
    • Intelligent energy management control


    Easy commissioning with SetApp inverter


    SolarEdge's new range of three-phase inverters features a new, intelligent commissioning method. Inverter commissioning is carried out directly via a smartphone using the intuitive SetApp mobile application. Take it to the next level. Find out more about SetApp.


    Dimensions

    Dimensions


    Features

    SE10K
    (FOR NETWORK 230/400V)
    SE10K
    (FOR NETWORK DELTA)
    SE10K-RWHDCBXXX
    Rated AC output power 10000
    Maximum AC output power 10000
    AC output voltage -
    phase to phase / phase to neutral (nominal) 400 / 230 230 / 133
    AC output voltage - phase to neutral range 184 - 264,5 L-N 184 - 264,5 L-L
    AC frequency 50 ± 5%
    Maximum continuous output current (per phase) 1526
    networks - three-phase
    / N / PE (With Neutral)
    lines / PE
    Utility monitoring, islanding protection, configurable power factor,
    country-configurable thresholds Yes
    Residual current detection / Residual current detection threshold 300 / 30
    ENTRY
    Maximum DC power (STC Module) 33750
    Minimum DC power (peak power) 17000
    Transformerless,
    without ground
    Yes
    Maximum input voltage 900600
    Nominal DC input voltage 750400
    Maximum input current 1426
    Protection
    Reverse polarity
    Yes
    Ground fault detection 350kΩ gevoeligheid
    Maximum inverter efficiency 98,3
    European weighted efficiency 98
    Night-time consumption <
    4
    ADDITIONAL FEATURES
    communication interfacesRS485, Ethernet, Wi-Fi(2), ZigBee (optional), cellular network (optional
    Inverter commissioning With the SetApp mobile app via integrated local Wi-Fi
    Intelligent energy management Export limitation,
    Home Energy Management
    COMPLIANCE WITH STANDARDS
    Safety IEC-62103 (EN50178), IEC-62109
    Network connection standards
    0126-1-1,
    VDE-AR-N-4105, AS-4777, G83 / G59
    , EN50438
    Emissions IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12,
    FCC part 15 Class B
    RoHS Yes
    INSTALLATION SPECIFICATIONS
    AC output Cable feed-through - Diameter 18-25
    Entrée DC (avec ou sans coffret DC)
    Paires de MC4
    Dimensions (LxPxH) 540 x 315 x 260
    Poids 45
    Plage de température en fonctionnement -
    0 - +60
    Cooling Fan (user replaceable)
    <
    55
    Protection rating IP65 - Outdoor and indoor
    Mounting Mounting bracket supplied
    SE10K-RWH0IBNM4

    Data sheet

    Inverter power
    10000 VA
    Max. solar input voltage
    900 Vdc
    Phase
    Triphasé
    Width
    315 mm
    Height
    540 mm
    Thickness
    260 mm
    Weight
    45 Kg

    Specific References

    New

    Download

    SolarEdge SE10K BE datasheet-FR

    Download (267.83KB)
