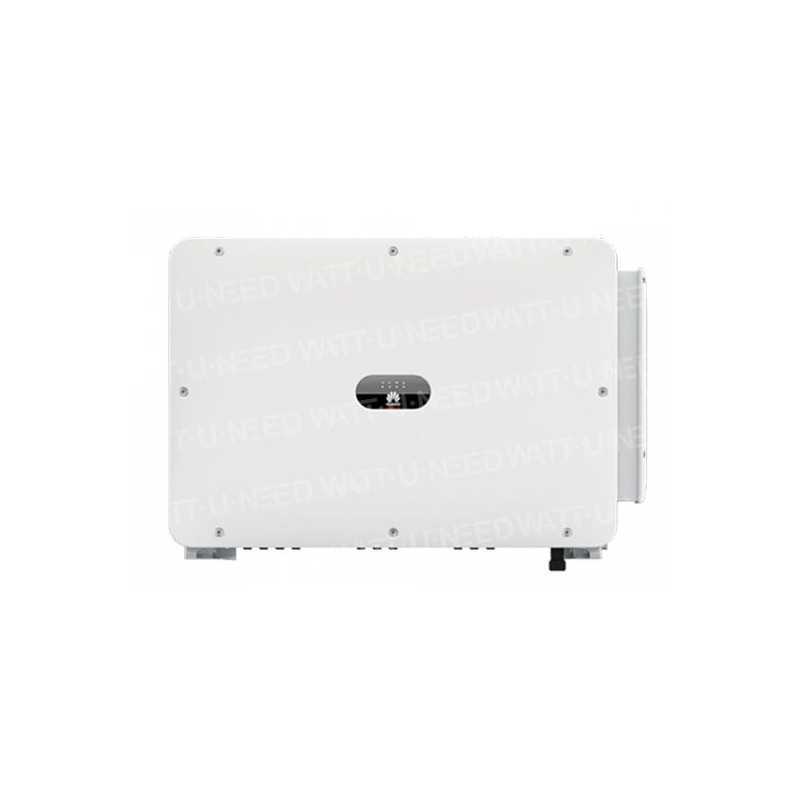

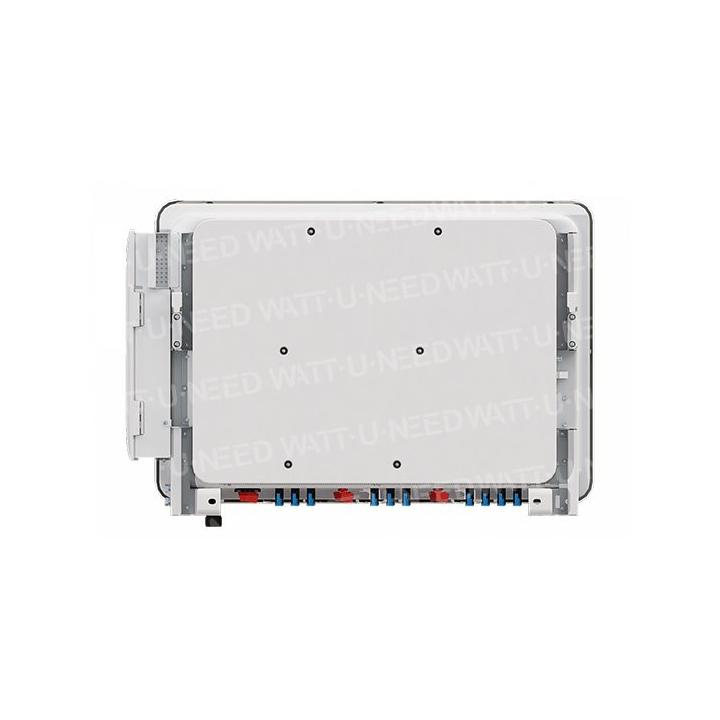

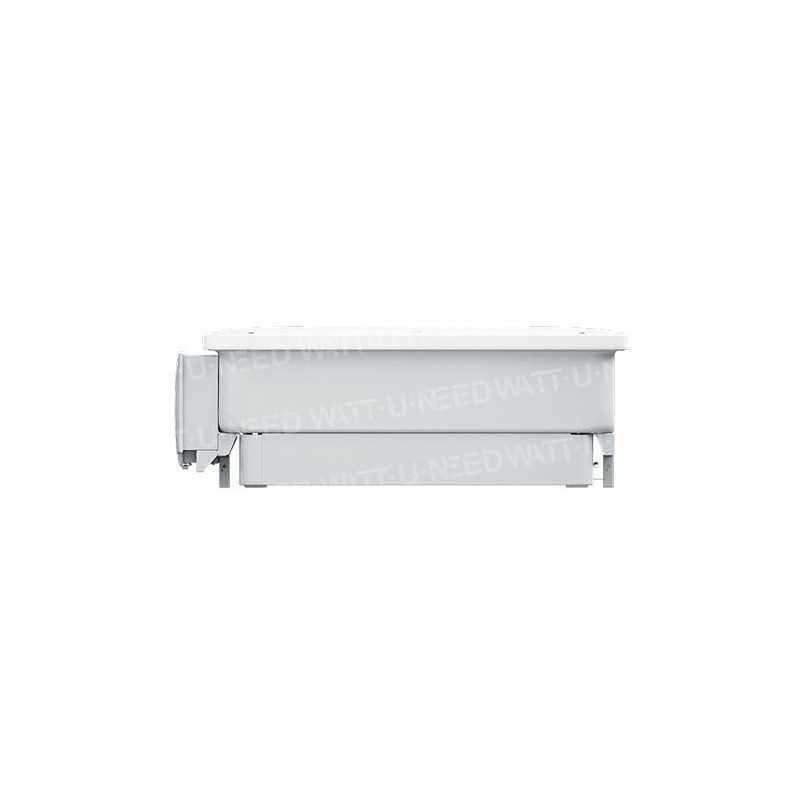

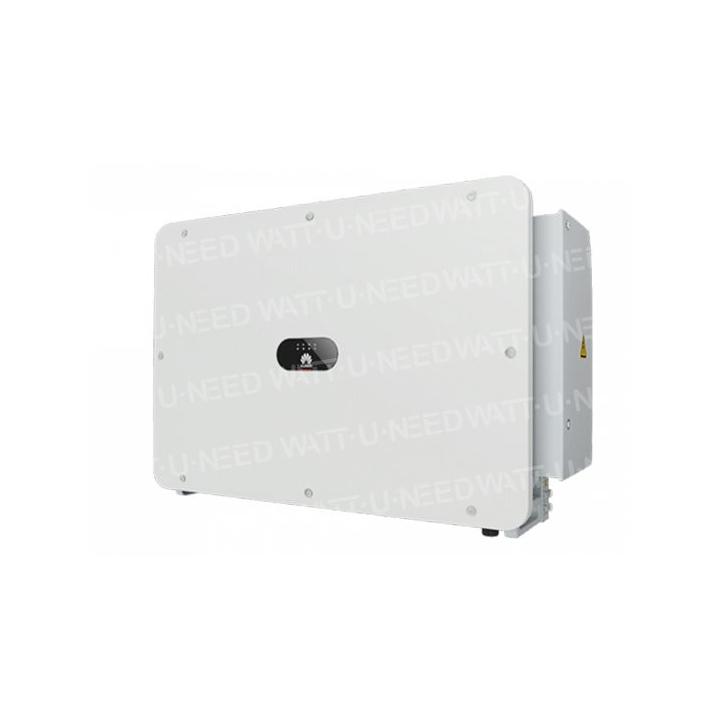

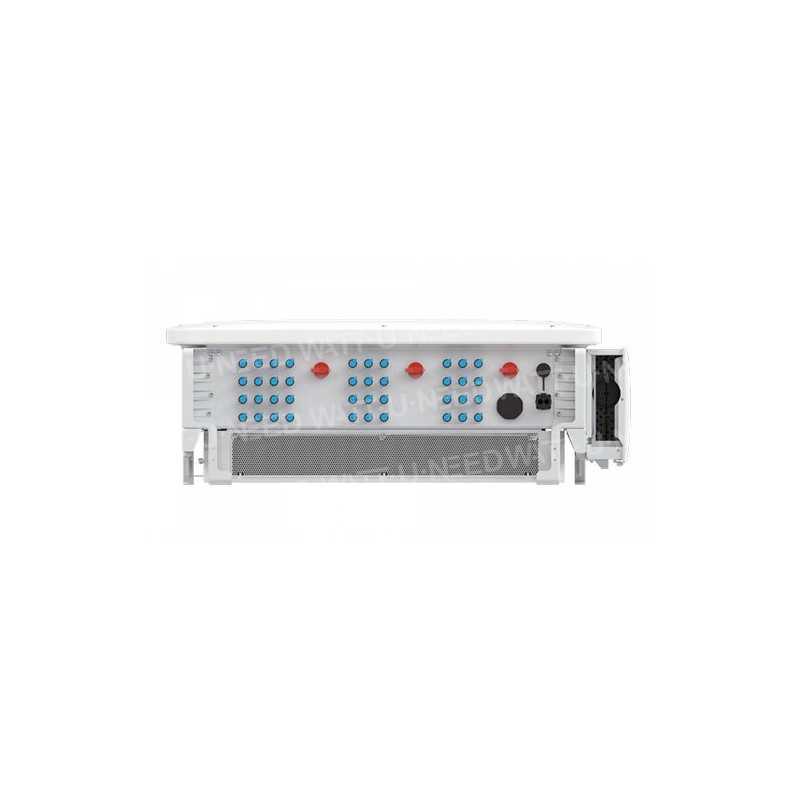

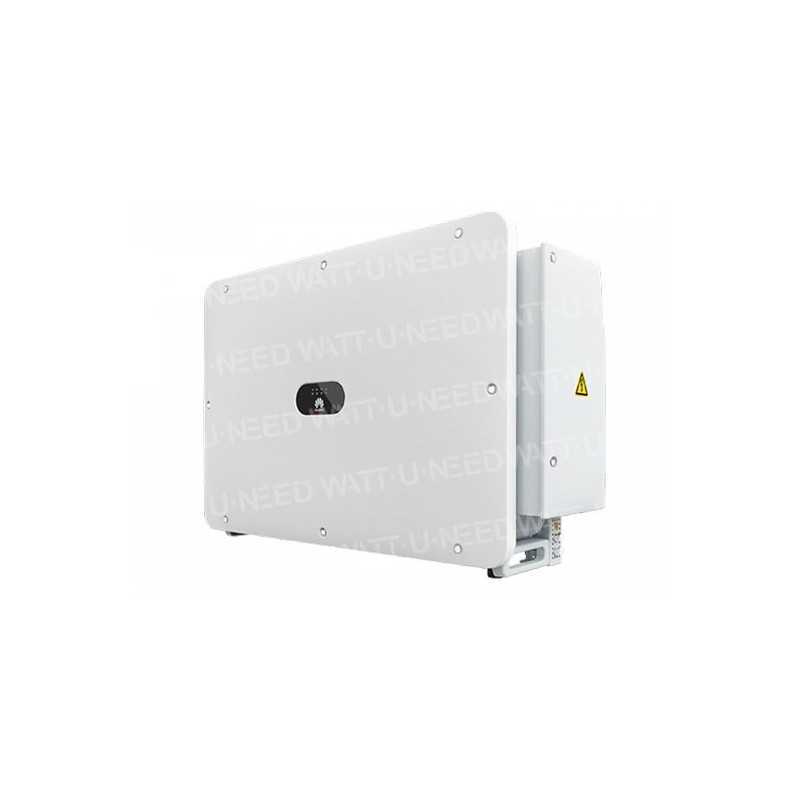

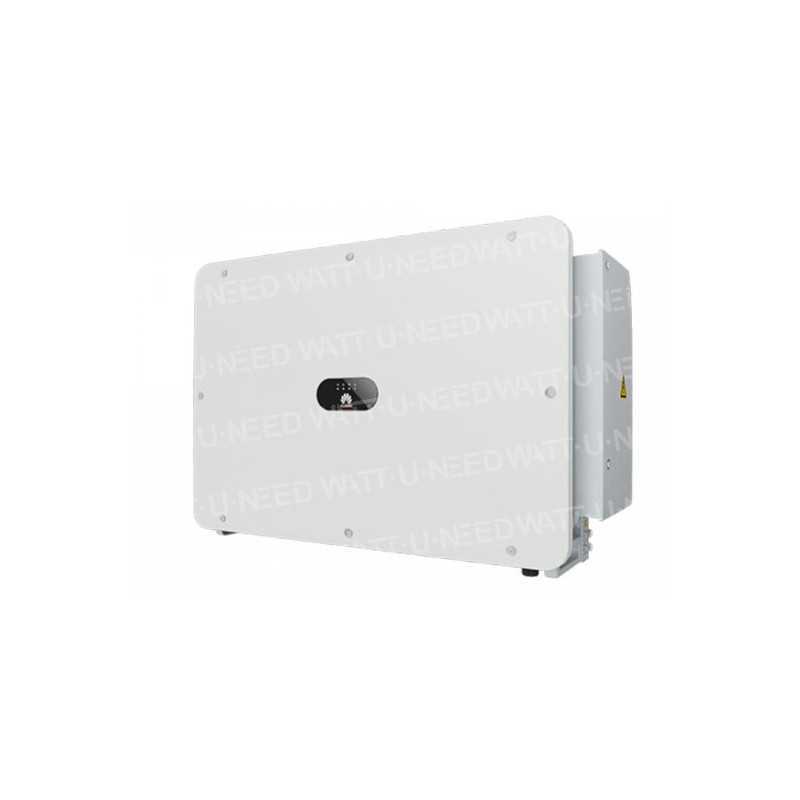

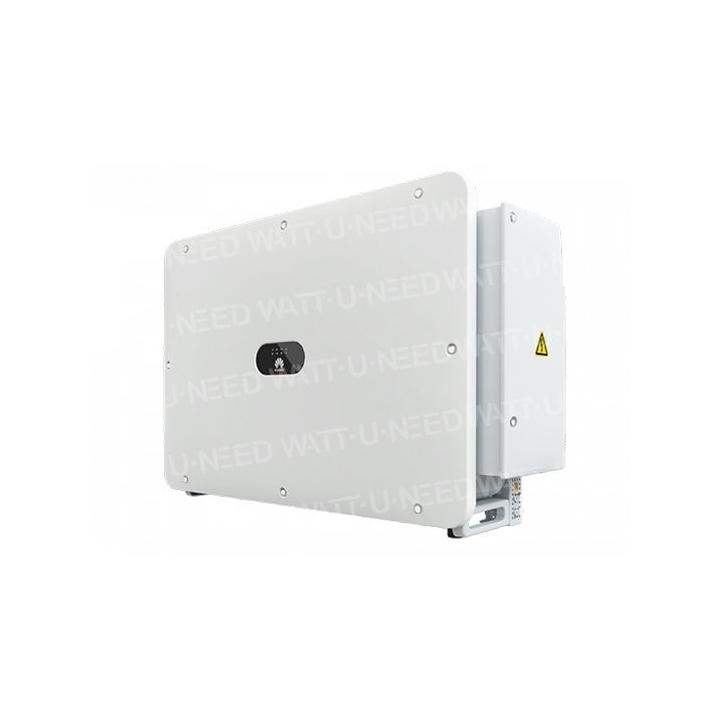

Huawei Tri 100 kW Grid Inverter – SUN2000-100KTL-M1
€6,638.19
Tax included
SUN2000-100KTL-M1
0768563818226
Huawei SUN2000-100KTL-M1 Inverter: Intelligence at the Service of Your Solar Energy
The SUN2000-100KTL-M1 is a high-performance three-phase inverter designed for large photovoltaic installations. With its embedded intelligence and proven reliability, it optimizes solar energy production and simplifies system management.
Why choose the Huawei SUN2000-100KTL-M1 inverter?
- Embedded Intelligence: Smart string supervision, rapid fault diagnosis, and production optimization with the Smart I-V Curve algorithm.
- Optimal Performance: Exceptional efficiency with 10 MPPTs for flexible adaptation to different module configurations.
- Proven Reliability: Robust design, IP66 protection, and simplified commissioning.
- Enhanced Safety: Protection against surges and short circuits.
- Real-Time Monitoring: Access all your system data via a mobile app.
Key Benefits:
- Maximized Production: Enjoy optimal energy yield with advanced technologies.
- Simplified Management: Easy monitoring and diagnostics thanks to embedded intelligence.
- Long-Term Reliability: Invest in a durable and high-performing product.
Huawei SUN2000-100KTL-M1: The Future of Professional Solar Energy.
Huawei SUN2000-100KTL-M1 : The intelligent solar inverter for optimal energy production
Huawei offers cutting-edge Smart PV solutions that leverage over 30 years of expertise in digital information technology. By integrating AI and Cloud, Huawei further integrates many of the latest ICT technologies with PV for optimal energy production, making the solar power plant extremely efficient, safe and reliable with intelligent operation and maintenance functions and a distribution network supporting capabilities and laying the foundations for solar power to become the main source of energy.
Solar Cells TypeHuawei, winner of the latest Intersolar Award at Intersolar 2019, has created a product ideal for large commercial installations: SUN2000-100KTL-M1.
This device ensures safe, efficient and reliable management of your photovoltaic system, which is combined with a series of technical features that make it one of the most intelligent large-scale inverters on the market.
Intelligent
The Huawei SUN2000-100KTL-M1 inverter intelligently monitors up to 20 strings individually and performs rapid fault analysis. The integrated Smart I-V Curve Diagnosis tool can create a comprehensive, automated report at the click of a button. This provides an overview of individual strings and exposes possible errors. The implementation of 10 MPPTs reduces string offset, as differences in module orientation can be better optimized.
Efficient
Max. efficiency 98.8%. European efficiency 98.6% @480Vac
Max. efficiency 98.6%, European efficiency 98.4% @400VAc
10 MPPT for versatile adaptations to different module types or different quantities built with different alignments.
Safe
The Huawei SUN2000-100KTL-Mi inverter has an IP66 degree of protection, so it can be installed both indoors and outdoors, away from flammable materials and out of direct sunlight.
Reliable
The design is fuse-free, using instead a RCMU, or type II overvoltage protection unit, for direct and alternating current.
Huawei SUN-2000-100KTL-M1 benefits
Smart PV Management System
Simple commissioning via mobile application
Automatic detection of system equipment
Register your system by scanning any device
Illustration of energy flow
Real-time data anytime, anywhere
Save performance data
Physical and logical layout of modules
Module-level performance management
Smart I-V Diagnosis
Features
| Efficiency | |
| Max. efficiency | 98.8% @480 V, 98.6% @380 V / 400 V |
| European weighted efficiency | 98.6% @480 V, 98.4% @380 V / 400 V |
| Input | |
| Max. input voltage | 1100 V |
| Max. input current per MPPT | 26 A |
| Max. short-circuit current per MPPT | 40 A |
| Start-up voltage | 200 V |
| MPPT operating voltage | 200 V ~ 1,000 V |
| Rated input voltage | 720 V @480 Vac, 600 V @400 Vac, 570 V @380 Vac |
| Number of inputs | 20 |
| Number of MPP trackers | 10 |
| Output | |
| Rated AC active power | 100,000 W |
| Max. AC apparent power | 110000 VA |
| Max. AC active power (cosφ = 1) | 110000 W |
| Rated output voltage | 480 V/ 400 V/ 380 V, 3W+(N)+PE |
| Rated AC grid frequency | 50 Hz / 60 Hz |
| Rated output current | 120.3 A @480 V, 144.4 A @400 V, 152.0 A @380 V |
| Max. output current | 133.7 A @480 V, 160.4 A @400 V, 168.8 A @380 V |
| Adjustable power factor | 0.8 capacitive ... 0.8 inductive |
| Max. total harmonic distortion | ＜3% |
| General data | |
| Dimensions (W x H x D) | 1035 X 700 X365 |
| Weight (including mounting bracket) | 90 kg |
| Operating temperature range | -25°C ~ 60°C |
| Cooling | 0 ~ 100% |
| Protection rating | IP66 |
| Night consumption | < 3.5 W |
SUN2000-100KTL-M1
Data sheet
- Inverter power in VA
- 100000 VA
- MPPT/PWM
- MPPT
- Max. solar input voltage
- 1100 V
- Power
- 100000 W
- Number of MPPT
- 10
- Max. current
- 26 A
- Width
- 1035 mm
- Height
- 700 mm
- Thickness
- 350 mm
- Rated AC output power
- 110,000 VA
- Weight
- 90 kg
Specific References
- UPC
- 768563818226
- EAN13
- 0768563818226
New
