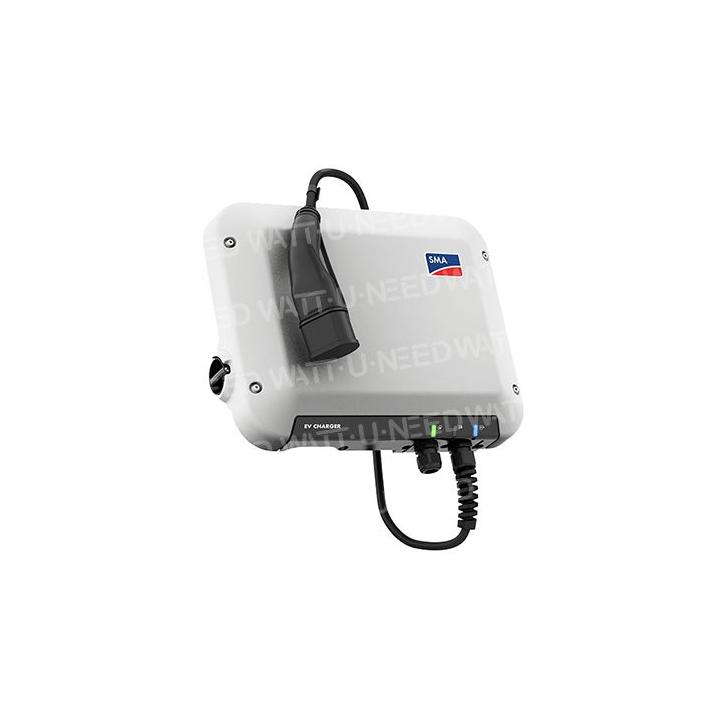

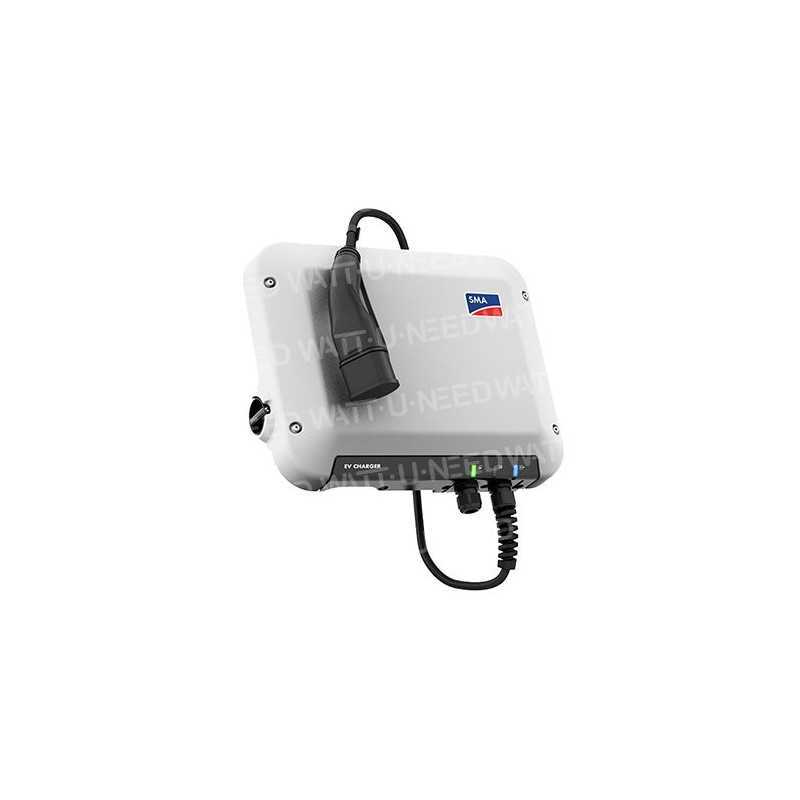

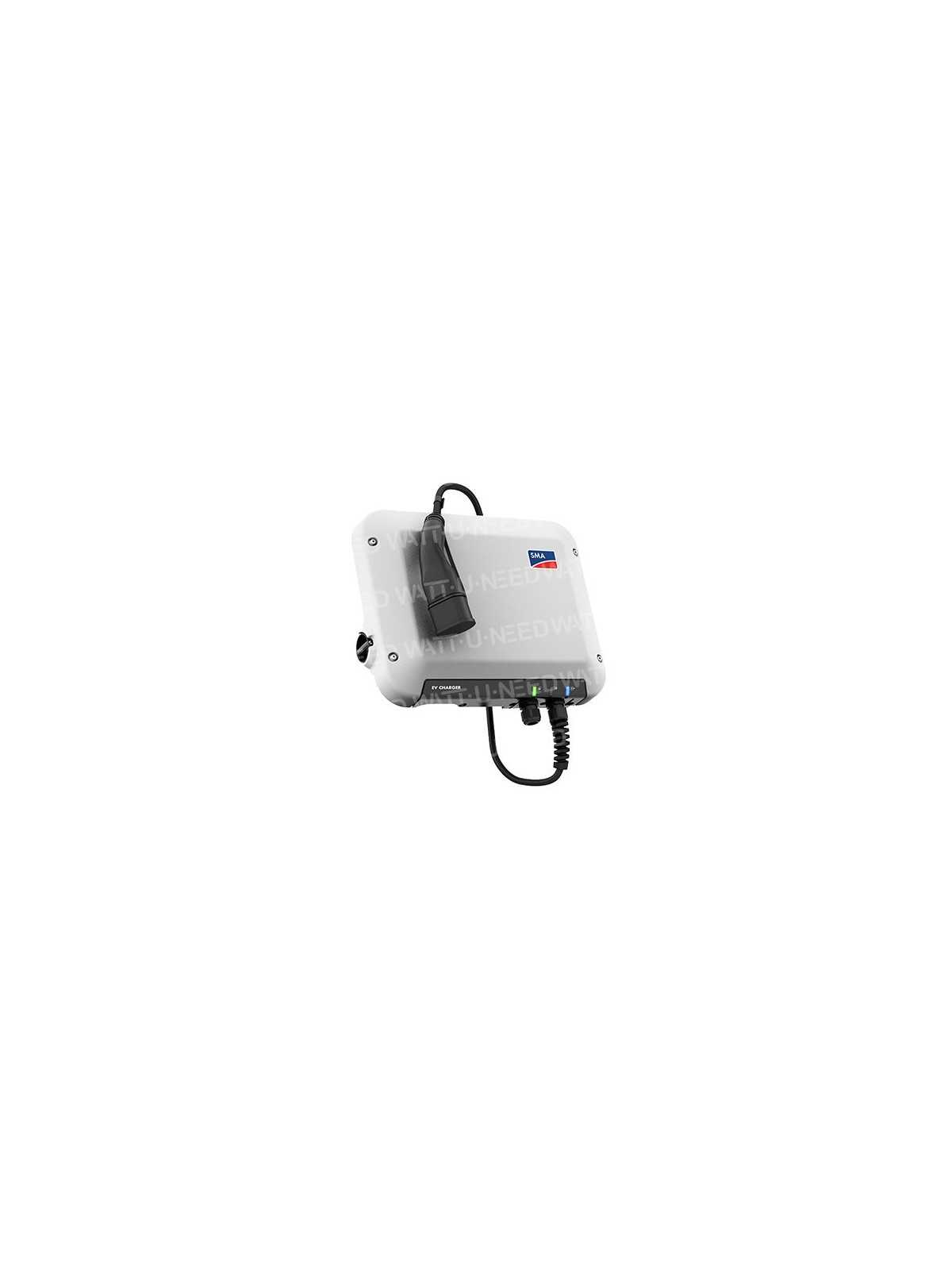

SMA EV Charger: Optimise your electric charging
With the SMA EV Charger, owners of photovoltaic systems can recharge their electric vehicles intelligently and sustainably. Charging electric vehicles with solar energy minimizes the cost of purchasing power from the grid.
Universal
Whether your system is new or has been in use for some time, the SMA EV Charger is highly flexible and compatible with all common electric vehicles, thanks to its permanent connection with a type 2 charging cable. With the SMA Energy System Home, users get solutions from a single source.
- Compatible with all standard electric vehicles
- Can be integrated into new and existing solar power systems
- Everything from a single source
Fast and easy
Control is simply via the rotary switch on the device or via the SMA Energy mobile app. The "Boost" function enables charging almost twice as fast as with conventional charging stations. Even when photovoltaic power is low, automatic switching from single-phase to three-phase charging makes the most of available power.
- Charging up to 22 kW
- Boost" function for single-phase, grid-compatible charging up to 7.4 kW
- Control and visualization via the SMA Energy mobile application
We take care of everything
Thanks to the SMA Energy mobile application, system owners have access to all the information concerning their system at all times. They benefit from greater transparency thanks to real-time information on the charging process, and maximum control since they can configure the charging mode.
The ultimate in convenience: users simply indicate when the car should be ready for use, and the mobile app automatically starts charging at the right moment.
Total peace of mind
The intelligent system systematically takes all consumer devices into account during the charging process, and prevents any overloading of the home connection socket. Automatic adjustment of charging power, even when several consumers are running in parallel, ensures worry-free operation at all times. In this way, users always charge with the maximum available power allowed by the home socket and the vehicle. With SMA Smart Connected, SMA is the first manufacturer to offer free, automatic monitoring of the charging station, enabling PV installers to provide their customers with fast, targeted service.
- Safety thanks to power failure protection
- Reduced installation costs thanks to integrated DC fault monitoring
- Investment security thanks to SMA Smart Connected, a free, integrated service.
Features
| Power consumption (Mode 3) |
| .3 kW to 7.4 kW (configurable) |
.3 kW to 22 kW (configurable)
|
| Rated current |
32 A max. |
| single-phase |
| Connection cross-section |
| x 6 mm² / 3 x 10 mm² (rigid) |
x 6 mm² / 5 x 10 mm² (rigid)
|
| Interface to network operator |
| network |
| Integrated DC fault monitoring |
| mA |
| Power failure protection |
- |
| Ambient conditions in operation |
| Ambient temperature -25 °C to +40 °C (-13 °F to +104 °F) |
| Storage temperature range |
-25 °C to +70 °C (-13 °F to +158 °F) |
| Degree of protection (to IEC 60529) |
| / Impact resistance |
IP 65 / IK 08 |
| Protection class (to IEC 62103) / overvoltage category |
| III |
| Maximum permissible relative humidit |
| y (non-conde |
| nsing) |
100% |
| above mean sea level |
| m to 2,000 m |
| Dimensions (W / H / D) |
460 / 357 / 122 mm (18,1 / 14.1 / 4.8 inches) |
| Grounding diagrams |
TN / TT |
| Display LED display, SMA Energy mobile application |
| Autoconsumption on standby |
< |
|
6
| .3 kW to 7.4 kW (configurable) |
| m |
| Integrated energy meter |
MID-compliant |
| Certifications and approvals (others on request) |
IEC 61851, |
| DIN IEC / TS 61439-7 |
| System compatibility (version : |
February 2020) |
Sunny Home Manager 2.0 |
| Country of availability of SMA Smart Connected |
AU, AT, BE, CH, DE, ES, FR, IT, LU, NL, UK |
Standard equipment ○ Optional equipment - Not available
Data for nominal conditions, version: February 2020 |
| designation |
| .4-1AC-10 |
EVC22-3AC-10 |
