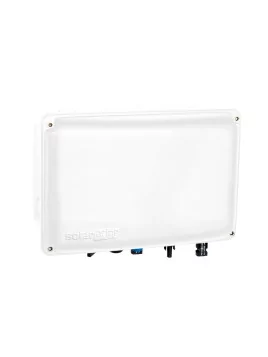

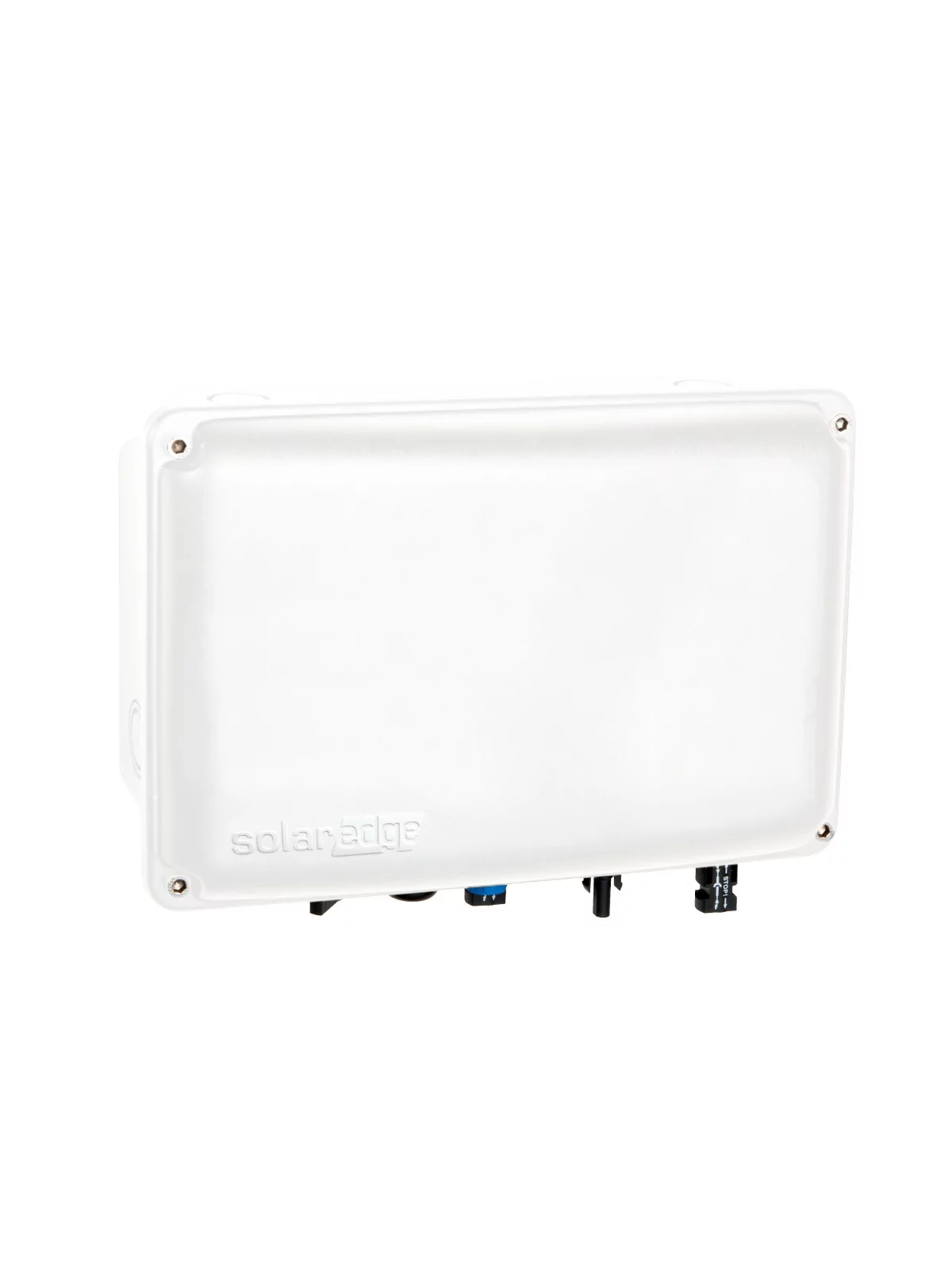

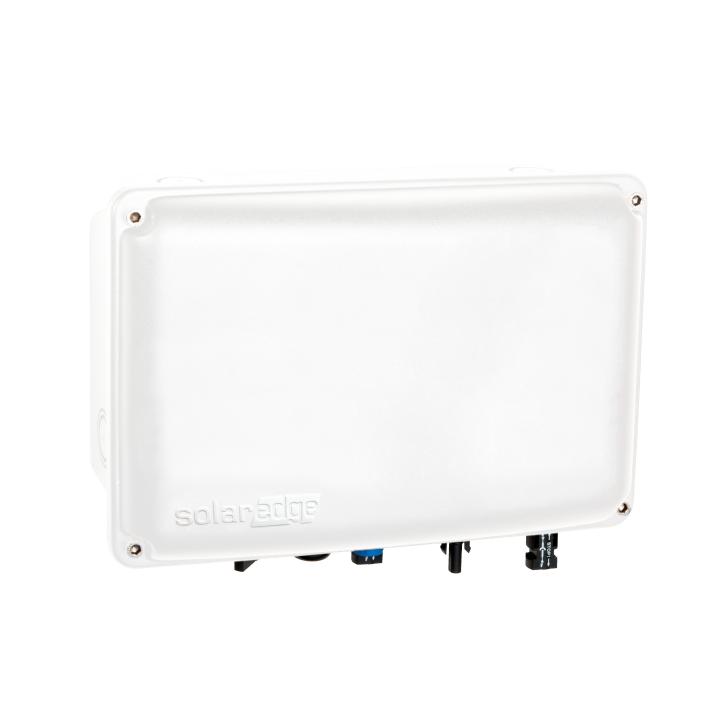

    StorEdge interface

    StorEdge SESTI interface

    $1,915.8
    SESTI-S4
    0712971133952

    Simple and easy to install, the StorEdge interface connects batteries to SolarEdge inverters. The system is also designed to cut DC voltage and current during installation, maintenance or fire-fighting operations.

    StorEdge SESTI interface

    $1,915.8

    "SolarEdge StorEdge Interface

    • Enables the connection of selected battery suppliers such as Tesla Powerwall and LG Chem RESU with a SolarEdge inverter
    • Simple installation and connectivity of the SolarEdge battery and meter
    • Connects to the SolarEdge inverter in parallel with photovoltaic strings
    • Can be used to upgrade existing SolarEdge systems
    • Designed to cut DC voltage and current during installation,
    • maintenance or fire department intervention.

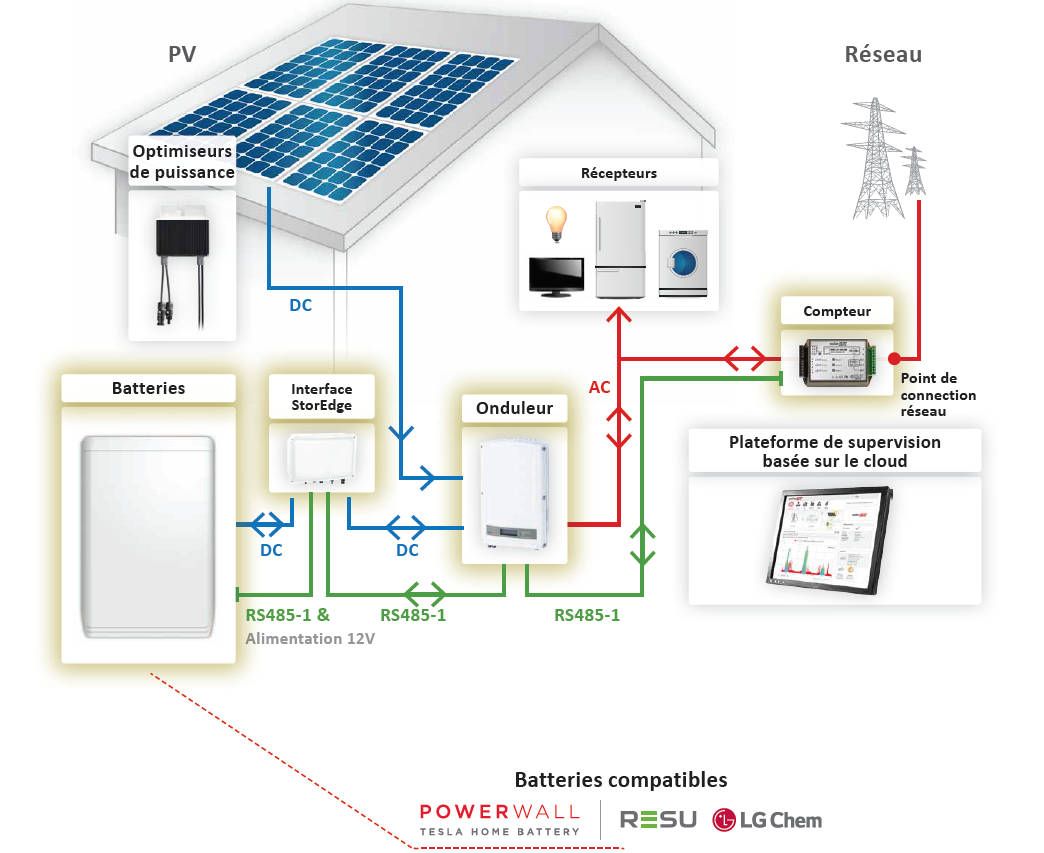

    Schéma fonctionnement StorEdge

    DC BATTERY INPUT

    Number of batteries per interface*
    Up to 2, for double the capacity
    Maximum input voltage
    1000
    Maximum input currentAcc
    ,5
    DC
    on plus and minus terminals12 A (field replaceable)
    ADDITIONAL FUNCTIONS

    Battery communication interfaceRS485
    Meter communication interfaceRS485
    Battery power supplyYes,
    12 V / 53 W
    STOREDGE INTERFACE POWER

    AC input voltage (nominal)
    220 / 230
    AC input voltage range
    184 to 264,5
    AC frequency (nominal)Hz50 / 60 ± 5
    Maximum AC input currentmA300
    INSTALLATION SPECIFICATIONS

    AC input cable gland diameter / cable cross-section
    to 13 mm / 1 to 2,5 mm2
    DC input
    pair MC4
    Bypass cable for parallel connection of PV system and battery to inverterMC4 included
    Dimensions (h x w x d)mm206,6 x 316 x 117.
    Weightkg
    Minimum and maximum operating temperature°C
    to +60
    Protection classIP65
    InstallationWall mounting

    * For 2 batteries with double capacity, contact SolarEdge .

    SESTI-S4

    Data sheet

    Phase
    Monophasé
    Number of MPPT
    1 MPPT
