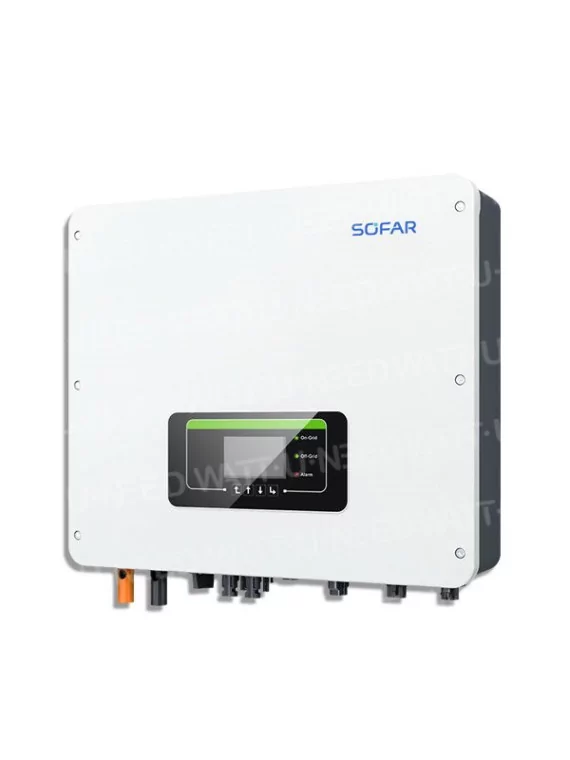

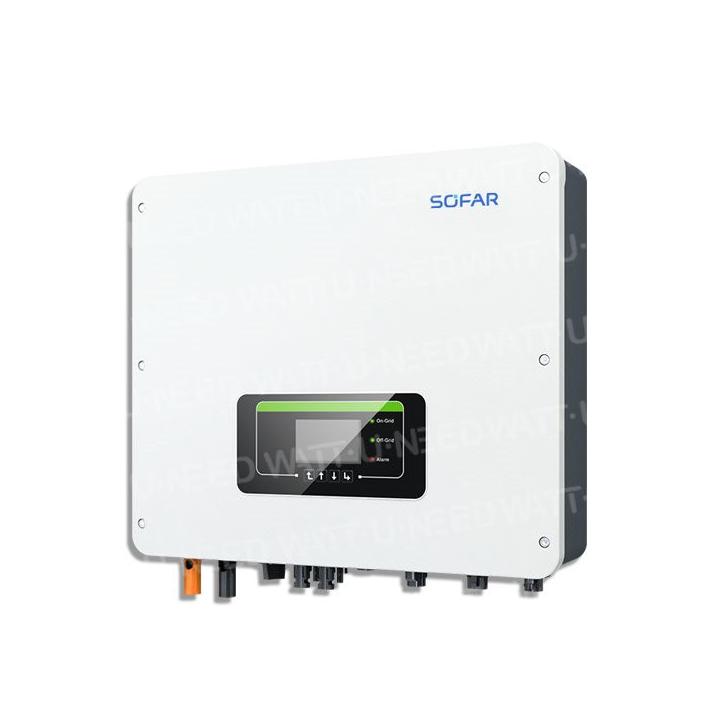

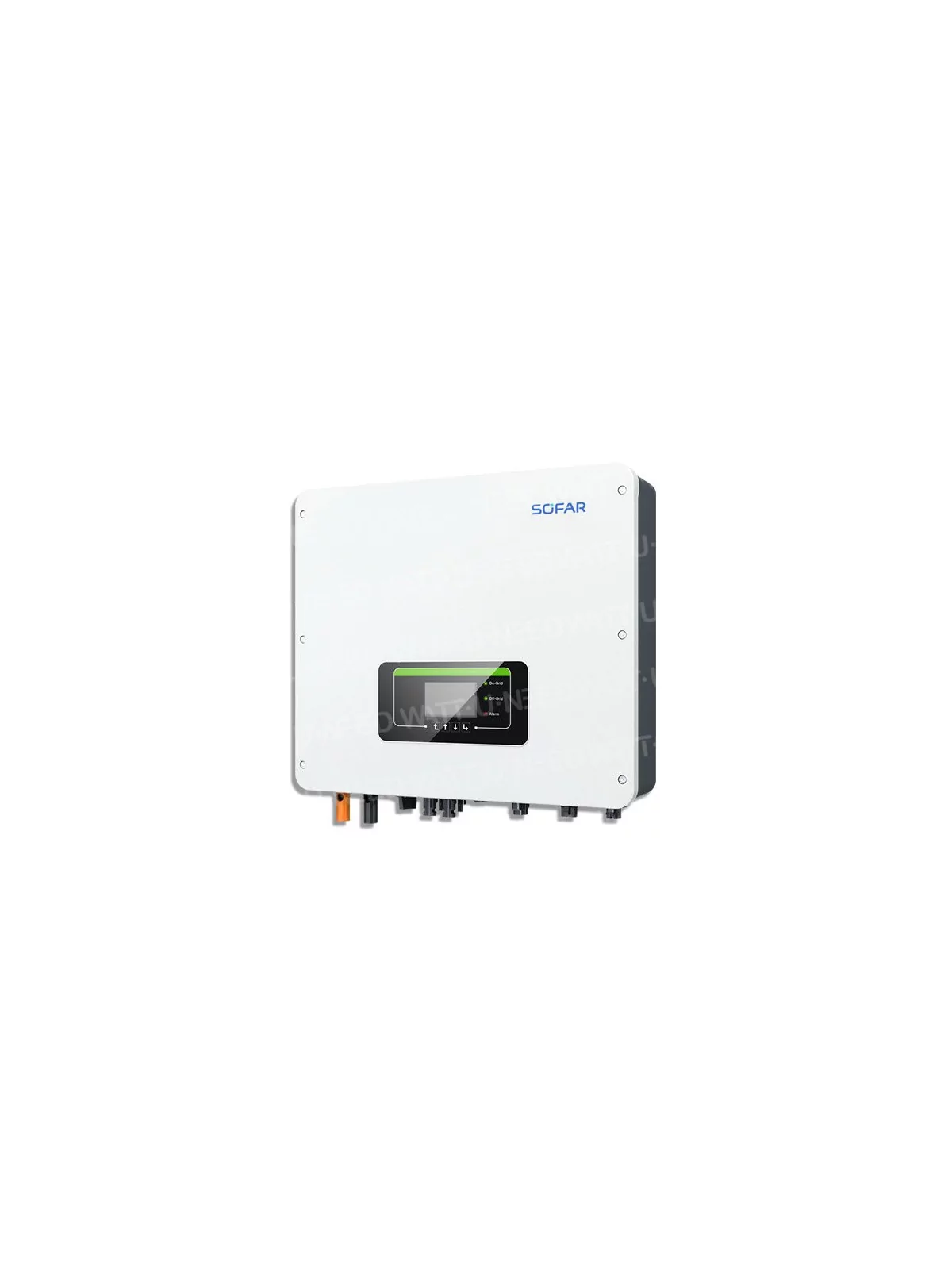

Single-phase hybrid inverter Sofar Solar 3 kVA - HYD3000-EP

Sofar 3kW hybrid inverter: energy autonomy and flexibility

Single-phase hybrid inverter - the perfect solution for enabling energy storage in your PV installation with on-grid and off-grid functions.

The HYD 3000...6000-EP is the new multi-talented hybrid inverter for solar and storage applications. During grid failures, it can provide up to 5 kW of emergency power supply (EPS) in 10 ms thanks to its integrated EPS port. The integrated energy management system features several user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time and/or date ranges, or rules for the day of the week. All modes can be easily configured on the large LCD display.

A WiFi key is supplied with the inverter, for easy connection to the Sofar monitoring portal.

High efficiency

- Maximum efficiency of 99.9%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range

Flexible configuration

The inverter works with lead (GEL) or lithium batteries.

Use in back-up mode

An inverter can be used in "back-up" mode, without the need for photovoltaic panels. In this mode, the UPS assumes the role of an inverter to protect your equipment from grid interruptions. As a result, an inverter protects computers and audiovisual equipment, or any other sensitive load, by providing a constant flow of electrical current. It guarantees a power supply with a switchover time of less than 10 ms, thanks to the EPS function.

Hybrid mode operation

The inverter draws power from the grid only when the battery is depleted and solar energy is not producing enough to meet consumption.

All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function

Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution

Standard display

The display shows all relevant inverter information.

Wiring and connection

1. BATTERY - Battery + and - input terminals
2. OFF / ON - DC switch
3. PV 1 & PV 2 - Solar inputs (male and female)
WIFI
4. - GPRS - USB key connection - Wi-Fi
5. COM - Communication port
6. Link Port 0 &
7. 1 - 0 & 1 link port
8. Grid connection port
9. Load connection port
10. External LCD Terminal - External LCD connection port

Hybrid Inverters: Operating modes

Self-use mode

1. If PV production matches consumption, the inverter neither charges nor discharges the battery.
2. If PV production exceeds consumption, surplus energy is stored in the battery.
3. If the battery is full or at maximum charging capacity, surplus energy is exported to the grid
.
4. If PV production is lower than consumption, the battery is discharged to supply energy to loads.
5. If user energy consumption exceeds PV production, and battery capacity is unable to compensate, the inverter will import energy from the grid.
6. Supply priority: PV > Battery > Grid
7. Consumption priority: Loads > Battery > Grid

Time-of-Use Mode:

1. The user can define up to four rules on when the battery should be charged.
2. Each rule can be activated or deactivated and includes time of day, percentage of battery charge (SOC), charging power, efficiency date and days of the week
.

Timing Mode.

1. The user can define fixed times of the day to charge or discharge the battery with a given power.
2. Up to four rules can be defined, and each rule can be activated or deactivated separately for charging or discharging
.

Passive Mode.

1. Intended for systems with external energy management systems using the Modbus RTU protocol to control the inverter.
2. If the battery is fully charged or at its maximum charging power, PV production is reduced by adjusting the maximum power point (MPPT).
3. If PV production is lower than consumption, the battery supplies the loads.

EPS Mode (EPS Mode).

1. When this mode is activated, the inverter supplies energy to loads when it is off-grid, for example when there is no connection to the public grid or during power failures.
2. If PV production exceeds consumption, the surplus is stored in the battery.

These modes allow the user to flexibly manage how energy is stored and used, optimizing the use of batteries and solar power generation.

Retro-Fit

Optimization of an existing grid-connected installation

SolarMan Smart

SofarSolar redefines the future of energy with smart inverters. Equipped with advanced monitoring features, our inverters include WiFi Stick as standard, paving the way for seamless connectivity. Choose your path to efficiency with options such as Ethernet, GPRS or LTE keys. Transform every installation into a digital symphony, where solar power becomes a connected, intelligent and sustainable experience. SofarSolar, your partner for smarter, brighter energy.

Apple Store - Solarman Smart

Android - Google Play - Solarman Smart

Configuration steps:

1. After starting the application, register as a new user or enter your current SOLARMAN access data.
2. Create a new system and save the system data.
3. Scan the stick logger barcode to assign an inverter to the system.
4. Access the newly created system to configure the stick logger (device/logger).
5. Press the WiFi stick button for 1 second to activate the stick's WPS mode so that the smartphone can be connected to the WiFi stick.
6. Now select your local WiFi network for Internet access and enter your WiFi password.
7. The WiFi key is configured with access data.

5-year warranty for reliable energy

Dive into the energy future with confidence with Sofar Solar hybrid inverters, because we guarantee the outstanding performance of our products for 5 years. Symbolizing our commitment to quality, this warranty offers the peace of mind you need to fully embrace the potential of hybrid energy, transforming your everyday life into a reliable and sustainable energy experience.

Features

BMS

ion

V

2

grid

.

L

1

Overcurrent protectionprotection

-30℃~+60℃

protection

0~100%

Noise

5

EMC

VDE
