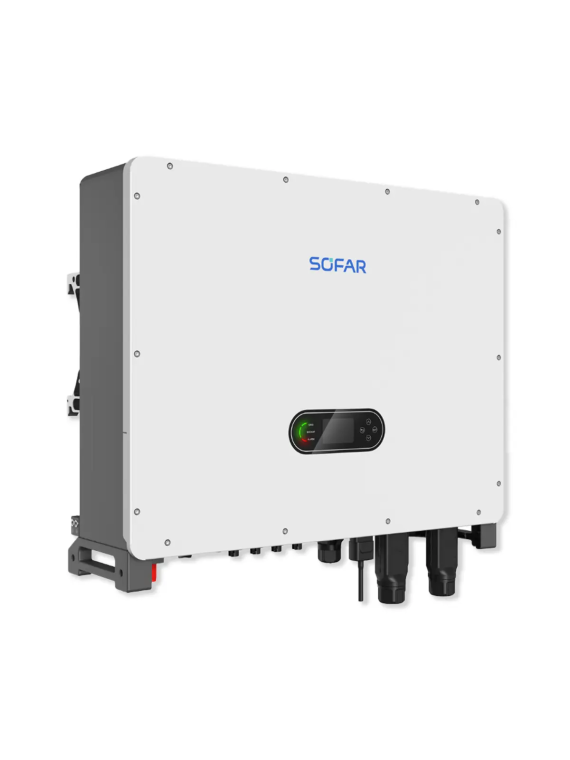

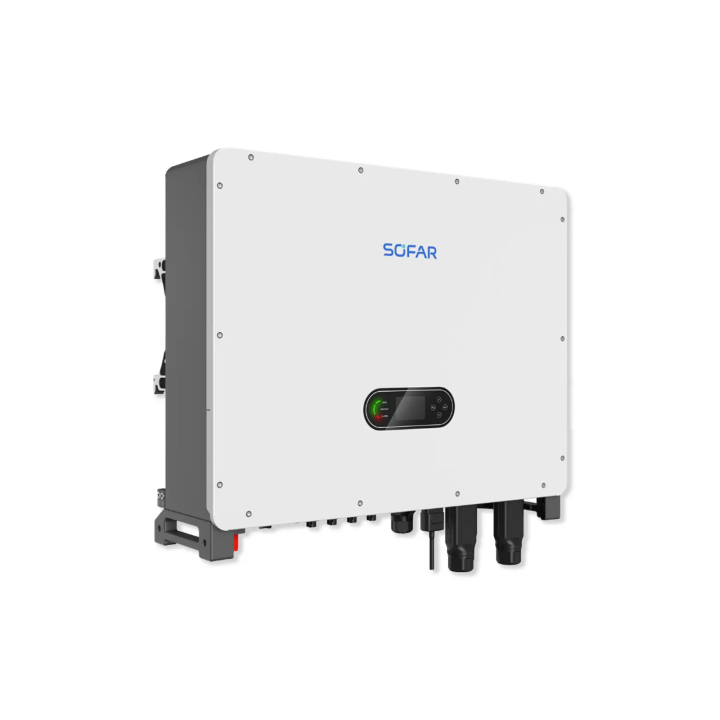

Sofar Solar HYD-50K-T1 | Three-phase Hybrid Inverter 50 kVa
Sofar Solar HYD-50K-T1 | Three-phase Hybrid Inverter 50 kVa

Sofar Solar 50 kVA three-phase hybrid inverter - HYD-50K-T1

€6,187.80
Tax included
HYD-50K-T1
0768563823367

Optimise your performance and energy security with the Sofar Solar HYD-50K-T1 50 kW three-phase hybrid inverter. This professional system integrates solar production, high-voltage battery storage and a powerful backup output, guaranteeing total autonomy and continuity of activity for your installations.


Why choose the HYD-50K-T1?

  • Professional robustness: IP66 certification, ability to handle 150% AC overload and 100% unbalanced loads.

  • High performance: 4 x 40A MPPT inputs with 98.6% efficiency, optimising the production of solar panels, including bi-facial panels.

  • Built-in safety: AFCI (anti-arc) and SPD (surge protection) included for reliable operation.

  • Scalable and flexible: Paralleling up to 10 units and easy genset integration for isolated sites.


Key benefits :

  • Cost control: Reduce your bills thanks topeak shaving.

  • Business continuity: Protection of critical equipment with backup failover in < 4 ms.

  • Total resilience: Enhanced autonomy, even on isolated sites, thanks to generator coupling.


Key features

  • Power: 50 kVa (three-phase)

  • MPPT inputs: 4 (40A per MPPT)

  • Protections: IP66, AFCI, SPD DC Type I+II, AC Type II

  • Compatibility: High voltage (HV) batteries


Pre-order: Expected to arrive soon

Comments (0)

No customer reviews for the moment.

Sofar Solar HYD-50K-T1 - The professional three-phase hybrid inverter for reliable, high-performance energy


Discover the Sofar Solar HYD-50K-T1, the50 kWthree-phase hybrid inverter designed for demanding professional photovoltaic installations. It integrates solar production, high-voltage battery storage and a robust AC-Backup output, guaranteeing maximum reliability and optimum energy autonomy.

Ideal for tertiary buildings, industrial sites, large condominiums or micro-grids, it secures your three-phase power supply while maximising self-consumption. Its compatibility with a generator and its exceptional efficiency make it the complete, scalable solution for critical sites requiring absolute continuity of service.





Sofar HYD-50K-T1 highlights

  • High performance and robustness: Supports up to 200% PV oversizing, 40A per MPPT (ideal for bi-facial modules), 100% unbalanced output loads and 150% AC overload for 10 seconds.
  • Advanced integrated safety: IP66 protection (outdoor installation), integrated DC SPD Type I+II and AC SPD Type II protection, and AI-based arc detection (AFCI) for active fire prevention.
  • Maximum flexibility: Parallel connection of multiple inverters (up to 10 units), easy integration with a genset and intelligent control of non-critical loads.
  • Simplified installation and management: optimised design, quick commissioning via LCD screen or SOFAR mobile application, and full remote monitoring.





Typical uses with the Sofar HYD-50K-T1


Type of installation Application example
Retail and commercial buildings Offices, supermarkets, shopping centres (securing VSEs, servers, lighting)
Industrial and agricultural sites Three-phase power supply for machines, pumps, cold rooms, with peak load management
Large condominiums or micro-grids Shared energy management (collective self-consumption) and common emergency power supply
Isolated or semi-autonomous sites Off-grid systems backed up by an emergency generator
Solar installations with batteries Advanced optimisation of self-consumption and resale of surplus (peak shaving)



Main functions

  • Operating modes : Automatic, ultra-fast (< 4 ms) switchover between stand-alone (off-grid) and grid-connected (on-grid) modes.
  • Battery optimisation: Programmable charge and discharge management to optimise self-consumption or take advantage of peak/off-peak tariffs.
  • Generator integration: Compatible with a genset (connection to the AC-Backup or AC-Grid port) for total resilience.
  • Scalability: Can be paralleled for larger systems and increased power.
  • Compliance: Complies with all current European standards for grid connection.



Technical specifications

Model HYD-50K-T1
Rated AC power 50,000 W (50 kW)
Number of MPPT 4 independent MPPTs
Max current per MPPT 40 A
Max PV voltage (Voc) 1000 V DC
MPPT voltage range 160 - 950 V DC
Max efficiency 98,2 %
AC-Backup output Three-phase, 50 kW, 100% unbalanced load support
Protection class IP66 (suitable for outdoor use)
Operating temperature range -30 °C to +60 °C (derating > 45 °C)
Weight / Dimensions 75 kg / 850 × 660 × 305 mm
Communication RS485, optional: Wi-Fi, CAN, Ethernet,
Generator compatibility Yes
Protections included AFCI, SPD DC Type I+II, SPD AC Type II



The Sofar Solar HYD-50K-T1 is a complete, robust and flexible solution for professional sites wishing to combine solar production, storage and energy security. Thanks to its high efficiency, intelligent connectivity and IP66 design, it is a strategic choice for any 50 kW three-phase photovoltaic installation.





SolarMan Smart - Remote monitoring and control

SofarSolar is redefining the future of energy with intelligent inverters. The HYD-50K-T1 does not include the WiFi Stick (Logger) by default for seamless connectivity to the SolarMan monitoring platform. Turn every installation into a connected, smart and sustainable experience.

Apple Store - Solarman Smart

Android - Google Play - Solarman Smart

Solarman

Configuration steps :

1. After starting the application, register or log in to your SOLARMAN account.
2. Create a new system and fill in the necessary data.
3. Scan the barcode of the stick logger to associate the inverter.
4. Configure the logger in the newly created system.
5. Press the WiFi key button for 1 second to activate WPS mode.
6. Select your local WiFi network and enter your password.
7. The WiFi key is now configured.

FAQ - Sofar HYD-50K-T1model

1. Can the HYD-50K-T1 operate without a battery?
Yes, it can operate as a standard on-grid UPS. Adding batteries activates the hybrid and standby functions.

2. What type of battery is compatible?
This inverter is designed for high-voltage (HV) batteries. SofarSolar maintains an official compatibility list.

3. Is it compatible with a generator?
Yes, the inverter has a dedicated port or can be configured to integrate with a generator, ensuring a continuous supply even in the event of a prolonged power cut.

4. Is it necessary to balance three-phase loads on the emergency output?
No. This is one of its strong points: the AC-Backup output supports up to 100% unbalanced load between phases, which is crucial for commercial buildings.

5. Can several inverters be connected in parallel?
Yes, the system is designed to be paralleled (up to 10 units) to create high-power plants (up to 400 kW) with storage and back-up functions.

6. How can I monitor production and consumption?
Via the SolarMAN Cloud platform (mobile application or web interface), accessible via the optional Wi-Fi logger, enabling real-time monitoring of production, consumption and battery status.

HYD-50K-T1

Data sheet

Inverter power
50000 W
Operating temperature
-30°C to +60°C (derating above +45°C)
Voltage
48V
Phase
Triphasé
Number of MPPT
4 MPPT
IP protection
IP 66
Inverter type
Hybrid
Max. recommended PV input power
100000 Wc
Starting voltage
200V
Nominal mains voltage
3(N)~+PE, 380/400/415 Va.c.
THDi (Nominal power)
inférieur à 3 %
Maximum discharge current
80 A
Weight
75 kg
Dimensions (L x W x D)
850 x 660 x 305 mm
Maximum input voltage
1000 V
Communication
RS485, optional: WiFi/4G/LAN
European weighted efficiency
97,5 %
Nominal input voltage
600 V
Maximum efficiency
98,2 %
Nominal battery voltage
350 - 435 V
600 - 1000 V
AC apparent power Max.
55000 VA
Nominal frequency
50/60Hz
MPPT voltage range
160 - 950 V
PV input current
40/40/40/40 A
Number of MPPT / strings per MPPT
2/2/2/2
Maximum load current
100A

Specific References

UPC
768563823367
EAN13
0768563823367
