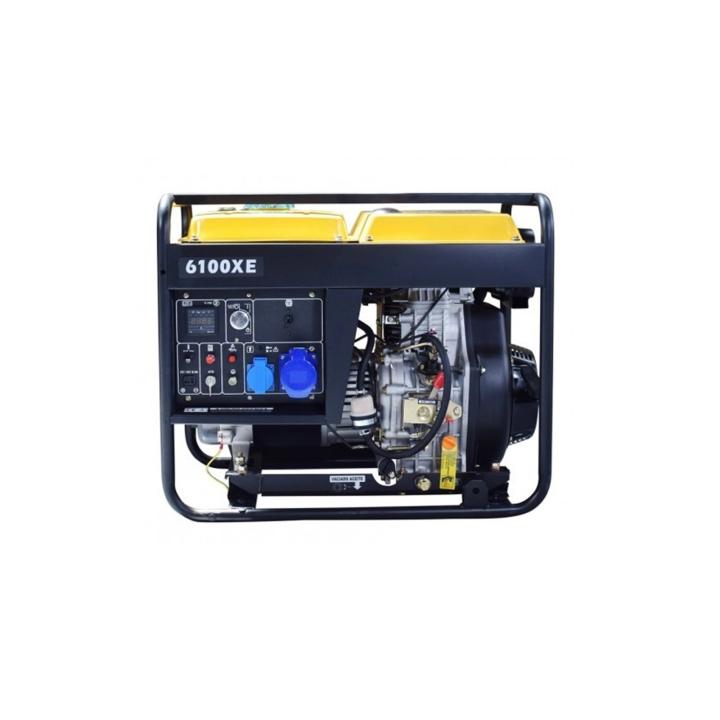

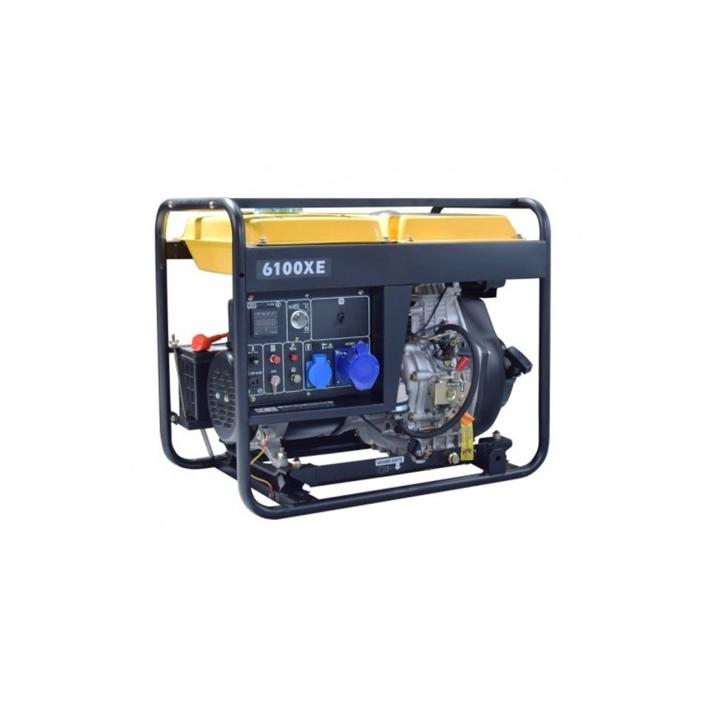

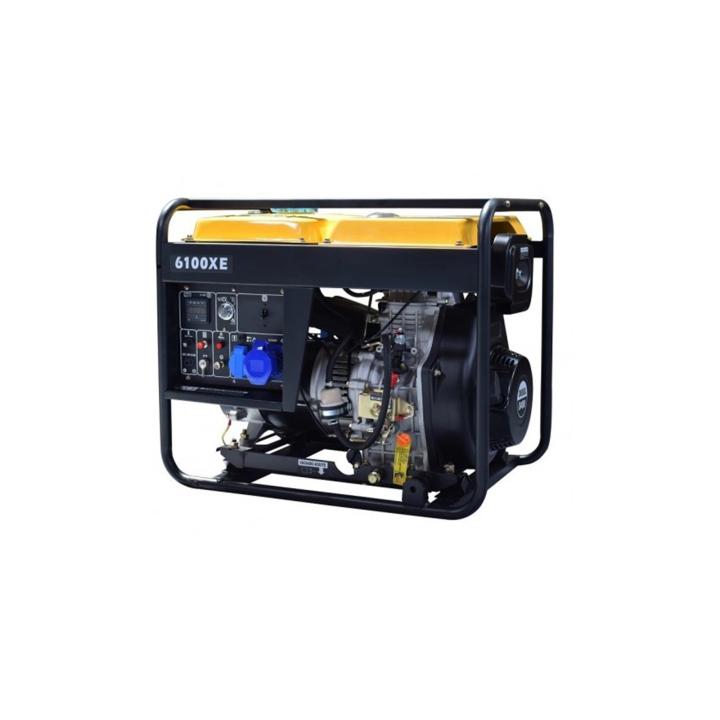

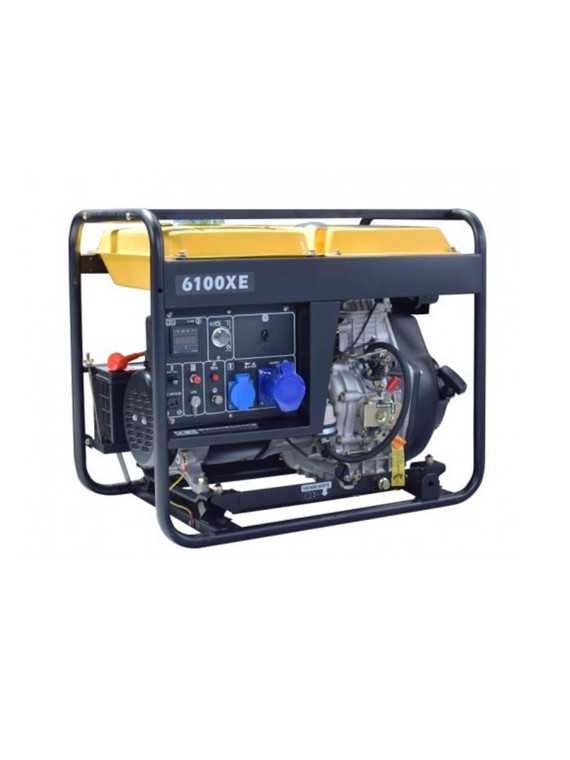

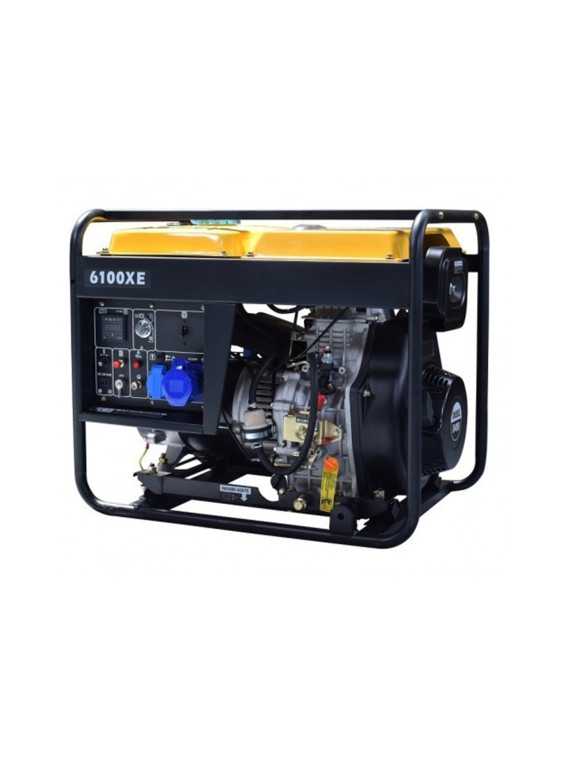

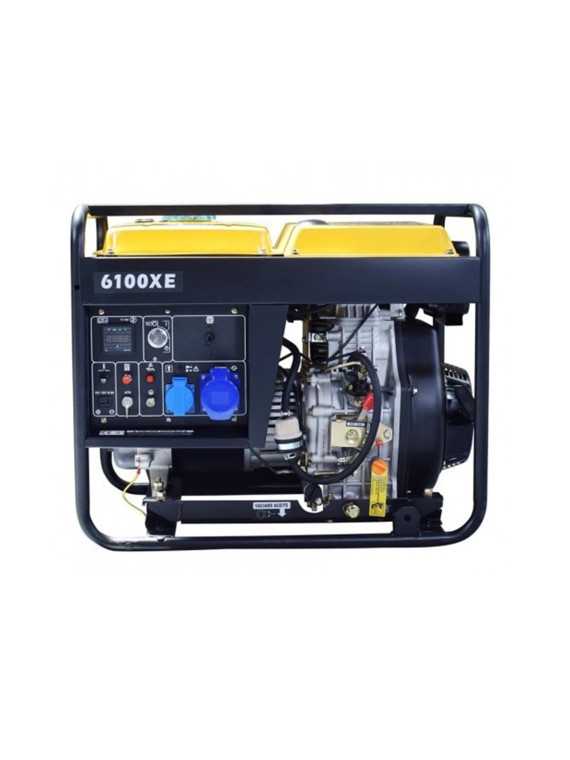

Kompak NT-6100XE 5500W Single-Phase 230V Diesel Generator
€1,309.83
Tax included
NT-6100XE
3760236754050
The diesel generator Kompak NT‑6100XE delivers up to 5500 W (5.5 kW) of maximum power, with a single-phase output of 230 V – 50 Hz. This generator is designed to provide stable and efficient power for your household appliances, workshop tools, electrical devices, or temporary installations.
It is equipped with a 4-stroke engine (418 cc, 10 HP) of OHV type, ensuring robustness and durability. The full copper alternator guarantees high-quality electricity production, and the AVR regulation system limits voltage fluctuations to ±1.5%, making it perfectly suitable for sensitive devices.
The control panel features 230 V sockets (2 × 16 A), a 12 V socket (8.3 A), an hour meter, a thermal circuit breaker, and a connector for automatic start via ATS. Start-up can be electric or manual, offering flexibility and ease of use.
With a 14 L fuel tank, the NT‑6100XE provides an autonomy of about 11 hours at 50% load. Its robust steel chassis and easy transport make it suitable for a variety of uses: workshop, construction site, domestic backup, standalone installation, or occasional use.
Reliable, versatile, and easy to operate, the Kompak NT‑6100XE is an effective solution to ensure stable, safe, and long-lasting power — whether for DIY, work, home, or emergency backup.
Kompak NT-6100XE 5500W Single-Phase 230V Diesel Generator
The Kompak NT-6100XE is a reliable and robust diesel generator, designed to provide a high-performance 230V single-phase power supply. Fitted with a 418cc (10 hp) 4-stroke engine and a 100% copper alternator, it features an AVR (Automatic Voltage Regulator) system with a variation margin of just 1.5%, ensuring a stable current even for your sensitive equipment.
This versatile model features an electric start for effortless start-up, whilst retaining a manual recoil starter as a backup. With its 14-litre fuel tank, it offers ample running time for a full day’s work or extended use as a domestic backup power source.
| Technical Specifications: 5500W Diesel Generator | |
|---|---|
| Power (Max / Rated) | 5,500 W / 5,000 W |
| Engine | 4-stroke OHV diesel (418 cc - 10 hp) |
| Voltage regulation | AVR (variation ± 1.5%) |
| Start-up | Electric (key) & Manual / ATS compatible |
| Voltage | 230 V single-phase |
| Tank capacity | 14 L |
| Runtime | Approximately 11 hours (at 50% load) |
| Available sockets | 2 x 230V 16A / 1 x 12V 8.3A |
| Chassis | Large-diameter steel tubing with silent blocks |
| Net weight | 114 kg |
Recommended uses
- Camping, vans, caravans, leisure.
- Food trucks, mobile stands, events.
- Domestic backup power for lighting and light household appliances.
- Computers and sensitive equipment (thanks to the inverter).
- Light DIY / travel.
Kompak’s strengths and benefits
- European expertise: Kompak is recognised worldwide for the robustness of its construction site tools.
- 100% Copper Alternator: Ensures high-quality electricity generation and an extended service life for the generator.
- Full control panel: Includes an LED controller with hour meter, thermal circuit breaker and an ATS connector for automatic start-up (optional box).
- Exhaust silencer: Reduces noise emissions for greater user comfort.
- Engine safety: Integrated oil level alarm preventing start-up if the level is too low.
Start-up and maintenance
- Preparation: Fill up with diesel and 4-stroke engine oil. Check that the battery is connected before starting via the ignition key.
- ATS start-up: This model is ready for full automation in the event of a mains power cut via an external ATS unit.
- Maintenance: Follow the recommendations for regular oil changes to ensure the engine’s longevity (maintenance kit available separately).
Warranty
Kompak equipment comes with a 2-year warranty.
FAQ - Kompak NT-6100XE Generator
NT-6100XE
Data sheet
- Phase
- Monophasé
- Standard warranty (years)
- 2 ans
- Weight
- 114 kg
- How it works
- Thermal
- Voltage in Volts
- 230 V
- Maximum power in Watts
- 5500 W
- Rated power in Watts
- 5000 W
- Frequency
- 50 hz
- Amperage
- 16/32
- Prises
- 1x16A, 1x16A
- Carburant
- Diesel
- Fuel capacity in liters
- 14 l
- Oil capacity in liters
- 1,6 l
- Autonomy and heure
- 11h at 50% load
- Multifunction display
- Oui
- Inverter
- Non
- AVR
- Oui
- Parallel connection
- Non
- Noise level at 7 metres in dB
- 79 dB
- Silencer
- Non
- Manual start
- Oui
- Electric start
- Oui
- Engine
- D400E
- Displacement in cc.
- 418
- Engine power in hp
- 10
- Motor speed
- 3000 rpm
- Oil shortage safety device
- Oui
- Thermal circuit breaker
- Oui
- Alternator
- Copper
- ATS
- Compatible
- Protection class
- IP23M
- Dimensions (L x l x H)
- 72 x 48 x 60 cm
Specific References
- UPC
- 760236754050
- EAN13
- 3760236754050
- MPN
- NT-6100XE
