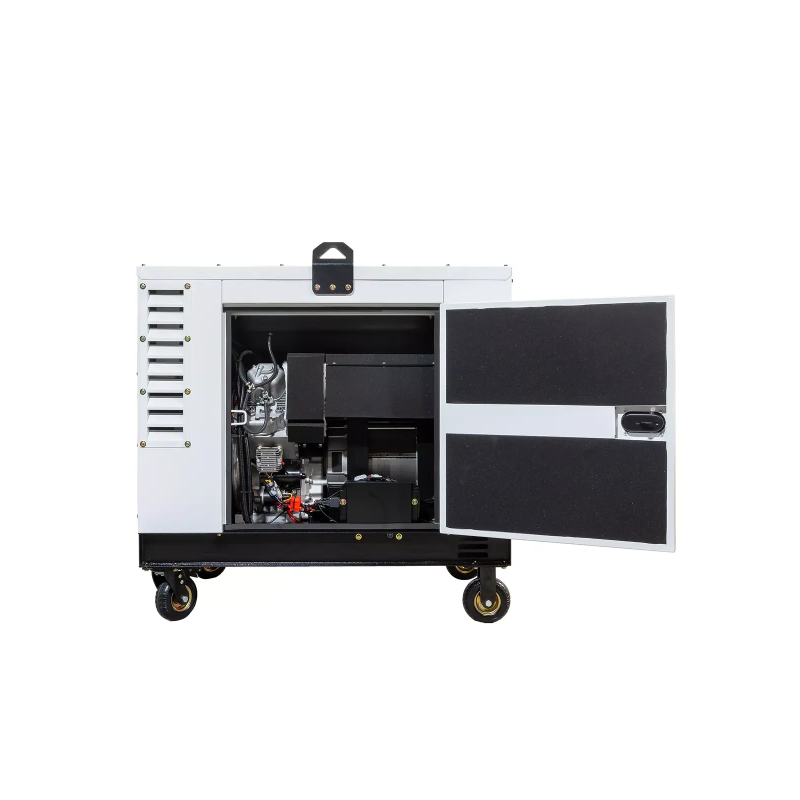

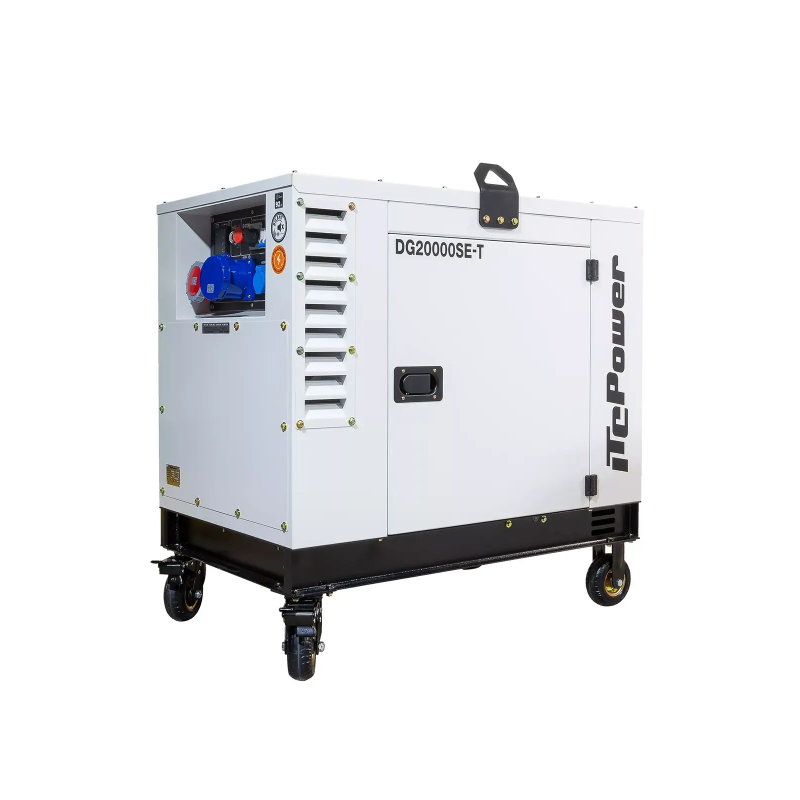

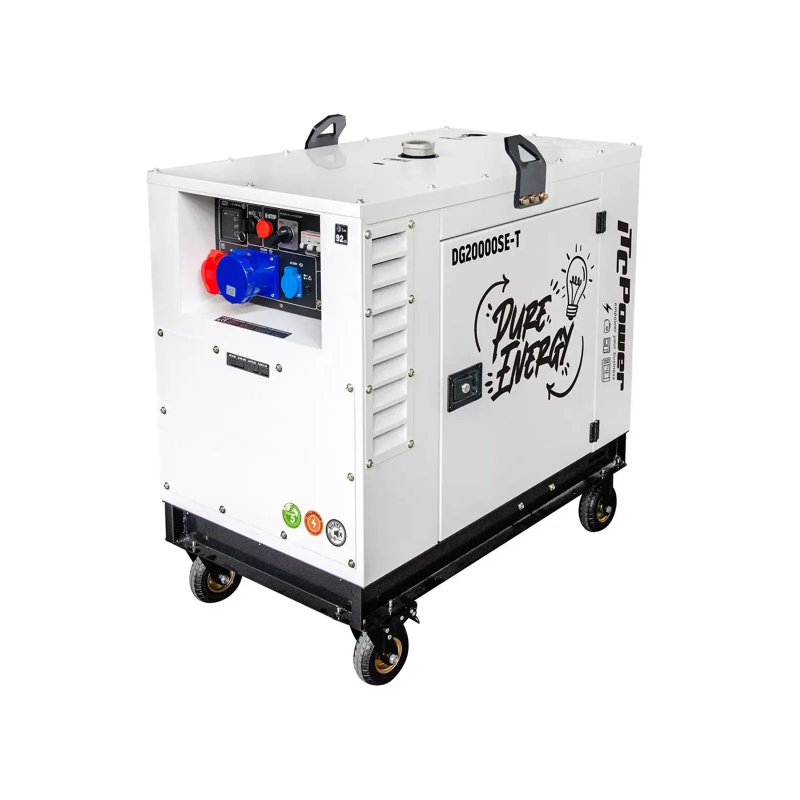

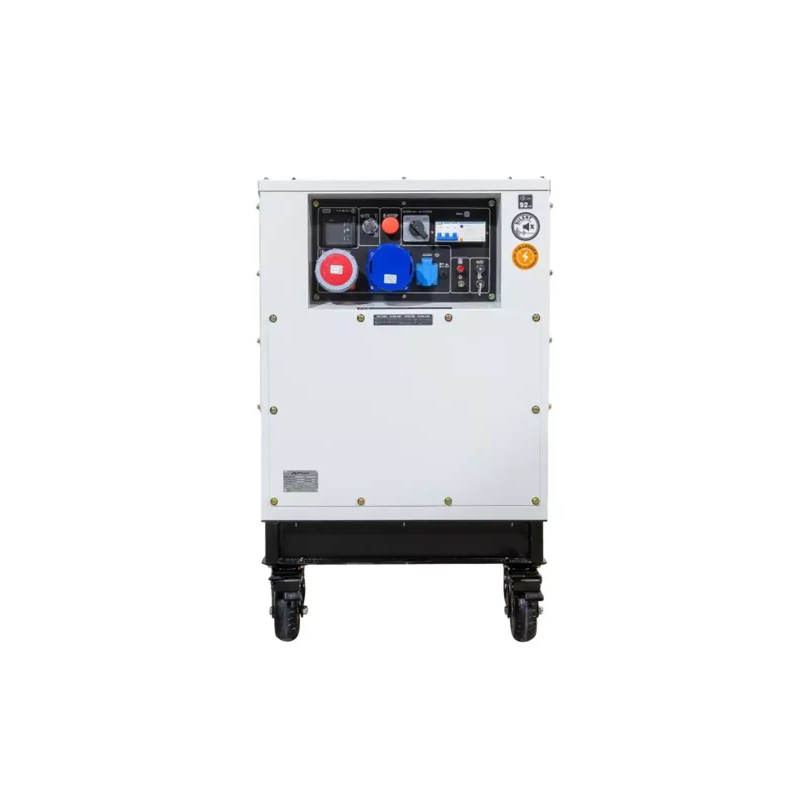

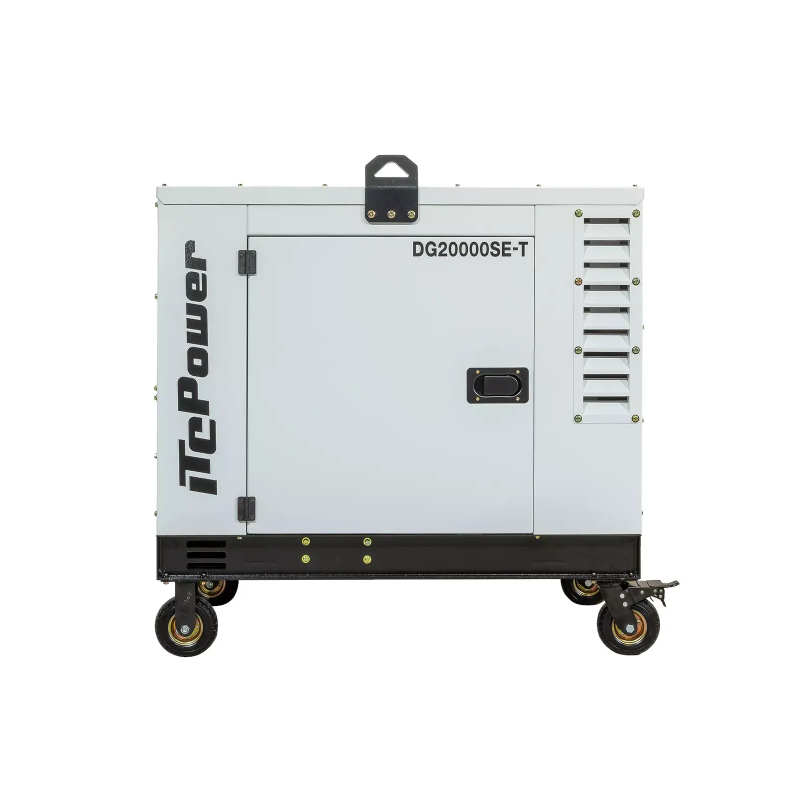

ITC Power DG20000SE-T 20kVA Full Power 230V/400V Diesel Generator

€5,544.83
Tax included
DG20000SE-T
8435672797033

The ITC Power DG20000SE-T diesel generator is an industrial unit delivering up to 16,000 W (20 kVA) of maximum power. Thanks to its "Full Power" technology, it delivers 100% of its capacity in both single-phase (230 V) and three-phase (400 V) modes, offering total flexibility for the most demanding installations.

Its 1,247 cc (24.4 hp) V-twin engine is coupled with a 100% copper alternator featuring high-performance AVR regulation (1%). This system guarantees perfect current stability, enabling the safe power supply of heavy-duty professional equipment or sensitive electronic devices.

Designed for endurance, it features a massive 46-litre fuel tank for exceptional range. It incorporates a digital LED6 display, electric start, and ATS (grid backup) and AUTO (solar control) connections, making it an ultra-comprehensive off-grid energy solution.

Despite weighing 334 kg, it remains mobile thanks to its wheeled chassis. Its soundproof housing keeps noise levels at 72 dB at 7 m, a remarkable achievement for a generator of this size. Robust and extremely powerful, the DG20000SE-T is the ultimate choice for securing a property, a business or a large-scale construction site.

ITC Power 20kVA Full Power 230V/400V Soundproofed Diesel Generator DG20000SE-T


The ITC POWER DG20000SE-T is the ultimate power solution for large-scale energy requirements. Thanks to its Full Power technology, it delivers 100% of its power in both single-phase (16 kW) and three-phase (20 kVA) modes. Fitted with a 1250 cm³ D1250E two-cylinder diesel engine producing 24.4 hp, it ensures a stable and continuous power supply for luxury homes, industrial sites or agricultural operations.

Its 100% copper alternator, combined with AVR regulation, guarantees perfectly stable current, which is essential for protecting your sensitive electronic equipment. Its high-performance soundproof enclosure limits noise levels to 72 dB, offering remarkable comfort for a machine in this category.





Technical Specifications: DG20000SE-T Diesel Generator (20 kVA Full Power)
Voltage type Single-phase (230 V) & Three-phase (400 V)
Maximum Power 20 kVA (400 V) / 16,000 W (230 V)
Rated Power 18.8 kVA (400 V) / 15,000 W (230 V)
Maximum Current 69.6 A (230 V) / 28.9 A (400 V)
Output configuration 1x 5-pin PCE 50A / 1x 32A / 1x 16A
Engine D1250E (1250 cc) - 24.4 hp - 3000 rpm
Alternator / Regulation AL15-T (Brush / AVR)
Tank / Oil capacity 46 L / 3.5 L
Runtime 9 hours (at 50% load)
Control interface Multifunction LED6 display
Noise level 72 dBA at 7 metres
Dimensions (L x W x H) 125 x 65 x 76 cm
Net / Gross Weight 334 kg / 354 kg





Key features of the DG20000SE-T

  • FULL POWER technology: Dual-voltage, dual-winding generator delivering 100% power in three-phase AND 100% in single-phase.
  • Sensitive Electronic Protection: Integrated AVR regulation suitable for IT equipment, servers, home automation and modern power tools.
  • Acoustic Comfort: High-density soundproof casing with exhaust silencer and double chassis for maximum vibration reduction.
  • Full Control: Comprehensive control panel with multifunction display (hour meter, voltage, frequency) for precise load management and maintenance.
  • Total Safety: Automatic shut-off system for low oil levels, thermal protection and integrated circuit breakers.
  • Photovoltaic & ATS Compatibility: Includes an AUTO connection for solar installation (battery charging) and a socket for an ATS unit (automatic start-up in the event of a mains power cut).





Recommended Applications

  • Residential & Commercial Backup: Ideal for powering an entire large villa, a small block of flats or critical infrastructure.
  • Industrial & Agricultural Use: Powering heavy three-phase motors, pumping systems and high-power tools.
  • Photovoltaic Supplement: Seamless integration with solar systems to ensure a continuous 24/7 power supply.





Warranty

ITC POWER equipment comes with a 2-year manufacturer’s warranty. This guarantee of reliability ensures technical support and peace of mind for your most demanding installations.





FAQ - ITC POWER DG20000SE-T Diesel Generator (20 kVA)

1. What is “FULL POWER” technology on a 20 kVA generator? +
FULL POWER technology is a major innovation that enables this generator to deliver 100% of its rated power in both single-phase (15 kW) and three-phase (18.8 kVA) modes. Unlike standard three-phase models where the 230V output is limited to one-third of the power, the DG20000SE-T offers total versatility to power either an entire house or industrial machinery.
2. What are the performance specifications of the 1250 cc twin-cylinder engine? +
The 1250 cc D1250E twin-cylinder engine delivers an impressive 24.4 hp. Its twin-cylinder configuration ensures much smoother operation than single-cylinder engines, better vibration control and exceptional torque reserve, which is essential for handling the massive load peaks of high-power equipment.
3. Can computer servers or home automation systems be powered safely? +
Yes. The AL15-T alternator is coupled with a high-precision AVR regulation system. This device smooths the output voltage to protect sensitive electronic components (computers, servers, data centres, home automation systems) against micro-variations in current. This guarantees stable, industrial-grade power.
4. What is the runtime of the 46-litre fuel tank? +
Thanks to its large-capacity fuel tank and the efficiency of its direct-injection diesel engine, the DG20000SE-T offers a runtime of 9 hours at 50% load. This extended runtime is a major advantage for critical infrastructure or agricultural operations requiring a continuous power supply over long periods without frequent refuelling.
5. Is it compatible with automatic start-up (ATS) and solar power? +
Absolutely. It is fitted with a socket for an ATS unit, enabling immediate automatic start-up as soon as a mains power cut is detected. Furthermore, it features a dedicated AUTO connection for photovoltaic installations, allowing the generator to automatically take over to recharge your solar storage batteries if necessary.
6. How quiet is a generator of this power rating? +
Despite its net weight of 334 kg and powerful engine, the DG20000SE-T is considered quiet for its class, with a noise level of 72 dBA at 7 metres. Its high-density soundproof casing, optimised exhaust silencer and dual anti-vibration chassis allow it to be used near buildings with minimal noise impact.
