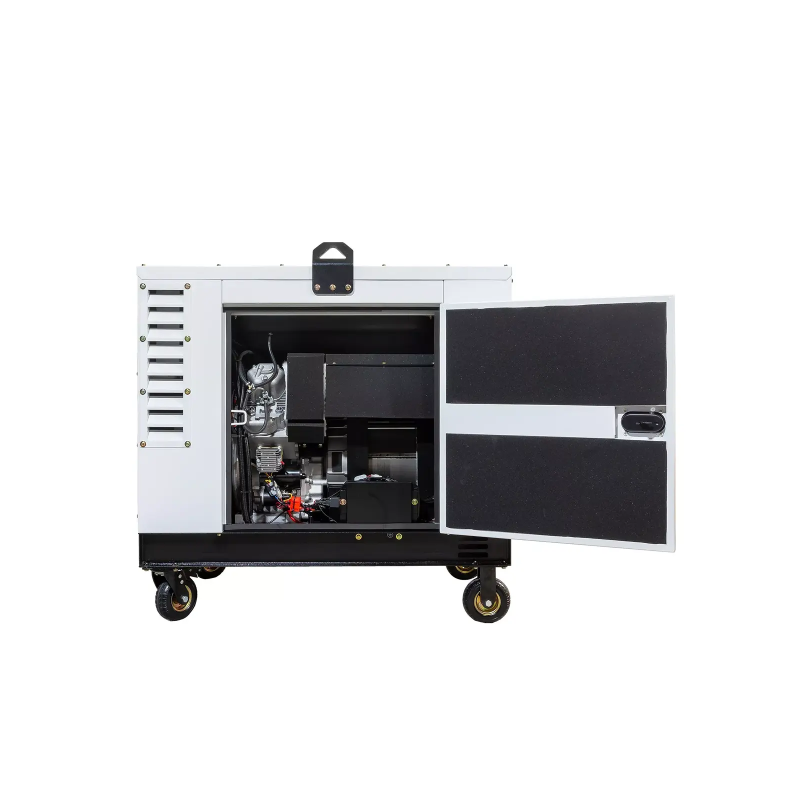

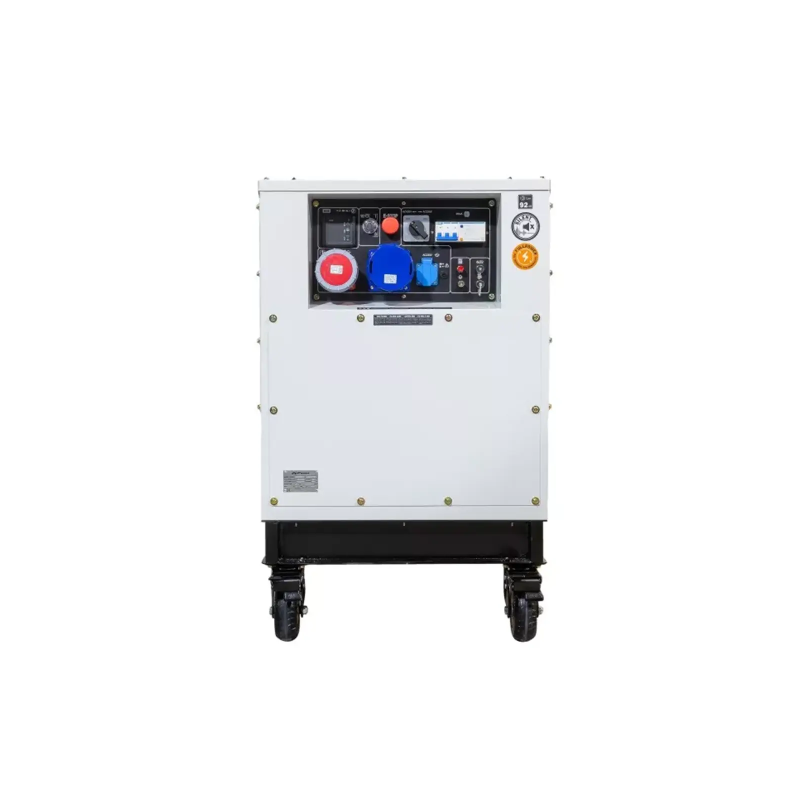

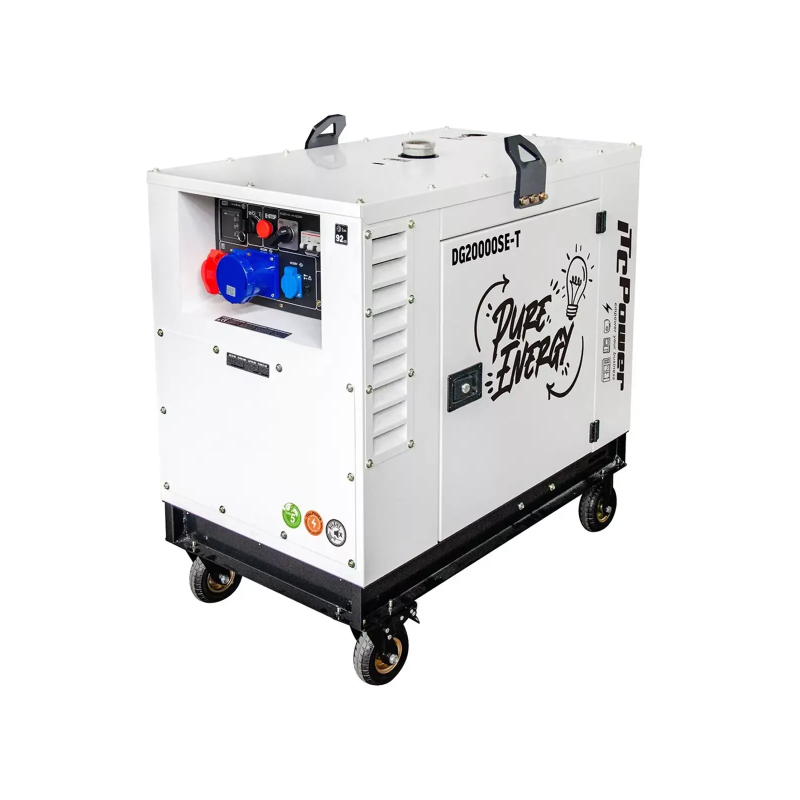

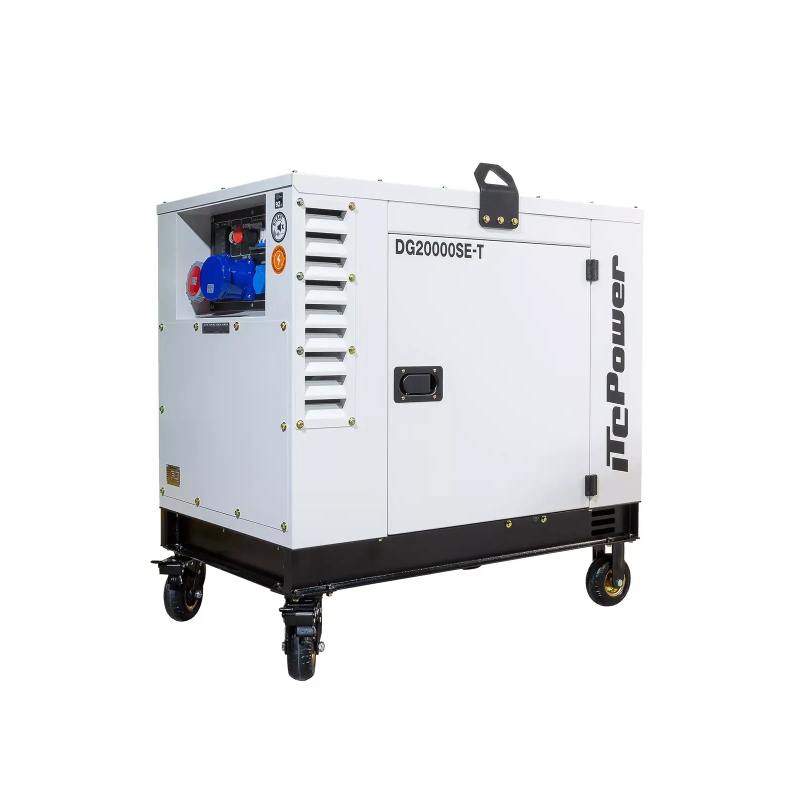

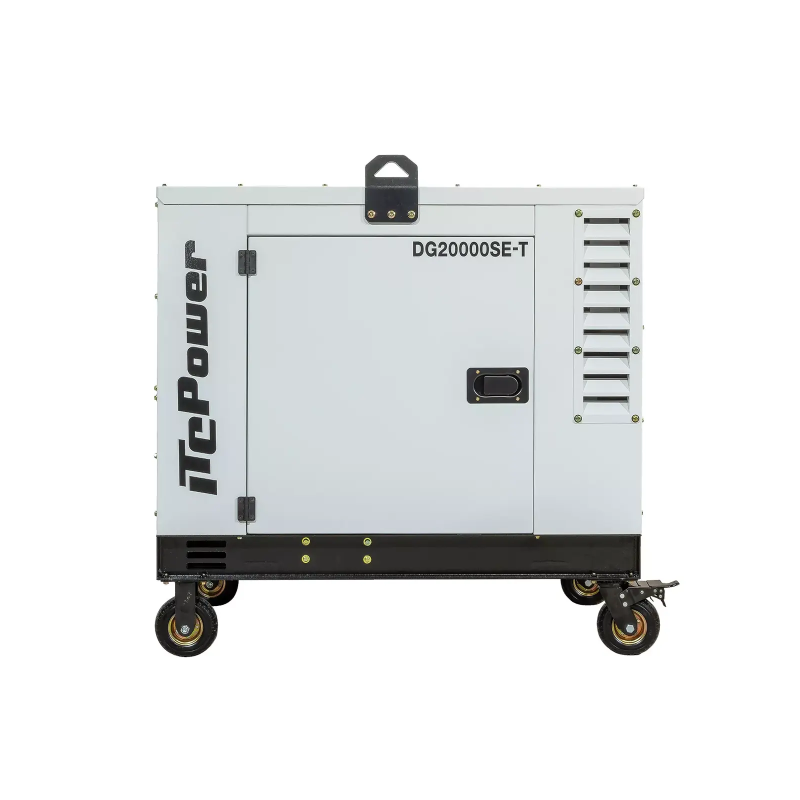

ITC Power 20kVa Full Power 230V/400V Soundproof Diesel Generator DG20000SE-T

ITC Power 20kVa Full Power 230V/400V Soundproof Diesel Generator DG20000SE-T

The ITC POWER DG20000SE-T diesel generator is a powerful and reliable solution for a stable power supply, suitable for domestic, professional and industrial use. Designed to offer dual single-phase and three-phase voltage, it delivers a maximum power of 20 kVA at 400 V (16 kW at 230 V), while protecting your equipment thanks to its copper alternator and integrated AVR. With a robust, silent diesel engine, it is ideal for extended operation for up to 9 hours at half load.

Technical specifications

Key features

• Dual voltage: 230 V single-phase or 400 V three-phase supply
• High power: up to 20 kVA, ideal for domestic and professional loads
• Robust diesel engine: D1250E 1,250 cc, 24.4 hp for long-lasting, reliable operation
• Autonomy: up to 9 h at 50% load thanks to its 46 L tank
• Complete safety: integrated low-oil protection and thermal circuit breaker
• Copper alternator with AVR: protects sensitive equipment from voltage fluctuations
• Silent and mobile: noise level of 72 dB at 7 m, easy transport on wheels
• Electric starting: 12 V, 45 Ah battery included, ATS compatible for automatic starting

Applications

The ITC POWER DG20000SE-T diesel generator provides a reliable, continuous power supply, even in remote locations without a mains connection. It is ideal for :

• Domestic use: household appliances, lighting, TVs, freezers and pumps
• Construction sites and events: powering tools, compressors and temporary equipment
• Critical systems: servers, medical equipment and sensitive appliances requiring stable voltage
• Photovoltaic complement: compatible with solar systems to guarantee continuous power supply

The ITC POWER DG20000SE-T diesel generator is the ideal choice for those looking for power, reliability and safety. With its dual voltage, high-performance diesel engine, copper alternator with AVR and full protection, it provides a stable, continuous power supply for all types of equipment, whether domestic, professional or critical. Its comfortable autonomy, silent operation and mobility thanks to its wheels make it a practical and efficient solution. Investing in the DG20000SE-T is a guarantee of a reliable, durable and safe power supply, whatever the circumstances.

FAQ - ITC POWER DG20000SE-T generator set

Q1 : What is the maximum and rated power?
A: Maximum power: 20 kVA (400 V) / 16 kW (230 V). Rated power: 18.8 kVA (400 V) / 15 kW (230 V).

Q2: Can it power sensitive equipment such as computers?
A: Yes, thanks to theAVR, which stabilises the voltage and protects your equipment.

Q3: What is the operating time on a full tank?
A: Up to 9 hours at 50% charge (46-litre tank).

Q4: Is it easy to move?
R: Yes, thanks to its wheeled chassis and compact design, despite weighing 334 kg.

Q5: Manual or electric start?
A: Electric only, with a 12 V, 45 Ah battery, ATS compatible.

Q6: What protection is included?
A: Low oil level protection, integrated thermal circuit breaker and AVR control.

Q7: Noise level?
A: Approximately 72 dB at 7 m, quiet for domestic or professional use.

Q8: Can it work with a solar system?
A: Yes, the AUTO connector makes it easy to integrate with a photovoltaic complement.
