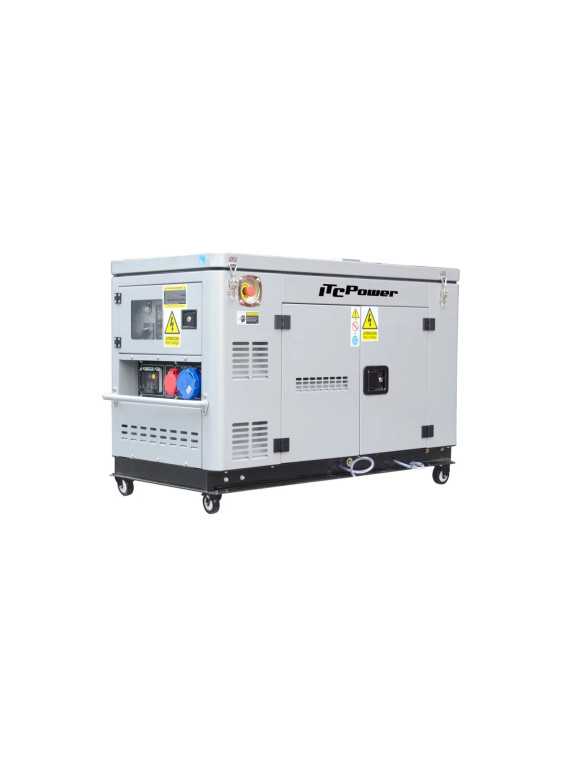

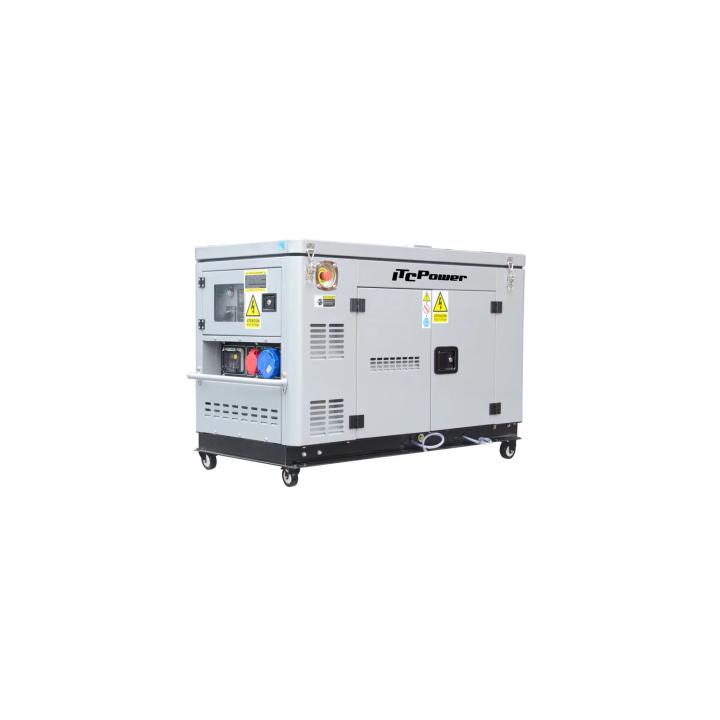

ITC Power DG12000XSE-T 10kW diesel generator, 230/400V, AVR
ITC Power DG12000XSE-T 10kW diesel generator, 230/400V, AVR

ITC Power DG12000XSE-T 10kW Full Power 230V/400V AVR Diesel Generator

€5,948.15
Tax included
DG12000XSE-T
0712971136830

The ITC Power DG12000XSE-T diesel generator delivers up to 10,000 W of maximum power. Its unique design features a water-cooled two-cylinder engine (794 cc), enabling prolonged and reliable operation, even in high temperatures, whilst ensuring increased mechanical durability.

Equipped with a 100% copper alternator featuring high-precision AVR voltage regulation (1%), it guarantees an extremely stable current. It is completely versatile: it delivers its full power output in both single-phase (230 V) and three-phase (400 V) modes, and features a 63 A socket for directly powering high-draw appliances or providing backup power for an entire home.

This model features a 30-litre fuel tank and a coolant pre-heating system, ensuring immediate electric start-up in all seasons. It incorporates comprehensive protection (low oil, overload) and ATS connectivity for automatic switchover in the event of a mains power cut.

Thanks to its high-performance soundproof enclosure, the DG12000XSE-T maintains a noise level of 72 dB at 7 m, ranking among the quietest in its class. Robust, high-performance and water-cooled — the DG12000XSE-T is the ultimate backup solution for a home, a business or a demanding off-grid installation.

ITC Power 12.5kVA Full Power 230V/400V Soundproofed Diesel Generator – Water-cooled


The ITC POWER DG12000XSE-T is a high-performance generator set designed for intensive use. Its distinctive feature is its 794 cm³ water-cooled EV80 twin-cylinder engine, offering thermal stability and a service life far superior to air-cooled models. Thanks to Full Power technology, it delivers 100% of its power in both single-phase (10 kW) and three-phase (12.5 kVA) modes.

Fitted with a 100% copper alternator with AVR regulation, it ensures a completely reliable voltage supply for your sensitive electronic equipment. Its soundproofed casing (72 dB) and 30-litre fuel tank make it a first-class domestic or commercial backup solution.





Technical Specifications: EV80 Twin-Cylinder Diesel Generator (10 kW Full Power)
Voltage type Single-phase (230V) & Three-phase (400V)
Maximum Power 10,000 W (Rated: 9,000 W)
Output current 42 A (Single-phase) / 18 A (Three-phase)
Socket Configuration 1 x 230V 63A / 1 x 400V 32A
Engine EV80 twin-cylinder model – 794 cc – 16 hp
Regulation & Alternator AVR / 100% Copper
Start-up Electric (Battery included) / ATS-compatible
Tank / Oil Capacity 30 L / 2.27 L
Runtime 10 hours (at 50% load)
Noise Level 72 dB at 7 metres (Silent)
Dimensions (L x W x H) 136 x 65 x 98 cm
Weight / Mobility 360 kg (on wheels)
Warranty 2 years or 500 hours





Key features of the DG12000XSE-T

  • Water-cooled engine: Allows for prolonged operation without the risk of overheating, ensuring a significantly longer engine lifespan.
  • Full Power Technology: Unlike standard three-phase generators, the 63A single-phase socket delivers 100% of the power (10 kW), ideal for powering a large home without causing phase imbalance.
  • 100% Copper Alternator: Offers superior conductivity and optimal thermal resistance when dealing with high starting loads (pumps, motors).
  • AVR Regulation: Stabilises the voltage to protect your sensitive electronic equipment (computers, home automation, servers).
  • Operational Safety: Alarm system with automatic shut-off in the event of low oil levels or engine overheating.
  • Electric Start & ATS: 12V 45Ah battery included. The generator is compatible with an ATS unit (optional) for automatic start-up upon detection of a mains power cut.





Recommended Applications

  • Residential & Commercial Backup: Full power supply for a building (air conditioning, heating, IT, lighting).
  • Photovoltaic Systems: Ideal for recharging your solar batteries via an automatic start-up system.
  • Construction Sites & Events: Robust power output with controlled noise levels for residential areas.





Warranty

ITC POWER equipment comes with a 2-year manufacturer’s warranty. This guarantee of reliability ensures technical support and peace of mind for your most critical installations.





FAQ - ITC POWER DG12000XSE-T Diesel Generator (Water-Cooled)

1. What is the advantage of water cooling on this two-cylinder model? +
The water cooling of the EV80 engine allows for much more efficient and stable thermal regulation than air cooling. This enables extended running times, even under heavy load or at high temperatures, whilst reducing internal wear on components. It is a guarantee of superior longevity for your investment.
2. How does ‘Full Power’ technology work on a 12.5 kVA generator set? +
On a standard three-phase generator, single-phase power (230V) is limited to one-third of the total. With the Full Power system, the DG12000XSE-T delivers 100% of its power in both single-phase (10 kW) and three-phase (12.5 kVA) modes. The dedicated 63A socket therefore allows you to power an entire home without the constraints of phase imbalance.
3. Is this generator suitable for protecting my sensitive electronic equipment? +
Absolutely. It is equipped with a 100% copper alternator combined with an AVR (Automatic Voltage Regulator). This device stabilises the output voltage to prevent fluctuations, ensuring a ‘clean’ current that is essential for the safety of your computers, servers, televisions and home automation systems.
4. What running time can be expected with the 30-litre fuel tank? +
Thanks to its efficient 794 cc twin-cylinder engine and generous fuel tank, this generator offers a runtime of approximately 10 hours at 50% load. Its soundproofed casing (72 dB at 7m) allows it to operate for long periods with remarkable acoustic comfort for a unit in this category.
5. Is it possible to automate the start-up in the event of a mains power failure? +
Yes, the generator is “ATS Ready”. By connecting it to an optional automatic transfer switch (ATS) linked to your electrical panel, the generator will detect the power cut itself, start up automatically, and shut down automatically once the mains supply is restored.
6. Can it be used in conjunction with a solar panel system? +
This is an ideal application. The DG12000XSE-T can serve as a backup source to recharge your solar batteries when there is insufficient sunlight. Its high power output and voltage stability via the AVR make it a reliable partner for ensuring your energy self-sufficiency 24 hours a day.
DG12000XSE-T

Specific References

UPC
712971136830
EAN13
0712971136830
