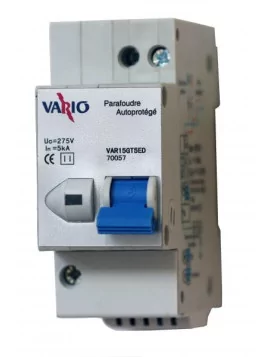

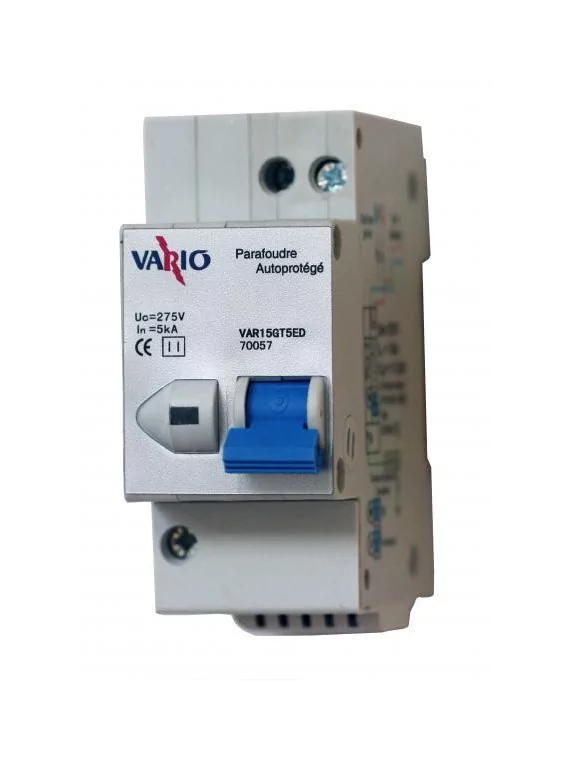

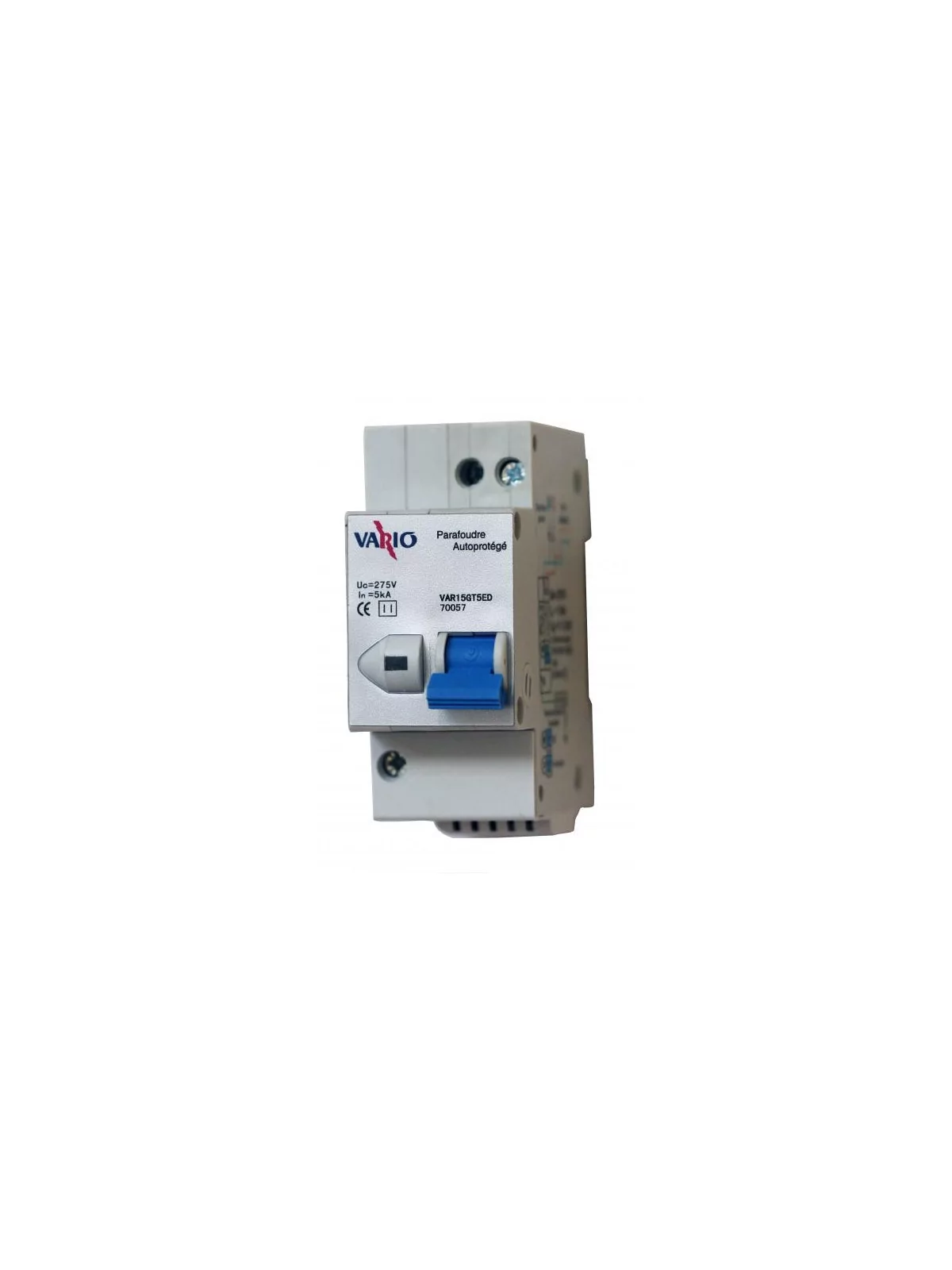

Self-protected surge arrester 15kVA type 2 View full size

Self-protected surge arrester 15kVA type 2


170,57 € tax incl.

Non-removable VARIO Modular Lightning Arrester 15kA with disconnector

More details

More info

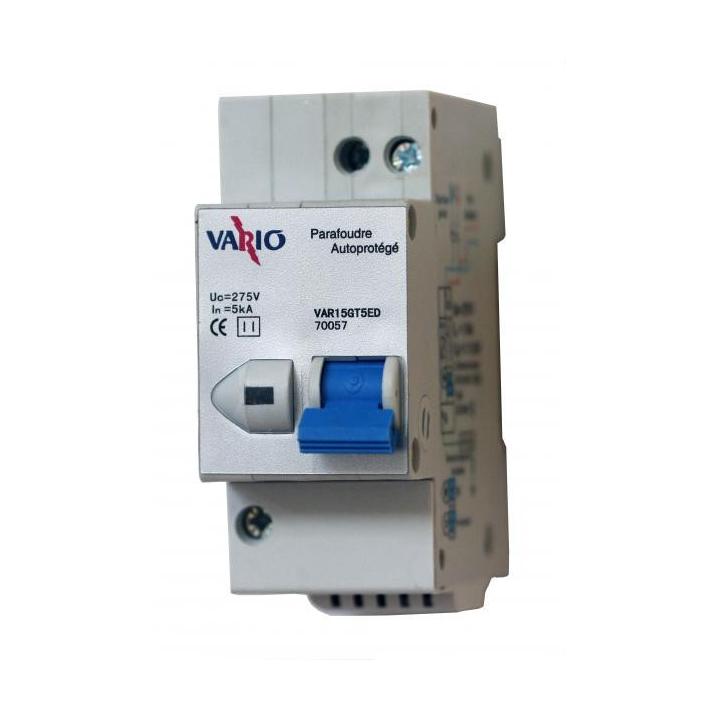

Self-protected surge arrester 15kVA VARIO


Modular non-removable monobloc modular safety device (2 modules) VARIO bipolar differential mode Uc 275V Imax 15KA In 5kA Up 1kV with integrated thermo-thermal disconnector and operating status window



Protection voltage Up1/1,5 kV
Nominal discharge current 8/20 In5 kA
Short-circuit resistance Isccr3 kA
Rated mains voltage Un230/400 Vac
Steady state voltage Uc275 V
Maximum discharge current Imax15 kA
Neutral regimeTT/TN
Test standardsNF EN 61643-11 IEC 61643-11 ed 1,0
Connection capacity6
Dimensions (mm)2 mod
