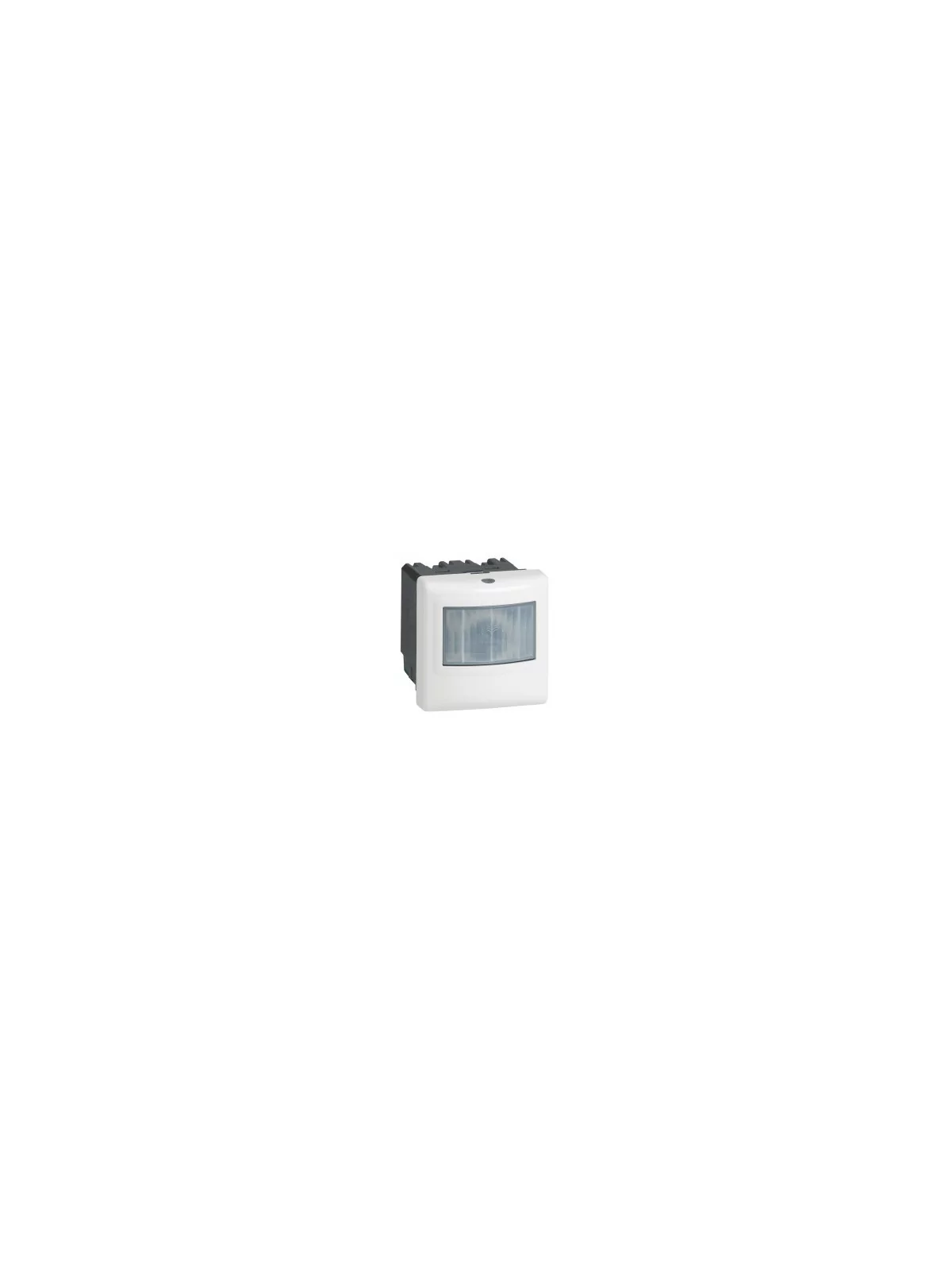

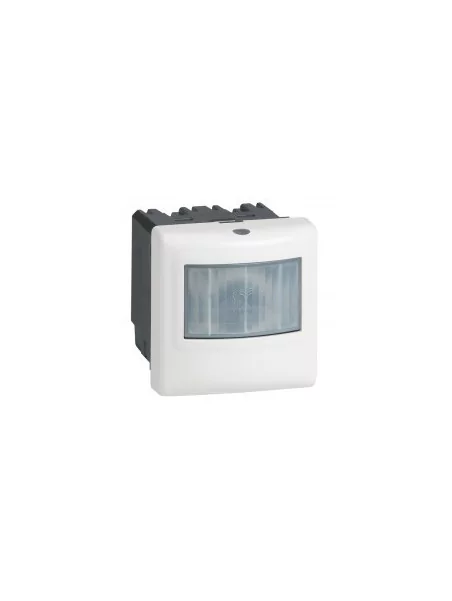

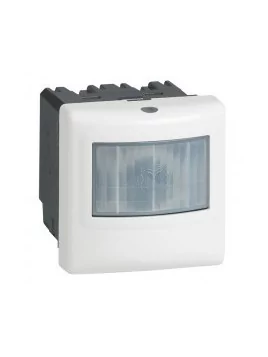

Automatic switch Mosaic View full size

Automatic switch Mosaic

114,73 € tax incl.

Automatic switch with motion and light detection.

This automatic switch is the ideal solution to facilitate daily gestures while saving electricity

Logo Legrand

More details

More info

Automatic switch with motion and light detection.

You pass in front of it : the lighting comes on by itself. Is daylight sufficient ? The lighting stays off.

This automatic switch is the ideal solution to facilitate daily gestures while saving electricity

  • Ideal installation in the entrance, the corridor, the staircase, the dressing room, the toilets ...

  • Solution designed to make it easier for people with reduced mobility

  • Possibility to choose the finishing plate (not supplied) to customize its interior

Model: motion detector
With DALI interface: No
Constant Light Control: No
HVAC control: No
Forced stop: No
Breakthrough for animals: No
Low wall protection / rear field monitoring: No
Crosslinkable: No
Optimum mounting height: 1 m
Stairwell Monitoring: No
Bypass Switch: No
Max working width: 3 m
Max working distance: 6 m
Ground diameter detection field: 6 m
Suitable for wireless transmission: No
Remote Control: Yes
With remote control: No
Adjustable response sensitivity: Yes
Adjustable Trigger Brightness: Yes
With signal unit: Yes
Learning function with tripping brightness: Yes
Dimmer function with dimmer insert: No
Mounting Type: Recessed
Material: plastic
Material quality: thermoplastic
Halogen free: Yes
Surface treatment: untreated
Surface finish: matt
White Colour
RAL number (equivalent): 9003
Transparent: No
Protection class (IP): IP20
Voltage Rating: AC
Rated voltage: 230 V
Min Operating Time: 1 sec
Max Running Time: 60 min
Horizontal detection angle: 0 - 180 °
Trigger brightness: 0 - 300 lx
Max. Breaking capacity: 2000 W
Temperature: -5 - 45 ° C
Max Starting Current: 2 A
Auxiliary extension input: No
Frequency: 50 - 60 Hz
Alarm function: No

Specifications

Type de matériel électriqueInterrupteur
