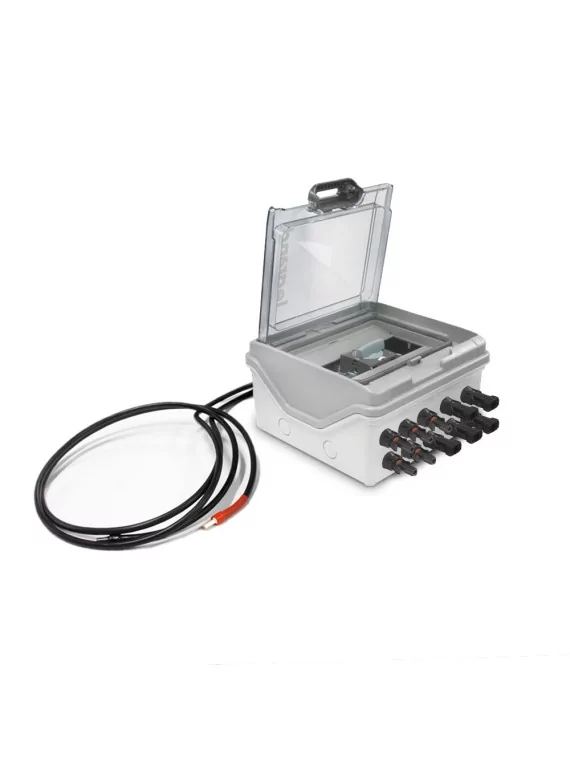

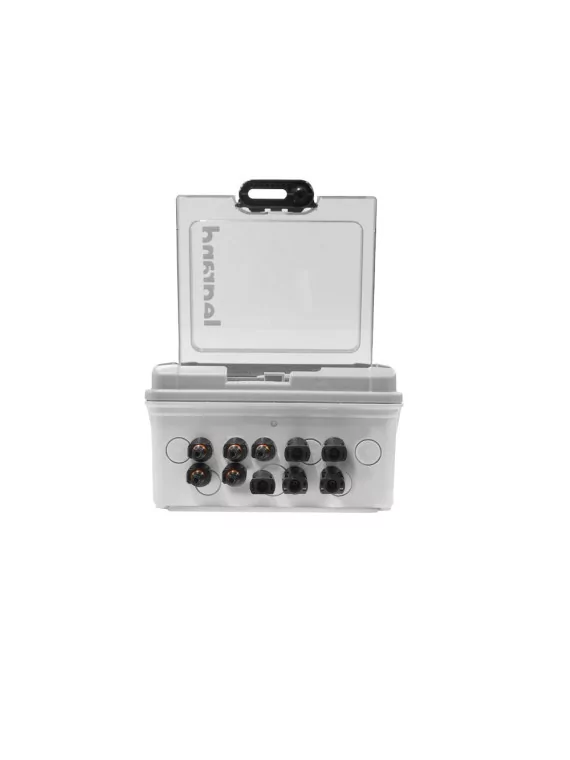

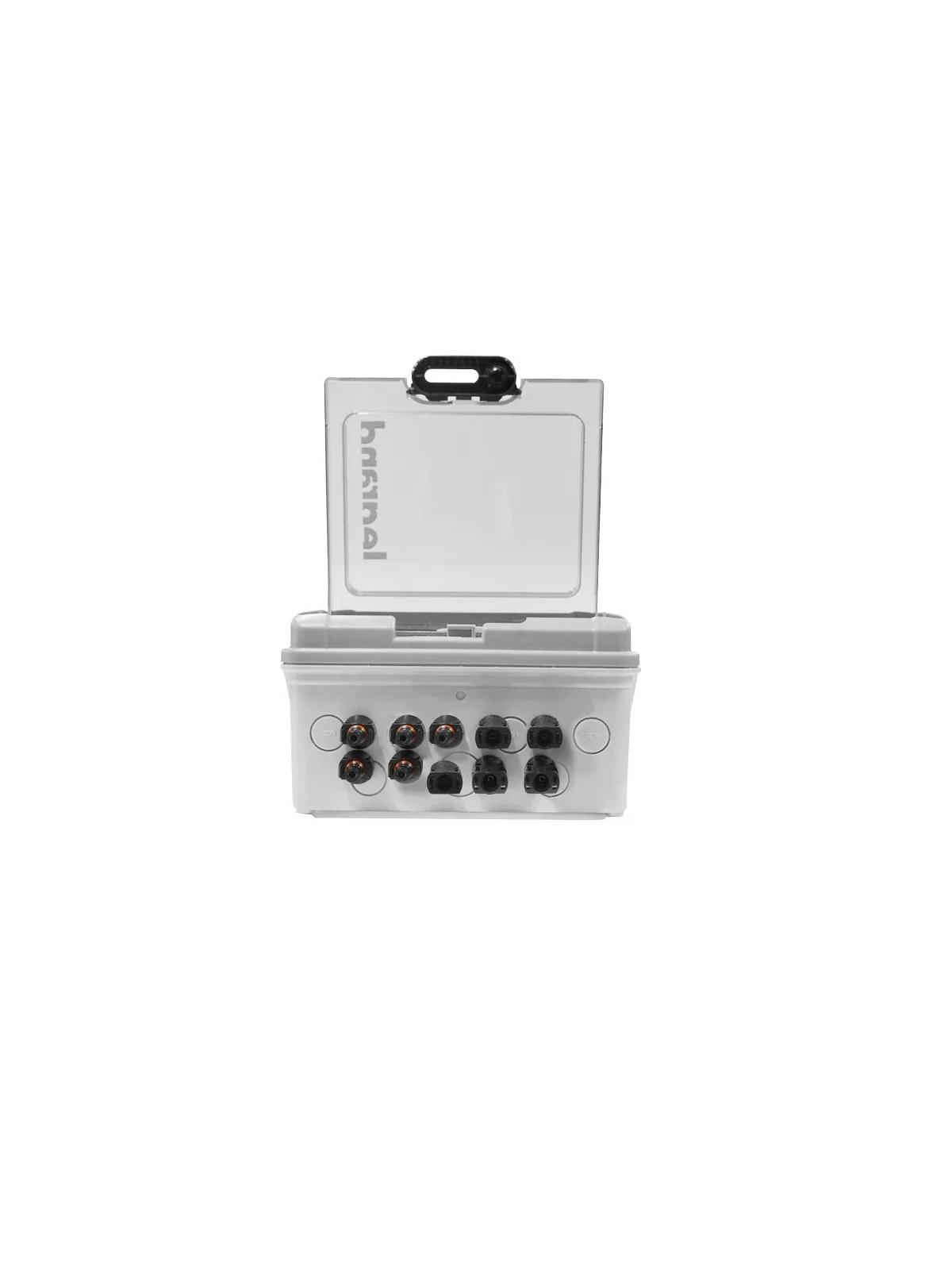

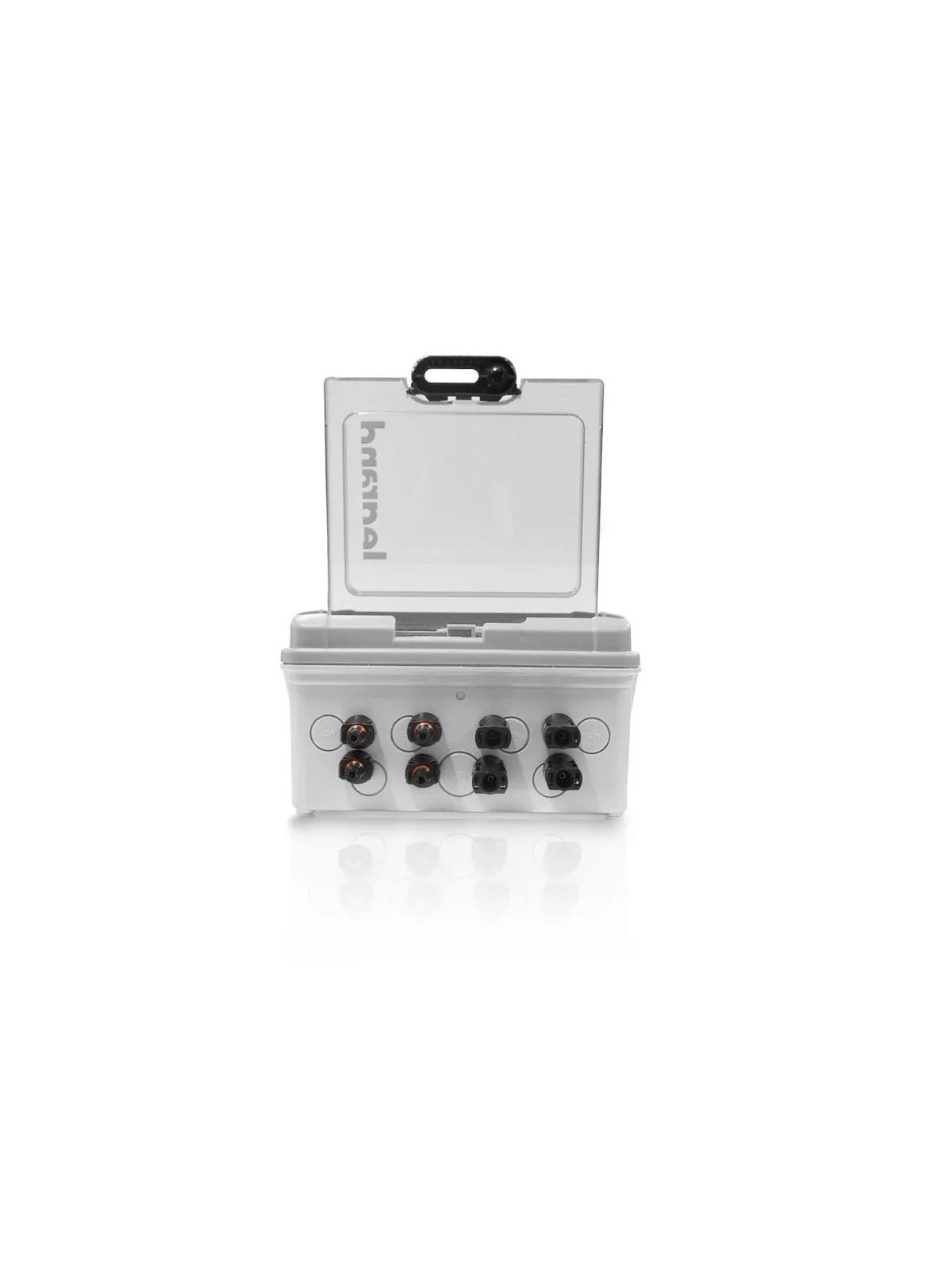

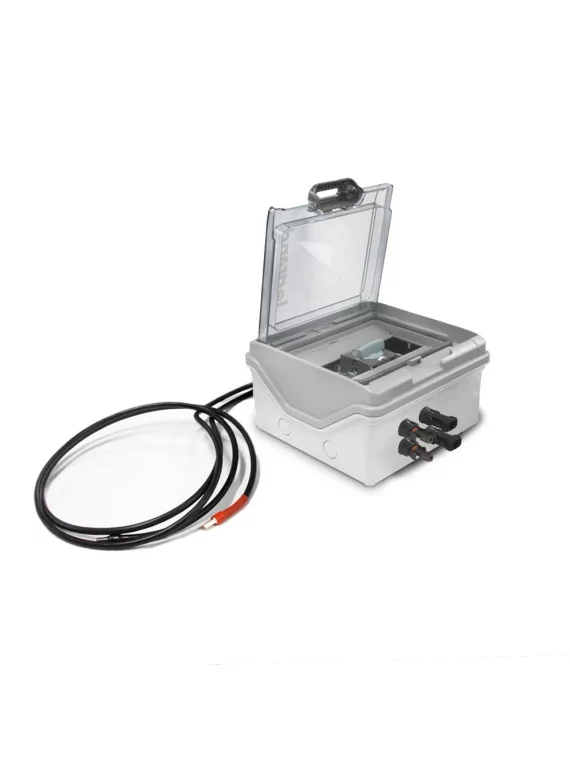

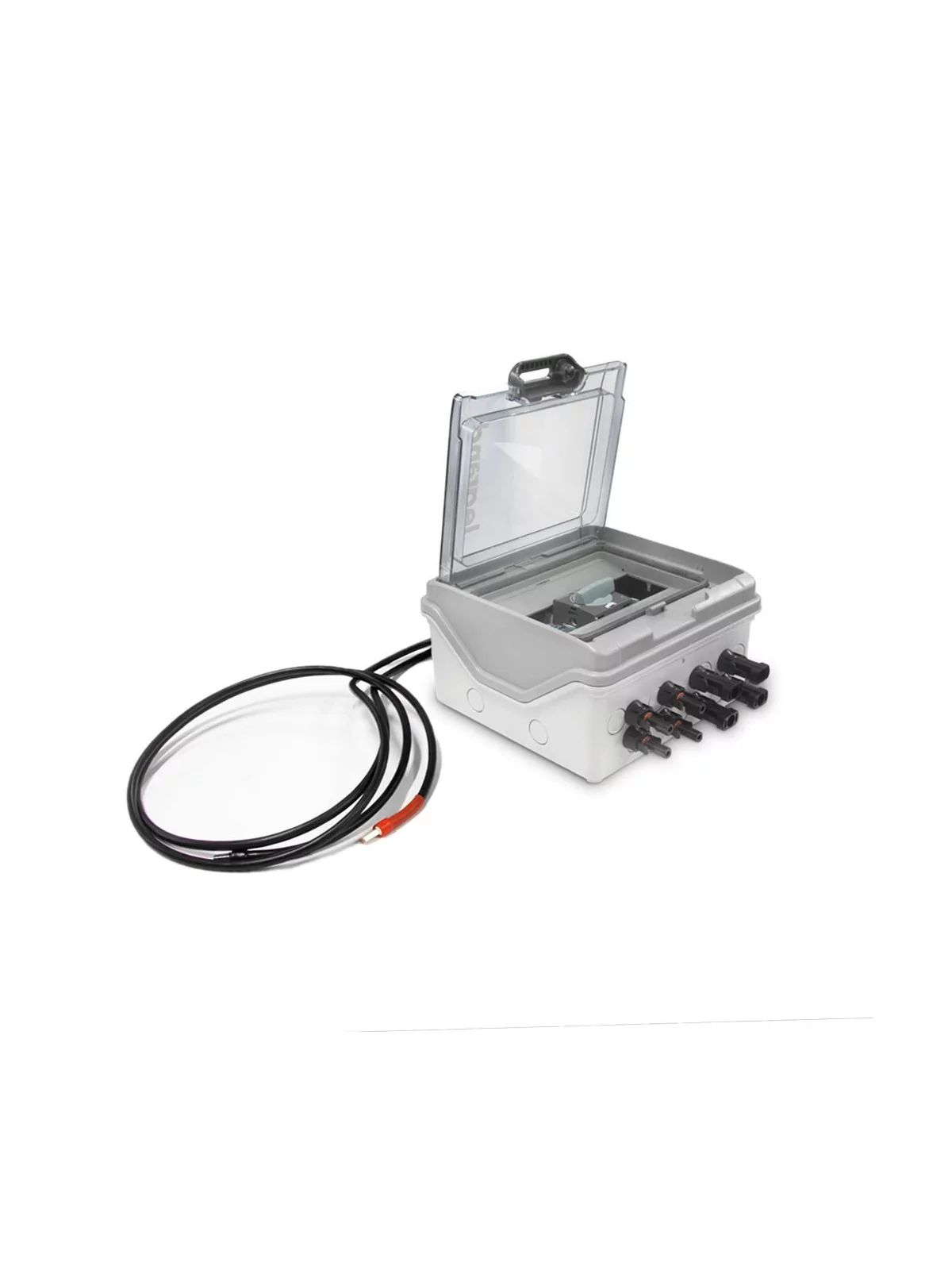

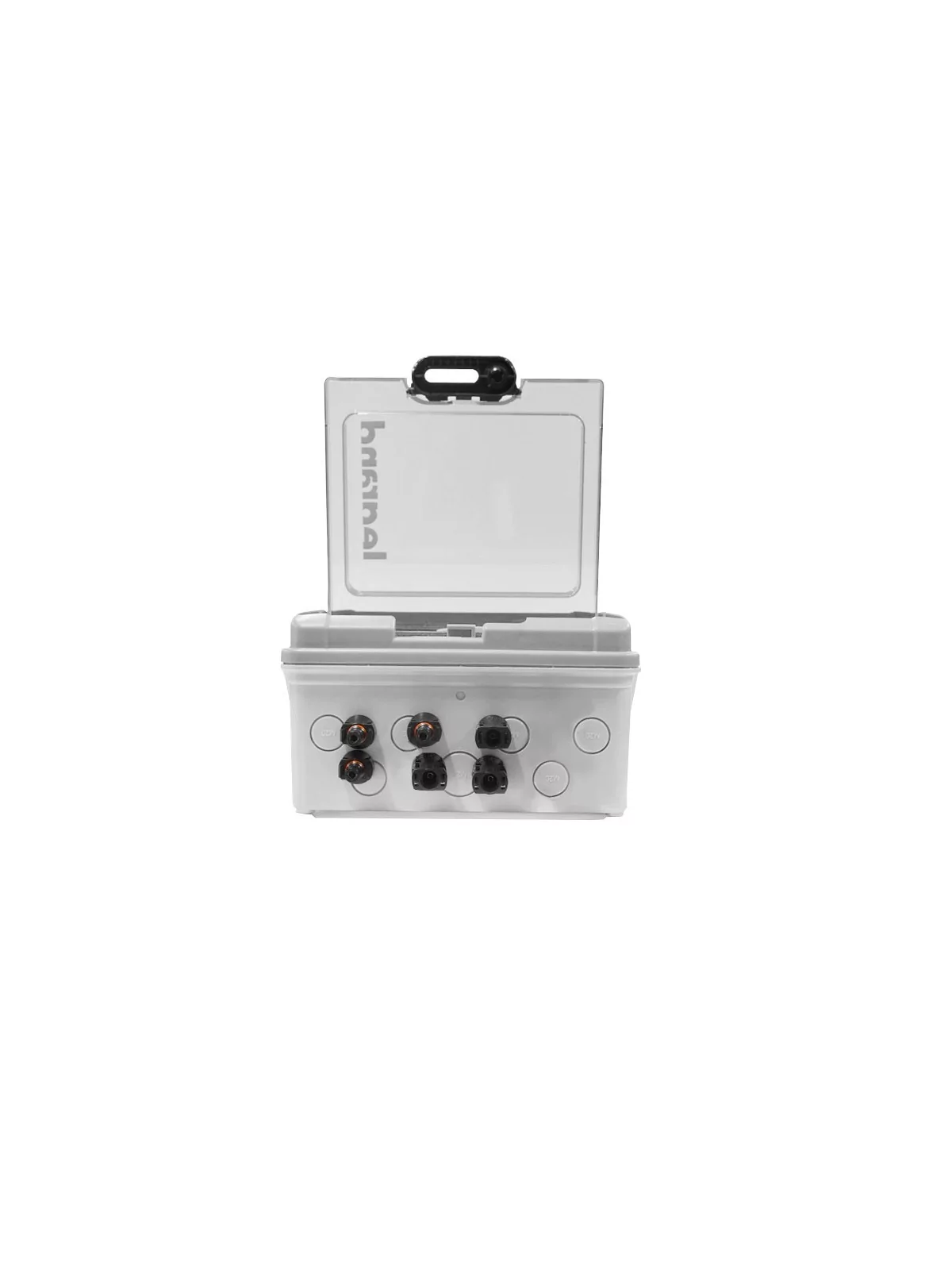

Box for paralleling 2-3-4-5 solar field with integrated DC disconnect

€269.86
Tax included
INC01414U2345
0712971135284

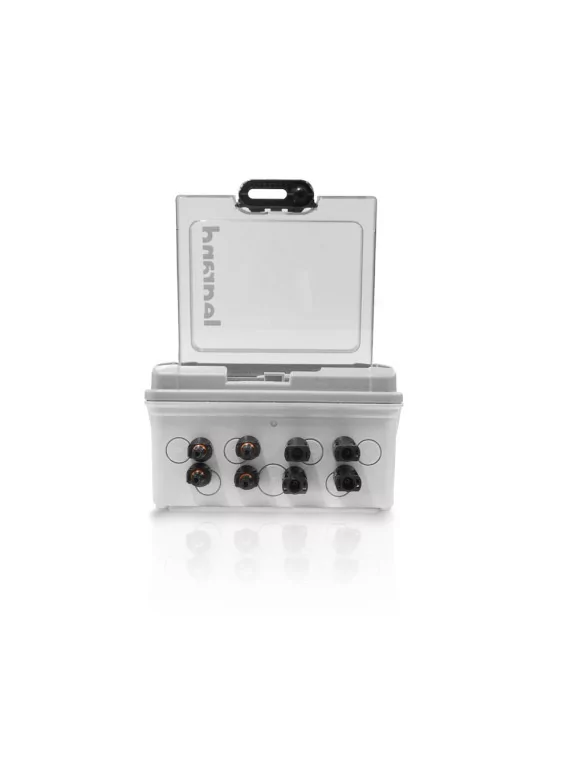

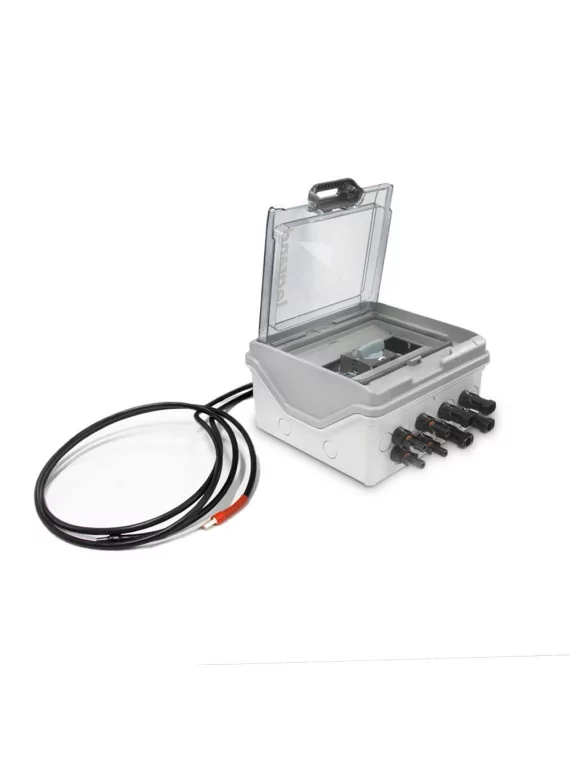

Enclosure enabling the paralleling of 2, 3, 4 or 5 series (string) of photovoltaic panels
The integrated disconnector makes it possible to disable the panels safely, for example to start up the installation

Connects up to 15 photovoltaic modules on WKS inverter 3, 4, and 5 KVA. (2, 3, 4 or 5 string of 3 panels ).

Please choose your model in the options

Box for paralleling 2-3-4-5 solar field with integrated DC disconnect

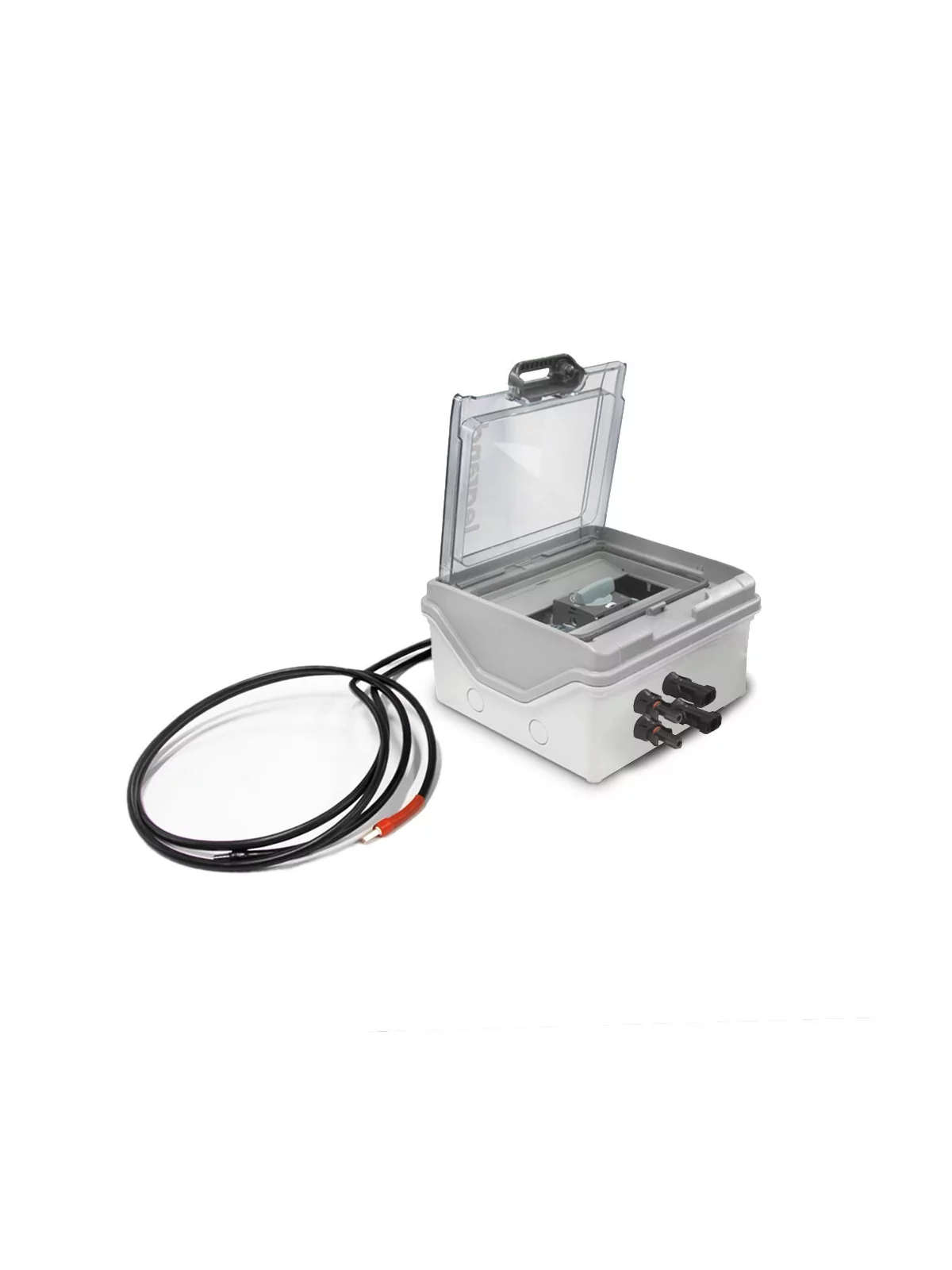

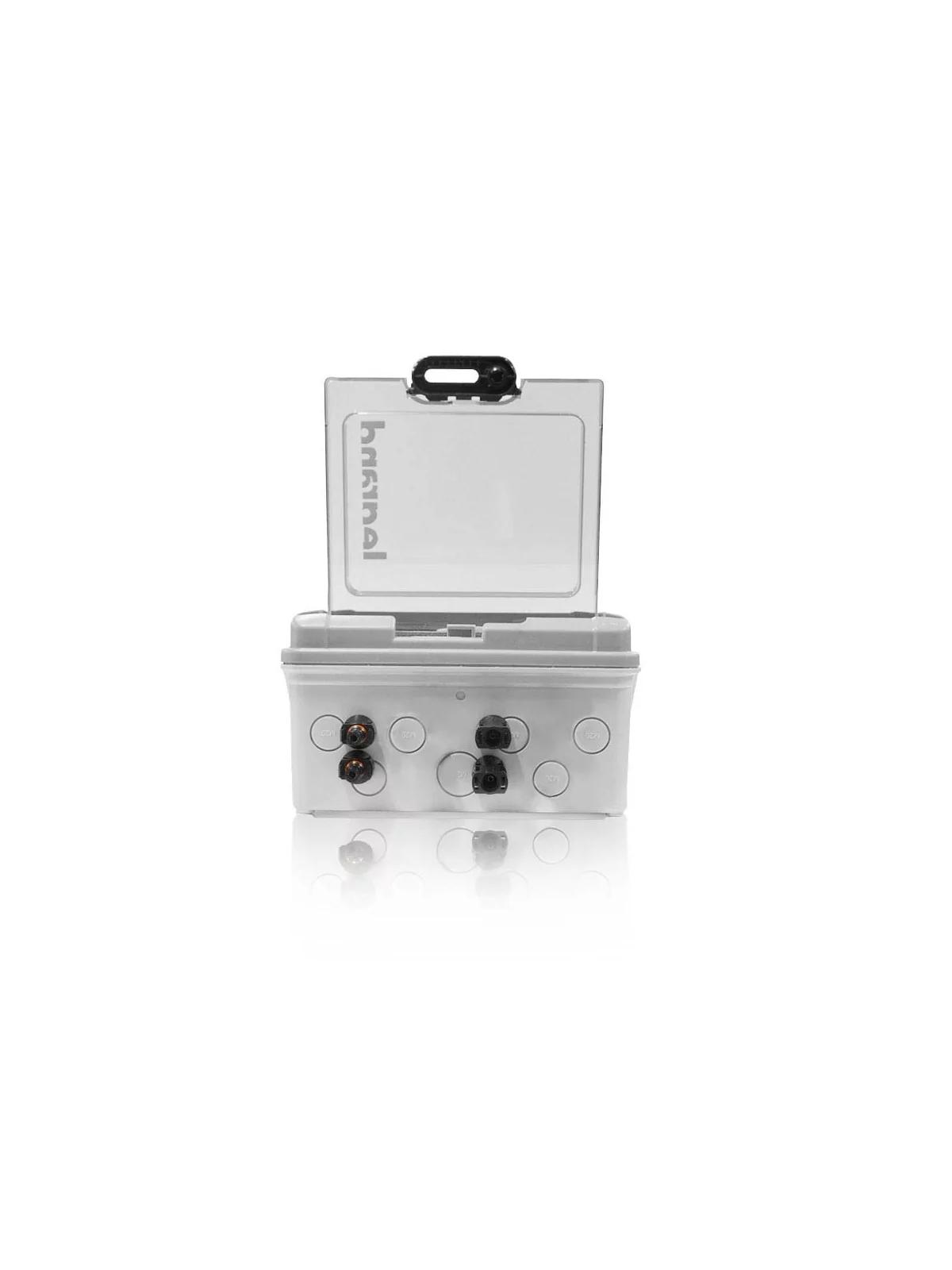

Box for paralleling two solar fields comprising:

  • An electrical box Legrand, 4 modules
  • MC4-like on the bottom simplifies installation
  • Integrated DC disconnect
  • 16mm² 2m output for connection to the inverter

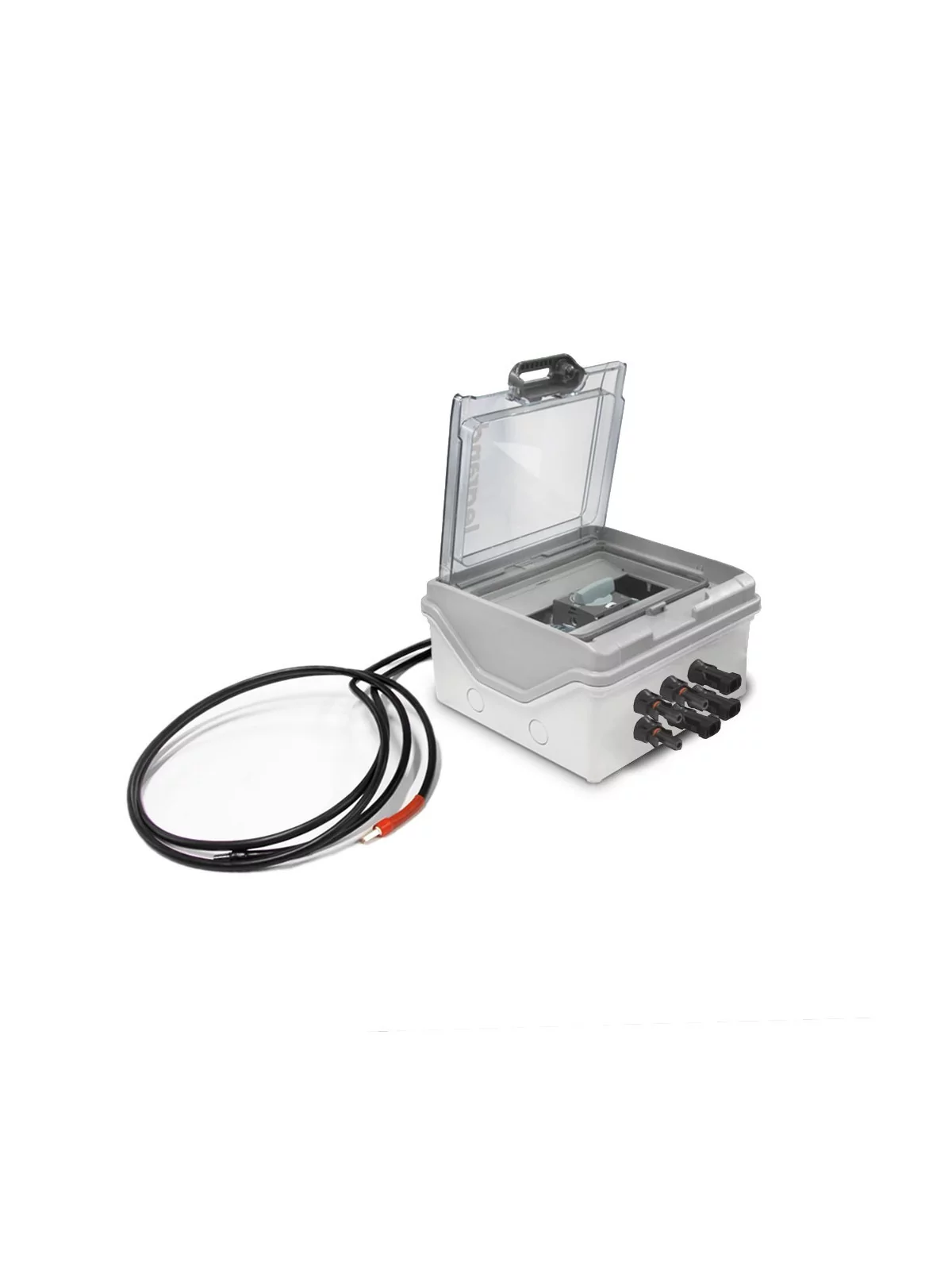

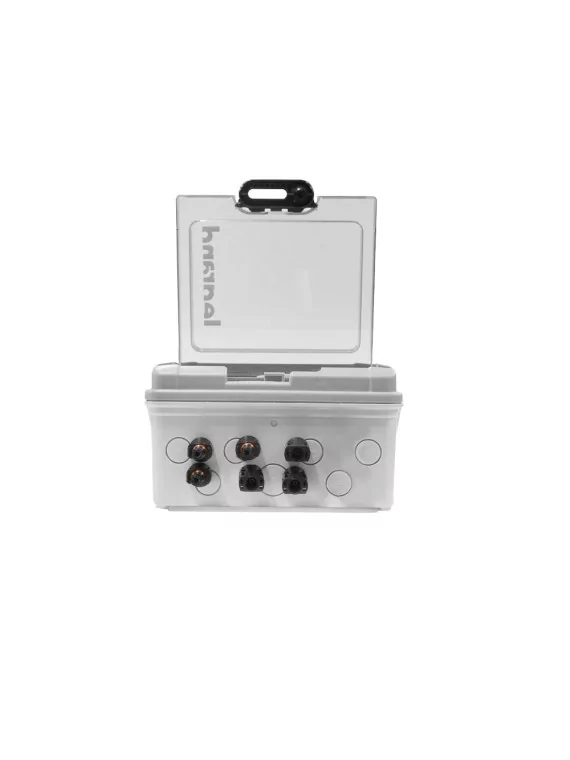

Box for paralleling three solar fields comprising:

  • An electrical box Legrand, 4 modules
  • MC4-like on the bottom simplifies installation
  • Integrated DC disconnect
  • 16mm² 2m output for connection to the inverter

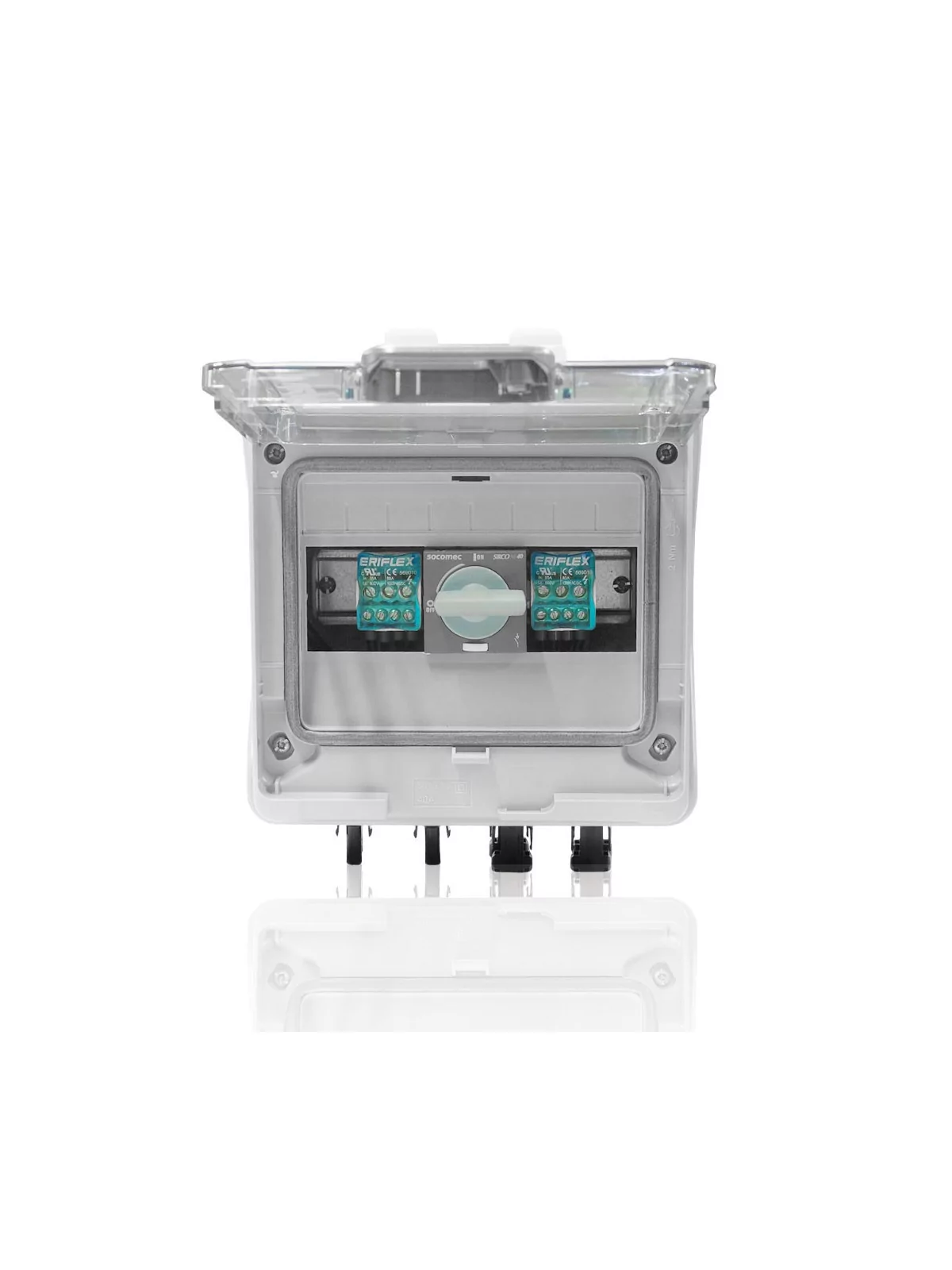

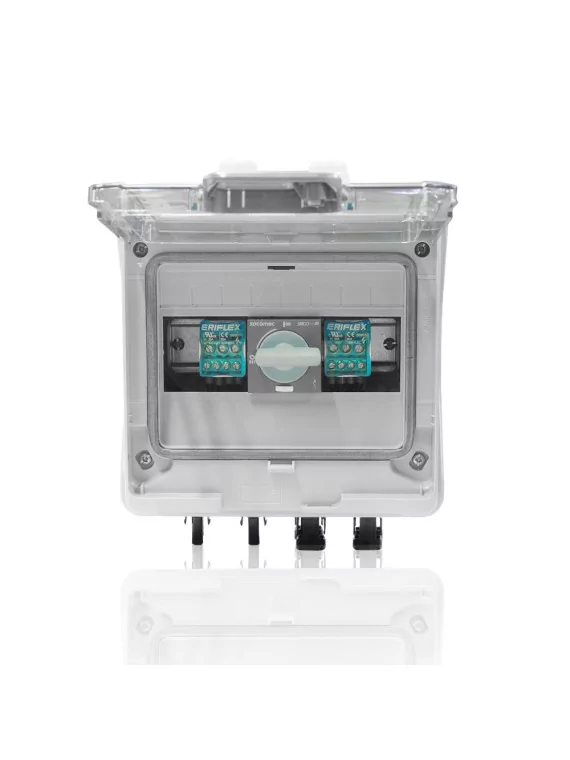

Box for paralleling four solar fields comprising:

  • An electrical box Legrand, 8 modules
  • 2 ERIFLEX for parallel
  • MC4-like on the bottom simplifies installation
  • Integrated DC disconnect
  • 16mm² 2m output for connection to the inverter



Box for paralleling 2-3-4-5 solar field with integrated DC disconnect

Connects up to 12 photovoltaic modules on WKS 3, 4, and 5 KVA



 Box for paralleling five solar fields comprising:



  • An electrical box Legrand, 8 modules
  • Erixflex
  • MC4-like on the bottom simplifies installation
  • Integrated DC disconnect
  • 16mm² 2m output for connection to the inverter
INC01414U2345

Data sheet

Type of electrical equipment
Coffret
Sectionneur
Cables and connectors
Coffret

Specific References

UPC
712971135284
EAN13
0712971135284
New

Box for paralleling 2-3-4-5 solar field with integrated DC disconnect — Electrical hardware

Box for paralleling 2-3-4-5 solar field with integrated DC disconnect is available in our Electrical hardware catalog. Technical specifications: type of electrical equipment: Coffret Sectionneur, cables and connectors: Coffret. Product weight: 5.5 kg. Reference: INC01414U2345.
