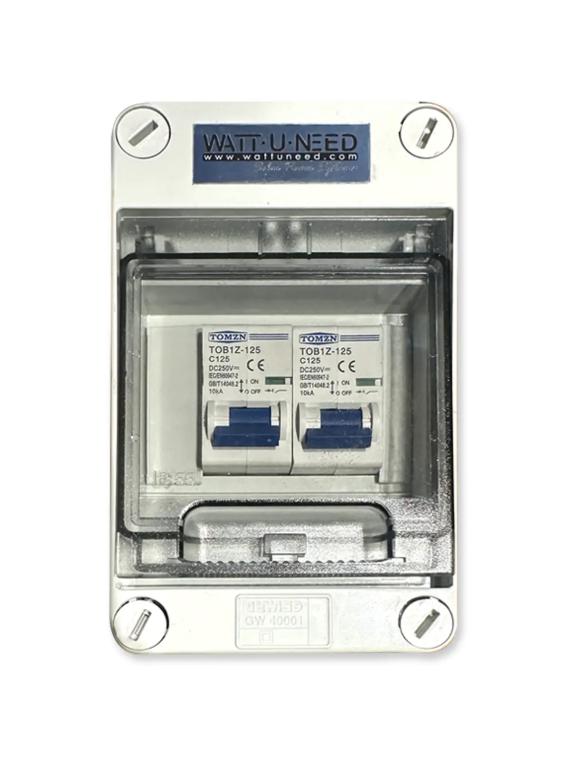

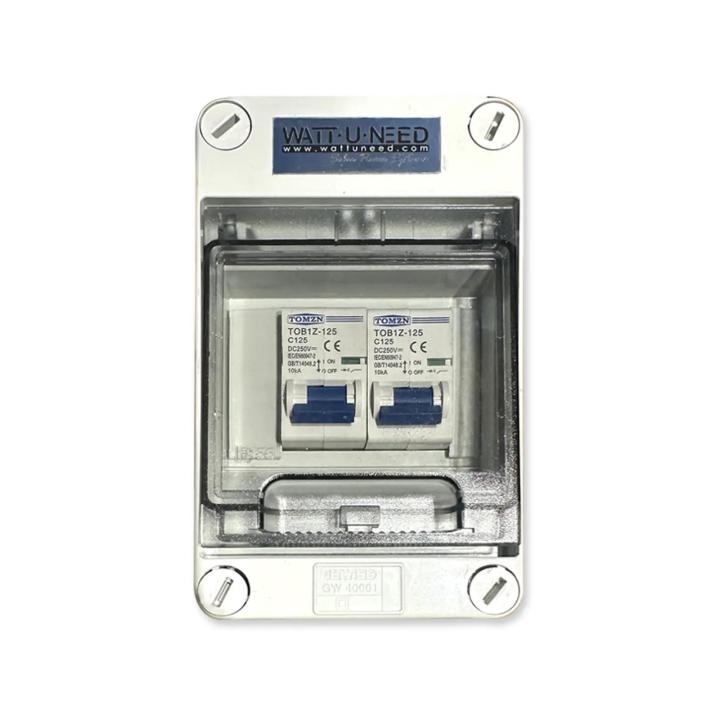

Battery box with automatic fuse 2X 125A DC 250V
Battery box with automatic fuse 2X 125A DC 250V — vue 2
Battery box with automatic fuse 2X 125A DC 250V
Battery box with automatic fuse 2X 125A DC 250V — vue 2

Battery box with automatic fuse 2X 125A DC 250V

€88.29
Tax included
Coffret-batterie-wattuneed-2X125A-250V
0768563822896

DC protection box with 2 automatic 125 A – 250 V fuses. Ideal for securing two solar battery lines (lithium, lead, gel) or a parallel configuration. Provides double protection against overcurrent and short circuits. Ready to use, compatible up to 250 V DC.

Compatible avec :

5.12kWh LiFePO4 Lithium Battery - DeLong Top Energy 51.2V 100Ah – Grade A CALB Cells
5.12kWh LiFePO4 Lithium Battery - DeLong Top...
€968.00
Voir le produit →
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.

Battery box with 2 automatic fuses 125 A – 250 V DC for solar batteries


This box with 2 automatic fuses 125 A – 250 V DC is designed to effectively protect two solar battery circuits, or an installation with parallel lines (e.g. two lithium battery branches). Each line is protected independently by its own class T automatic fuse, ensuring rapid disconnection in the event of overcurrent or short circuit.


Ready to use, this box includes insulated terminals, fixing screws and internal cable ducts. Its compact size makes it easy to install. Compatible with all solar batteries up to 250 V DC, this box offers a reliable, simple and universal safety solution.


Advantages

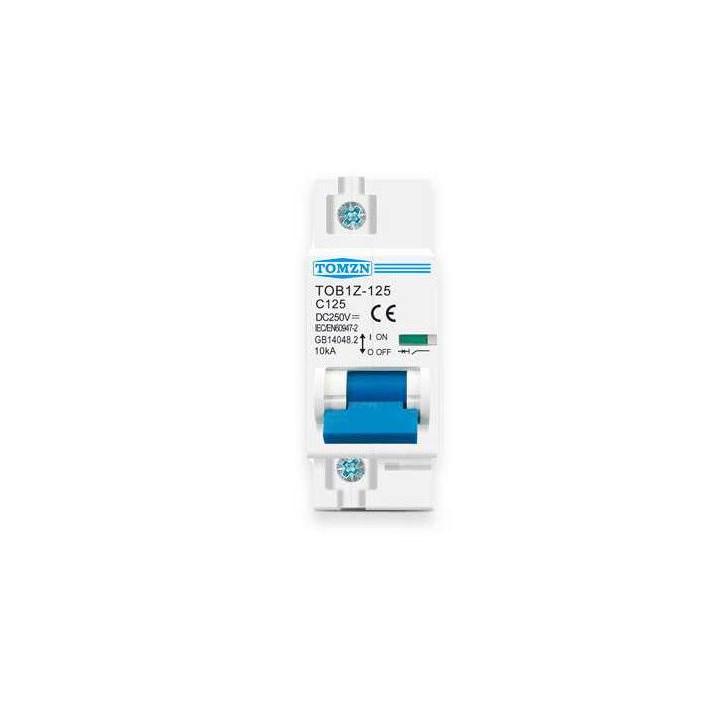

  • Double protection: 2 automatic 125 A – 250 V DC fuses to secure two independent circuits
  • Wide compatibility: lithium (LiFePO4, NMC), lead-acid, AGM and gel batteries
  • Easy installation: ready-to-install wired box, terminals +, screws included
  • Enhanced safety: rapid cut-off in the event of overload or short circuit





FAQ – Frequently asked questions

What is a double fuse box used for? +
It protects two separate battery lines (e.g. two 48 V modules) or a battery connected to two pieces of equipment, providing reliable and independent protection.
Can it be used with two different batteries? +
Yes. Each line is individually protected up to 125 A DC – 250 V, allowing two batteries or two separate circuits to be used safely.
Is it compatible with Victron, Pylontech or Delong? +
Yes. This box is compatible with all batteries and equipment up to 250 V DC, including Victron, Pylontech, Delong and other brands on the market.
Is it a circuit breaker? +
No. These are fast-acting automatic fuses, particularly suitable for high-power DC, offering more effective protection than a conventional circuit breaker.

🛠️ Installation tips

  • Place the box as close as possible to the battery or protected equipment
  • Recommended cables: 35 to 95 mm² depending on the current and length
  • Fix the box directly to a cabinet wall
  • It is essential to check the + / − polarity before making any connections
Coffret-batterie-wattuneed-2X125A-250V

Specific References

UPC
768563822896
EAN13
0768563822896

Battery box with automatic fuse 2X 125A DC 250V — Electrical hardware

Battery box with automatic fuse 2X 125A DC 250V by Wattuneed is available in our Electrical hardware catalog. Product weight: 1.5 kg.
