AC box M1 125A 300mA

ACM1-125-1-125-300-10 box

The enclosure consists of :

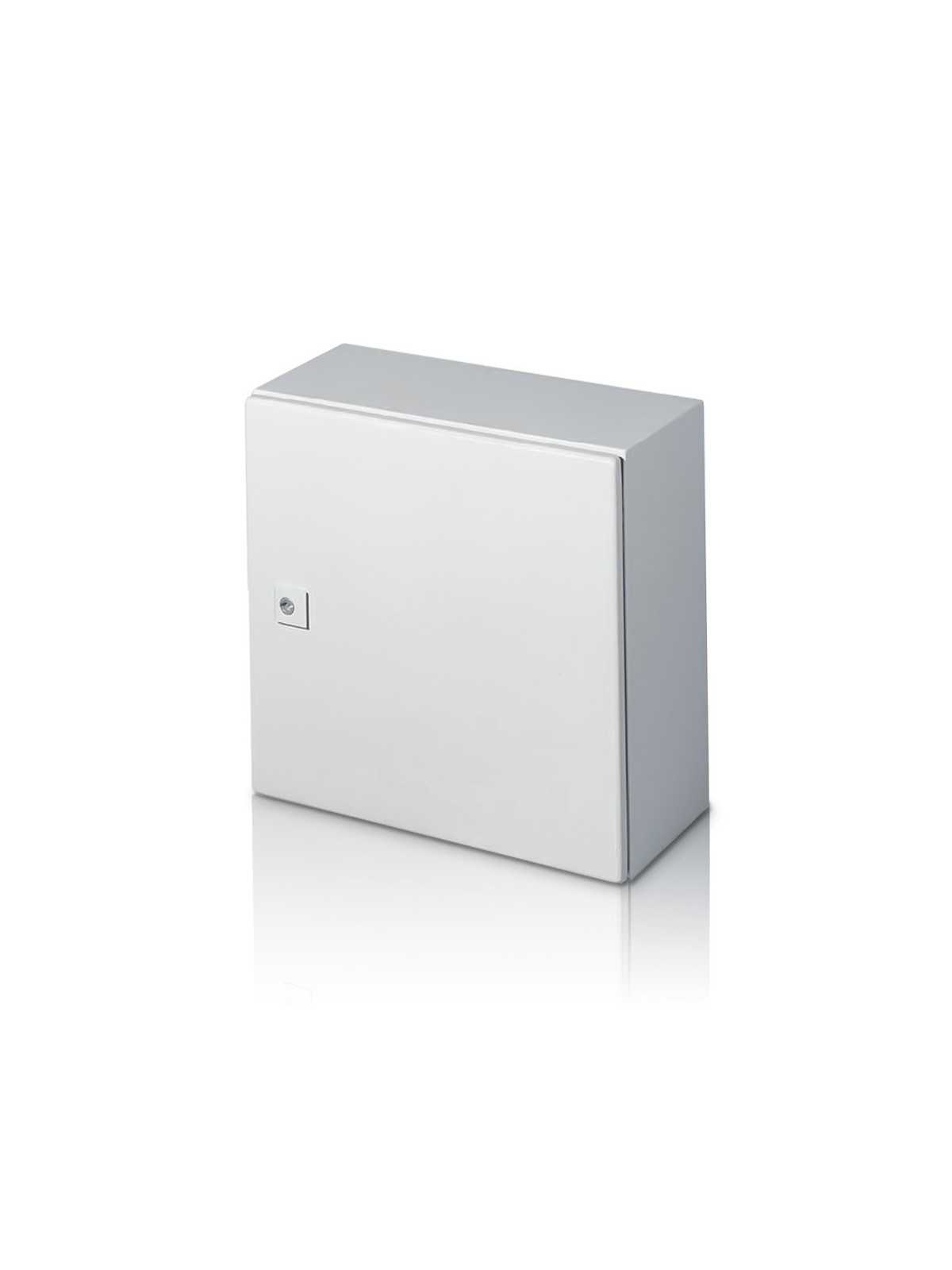

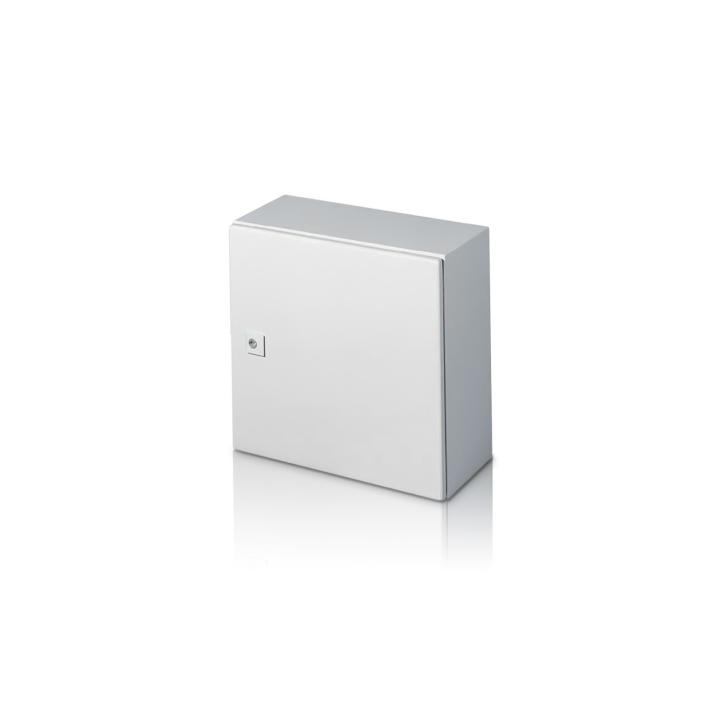

• 600x600x250 IP66 metal enclosure
1
• Schneider INS125 4P 125A switch-disconnector with remote front control
1
• Distribution board
1
• Schneider C120N 4P 125A Courbe C Icc10kA circuit-breaker + 1 C120 4P 125A- differential
.
• 300mA type AC (inverter protection)
1
• Fuse holder 4P DF Electric 14x51 50A 400v + 3 Fuses 14x51 50A Gg 400v
1
• Citel surge arrester 4P 400V common mode and differential without OF In20kA Imax40kA
• Tapped copper bar (Earth)
• Spring-loaded terminal up to 35mm2 (inverter inlet)
• Direct output from switch-disconnectorisolator
• Wiring
• Cable gland assembly
