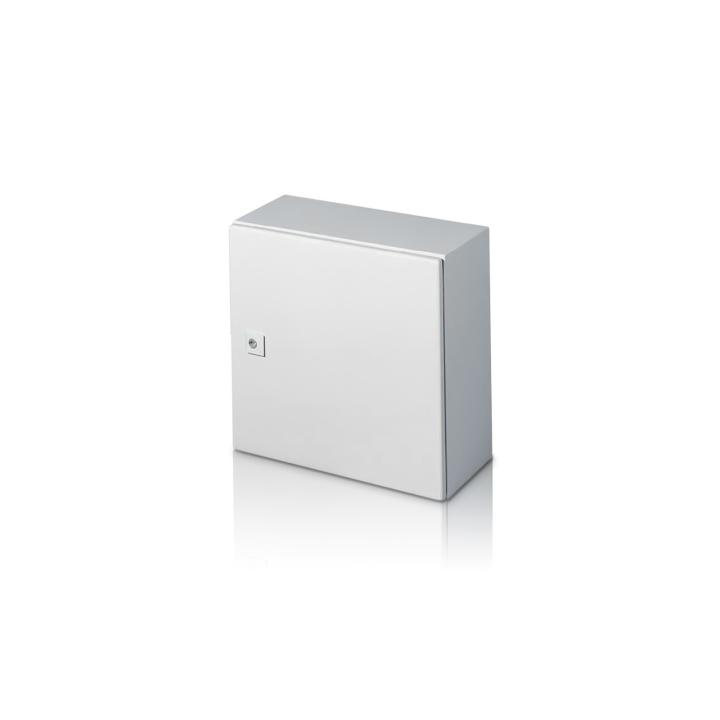

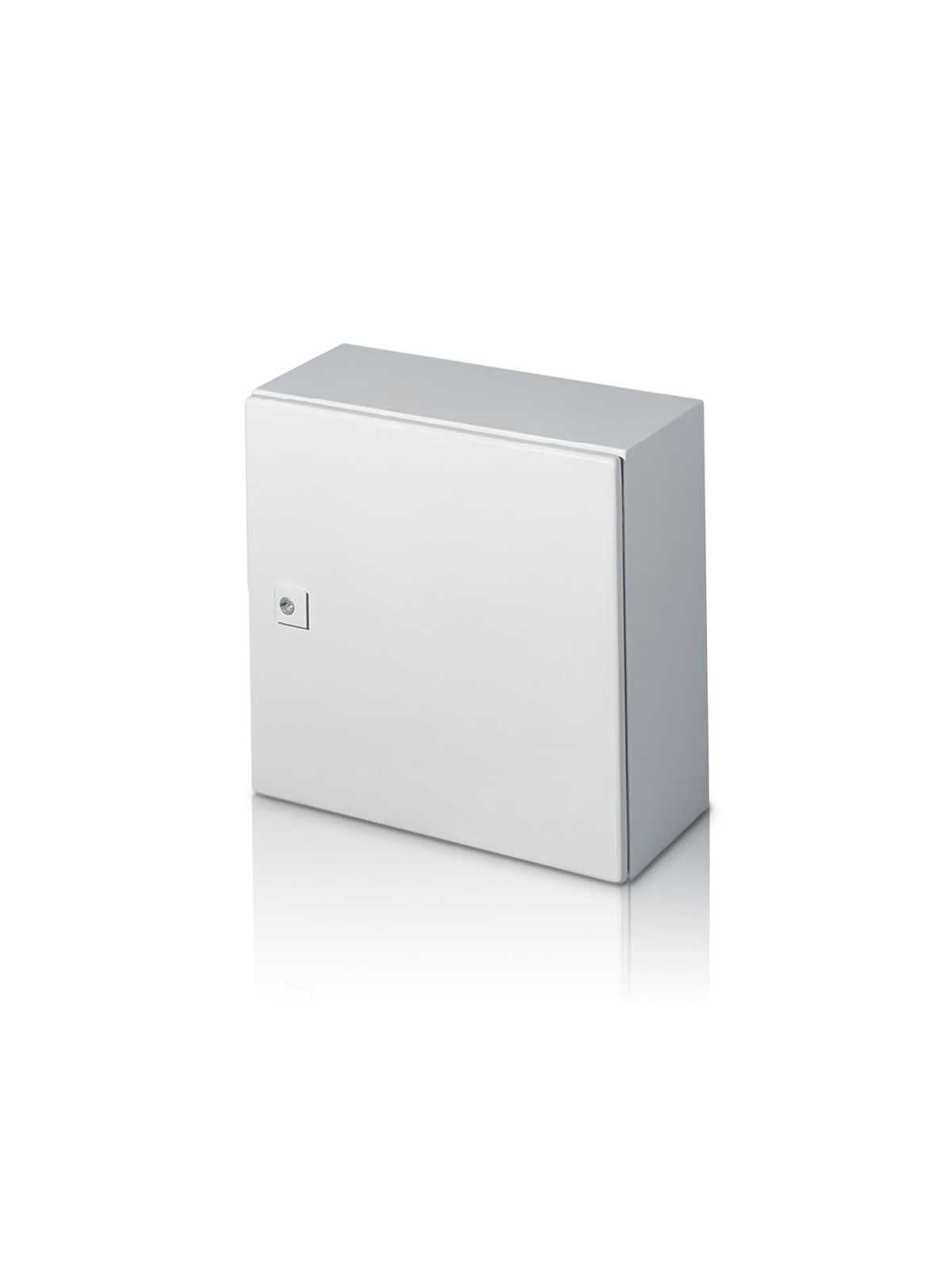

50 kVA lightning arrester box

50 kVA lightning arrester box

The cabinet consists of :

• Polyester enclosure, 800x600x250mm, IP65;
1
• Schneider INS100 4P 100A switch-disconnector with remote front control;
1
• Splitter;
1
• Schnedier C120N 4P 100A Courbe C Icc10kA circuit breaker + C120 125A-300mA AC differential (inverter protection) ;
• 1 DFElectric 14X51 50A 400V fuse holder + 3 50A 400V Gg AC fuses (surge arrester protection);
1
• Phoenix Contact T2 400V AC In20kA Imax40kA surge arrester;
• Tapped copper bar (earth);
• Assembly wiring;
• Cable glands assembly
.
