    Non-residential three-phase electrical box

    copy of Three-phase electrical box

    $688.0
    09936
    0712971131156

    Pre-assembled and ready to install cut-out and electrical protection box IP65

    100% secure payments

    copy of Three-phase...

    $688.0

    Three-phase electrical box

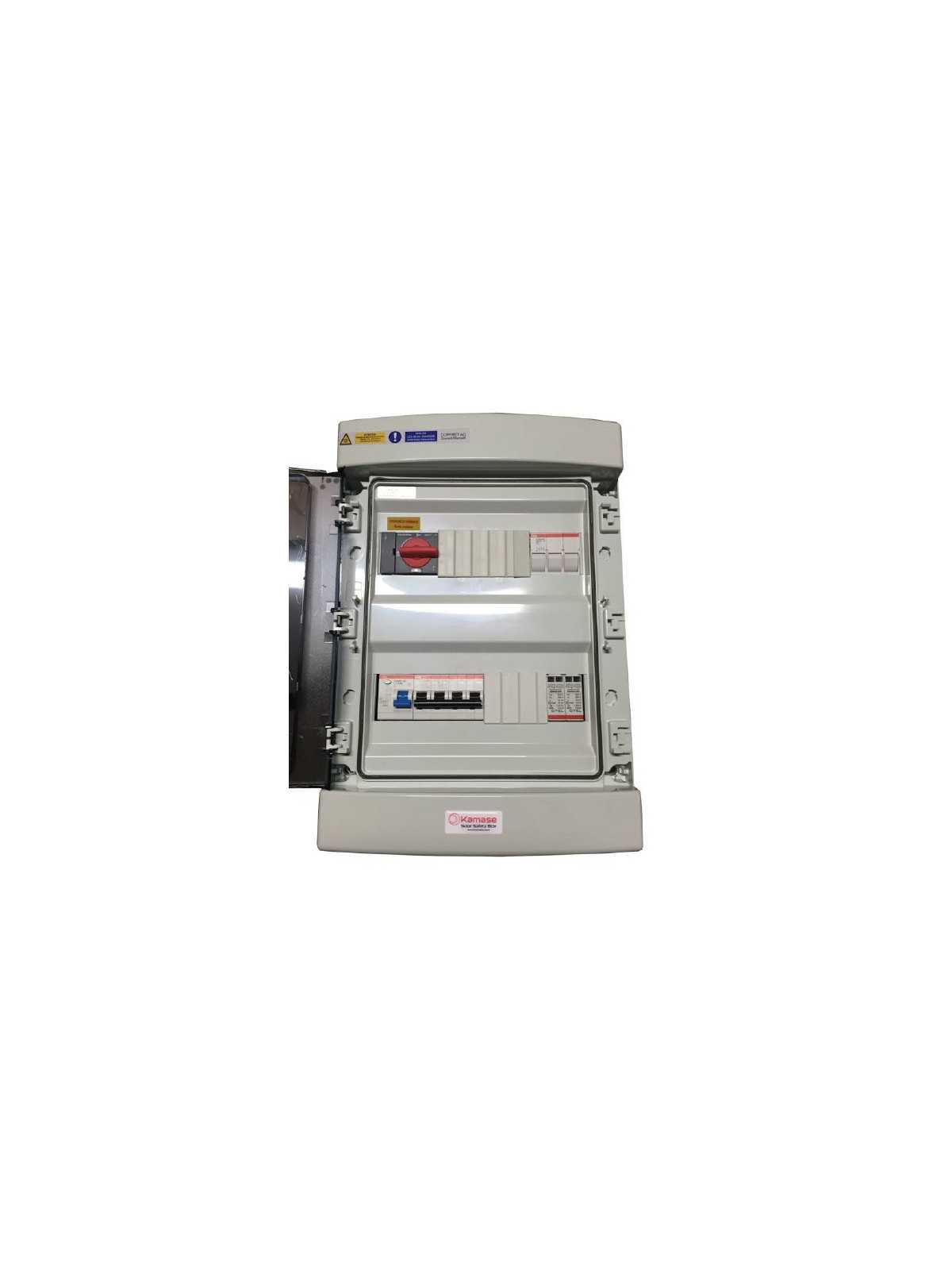

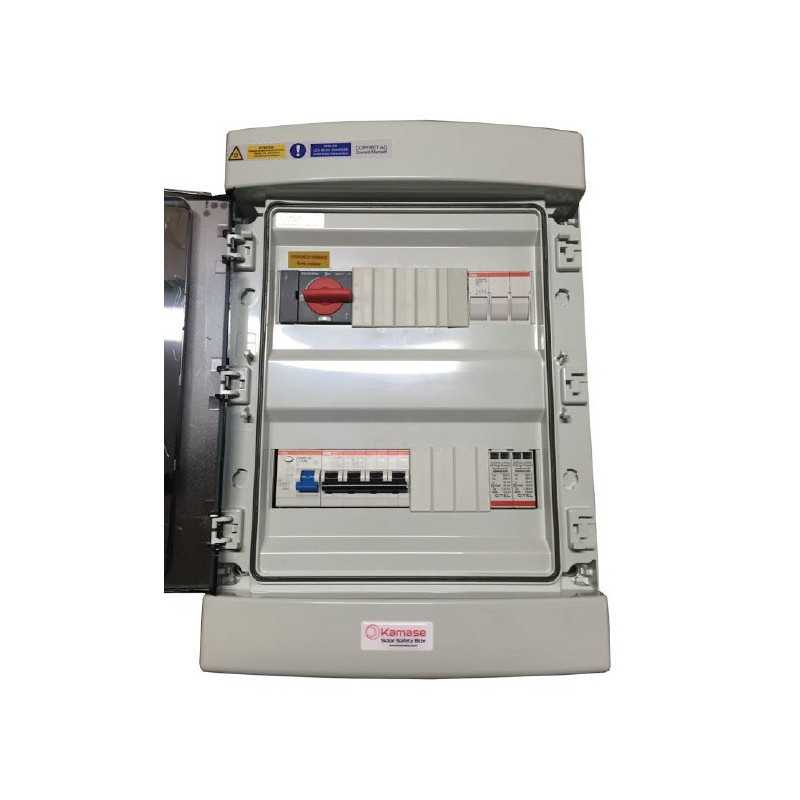

    Kamase present pre-wired and ready-to-install IP65 electrical protection box.

    • Three-phase enclosure with three-phase surge arrester Type2 common mode and differential Alternative 4-pole (In 20kA -Imax 40kA), sound Circuit-breaker 4-pole 20AM300mA Curve C Icc 4.5kA for protection of the inverter with its 4-pole fuse holder 32A Curve C Icc 4.5kA + Fuse 32A for protection of the surge arrester.

    It is also equipped with a 4-pole 25A switch and a ground terminal block.



    Three-phase electrical box



    Complies with C15.712.1

    Dimensions: 2x12 modules L420xl310xP148mm



    Protection sign:

    IP 65 Outdoor installation



    Included:
    • Set of stuffing boxes.
    • Single-line diagram
    • Labeling according to UTE standards
    • Individual cardboard packaging

    09936

    Specific References

    UPC
    712971131156
    EAN13
    0712971131156
