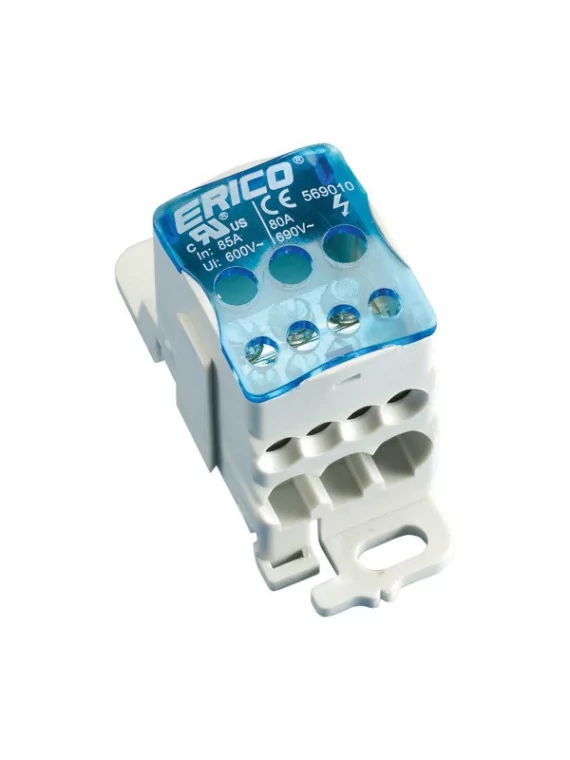

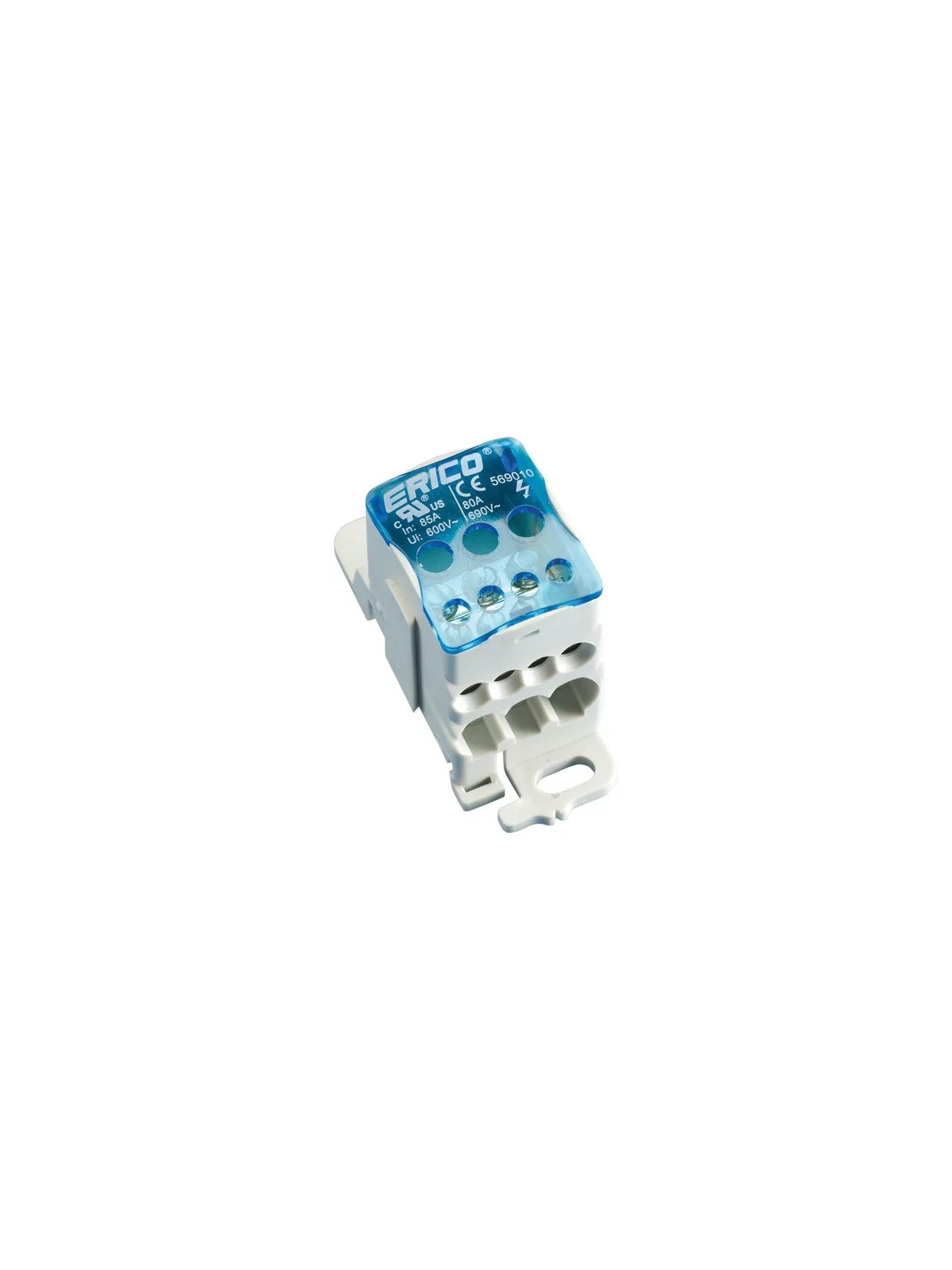

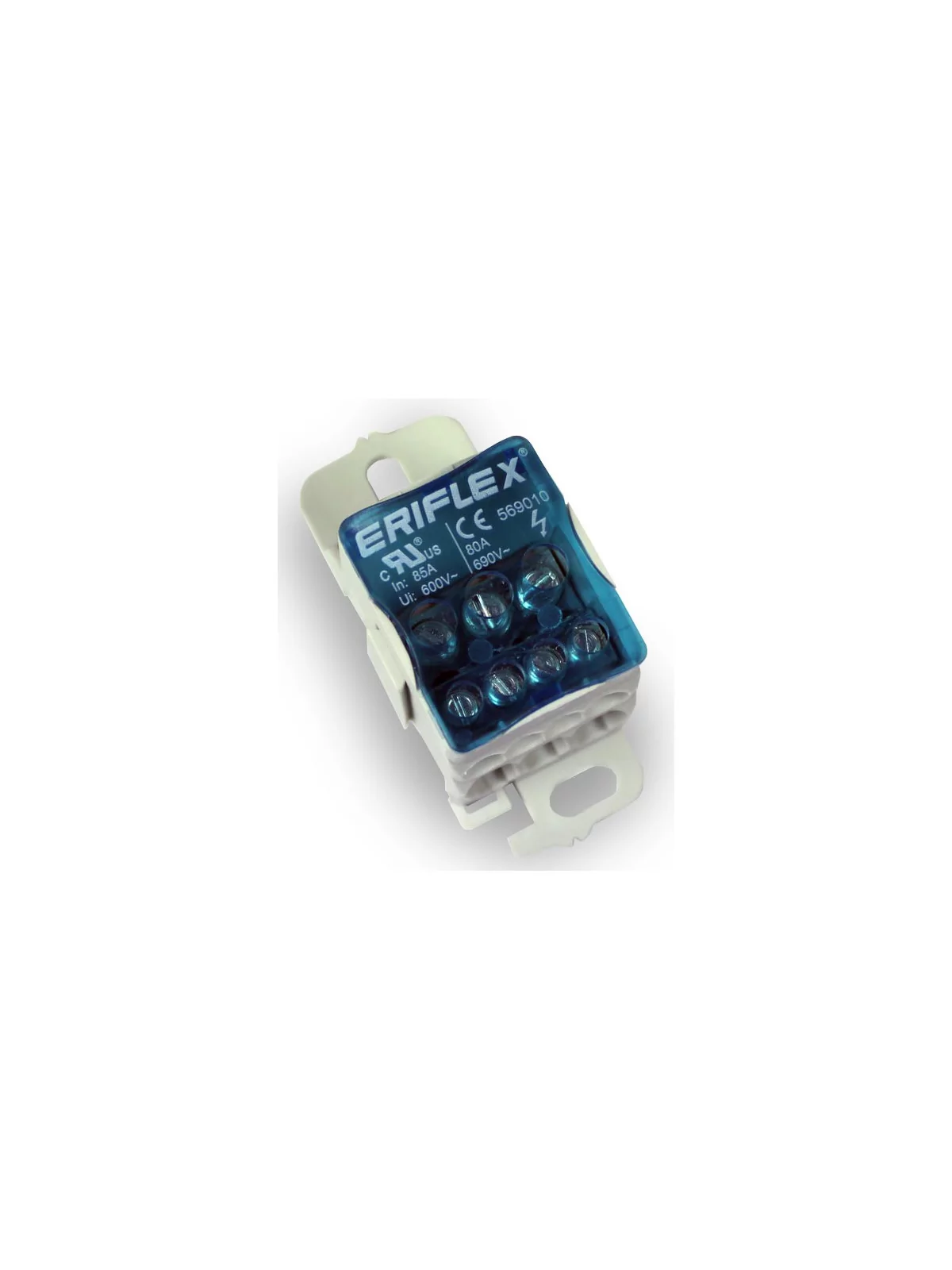

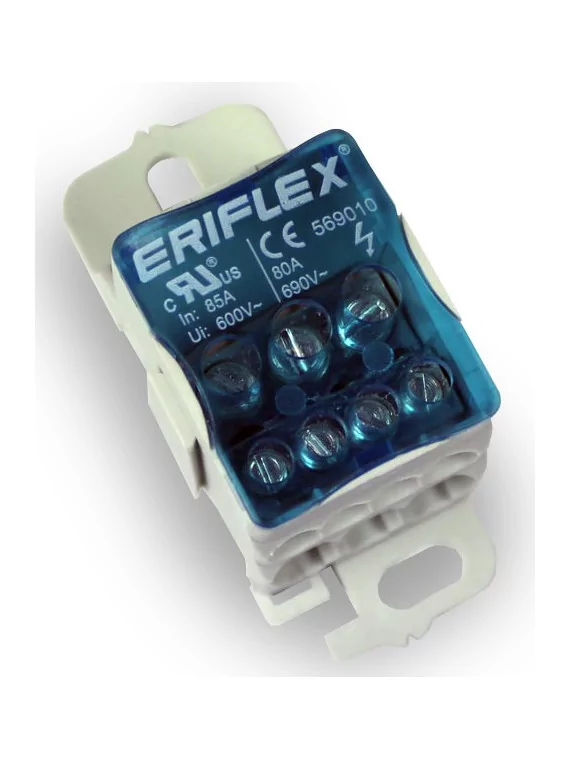

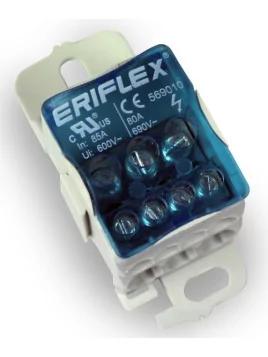

Single Pole Distribution Block Eriflex 80A

€16.20
Tax included
045788
0712971132115

Unipolar distributor Eriflex 80A

Single Pole Distribution...

€16.20

" Unipolar distributor 80A Eriflex "

Features :

  • Increase the number of outputs with one input using a jumper wire

  • Tinned copper block allows for copper or aluminum conductor connections

  • Screw retaining cover is hinged and removable

  • Design allows for visual inspection of conductor and confirmation of connection

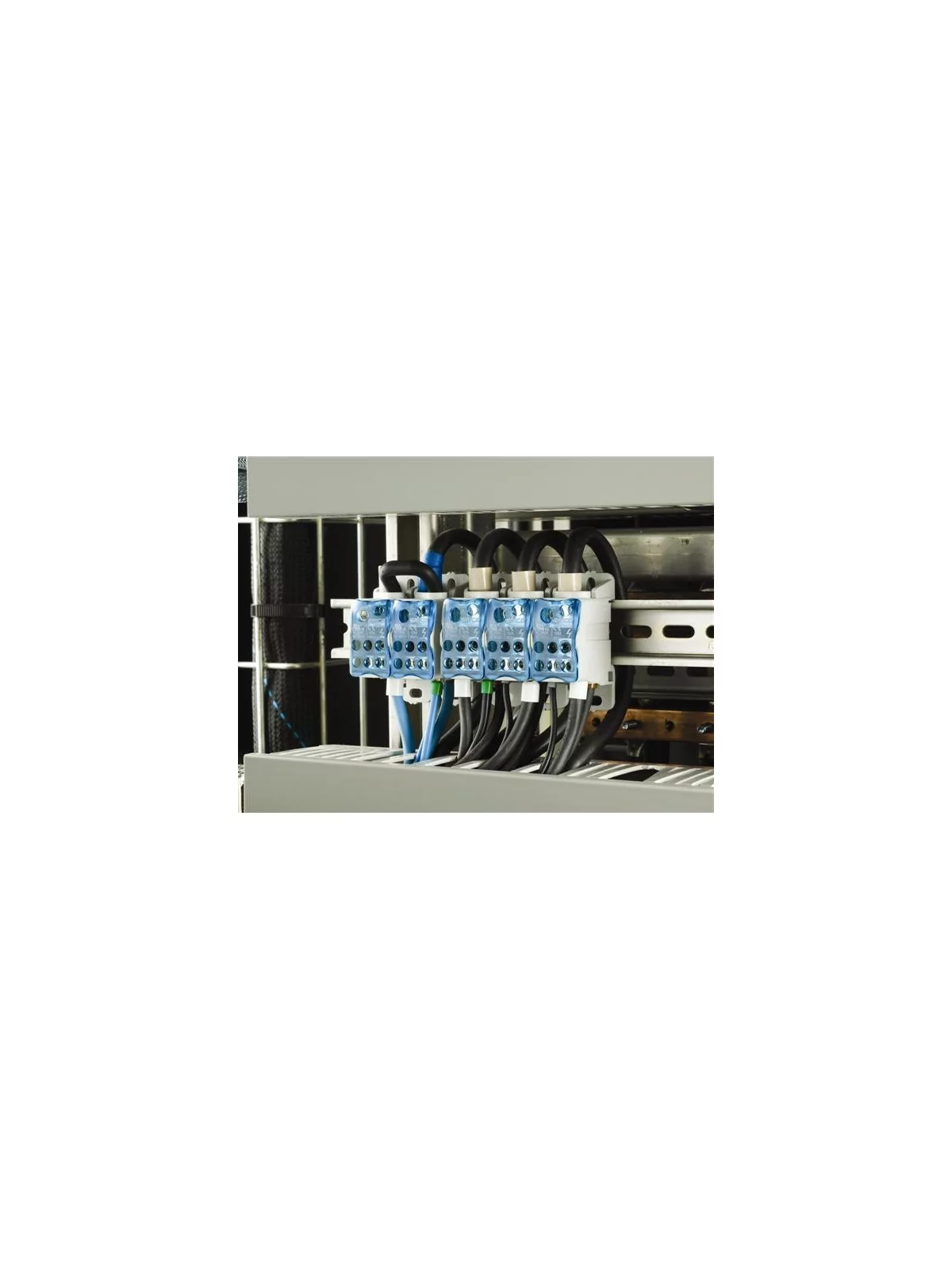

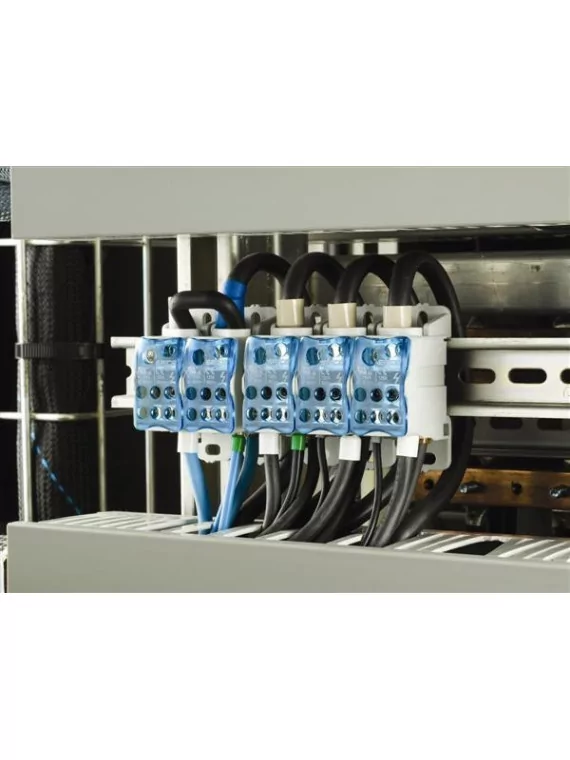

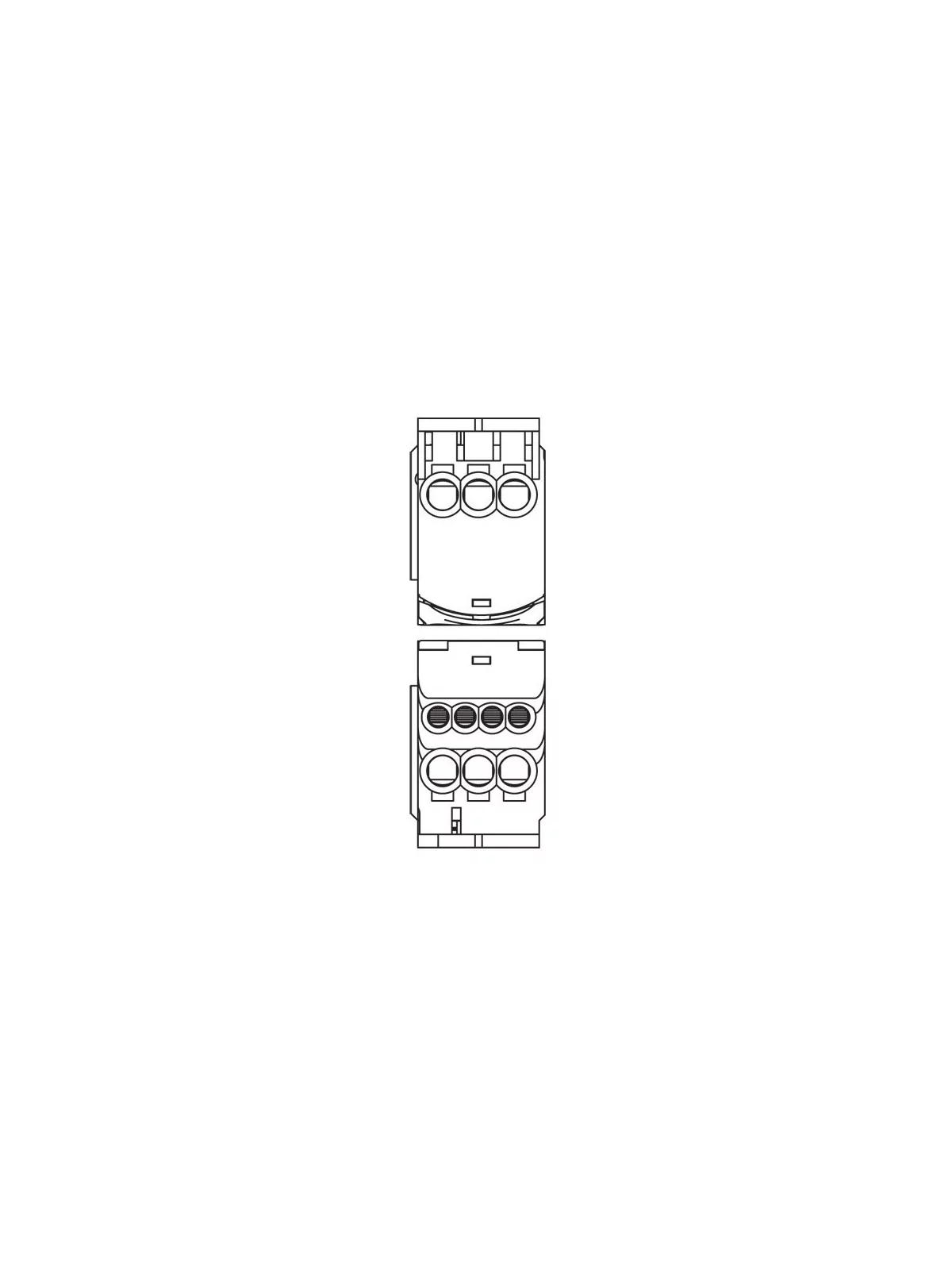

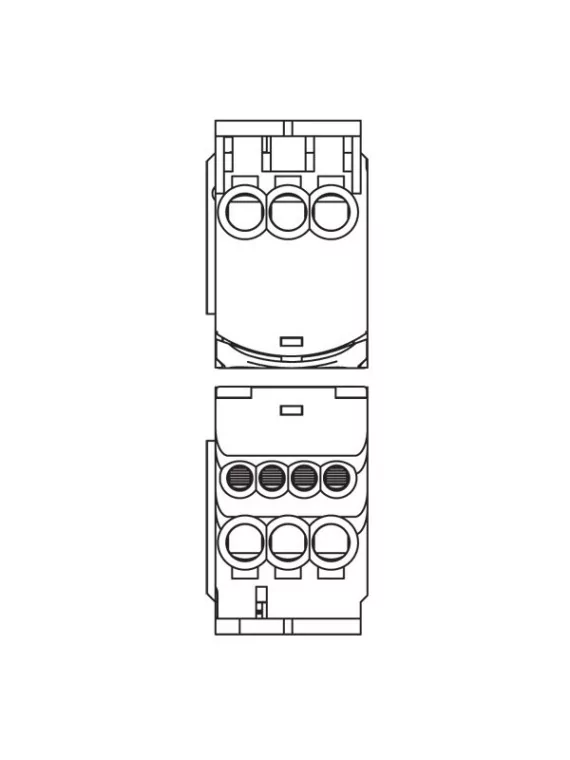

  • Gangable for building multi-pole power blocks

  • Easily clips onto DIN rail or mounts to panel with screws

  • 95% fill ratio

  • Halogen free

  • RoHS compliant

Specifications :

Material: Copper; Thermoplastic

Finish: Tinned

Part Number    UD-80A

Article Number    569010

Max Current Rating, IEC 80A
Max Current Rating, UL/CSA 85A
Short Term Withstand Current (Icw) 1s 3kA
Peak Short Circuit Current (Ipk)    22kA
Short Circuit Current Rating (SCCR) 100kA
Max Working Voltage, IEC (Ui) 1000 VAC/DC
Max Working Voltage, UL (Vin) 600V
Line Side Number of Connections 1
Line Side Compact Stranded Wire Size 6 - 16 mm²
Line Side Wire Size #16 – #4
Load Side Number of Connections 6
Load Side Compact Stranded Wire Size (2) 2,5 - 16 mm²
(4) 2,5 - 6 mm²
Load Side Stranded Wire Size - Ferrule (2) 2,5 - 16 mm²
(2) 2,5 - 16 mm²
Load Side Wire Size (2) #16 - #4
(4) #16 - #8
Enclosure Rating IP 20

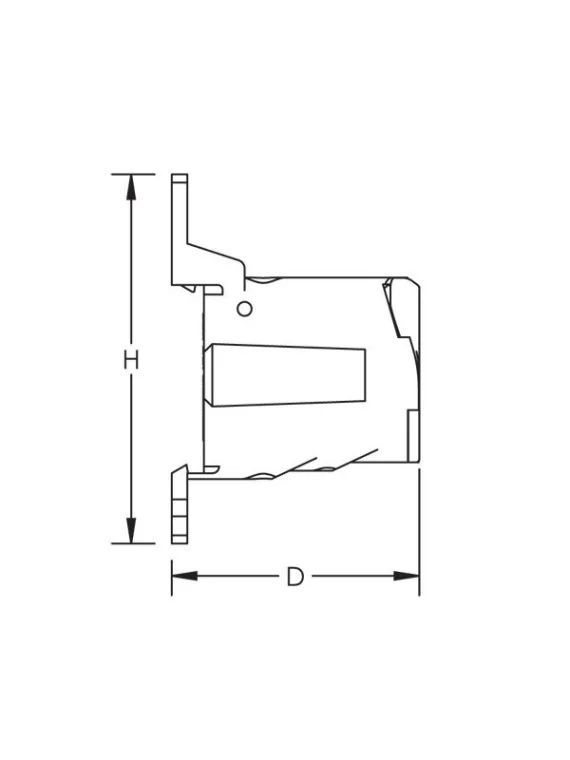

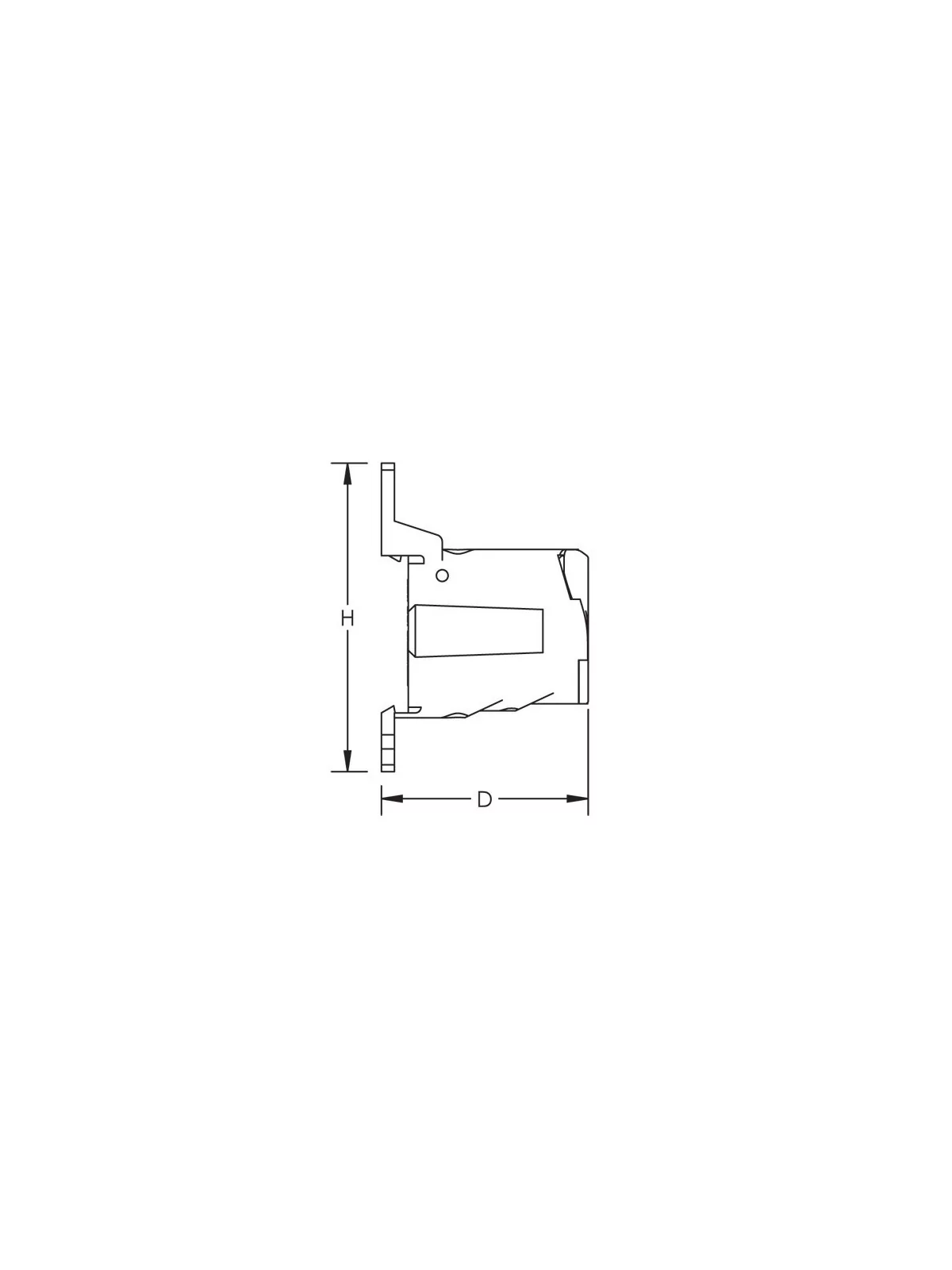

Depth (D) 46 mm
Height (H) 69 mm

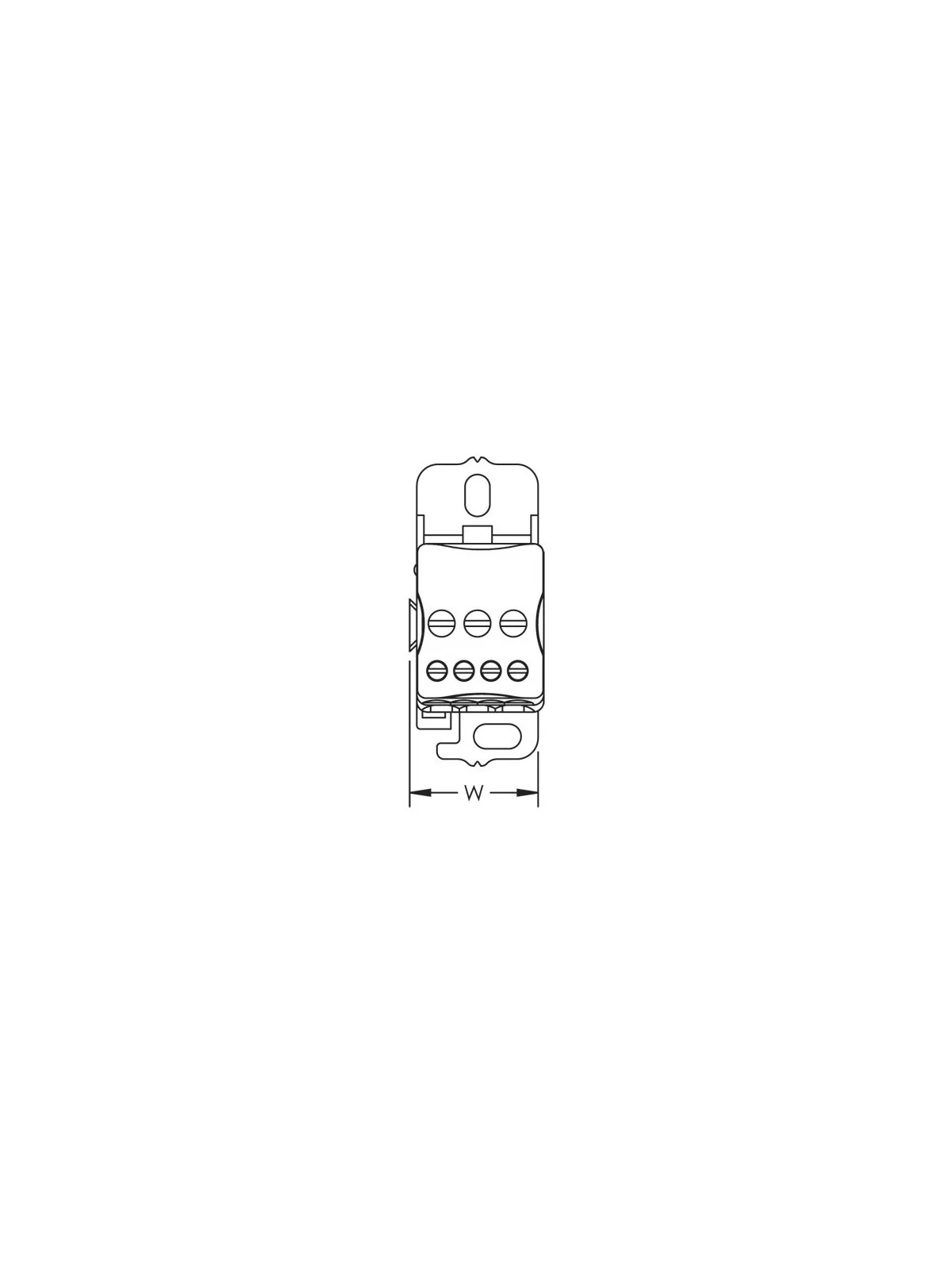

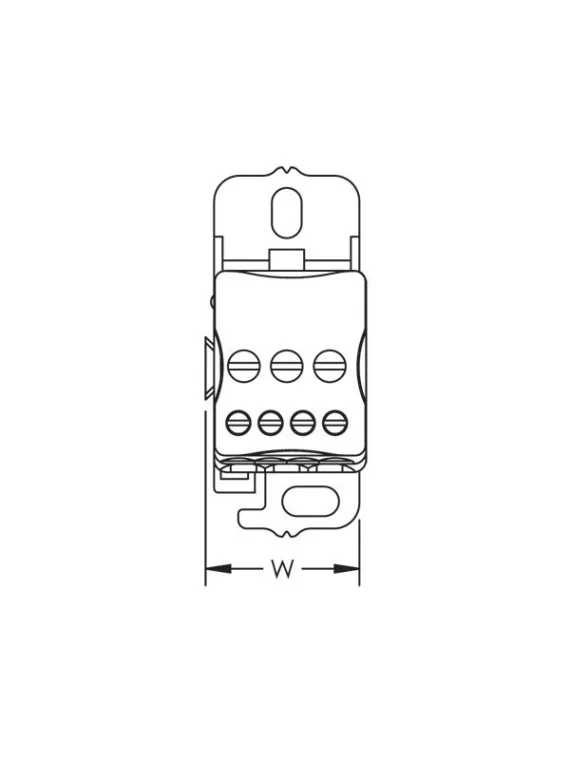

Width (W) 30 mm
Unit Weight 0,07 kg
Certification Details UL® 1059
Flammability Rating UL® 94V-0
Complies With IEC® 60947-7-1
