Kamase DC single surge arrester box 1000V 40A
€470.74
Tax included
09938
0712971131224
Cut-out and protection box 40A specifically designed for residential photovoltaic systems.
✅
Compatibilités vérifiées
▼
Compatible avec :
AIKO NEOSTAR 2S MONO GLASS-GEN2 460Wp
€108.35
Voir le produit →
AIKO NEOSTAR 3S+ DUAL GLASS-GEN3 470Wp
€120.00
Voir le produit →
Leapton N-Type 450Wp TOPCon bifacial
€84.95
Voir le produit →
Leapton N-Type 500Wp TOPCon bifacial
€109.50
Voir le produit →
Luxen LUXNERI Series N5 N-Type 500Wc bifacial...
€96.80
Voir le produit →
Palette 37X AIKO NEOSTAR 2S MONO GLASS-GEN2 460Wp
€3,892.90
Voir le produit →
Affichage de 6 sur 10 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.

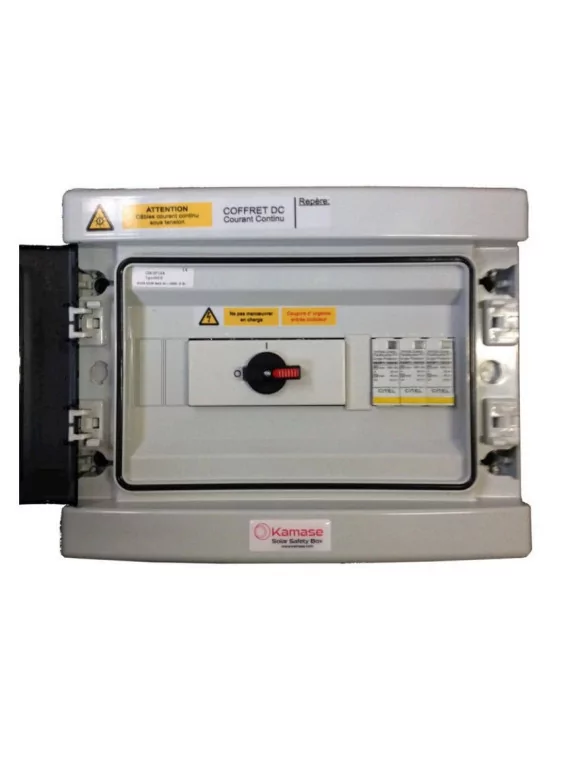

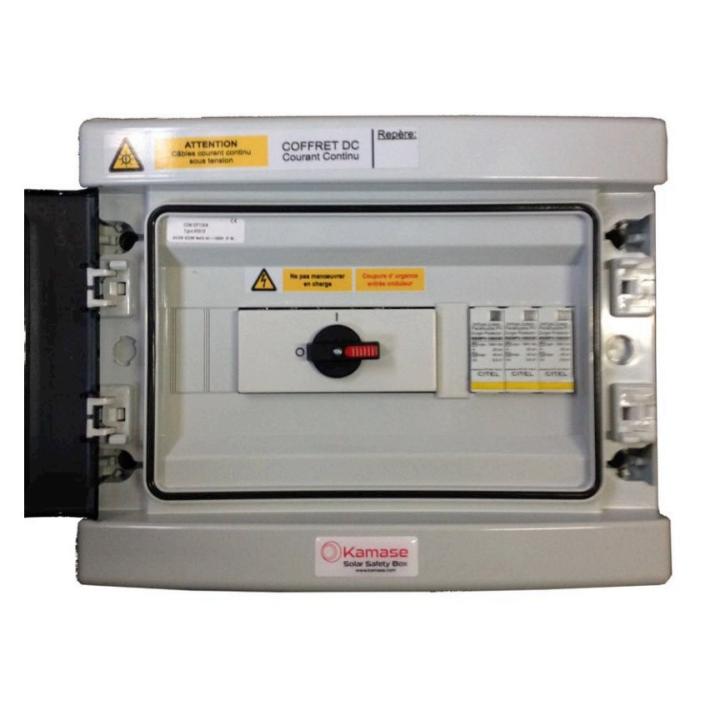

DC Cut-out and protection box 40A
Simple Cut-out and protection box specifically designed for residential photovoltaic systems :
• DC box equipped with 1 switch disconnector of the brand Kraus & Naimer. It is quick and convenient to install because it is equipped with Wago spring terminals that facilitate connection to the inverter. A DC surge arrester protect the system.
Components |
Features |
Functions |
| Switch Disconnector | 6-pole 20A-1000V DC | Sectioning |
| Surge Arrester |
Type 2 photovoltaic 1000V DC In 15kA Imax 40A |
Protects against surges |
| 4 pre-wired MC4 sockets |
Allows the connection of 1 or 2 strings (1 string : connected directly to the switch) |
Connection strings DC |
Complies with C15-712-1
Dimensions
12 modules L230xl310xP148mm
Protection sign
IP 65 Outdoor Installation.
Include
• Spring terminals 16 to 25mm2 for easy connection.
• Cable gland assembly.
• Single-line diagram
• Labeling according to UTE standards
• Individual cardboard packaging
09938
Data sheet
- Protection DC - Max voltage (V)
- 1000 V
- Protection DC - Max current (A)
- 40 A
- Protection DC - String inputs
- 1
Specific References
- UPC
- 712971131224
- EAN13
- 0712971131224
New
Kamase DC single surge arrester box 1000V 40A — Electrical hardware
Kamase DC single surge arrester box 1000V 40A by Kamase is available in our Electrical hardware catalog. Technical specifications: protection dc - max voltage (v): 1000 V, protection dc - max current (a): 40 A, protection dc - string inputs: 1. Product weight: 4.0 kg. Reference: 09938.
