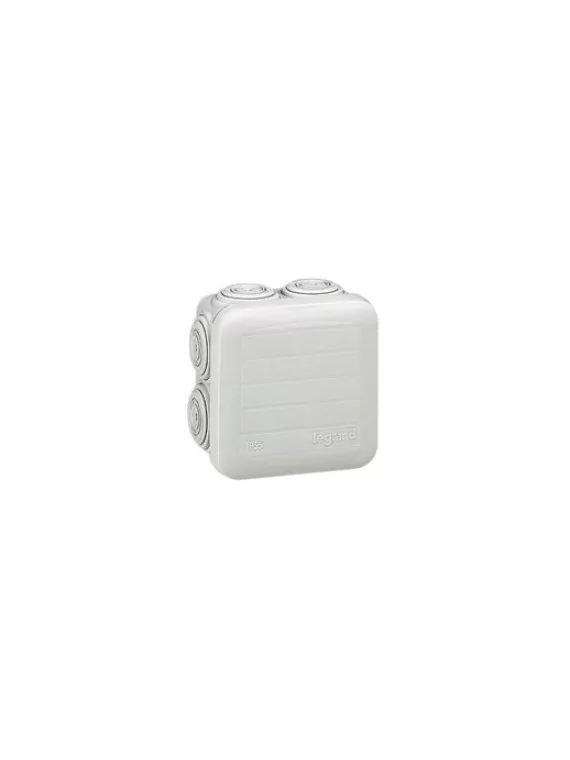

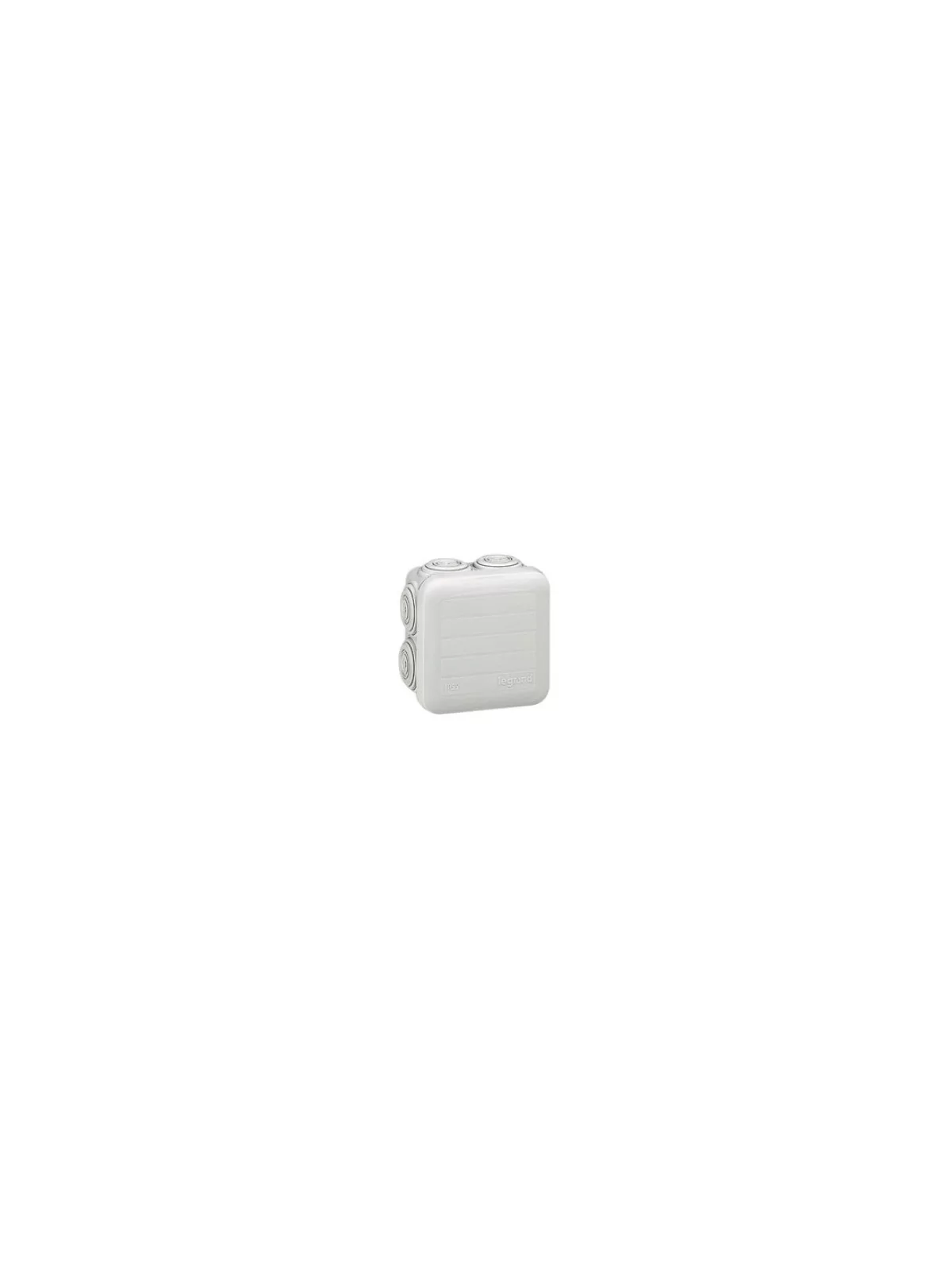

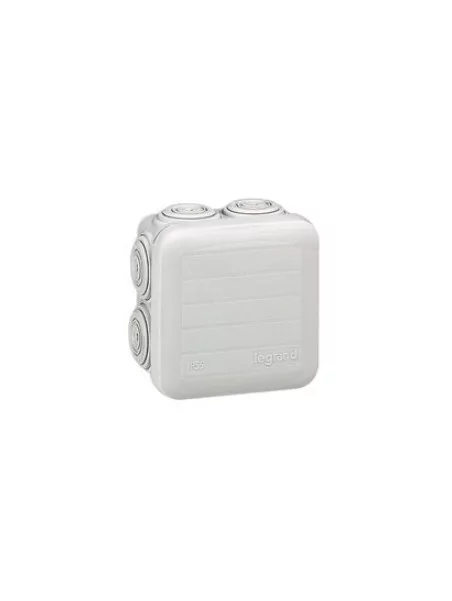

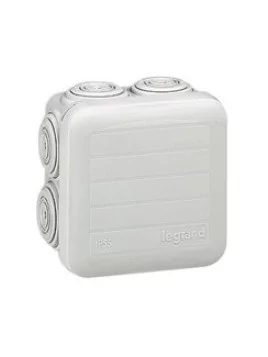

    Square junction box

    Legrand square bypass box

    $3.1
    0712971130418

    Square bypass box Plexo IP 55 - waterproof - with eclipseable cover - gray RAL 7035 - 7 tips - dimensions 65 x 65 x 40 mm

    Legrand square bypass box

    $3.1

    SQUARE BYPASS BOX PLEXO IP 55

    - WATERPROOF

    - WITH ENCLIPSABLE COVER

    - GREY RAL 7035

    - 7 TIPS

    - DIMENSIONS 65 X 65 X 40 MM

    Characteristics

    • Billing description: Square box Plexo IP 55 waterproof - gray - 7 tips
    • series - PlexoTM
    • Product group: 58
    • Commodity code: 39259080
    • Net weight: 0.056 kg

    shape: square
    mount type: universal
    for tube diameter: 20/25 mm
    rear entrance: Yes
    length: 78 mm
    width: 78 mm
    depth: 40 mm
    connectable: No
    number of entries:
    enclosure traversal type: level membrane to be cut
    material: plastic
    halogen-free: Yes
    surface treatment: untreated
    colour: grey
    protection class (IP): IP55
    lid: non-transparent
    fixing the cover: snap-in
    lid finish: one-eyed lid
    Pourable: No
    casting mass supplied: No
    Sealable: No
    maintenance of function: without
    operating temperature: -25 - 40 °C
    weather resistant: Yes
    explosion-proof finish: No
    for Ex-Gas Zone: without
    for Dust Ex-Zone: without
