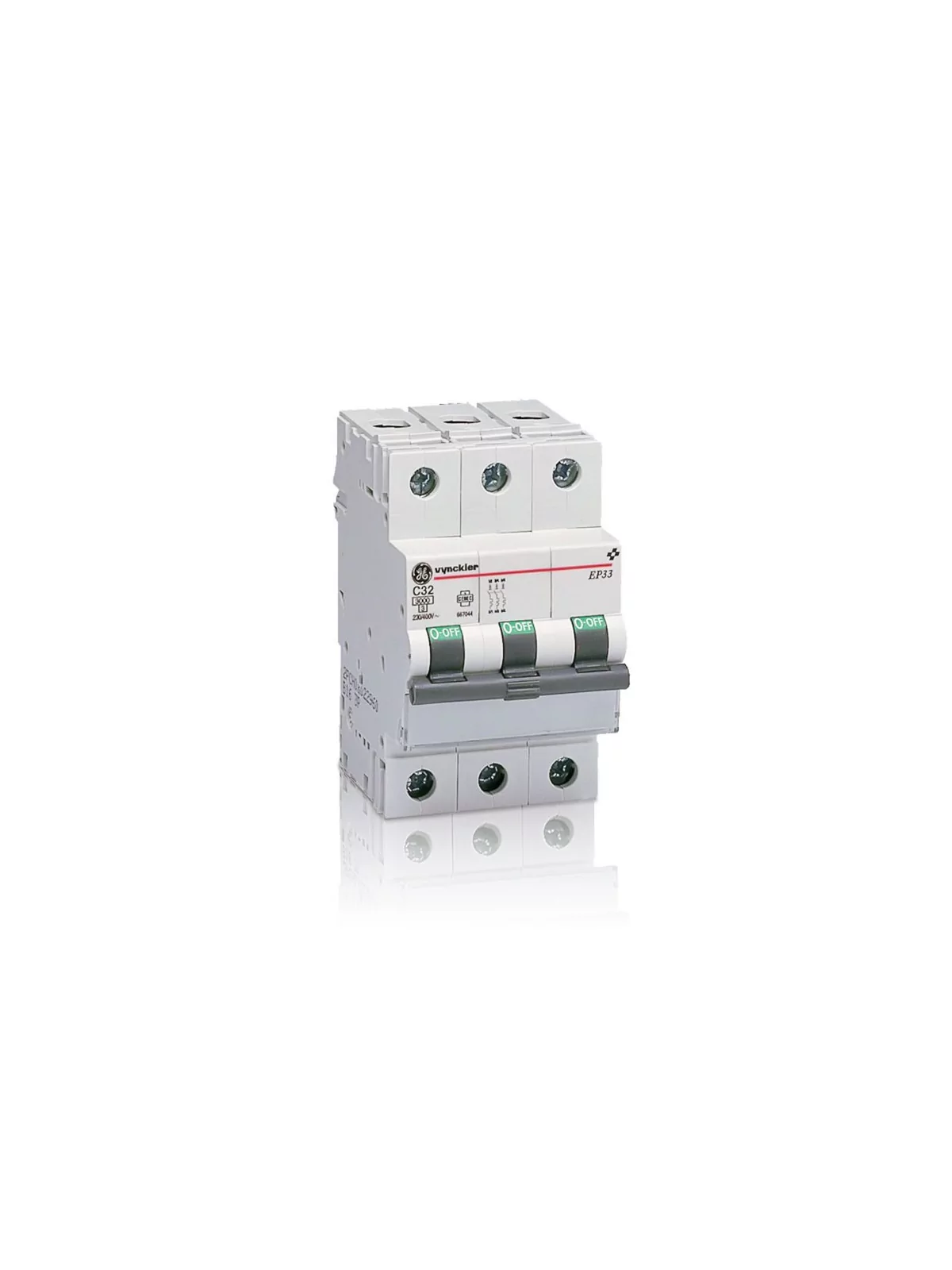

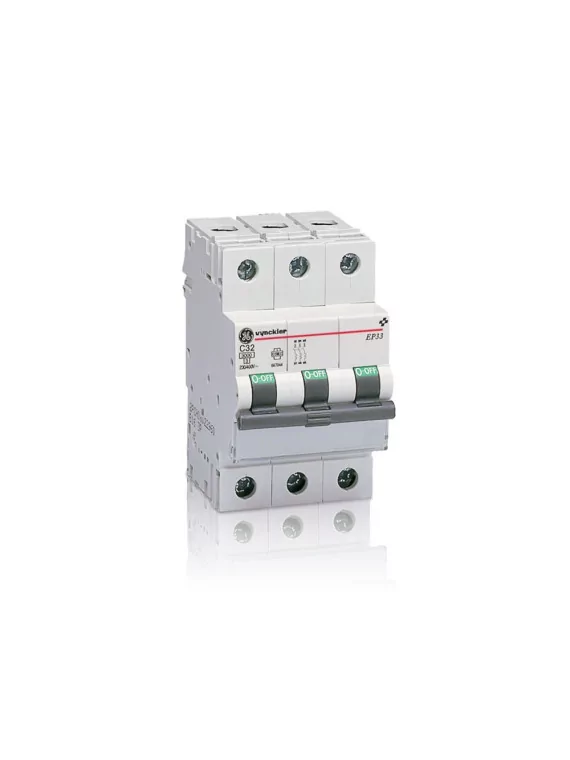

EP30 circuit breaker 3kA 3P C 40A View full size

EP30 circuit breaker 3kA 3P C 40A

Wattuneed

38,60 € tax incl.

Three-phase circuit breaker

More details

More info

EP30 circuit breaker 3kA 3P C 40A



Characteristics

  • 3000A cut-off power according to NBN EN 60898
  • Nominal current In (A): 0.5; 1 ; 2 ; 4 ; 6 ; 10 ; 16 ; 20 ; 25 ; 32 ; 40 ; 50 ; 63
  • Rated voltage A 230/400 V
  • Minimum operating voltage UBmin 12 V
  • Trip curve C
  • Selectivity class 3
  • Mechanical/electrical service life 20000/10000
  • Tropicalization according to IEC 60068-2-28/2-30 95%RH under 55 °C
  • Connection range max. soft/rigid wires 25-35 mm²
  • Poles 1, 2, 3, 3+N
  • The neutral of a 3P+N circuit breaker has thermal and magnetic protection, closes before and opens after phase contacts.
  • Weight/pole (g) 125



Extensions

  • Differential devices
  • Auxiliary functions
  • Remote trigger module
  • Minimum voltage trigger
  • Door contact
  • Engine control
  • Bar set systems









Specifications

Type de matériel électriqueDisjoncteur
