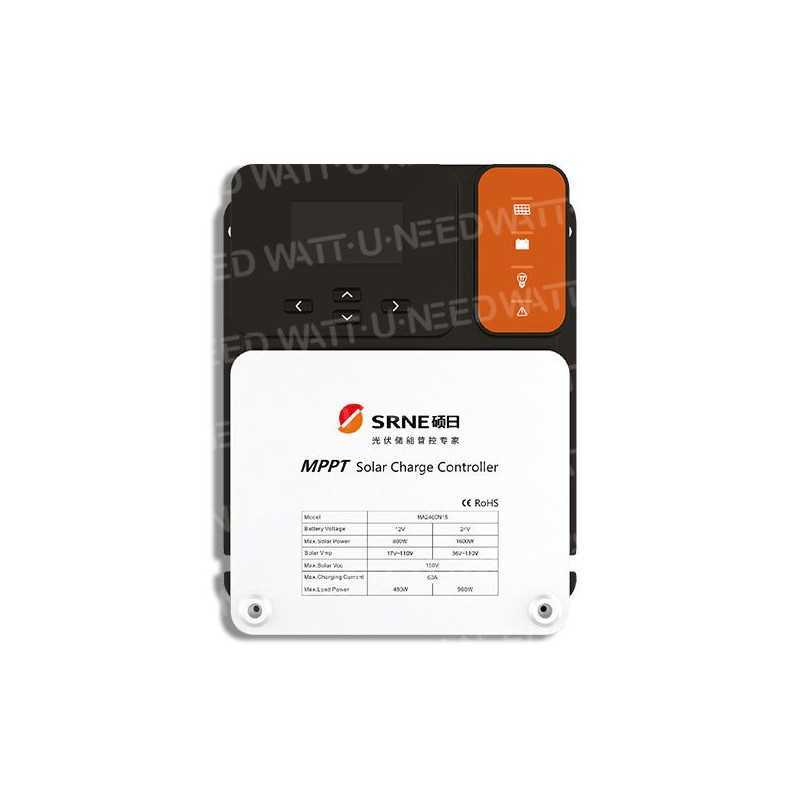

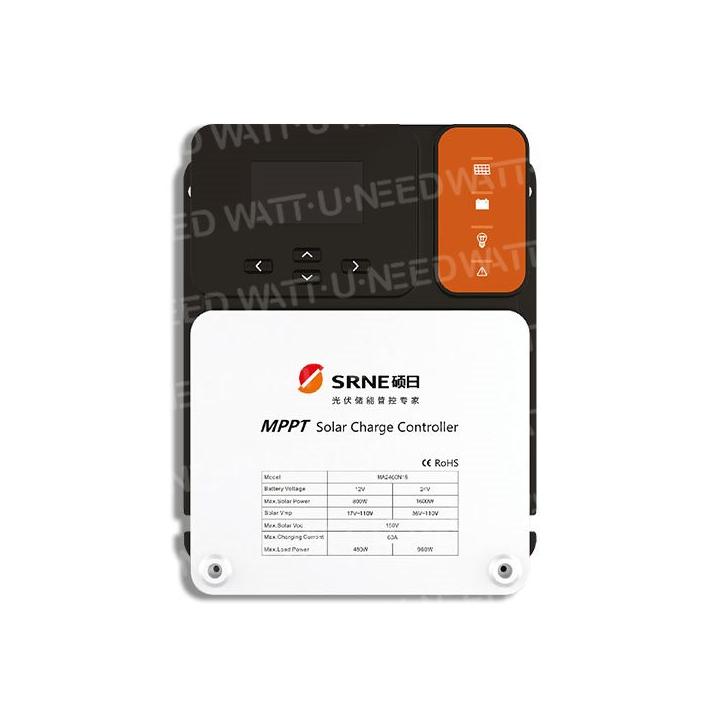

Solar controller MPPT SRNE MA Series 12/24V/36V/48V 30A MA4830N15
€277.33
Tax included
MA4830N15
0768563819704
The MA Series controller adopts industry-leading MPPT maximum power tracking technology to achieve maximum energy from the solar panel. It can quickly and accurately track the solar cell's maximum power point in any environment and obtain solar energy in real time. Maximum solar panel energy can dramatically improve the energy utilization rate of the solar system. Widely used in off-grid solar photovoltaic systems, solar panel, battery and load management is the central control component of an off-grid photovoltaic system. Inside the controller, there are perfect software and hardware fault detection and protection functions, which can minimize installation errors and system failures. component damage.
7
✅
Compatibilités vérifiées
▼
Compatible avec :
Ultracell UCG100-12 GEL batteries - 100Ah 12V Gel
€192.87
Voir le produit →
Ultracell UCG150-12 GEL batteries - 150Ah 12V Gel
€297.03
Voir le produit →
Ultracell UCG200-12 GEL batteries - 200Ah 12V Gel
€358.38
Voir le produit →
Ultracell UCG250-12 gel batteries - 250Ah 12V...
€538.45
Voir le produit →
Ultracell UCG275-12 gel batteries - 275Ah 12V...
€562.70
Voir le produit →
Ultracell UCG35-12 GEL batteries - 35Ah 12V Gel
€89.30
Voir le produit →
Affichage de 6 sur 11 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
MPPT solar charge controller
- Using MPPT technology, MPPT tracking efficiency can reach 99.9%.
- Support for CAN communication function (optional).
- Support for a wide variety of batteries such as sealed, colloidal, open type, lithium and user-customized.
- Support for charging voltage line loss compensation, for more precise control of battery charging voltage (partial models).
- Support for capacitive start-up charging and inductive charging.
- RS485 communication supporting standard Modbus protocol, with adjustable baud rate.
- TTL communication supporting standard Modbus protocol, with fixed baud rate.
- With perfect load and discharge protection mechanisms, such as overvoltage, overcurrent, overload, overtemperature and short-circuit.
MA4830N15
Data sheet
- Max.Voltage of Open Circuit
- 150Vdc
- Max.PV Input Power
- 1200W/36V
1600W/48V
400W/12V
800W/24V - Operating temperature
- -35°C to +45°C
- Voltage
- 12V
24V
36V
48V - Width
- 205 mm
216 mm - Height
- 260 mm
285 mm - Thickness
- 93 mm
98.5 mm - IP protection
- IP32
- Battery Type
- USE/FLD/GEL/LI/SLD/ User Defined
- Rated Battery Voltage
- 12/24/36/48Vdc
- Battery Voltage Range
- 8~64Vdc
- MPPT Charging Mode
- Buck
- Load Type
- Resistive, Capacitive, Inductive load
- Rated load voltage
- Equal to battery voltage 12V/24V/36V/48V
- Rated load current
- 30A
- MPPT Tracking Efficiency
- greater than 99
- Max. Load conversion efficiency
- 85%~98%(Correspond load power10%~100%)
- Weight
- 3,6kg
- Communication
- RS232/RS485
- Altitude
- Less than or equal to 3000m
- MPPT voltage range
- (Battery voltage+2V)～110Vdc
- Maximum photovoltaic system input power
- 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
- Temperature compensation factor
- -3.0mv/°C / 2V (default)
- Conversion efficiency
- 98% or less
- Load operating mode
- Light control only, combined light and timer control, manual mode (default), test mode, normally open mode.
Specific References
- UPC
- 768563819704
- EAN13
- 0768563819704
