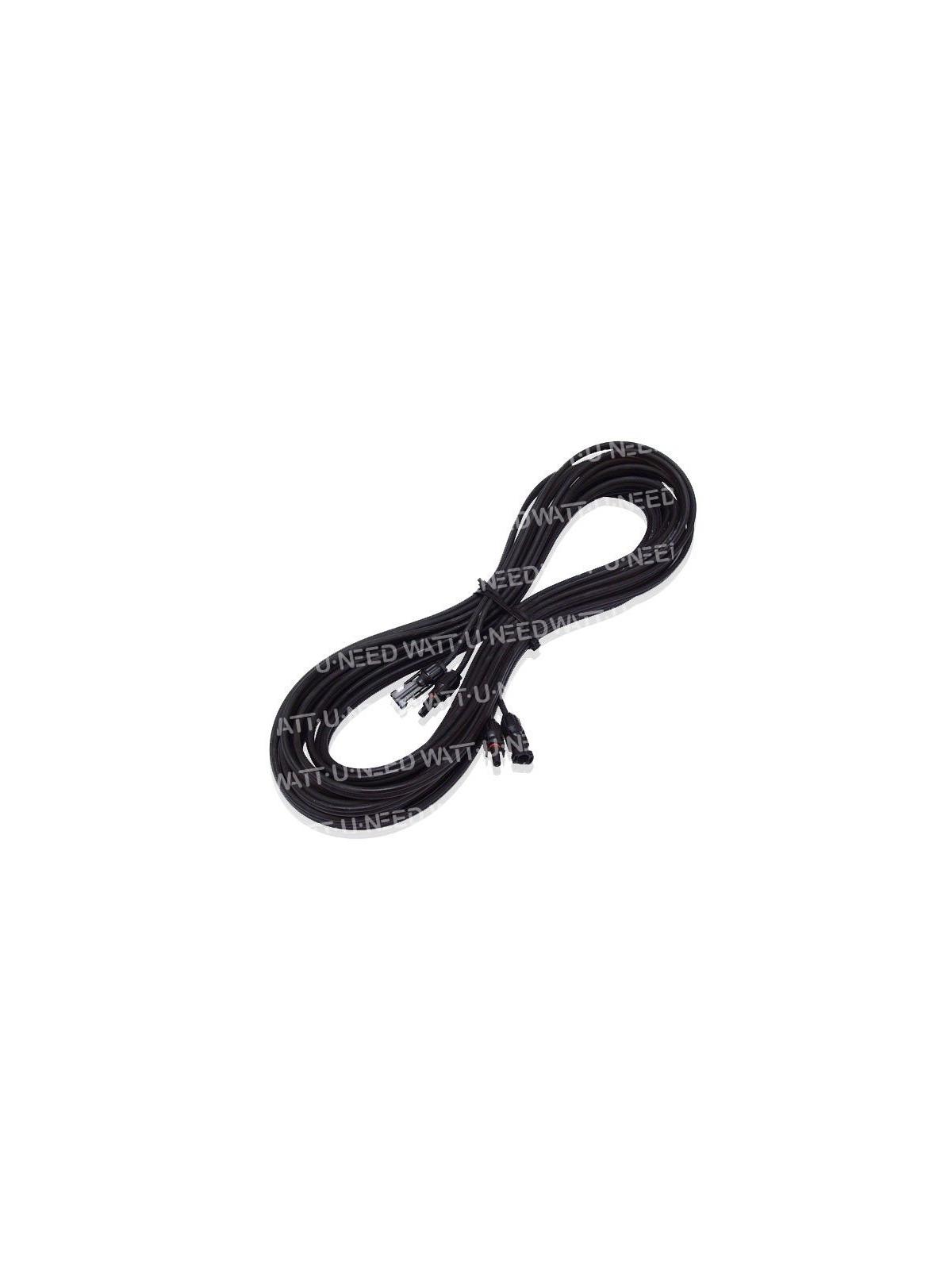

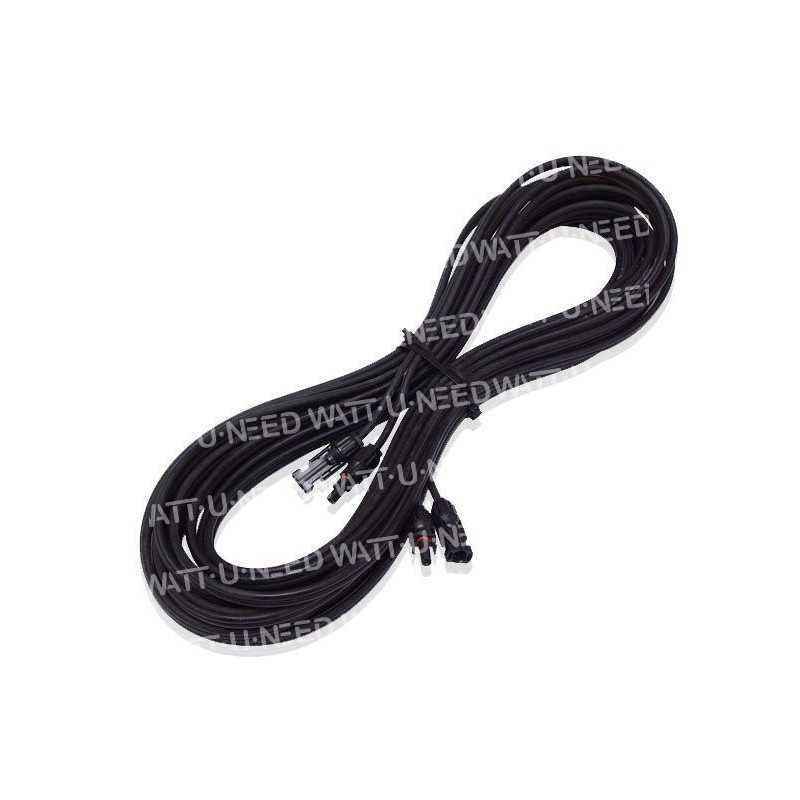

Configurable solar cable extension with 2x Type MC4 (per meter)

Solar cable extension 1x6mm² with 2x MC4 connectors (20 meters)

€107.16

Tax included

Reference: Allonge-solaire-6

EAN13: 0768563817946

This extension cable allows you to simply increase the distance between your panels and the rest of the installation. This extension lead consists of 2 separate 1X6mm² cables.

Configurable length
Configurable cable

100% secure payments

Sorry, there are no more items in stock.

Description
Product Details

"Solar cable extension configurable with 6 mm² - 4x MC4 type connectors "

Option : choisir la longueur de mon câble solaire

4mm², 6mm² or 10mm² solar cable extension for photovoltaic systems.
Sold by the meter.
This extension cable allows you to easily increase the distance for indoor and outdoor photovoltaic applications for flexible or fixed installations, in compliance with 2 Pfg 1169/08.2007 and UTE C32-502 standards.

Key features :

1. conductor :
- Flexible tinned copper class 5 to IEC 60228.
2. insulation :
- Polyolefin
3. Sheathing :
- Polyolefin
- Black color

Technical specifications :

1. Construction features :
- Core flexibility: Flexible class 5
- Halogen-free: IEC 60754-1
2. Electrical data :
- Rated operating voltage Uo/U (Um) : 0.6 / 1 kV
3. Operating characteristics :
- Low smoke: IEC 61034-2
- Ozone resistance: yes
- Smoke corrosivity: IEC 60754-2
- Maximum core temperature: 120°C
- Ambient operating temperature range: -40° to 90°C
- Weather resistance: excellent
- Non-flame propagating: IEC 60332-1

Reference Allonge-solaire-6

Data sheet

Cables and connectors: Allonge câble solaire

Specific References

UPC: 768563817946
EAN13: 0768563817946

Condition New

Solar cable extension 1x6mm² with 2x MC4 connectors (20 meters)
