5-Input PV Junction Box: String Centralisation and Electrical Protection

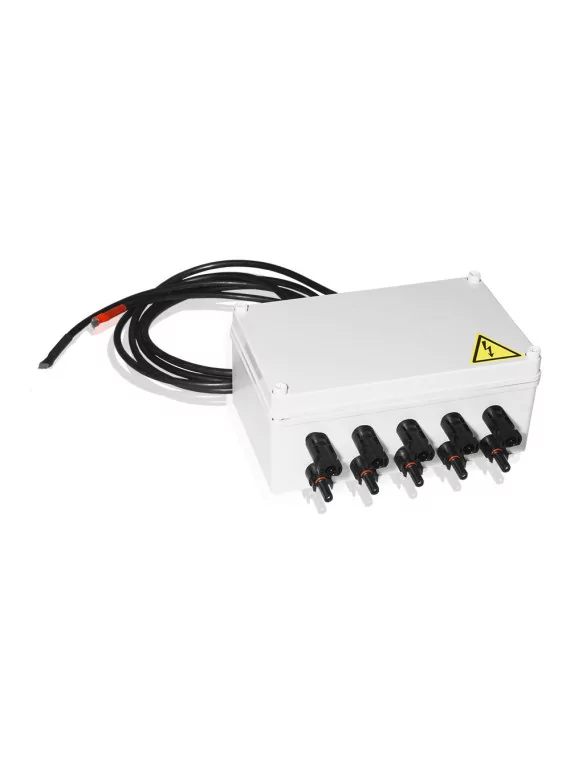

A junction box is a fundamental component in any photovoltaic installation. This 5-input model allows up to five separate PV strings to be brought together before connecting to the inverter. By centralising string connections, it reduces wiring complexity, improves system reliability, and makes future maintenance significantly easier.

How It Works

Each of the five inputs accommodates one PV string. Built-in protection devices — typically fuses or surge arresters depending on the configuration — allow each string to be individually isolated in the event of a fault. This design limits fault propagation and simplifies troubleshooting during routine inspections or repairs.

Installation Considerations

• Ensure the junction box is rated for the maximum open-circuit voltage (Voc) of your PV array under cold conditions.
• The enclosure protection rating (IP) must be appropriate for the installation environment, particularly for outdoor or rooftop use.
• All wiring should comply with applicable IEC standards and local electrical regulations.
• Use certified solar DC cables with appropriate cross-section and insulation rating for each string input.

Typical Applications

• Residential rooftop installations with multiple PV strings.
• Commercial or agricultural systems requiring structured string management.
• Off-grid or hybrid systems with multi-string PV generators.

This 5-input junction box supports a professional installation approach, enabling straightforward periodic checks and ensuring your solar system meets current safety requirements.
