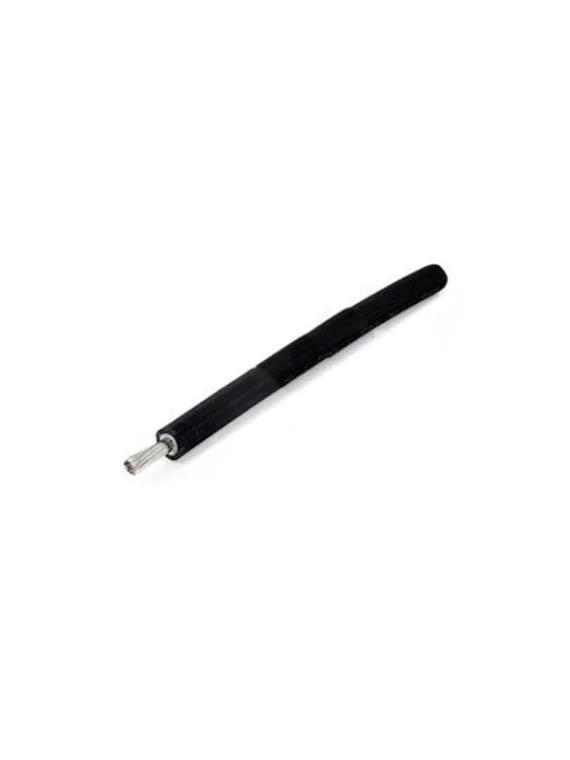

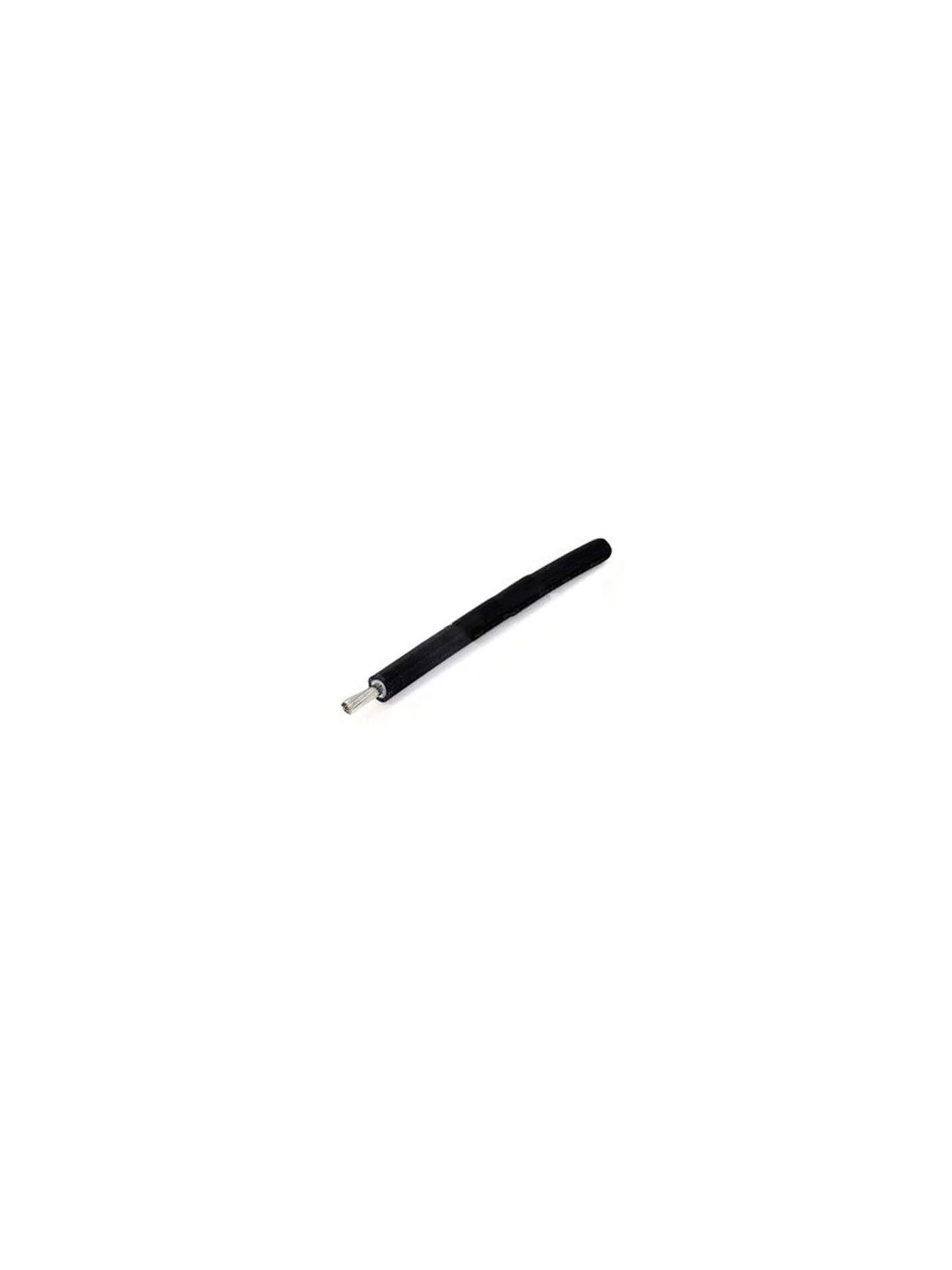

    Solar cable 1X6mm2 - 1m

    Solar cable 1X6mm2 (sold per metre)

    €2.16
    0191
    0712971125360

    Solar 1x6 mm2 cable for photovoltaic system.
    Sold by the meter.



    100% secure payments
    Cable length: 1m

    Solar cable 1X6mm2 (sold...

    €2.16

    1x6 mm2 Black Solar Cable

    Solar 1x6 mm2 cable for photovoltaic system.

    Sold by the meter.
    Solar cable 1X6mm2 - 1m
    This quality cable is intended for indoor and outdoor photovoltaic applications for flexible or fixed installations, according to 2 Pfg 1169/08.2007 and UTE C32-502.



    Key features:

     1. Driver:
       - Edus soft copper Class 5 following CEI 60228.
     2. Isolation:
       - Polyolefine
     3. Gaine:
       - Polyolefine
       - Black color

    Technical features:

    1. Building characteristics:
       - Flexibility of the soul: Flexible Class 5
       - Halogen-free: IEC 60754-1
    2. Electrical features:
       - Uo/U rated service voltage (Um): 0.6 / 1 kV
    3. Use features:
       - Low smoke: IEC 61034-2
       - Ozone hold: yes
       - Smoke corrosiveness: IEC 60754-2
       - Maximum temperature on the soul: 120oC
       - Ambient temperature of use, range: -40 to 90 degrees Celsius
       - Weather resistance: excellent
       - Non-flame propagator: IEC 60332-1
