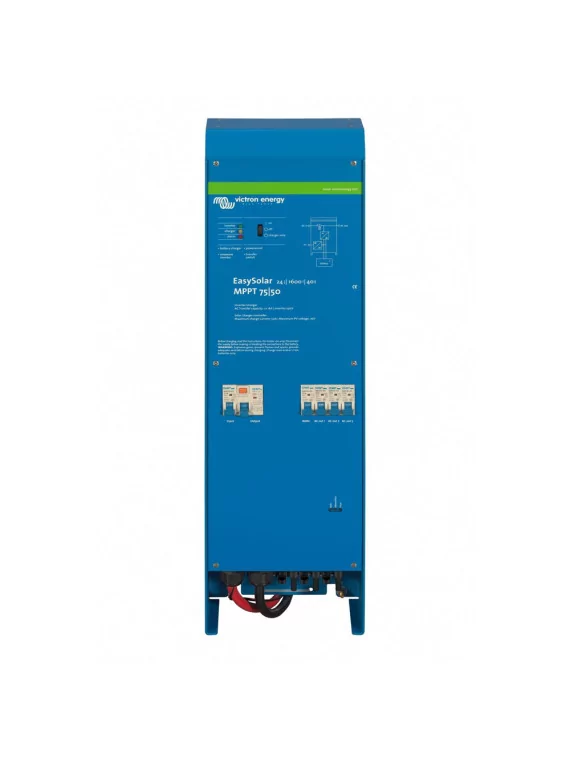

    Victron EasySolar 12V / 24V inverter and charge controller
    Victron EasySolar 12V / 24V inverter and charge controller
    Victron EasySolar 12V / 24V inverter and charge controller

    Inverter/controller Victron EasySolar 12/1600/70 - 24/1600/40

    $1,244.9
    0552
    0712971127555

    Victron EasySolar 12V / 24V converter and charge controller.

    The EasySolar combines

    • an MPPT 100/50 solar charge controller,
    • a Multiplus 12/1600/70 or 24/1600/40
    • charger/converter
    • and AC distribution in a single package .

    This product is easy to install, with minimal wiring.


    Please choose your model opposite

    Victron EasySolar: EasySolar 12/1600/70-16 MPPT 100/50

    Inverter/controller Victron...

    $1,244.9

    Inverter/controller Victron EasySolar 12/1600/70 - 24/1600/40

    "EasySolar 12 V and 24 V: the all-in-one solar power solution "

    The all-in-one solar power solution:


    The EasySolar combines a solar charge controller, charger/converter and AC distribution in a single housing. This product is easy to install, with minimal wiring.

    The solar charge controller: BlueSolar mppt 75/50 and 100/50


    Up to three strings of PV panels can be connected to three sets of PV mc4 connectors. (PV-ST01).

    Inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40


    The charge controller and MultiPlus Compact inverter/charger share the DC battery cables (included). Batteries can be charged by solar power (BlueSolar) and/or AC power (converter/charger) from the public grid or from a generator.


    AC distribution


    AC distribution consists of an RCD (30 mA/16 A) and four AC outputs protected by two 10 A and two 16 A circuit breakers. One 16 A output is controlled by the AC input: it will only be switched on if an AC source is available.


    PowerAssist


    The unique PowerAssist technology protects the mains or generator supply against the risk of overload by adding additional inverter power if required.


    Unique solar application software


    Several software packages (Assistants) are available to configure the system for various stand-alone or grid-interactive applications. Please visit http://www.victronenergy.nl/support-and-downloads/software/


    Technical data

    Caractéristiques

    0552

    Data sheet

    Charging power
    70A
    Voltage
    12V / 24V
    Power
    1600 VA
    Phase
    Triphasé

    Specific References

    New
