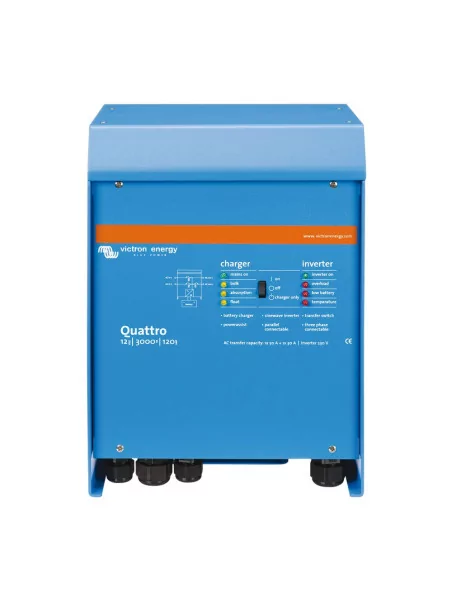

Victron Quattro 12V / 24V / 48V - 3 to 10kVa

Inverters Victron Quattro 12V : 3000 to 5000VA, 24V : 3000 to 8000VA, 48V : 5000 to 10000VA.
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.

logo victron energy

More details

2 674,10 €

Options

By buying this product you can collect up to 481 loyalty points. Your cart will total 481 points that can be converted into a voucher of 144,30 €.


Shipping fee preview
More info

" Up to 10 Quattro unit can operate in parallel "





The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.

Onduleur Victron Quattro

Description

Two AC Outputs

The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.



Virtually unlimited power thanks to parallel operation

Up to 10 Quattro units can operate in parallel. Ten units 48/5000/70, for example, will provide 45kW / 50kVA output power and 700 Amps charging capacity.

Three phase capability

Schema triphase victron multiplus

Three units can be configured for three-phase output. But that’s not all: up to 10 sets of three units can be parallel connected to provide 135kW / 150kVA inverter power and more than 2000A charging capacity.



Powercontrol

The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (Up to 40A per 5kVA Quattro at 120VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or shore supply from being overloaded.



Powerassist
Schema powerassist victron multiplus

This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.



System configuring has never been easier

After installation, the Quattro is ready to go. If settings have to be changed, this can be done in a matter of minutes with a new DIP switch setting procedure. Even parallel and 3-phase operation can be programmed with DIP switches: no computer needed! Alternatively, VE.Net can be used instead of the DIP switches.



Solar energy: AC power available even during a grid failure

The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems.



Specifications

Dtasheet onduleur Victron Quattro

schéma victron quattro



Victron Energy app

application apple victronMonitor and manage your Victron Energy system. Login with your VRM account, and see all your sites in a list. Tap a site to see its system diagram, current system status and energy flow.















Options

All the range Victron Quattro is available in option above

12V 3000 to 5000VA, 24V 3000 to 8000VA, 48V 5000 to 10000VA



(Datasheet on download)



Specifications
Voltage48V
Power30000 à 10000 VA
Monophasé / TriphaséTriphasé
Inverter power3000VA
