    $412.8
    PSC123051085
    0768563816512

    Designed with boat owners in mind, this 5-stage adaptive charger can supply either 30 A or 50 A to each of three battery banks.
    The Phoenix 1+1 model supplies 3 A to the starter battery, the rest to the house bank.
    24 V models are available with 16/25 A charging capacity. With Bluetooth enabled, you can monitor the charger and set alarms directly from your phone.
    Dynamic, intelligent and adaptive charging features.
    For voltage- and temperature-compensated charging, order a Smart Battery wireless probe.

    Select your charger from the options.

    Model battery charger: Chargeur Smart IP43 12/30 (1+1)

    Victron Phoenix Smart IP43...

    $412.8

    "Victron Phoenix Smart IP43 charger


    Bluetooth Smart enabled

    Any smartphone, tablet or other device with Bluetooth enabled can be used to monitor the ch argeur, change settings and update it if new software features are available.

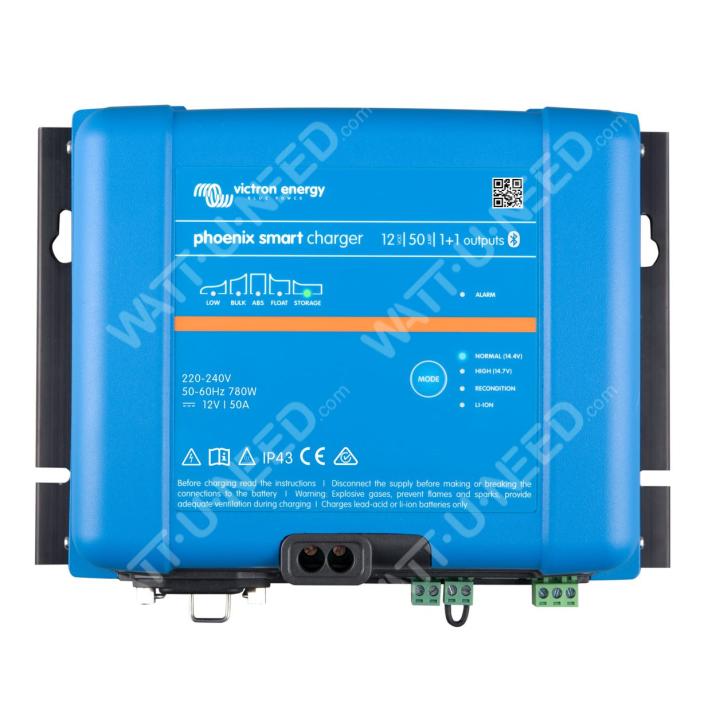

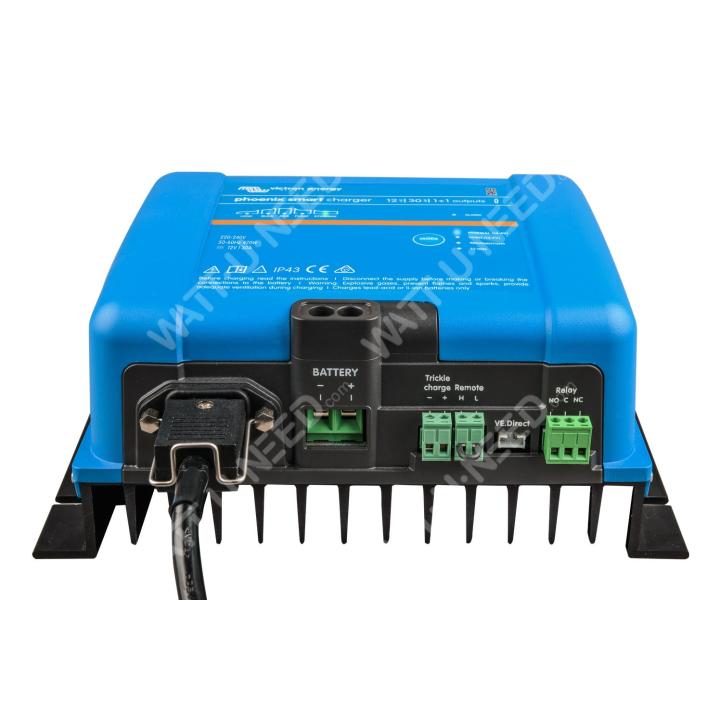

    Phoenix Smart (1+1): two outputs for charging 2 battery banks

    Designed for maintenance of a starter battery, the second output is limited to around 3 amps at a slightly lower voltage.

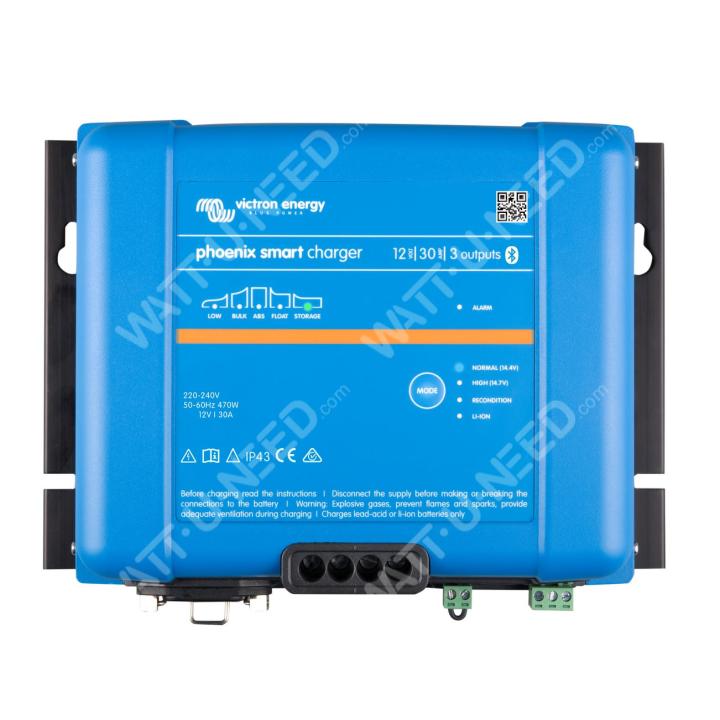

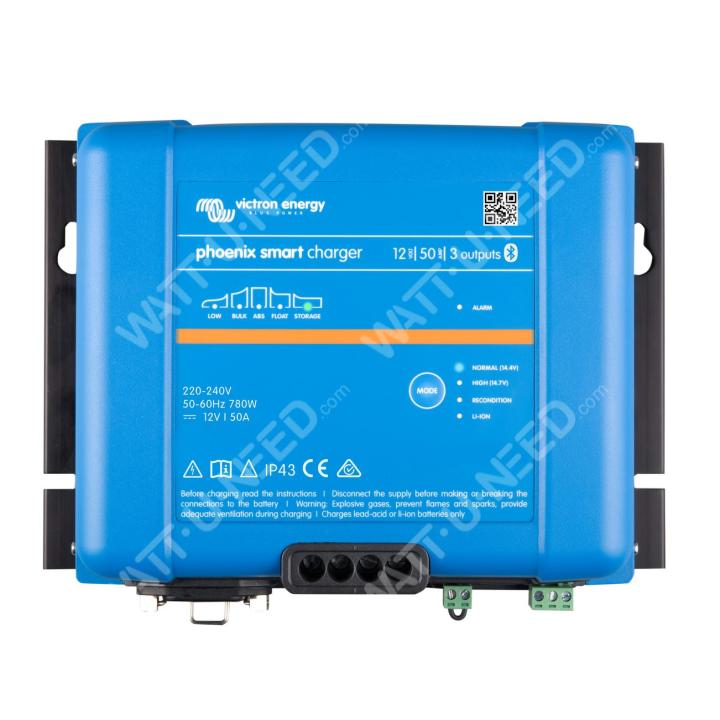

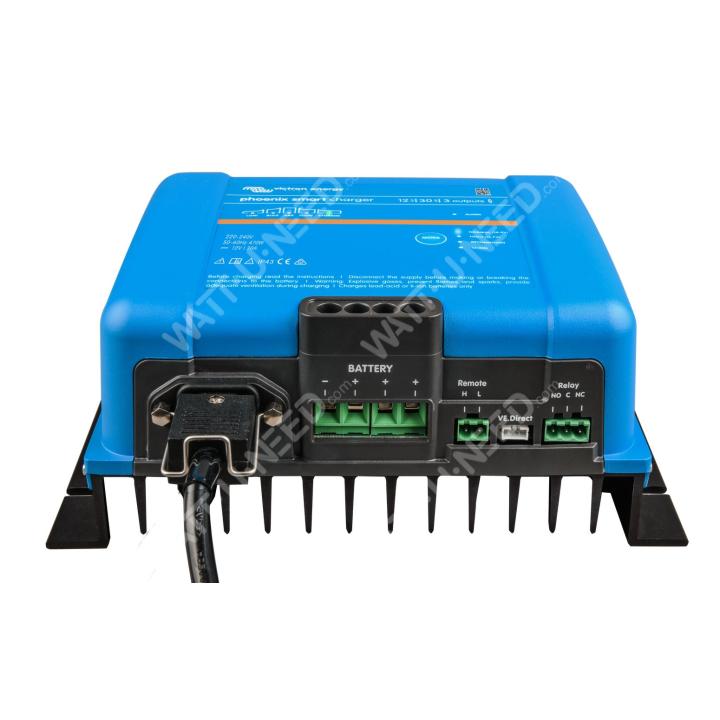

    Phoenix Smart (3): three complete current outputs to charge 3 battery banks

    All outputs can supply the full rated output current.


    Automatic voltage compensation


    The charger compensates for voltage drops on the DC wiring by slightly increasing the output voltage if the DC current increases. Please refer to the manual for further details.


    The right amount of charge: variable absorption time

    When the battery is under little load (e.g. on a boat connected to the quay), the absorption charge phase is shortened to avoid overcharging. After a deep discharge, the absorption time is automatically increased to ensure that the battery is fully recharged.


    Preventing damage due to gassing: BatterySafe mode

    If, to recharge a battery quickly, a high charging power is combined with a high absorption voltage, the Phoenix charger will prevent deterioration due to excessive gassing by automatically limiting voltage progression, as soon as the gassing voltage has been reached.


    Less maintenance and ageing when the battery is not in use: Storage Mode

    Storage mode is activated when the battery has not been used for 24 hours. In standby mode, float voltage is reduced to 2.2 V/cell (13.2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week, the voltage is raised to absorption level to "equalize" the battery. This function prevents electrolyte stratification and sulfation, major causes of premature battery ageing.


    Can also charge lithium-ion batteries (LiFePO4)

    An On-Off charger control function can be implemented by connecting a relay or an open-collector optocoupler output from a lithium-ion BMS to the remote control port. Alternatively, full voltage and current control can be performed via Bluetooth.


    Remote On/Off


    The system's remote on/off has two terminals: the remote H terminal, and the remote L terminal. A remote on/off switch or relay contact can be connected between terminals H and L. Alternatively, terminal H can be pulled up, or terminal L pulled down. For further details, please refer to the manual.


    VE.Direct interface


    For wired data connection to a Color Control panel, PC or other devices. Please refer to the VictronConnect application in the Downloads/Software section of our website).


    Load curves

    Courbes de charge


    Specifications

    Charger Phoenix Smart IP4312 V, 2 outputs - 12/30(1+1) / 12/50(1+1)12 V, 3 outputs - 12/30(3) / 12/50(3
    24 V, 2 outputs - / 24/25(1+1) 24 V, 3 outputs - 24/16(3) / 24/25(3
    Input voltage 230 VAC (range:
    210-250V)
    DC supply voltage range290 - 575 VDC
    Frequency45-65Hz
    Power factor
    .7
    Absorbed return currentAC disconnected: <0.1 mA AC connected and remote charger switch-off: <6 mA
    No-load power consumption
    Efficiency12/30 :
    94% - 12/50 : 92%12/30:94% - 12/50 : 92%94,00%94,00%
    "Absorption" charging voltageNormal: 14.4 V High: 14.7 V Lithium-ion: 14.2 VNormal: 28.8 V High:
    29.4 V Lithium-ion: 28.4 V
    Float charge voltageNormal: 13.8 V High: 13.8 V Lithium-ion: 13.5 VNormal: 27.6 V High: 27.6 V Lithium-ion:
    27.0 V
    Storage modeNormal: 13.2 V High: 13.2 V Lithium-ion: 13.5 VNormal: 26.4 V High: 26.4 V Lithium-ion: 27.0 V
    Fully programmableYes, with Bluetooth and/or VE.Direct
    Service battery charging current30 / 50 A16 / 25 A
    Low current mode15 / 25 A
    / 12,5 A
    Starter battery charging current
    A (1+1 output models only)
    5-step adaptivecharging algorithm

    ProtectionReverse battery polarity (fuse,
    not user-accessible) / Output short circuit / Overheating
    Can be used as a power supplyYes, output voltage can be programmed via Bluetooth and/or VE.Direct
    Operating temperature range
    to 60°C (0 - 140°F)
    Nominal output current up to 40 ºC, 20% linear decrease at 60 ºC
    Humidity (non-condensing)max. 95%
    Relay (programmable)DC output :
    5 A up to 28 VDC
    Housing
    Material and coloraluminum (RAL 5012 blue)
    Battery
    Screw terminals 16 mm² (AWG6)
    AC connectionIEC 320 C14 input with retaining ring
    (AC cables for countries with specific plugs must be ordered separately)
    Degree of
    IP43 (electronic components),

    I

    P22 (connection area)
    Weight kg (lbs)
    .5 kg
    Dimensions (H x W x D)180 x 249 x 100 mm (7.1 x 9.8 x 4.0 inches)
    Standards
    SafetyEN 60335-1, EN 60335-2-29
    EmissionEN 55014-1,
    EN 61000-6-3, EN 61000-3-2
    ImmunityEN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
    Automotive Directive
    VibrationIEC68-2-6:10-150Hz/1.0G
