Victron Cyrix battery coupler - 120A / 230A / 400A
Review sent
Your review cannot be sent
You are about to create a quotation for the kit Victron Cyrix battery coupler - 120A / 230A / 400A.
This action will open the quotation app in a new tab.
This Victron battery coupler is equipped with a microprocessor that automatically connects batteries in parallel when one battery is being charged. Disconnection takes place automatically when one or more batteries are in "discharge" mode, i.e. when the voltage drops below the FLOAT level.
The device takes into account the general trend in voltage variation.
The 12/24 230 model is equipped with LED indicators showing the status of the device (connection, disconnection, overtemperature, etc.).
The Victron Cyrix automatically detects and adapts to the voltage of the system to which it is connected.
Thanks to its microprocessor control, the coupler prevents voltage drops, and therefore the correction of charging voltages on battery chargers or alternators. They are the perfect replacement for diode separators.
Victron Cyrix

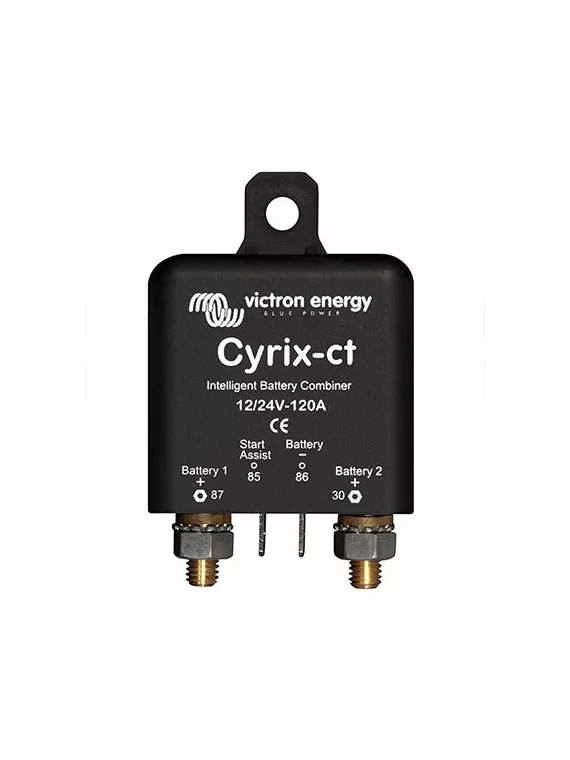

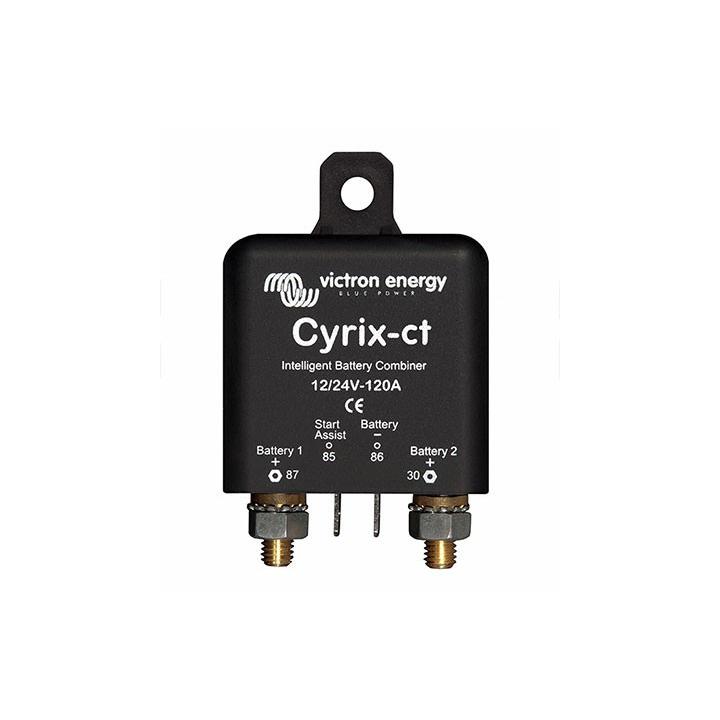

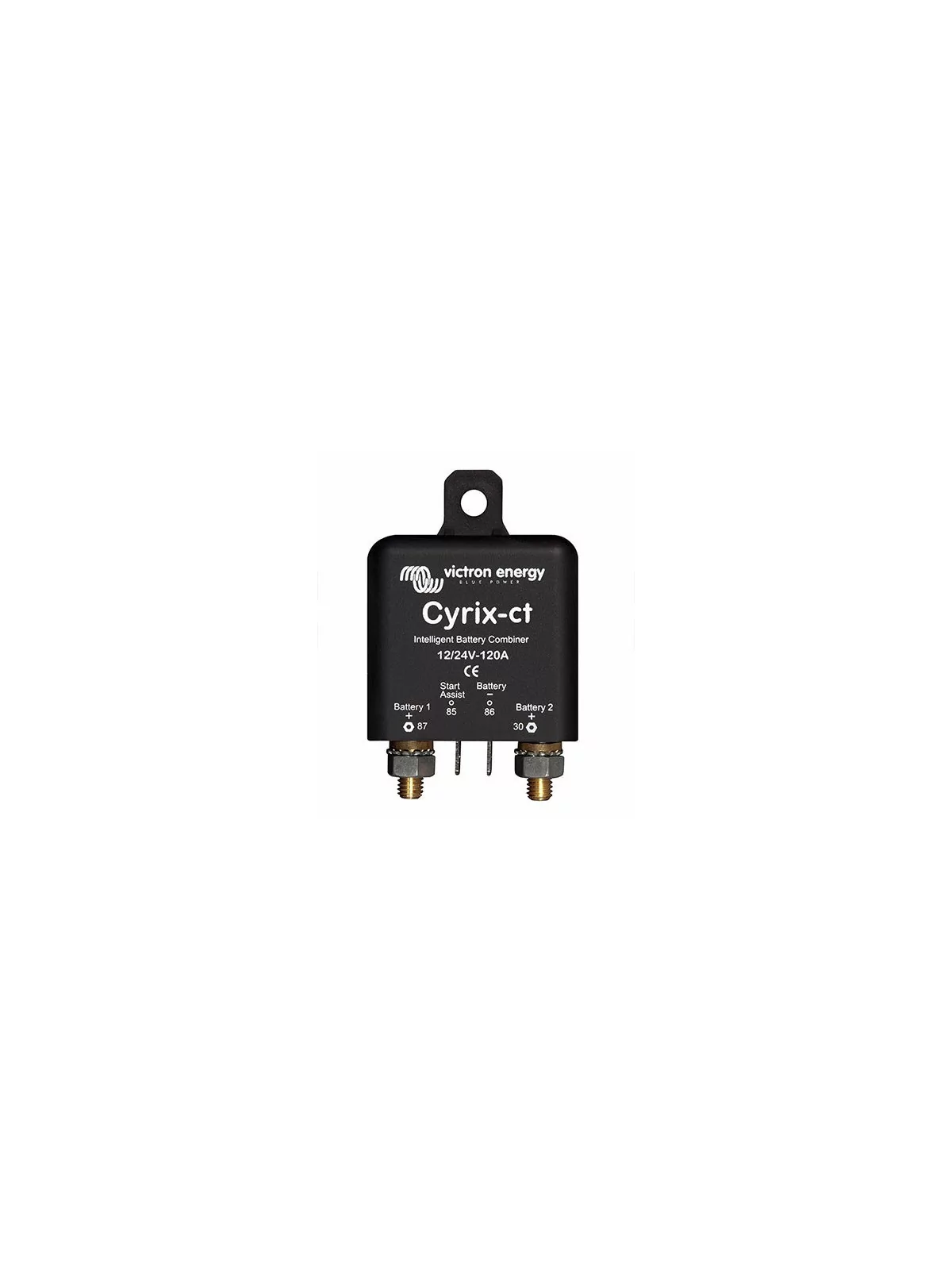

Cyrix-ct 12/24-120

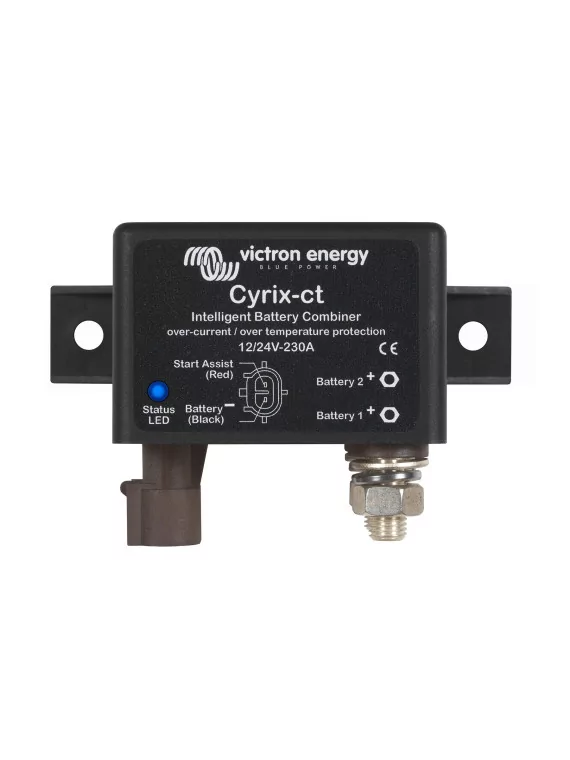

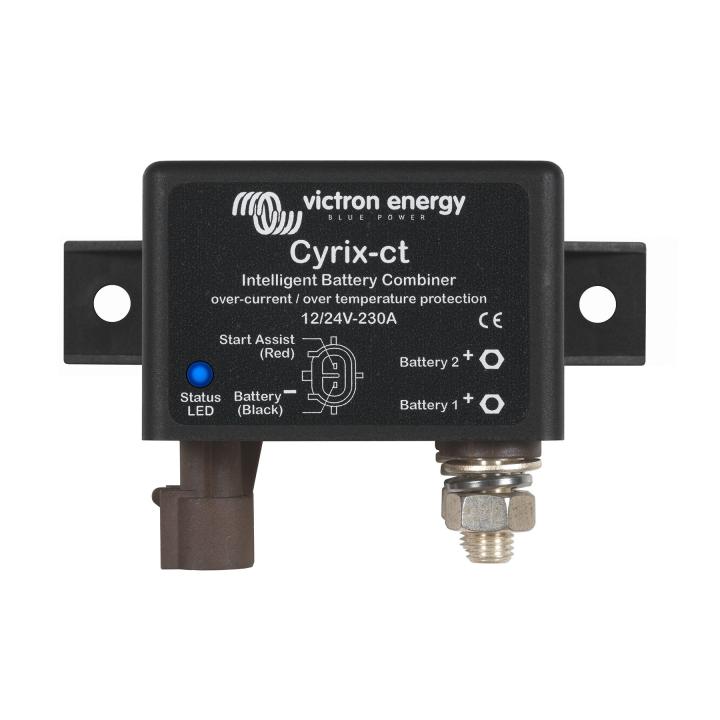

Cyrix-ct 12/24-230
Cyrix-ct 24/48-400
LED status indication
NO
YES
YESLED bi-colored
Continuous current
120 A
230 A
400 A
Rated starting power (5seconds)
180 A
500 A
See table in data sheet
Connection voltage
From 13 to 13.8 V and 26 to 27.6 Vwith intelligent trend detection
See the table in the data sheet
Switch-off voltage
From 11 to 12.8 V and 22 to 25.7 Vwith intelligent trend detection
Current consumption in open position
< 4 mA
4 mA
Current consumption in positionclosed
12 V : 220 mA 24 V : 120 mA
12 V : 320 mA 24 V : 180 mA
StartAssist
Control cable included (length 1 m)
OUI
Degree of
IP54
Weight kg
0.11 kg
0.27 kg
0.9 kg
Dimensions h x w x d in mm
46 x 46 x 80 mm
65 x 100 x 50 mm
78 x 102 x 110 mm
