    JNL Solar SunmaX 375 Wp JLS120MFB | High Performance Solar Panel
    JNL Solar SunmaX 375 Wp JLS120MFB | High Performance Solar Panel
    JNL Solar SunmaX 375 Wp JLS120MFB | High Performance Solar Panel

    JNL Solar SunmaX 375 Wp JLS120MFB | High Performance Solar Panel

    $80.3
    JLS120MFB
    0768563818653

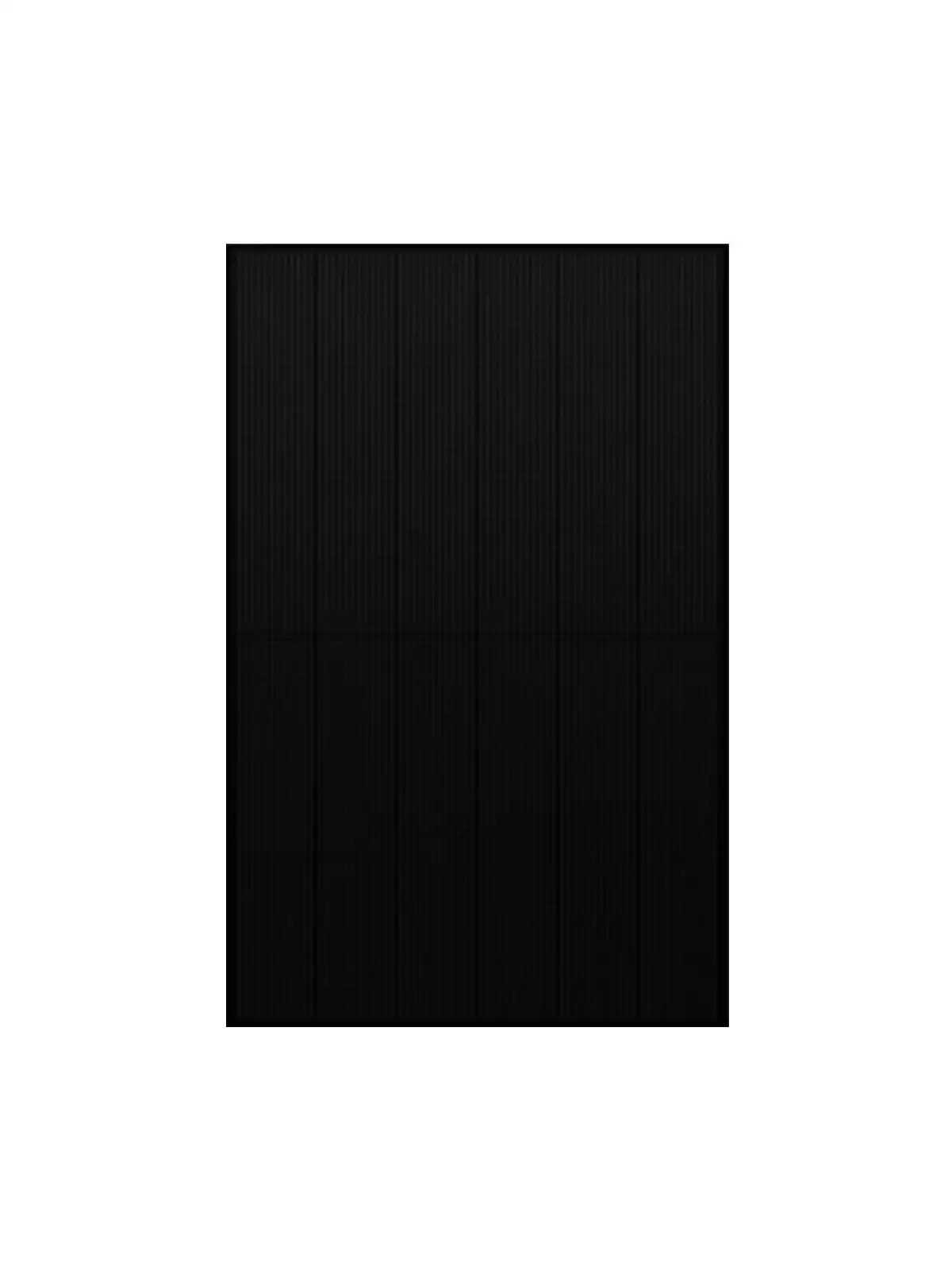

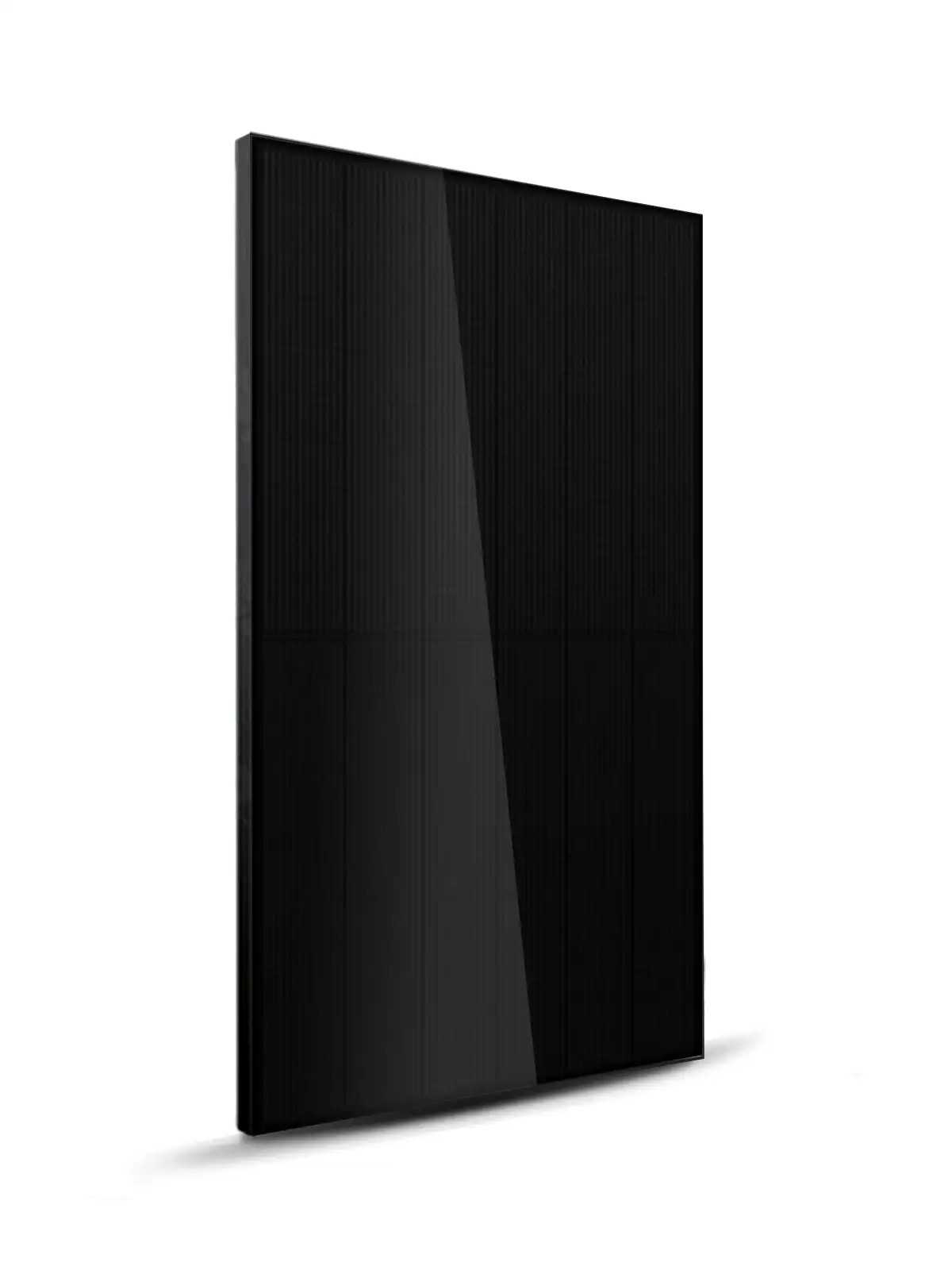

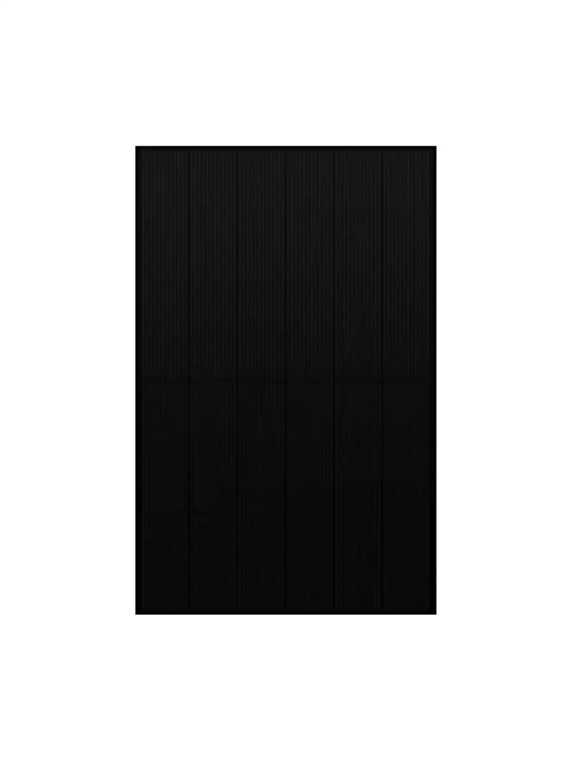

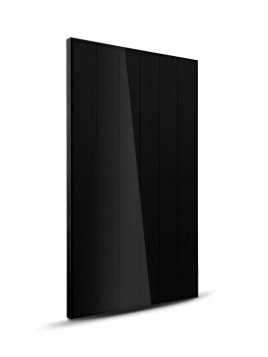

    JNL Solar SunmaX 375Wc Solar Panel: Elegance and performance combined.

    The JNL Solar SunmaX 375Wc solar panel combines sleek design with exceptional energy performance. With its all-black appearance and self-cleaning glass, it integrates seamlessly with your roof while maximizing your solar electricity production. Designed to last, it comes with a 25-year warranty and can withstand the harshest conditions.

    Key features:

    • Power: 375Wc
    • Dimensions: 1755 x 1038 x 30 mm
    • Design: All black, self-cleaning glass
    • Technology: High-quality cells
    • Efficiency: 20.50%
    • Warranty: 25 years
    • Resistance: Wind (2400 Pa), snow (5400 Pa)

    Advantages of the SunmaX 375Wc solar panel:

    • Elegant and discreet design suitable for all roofs.
    • Optimal performance thanks to high-quality cells and self-cleaning glass.
    • Exceptional durability with a 25-year warranty.
    • Minimal maintenance thanks to the self-cleaning glass.
    • Versatile for all types of installations.

    Why choose the SunmaX 375Wc solar panel?

    By choosing the SunmaX 375Wc solar panel, you are investing in a high-performing, aesthetic, and durable energy solution. Enjoy optimized solar electricity production while enhancing your roof. The advanced technology and superior materials guarantee high efficiency and exceptional longevity.

    Contact our experts for a personalized study and a free quote.

    Sorry, there are no more items in stock.

    JNL Solar SunmaX 375 Wp...

    $80.3

    High-performance 375Wp solar panel: Maximum yield, reduced costs

    Extensive experience in technology, constant innovation and sustainable optimization form the basis for the performance of high-quality modules. JNL Solar ensures all stages of construction at its production site, guaranteeing our customers optimal quality for every step, from assembly to finishing.


    The modules are extremely versatile in their use. They offer adequate solutions for any installation and sustainable performance around the world.



    JNL-ICON-1A neat and elegant design, for a perfect integration on the roof a photovoltaic module entirely black from the cell to the frame.



    JNL-ICON-2

    Extra performance and easy maintenance thanks to the highly transparent self-cleaning glass.



    JNL-ICON-3Long-lasting safety and guaranteed state-of-the-art performance. 25 years performance warranty and 25 years product warranty.



    JNL-ICON-4

    A front panel equipped with an anti-reflective coating.





    JNL-ICON-5High conversion efficiency thanks to high-quality modules and advanced cell technology.



    JNL-ICON-6PID resistance and verified hotspot protection and rigorous production process.





    Ideal for private or commercial installations. High power reduces installation costs.





    JNL-ICON-8High reliability thanks to rigorous quality control. More than 30 internal tests (UV, HF, and many others). Our tests go beyond the certification requirements.



    JNL-ICON-9Our panels are tested and certified to withstand extreme environmental conditions: wind loads (2400 Pa) and snow loads (5400 Pa).



    JNL-ICON-10

    25 years product and performance warranty.




    Linear performance guarantee

    JNL-Production


    Size

    JNL375


    Characteristics



    Electrical characteristics
    Power at maximum power point (Pmax)375 Wc
    No-load voltage (Voc)41.50 V
    Power Point Voltage (Vmpp)34.50 V
    Short-circuit current (Isc)11.49 A
    Current at the point of maximum power (Imp)10.87 A
    Module Performance20,50%
    Power tolerance0 -+ 5W
    Maximum system voltageDC 1500V (TUV) / 1000V (UL)
    Maximum gauge of the standard fuse20 A
    Mechanical characteristics

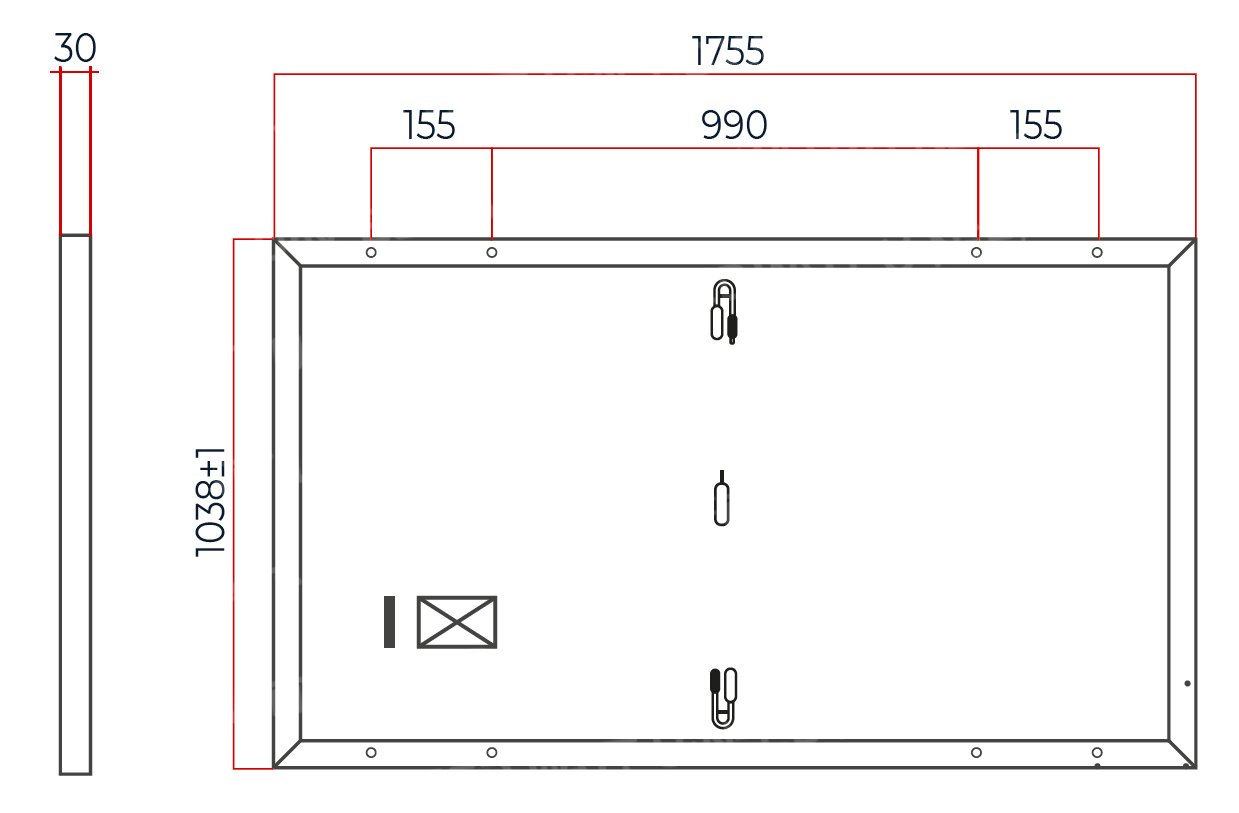

    Dimension1755 x 1038 x30 mm
    Weight20.5 kg
    CellsMonocrystal Silicone 166mm x 83mm
    Front3.2 mm
    FrameAnodized aluminum alloy
    Junction boxIP67
    Cable4mm², 1200mm
    ConnectorType MC4
    Operating temperature-40 +- 85°C
    CertificationsIEC 61215-1:2016 - IEC 61215-1-1:2016 - IEC 61215-2:2016 - IEC 61730-1:2016 - IEC 61730-2:2016 - EN 61215-1:2016 - EN 61215-1-1:2016 - EN 61215-2:2017 - EN IEC 61730-1:2018 - EN IEC 61730-1:2018/AC:2018-06 - EN IEC 61730-2:2018 - EN IEC 61730-2:2018/AC:2018-0
    JLS120MFB

    Data sheet

    Max. power - Wp
    375
    Open circuit voltage (Voc)
    41,5 V
    Short-circuit current (Isc)
    11.49 A
    Max. power voltage (Vmp)
    34,5 V
    Max. power current (Imp)
    10,87 A
    Color
    Full Black
    Panel type
    Rigids
    Cells
    Monocrystalline
    Width
    1038 mm
    Height
    1755 mm
    Frame
    30 mm
    Weight
    20,5 kg

    Specific References
