Assembly diagram 0
Kit 20 panels self-consumption / reinjection 6000W SMA sorting without storage
€4,501.97
Tax included
10234
0712971138032
100% secure payments
This kit includes

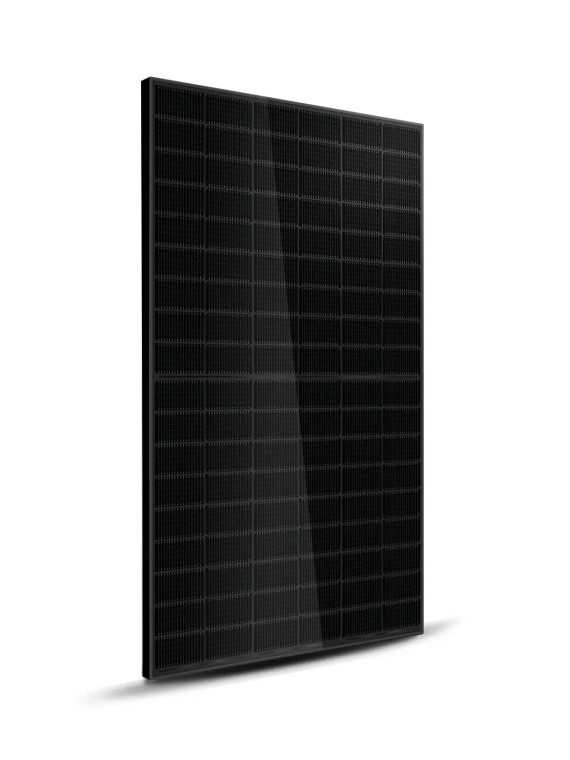

- 20XMULTIWAY Solar panel 435Wp HT54-18X
- 1XThree-phase inverter SMA Sunny Tripower STP 6 kVA STP6.0-3AV-40
- 1XSchneider 16A tetra circuit breaker
- 1XEarth cable 1x6 mm2 20m
- 2X2X4mm2 solar cable with MC4 type (sold per metre)
Select products from the sections below
Three-phase inverter SMA Sunny Tripower STP 6 kVA STP6.0-3AV-40
Price per unit
€2,192.51 (Tax incl.)
€2,192.51 (Tax incl.)
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.
This kit is sized with the general purpose of being installed with the public network.
The basic composition of the kit contains 20 solar panels, a SMA sunny tripower STP 6.0 TL INT Blue three-phase inverter, the solar cables to connect the panels to the inverter and from the inverter to your electrical panel, the panel mounting system is available as an option. (The mounting system as well as the wiring and protections can be modified to meet your needs).
SOLAR PANELS:
In its basic version, this photovoltaic system will bring you an average of 24 Kwh per sunny day. The productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult Our solar production simulator to determine precisely what your solar production will be.
Warranty 25 years at 80% of the rated power.
NETWORK:
The SMA Sunny Boy 5.0 is ideal for solar energy production for single-family homes.
5-year warranty
CABLE AND CONNECTORS:
All cables and connections are pre-wired in our workshops. Our kits are very easily assembleable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.
ASSEMBLY:
The installation of this kit is very simple. Our instructions are clear and allow easy assembly without special knowledge. We answer all your questions before, during and after the installation of your system.
GUARANTEE:
All products have an individual warranty.
Panels guaranteed 25 years at 80% of the rated power.
SMA inverter guaranteed for 5 years.

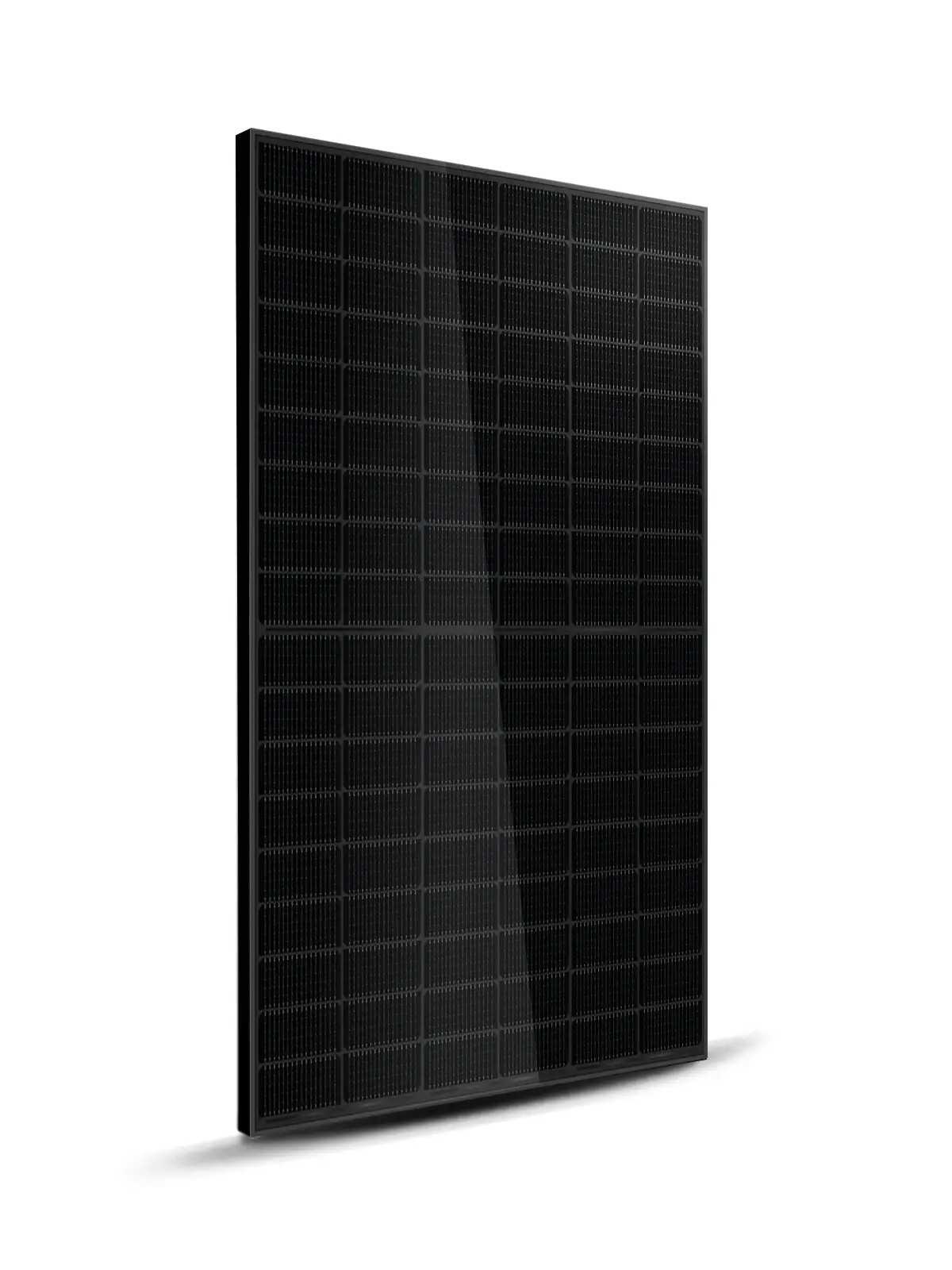

Solar panel
The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

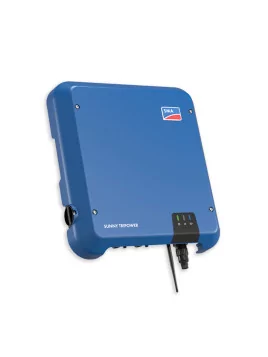

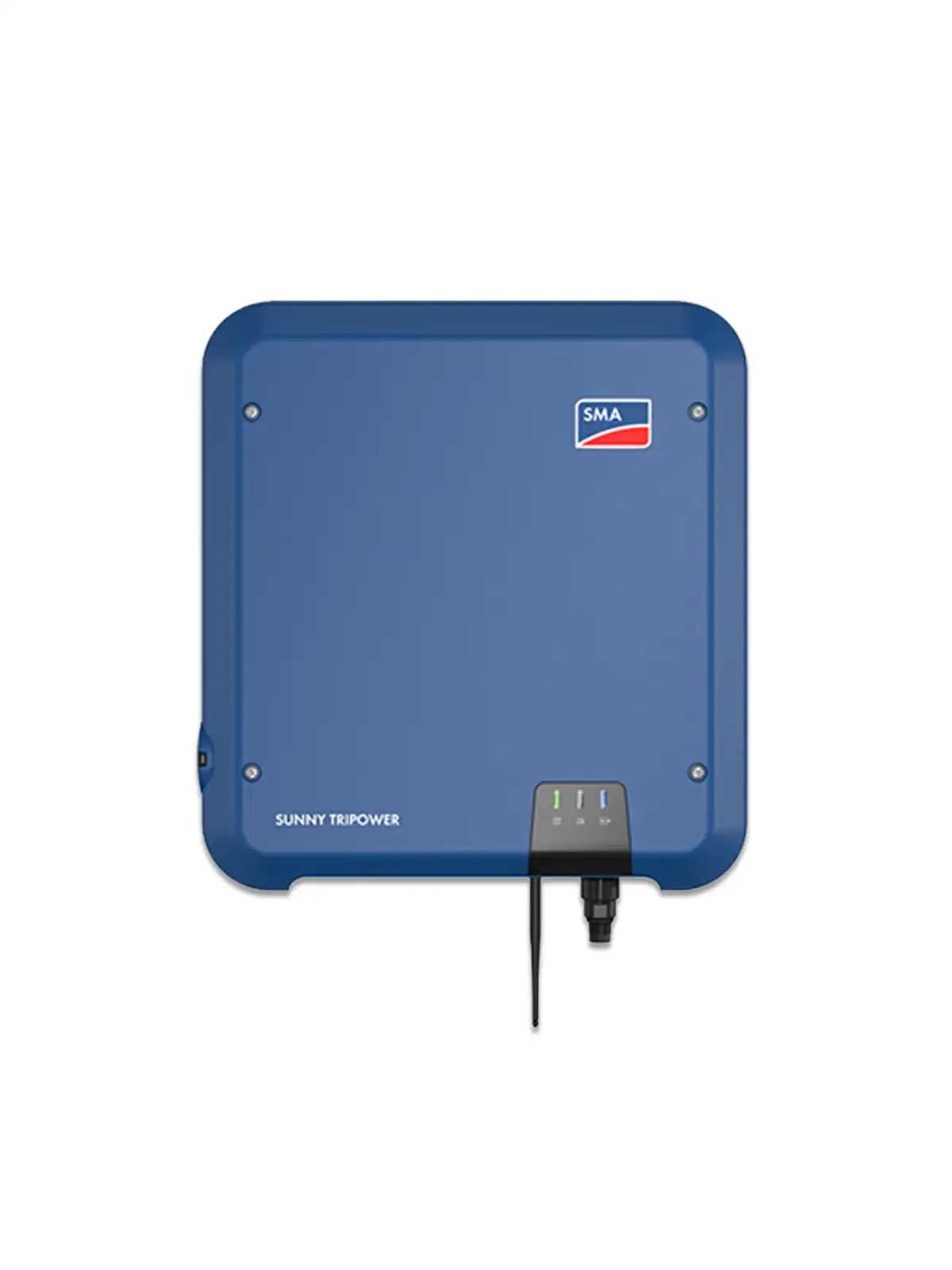

SMA sunny tripower STP 6.0 TL INT Blue
SMA Sunny Tripower three-phase inverter - model: 6.0TL
This inverter is optimal for both traditional residential photovoltaic installations and much more powerful installations.
Characteristics
| Specifications | Sunny Tripower 6.0 |
| Input (DC) | 9000 Wp |
| Max. power of the photovoltaic generator | 850 V |
| Max input voltage | 260 V to 800 V |
| MPP voltage range | 580 V |
| Rated input voltage | 125 V / 150 V |
| Min. input voltage / starting input voltage Max. input current A / B input | 12 A / 12 A |
| Short circuit current max. input A / input B | 18 A / 18 A |
| Number of independent MPP inputs / strings per MPP Output (AC) input | 2 / A:1; B:1 |
| Rated power (for 230 V, 50 Hz) | 6000 W |
| Apparent power AC max. | 6000 VA |
| Rated AC voltage | 3/N/PE; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; 240 V / 415 V |
| AC voltage range | 180 V to 280 V |
| AC Network Frequency / Range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
| Rated network frequency / rated network voltage | 50 Hz / 230 V |
| Max output current | 3 x 9.1 A |
| Power factor at rated power / adjustable phase shift factor Injection phases / Connection phases | 1 / 0.8 inductive to 0.8 capacitive |
| Yield | |
| Max. yield / European yield | 98,2 % / 97,6 % |
| General characteristics | |
| Dimensions (W/H/D) | 435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches) |
| Weight | 17 kg (37.4 lb) |
| Operating temperature range | −25 °C to +60 °C (−13 °F to +140 °F) |
| Noise emissions, typical | 30 dB(A) |
| Self-consumption (night) | 5.0 W |
| Topology / Cooling system | Without transformer / Convection |
| Protection class (according to IEC 60529) | IP65 |
| Climate class (according to IEC 60721-3-4) | 4K4H |
| Maximum allowable value for relative air humidity (non-condensing) Equipment | 100,00% |
Connection diagram
10234
500 Items
Data sheet
- Inverter power
- 6000VA
- Kit output voltage
- 400V
- Type of need
- Self-consumption
- Battery storage
- Without storage
- Wind turbine
- Without
- Number of panels
- 20 panels
- Phase
- Triphasé
- Mains re-injection
- With
- Video Youtube 1 - ID
- zQH0cbvMwj8
Specific References
- UPC
- 712971138032
- EAN13
- 0712971138032
