Assembly diagram 1
Kit 12 panels self-consumption / reinjection 3000W SMA without storage
€2,866.84
Tax included
10226
0712971137967
100% secure payments

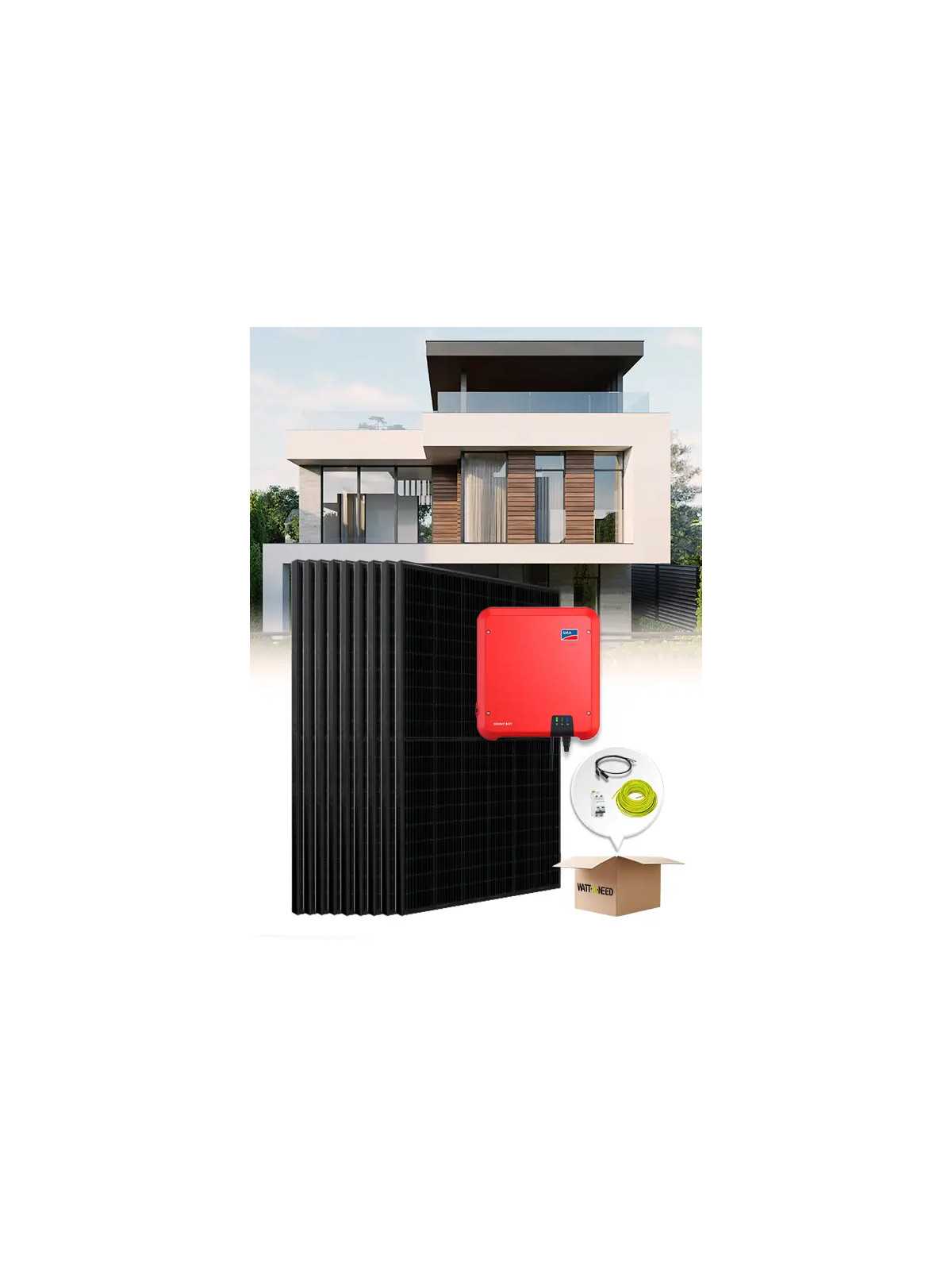

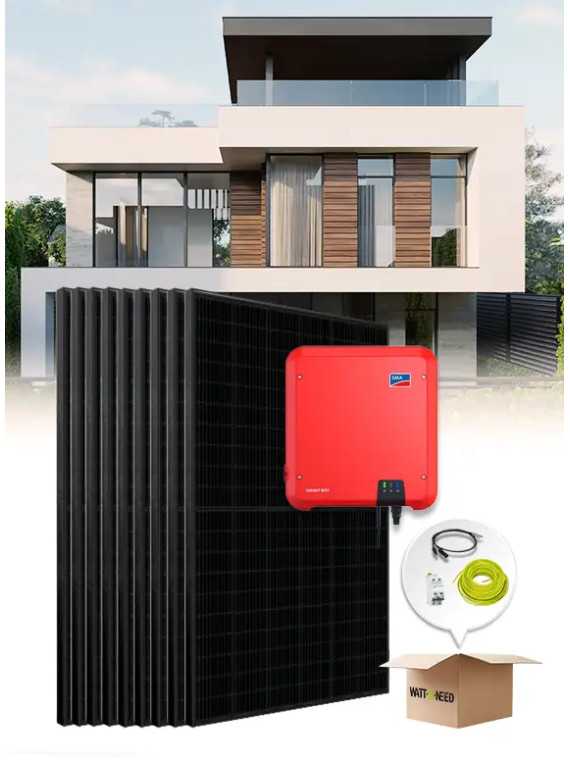

This kit includes
- 12XMULTIWAY Solar panel 435Wp HT54-18X
- 1XSingle-phase inverter SMA Sunny Boy 3.6 kVA - SB3.6-1 AV-41
- 2X2X4mm2 solar cable with MC4 type (sold per metre)
- 1XEarth cable 1x6 mm2 20m
- 1XSchneider mono 16A circuit breaker
Select products from the sections below
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.
This kit is sized with the general purpose of being installed with the public network.
The basic composition of the kit contains 12 solar panels, an SMA sunny boy 3.6 inverter, as well as the solar cable to connect the panels to the inverter. (The mounting system as well as the wiring and protections can be modified to meet your needs).
SOLAR PANELS:
In its basic version, this photovoltaic system will bring you an average of 14.4 Kwh per sunny day. The productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult Our solar production simulator to determine precisely what your solar production will be.
Warranty 25 years at 80% of the rated power.
NETWORK:
The new Sunny Boy 3.6, successor to the Sunny Boy 3600TL successfully used worldwide, is much more than a photovoltaic inverter. The Sunny Boy is ideal for solar energy production for single-family homes. Its lightweight design and external fittings allow for quick installation. Compatible with the latest communication standards, the inverter can be equipped with intelligent energy management and SMA storage solutions at any time.
CABLE AND CONNECTORS:
All cables and connections are pre-wired in our workshops. Our kits are very easily assembleable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.
ASSEMBLY:
The installation of this kit takes no more than 2 hours. Once the VarioTwin structures are positioned, all you have to do is 'clip' the panels on them. Attach the inverter to the wall and connect it to your electrical panel.
GUARANTEE:
All products have an individual warranty.
Panels guaranteed 25 years at 80% of the rated power.
SMA warranty: 5 years (extendable 10 years)

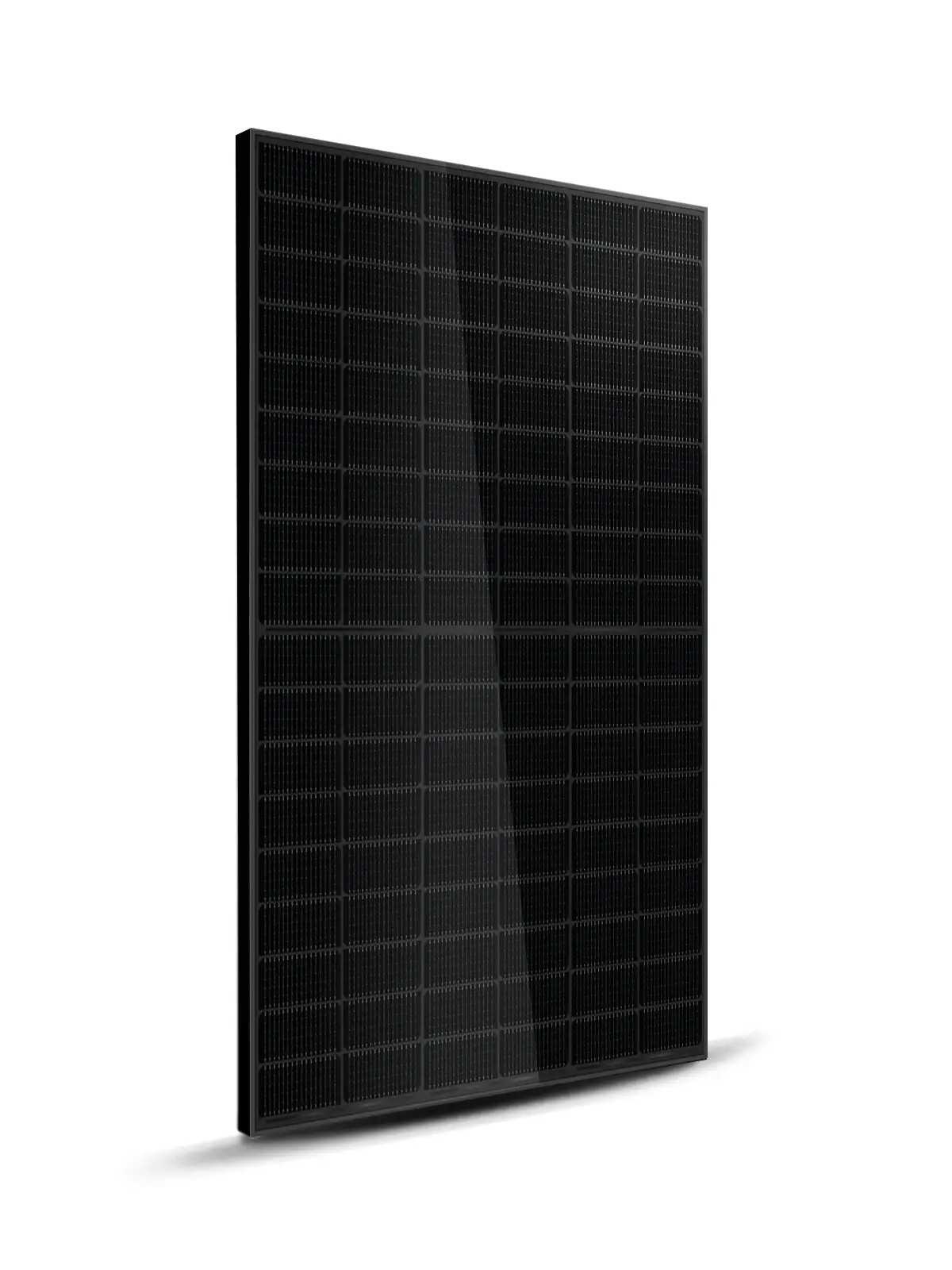

Solar panel
The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

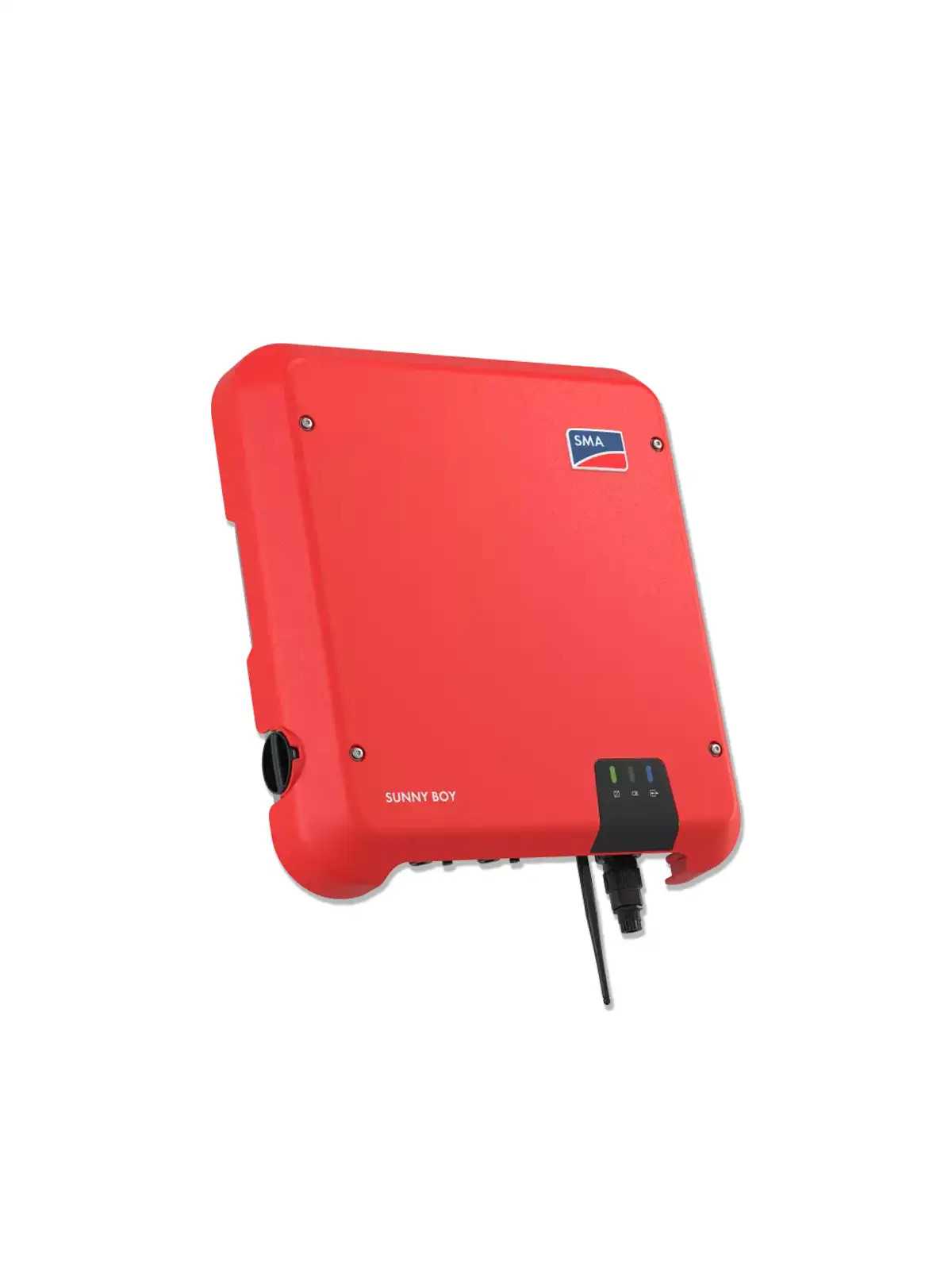

SMA Sunny Boy 3.6
The Sunny Boy 3.6 is ideal for solar energy production for single-family homes.
Characteristics
| Technical data | Sunny Boy 3.6 |
| Input (DC) | |
| Max DC power (when cos φ =1) | 3,880 W |
| Max input voltage | 600 V |
| MPP voltage range | 130 V to 500 V |
| Rated input voltage | 365 V |
| Min. input voltage / starting input voltage | 100 V / 125 V |
| Max. input current input A / input B | 15 A / 15 A |
| Max. input current per string input A / input B | 15 A / 15 A |
| Number of independent MPP entries / strings per MPP entry | 2 / A:2; B:2 |
| Output (AC) | |
| Rated power (for 230 V, 50 Hz) | 3,680 W |
| Apparent power AC max. | 3,680 VA |
| AC rated voltage/range | 220 V, 230 V, 240 V / 180 V to 280 V |
| AC network frequency / range | 50 Hz, 60 Hz / −5 Hz to +5 Hz |
| Rated network frequency / rated network voltage | 50 Hz / 230 V |
| Max output current | 16 A |
| Power factor for rated power | 1 |
| Adjustable phase shift factor | 0.8 inductive to 0.8 capacitive |
| Injection phases / connection phases | 1/1 |
| General characteristics | |
| Dimensions (W/H/D) | 435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches) |
| Weight | 16 kg (35.3 lb) |
| Operating temperature range | −25 °C to +60 °C (−13°F to +140 °F) |
| Noise emission, typical | 25 dB(A) |
| Self-consumption (night) | 1.0 W |
Connection diagram
10226
499 Items
Data sheet
- Inverter power
- 3000VA
- Kit output voltage
- 230V
- Type of need
- Self-consumption
- Battery storage
- Without storage
- Wind turbine
- Without
- Number of panels
- 12 panels
- Mains re-injection
- With
- Video Youtube 1 - ID
- zQH0cbvMwj8
Specific References
- UPC
- 712971137967
- EAN13
- 0712971137967
