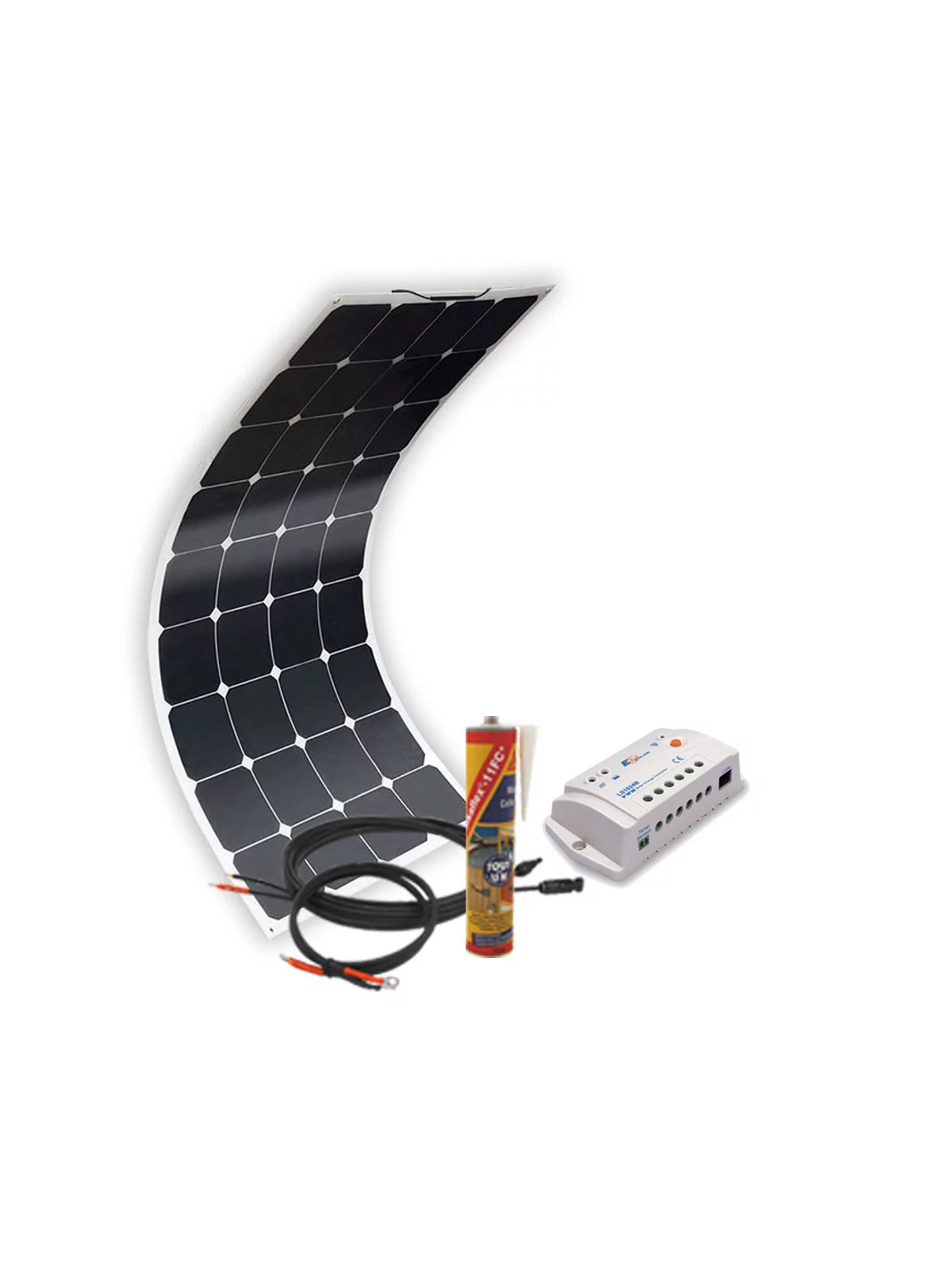

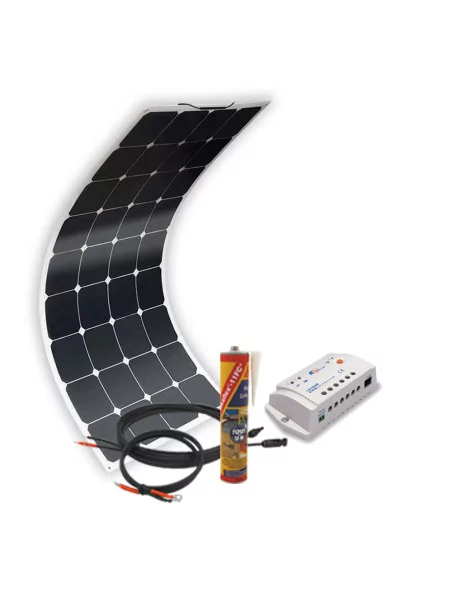

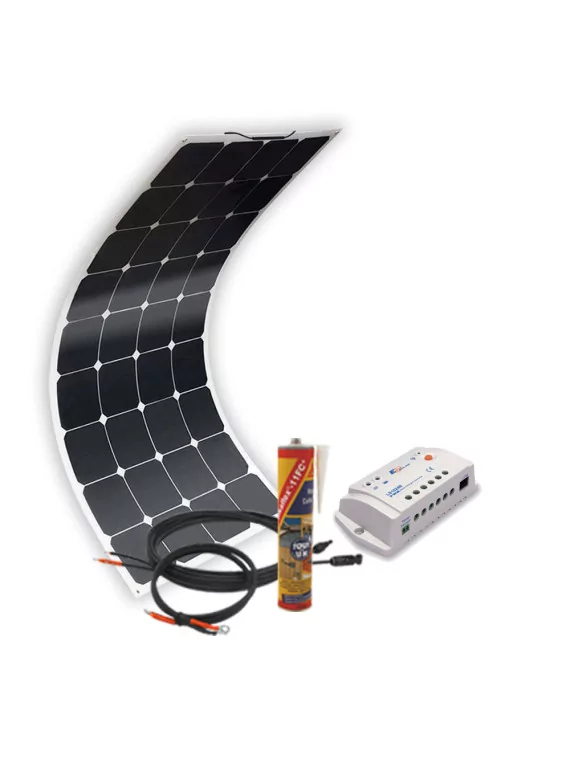

Off-grid solar kit MX Flex Protect 100Wp - regulator

Wattuneed

287,37 € tax incl.

Add to cart

Off-grid solar module : 100Wp MX FLEX

Regulator
Logo mx flex

In stock

More details

Équipements
Descriptions équipements
Customize

Choice of panels

See product
Solar Panel 12V FLEX MX PROTECT 100pw

config

246,07 €

QTT

See product
40x MX FLEX Protect Solar Panel 100Wp

config

6 969,60 €

QTT

See product
Solar Panel 12V MX Protect Full Black 100pw Back Contact FLEX

config

292,42 €

QTT

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Solar panel 50Wp
Out of stock Replenishment : 31/07/2020

config

55,99 €

QTT

See product
MX FLEX XTD PROTECT 50pw 12V solar panel

config

155,28 €

QTT

Choice of the charge controller

24.6
Sélectionné

EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A

28.2
Sélectionné

Epsolar PWM LS1024EU 12V / 24V - 10A with USB output

88.7
Sélectionné

Epsolar MPPT Tracer A Serie

98.01
Sélectionné

Victron BlueSolar MPPT 75/10 - 75/15 - 100/15

42
Sélectionné

Epsolar Duo Battery PWM 12V / 24V 10A

54.4
Sélectionné

Epsolar VS-A Serie with Digital Display PWM 12V / 24V- 10A

See product
EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A

config

24,60 €

QTT

See product

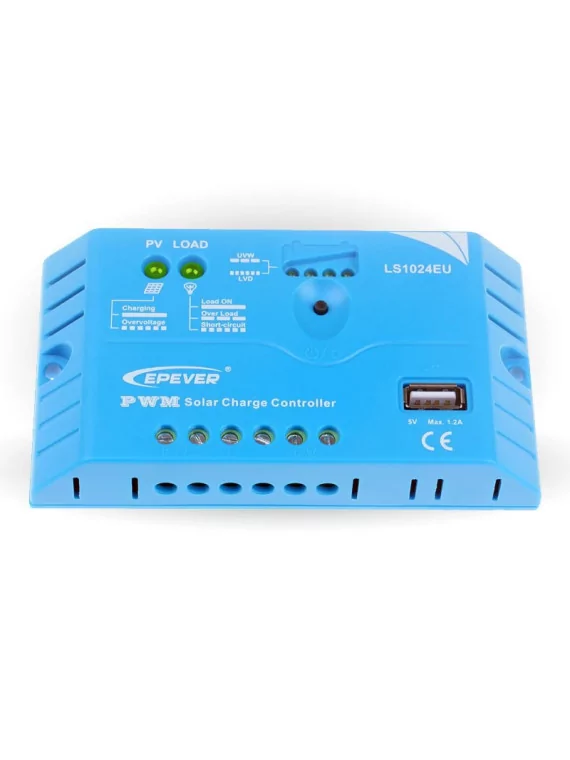

Epsolar PWM LS1024EU 12V / 24V - 10A with USB output

config

28,20 €

QTT

See product
Epsolar MPPT Tracer A Serie

config

88,70 €

QTT

See product
Victron BlueSolar MPPT 75/10 - 75/15 - 100/15

config

98,01 €

QTT

See product
Epsolar Duo Battery PWM 12V / 24V 10A

config

42,00 €

QTT

See product
Epsolar VS-A Serie with Digital Display PWM 12V / 24V- 10A
Out of stock

config

54,40 €

QTT

Choice of mounting system

See product
Mounting glue Sikaflex Pro 300ml

config

9,90 €

QTT

See product
2 inputs box for mobilhome

config

9,60 €

QTT

Choice of cable

See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

See product
2X4mm² Solar cable with MC4 (2 metre)

config

6,80 €

QTT

See product
2X4mm² Solar cable with MC4 (by the metre)

config

4,60 €

QTT

See product
Male and female MC4 connectors

config

5,00 €

QTT

See product
Double MC4 connector male & female

config

16,00 €

QTT

Choice of accessories

See product
Electrical raceway 40x25mm - Length 2,1m

config

13,50 €

QTT

See product
White chute 30x15mm - length 2m

config

9,64 €

QTT

See product
Digital display for Epsolar LS and BN controllers

config

33,00 €

QTT

See product
GEL battery Ultracell 12V 35Ah

config

86,70 €

QTT

See product
Ultracell 12V 55Ah GEL battery

config

139,37 €

QTT

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
16mm² battery cable with pods

config

5,80 €

QTT

More info

 " Solar kit MX FLEX protect "



 COMPOSITION




Sunpower MX FLEX 110Wc

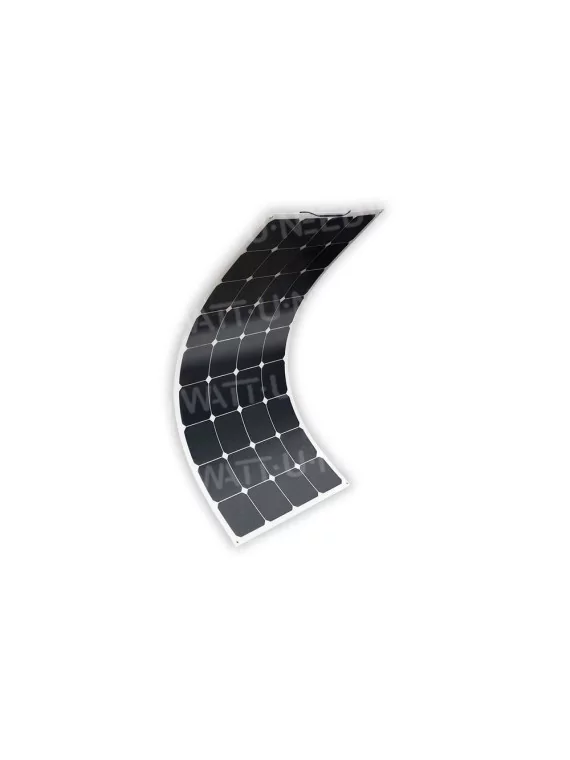

Solar panel MX FLEX 100Wp



Flexible MX FLEX 100Wp solar panels are suitable for marine camping or mobile use. You can also use them in other circumstances such as on remote sites or for professional use.

Perfect for charging the batteries of your boat, campervan or to feed an autonomous system. Ultra flexible and really light, they are highly resistant to saline environments, wet weather and even trampling!

The MXFLEX panel adapt perfectly and easily to wherever you want to place them. Through its flexible and extremely lightweight weight (1.7 Kg), you can easily fix the roof of a boat, the roof of an RV or even the hood of a car ... its limits are those of your imagination.

The waterproof junction box at the front of the panel and MC4 connectors allow you to connect quickly and easily.

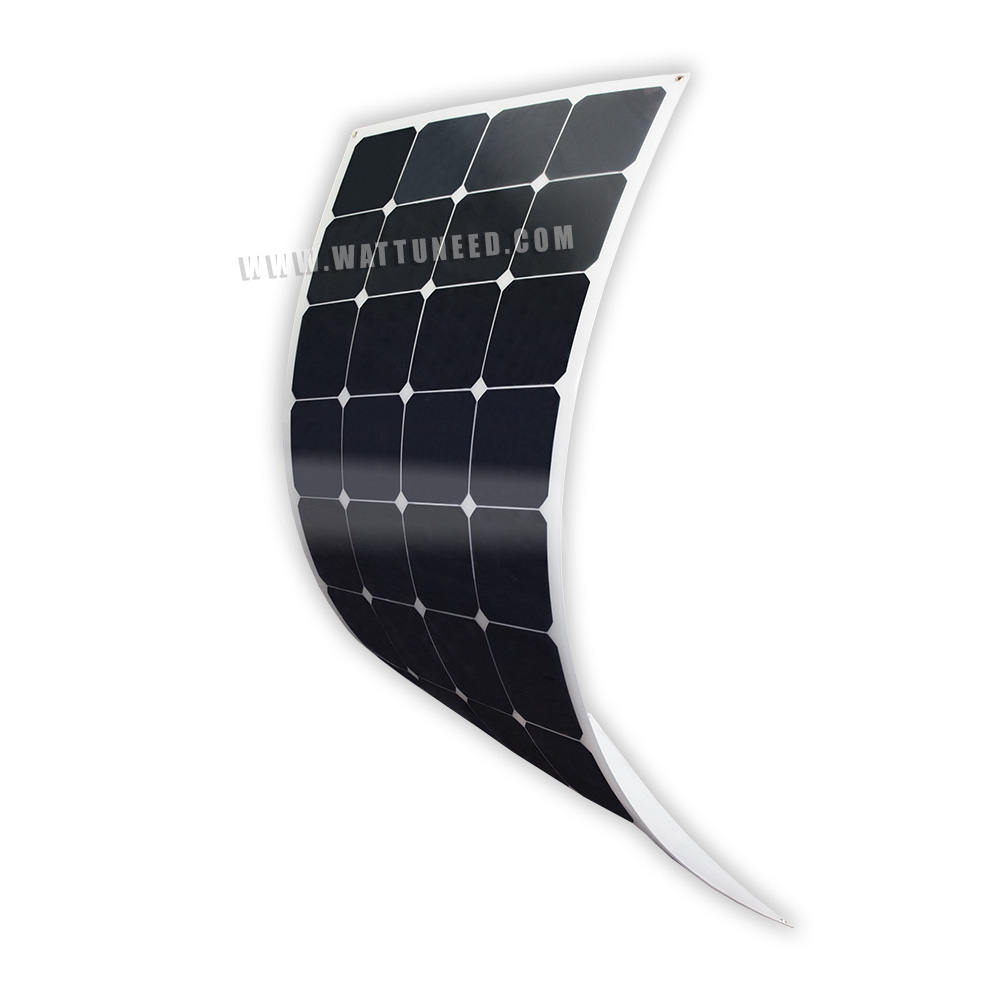

Sunpower MX FLEX 110Wc



With its back contact monocrystalline cells with high efficiency (22%), the FLEX MX panels integrate the best in terms of photovoltaic technology!

The cells optimize the performance of the panel when it is in low light conditions, maximizing the performance of the panel by bad weather.

The fastening points located on the four corners allow you to fix it easily everywhere.













  • Power: 100Wp
  • Voltage by max. power: 19,8 V
  • Open circuit voltage: 23,4V
  • Intensity by max. power: 5,05A
  • Dimensions: 1185 x 540 x 3 mm
  • Weight: 1.7 Kg

EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A



Adopts an aluminum heat sink that allows high reliability in high temperature environments.
PWM solar regulators protect your batteries from discharge and overload, ensuring that their lifespan is optimized.



The model 10A (LS1024B) can accommodate up to 250 watts of solar panels *


Capacity: 10, 20 or 30 amps.
Tension: 12v or 24V
Temperature compensation
2-year warranty.
Technology: 'linkpopup id'pwm'.
Fully programmable if used with its display

All load voltages can be changed between 9 and 17V (X2 for 24V), disconnection voltage also.
Programming the consumer output in a day/night or hourly mode.


In a 24V system



Technical data





ModelLS1024B
Nominal system tension12/24VDC12/24VDC
Rated battery current10A
Maximum PV input voltage40w
Self-sommation8.4mA (12V)?7.8mA (24V)
Temperature compensation-3mV/?/2V?25? Ref?
Equalizing load voltageSealed: 14.6V, open: 14.8V, User: 9-17V
Increased load voltageGel: 14.2V, Sealed: 14.6V, open: 14.8V, User: 9-17V
Floating charge voltageFreeze /Sealed /open: 13.8V, User: 9-17V
Reconnection tensionFreeze /Sealed /open: 12.6V, User: 9-17V
disconnection tensionFreeze /Sealed /open: 11.1V, User: 9-17V
Size138.6x69.3x37mm
Mounting holes126mm
Terminal4mm2
Weight0.13kg
Running temperature-35?
Storage temperature-35?
Humidity?95% (NC)
StandardIP30

Specifications

Output Kit voltage230V
Wind TurbinWithout
Number of panels1 panel
Battery storageWithout storage
Voltage12V
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
