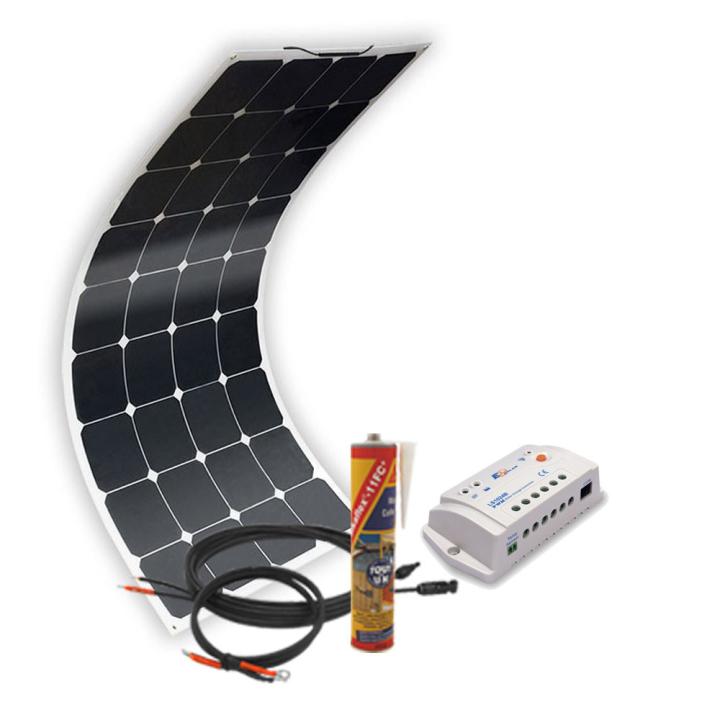

Off-grid solar kit MX Flex Protect 100Wp - regulator

 " Solar kit MX FLEX protect "

 COMPOSITION

• Solar panel : MX FLEX 100Wp protect
• Régulator :
      - Epsolar Série LS LandStar PWM 10A
      - Epsolar LS1024EU PWM
      - MPPT Epsolar Série Tracer A - 10A
      - MPPT Victron BlueSolar 75/10

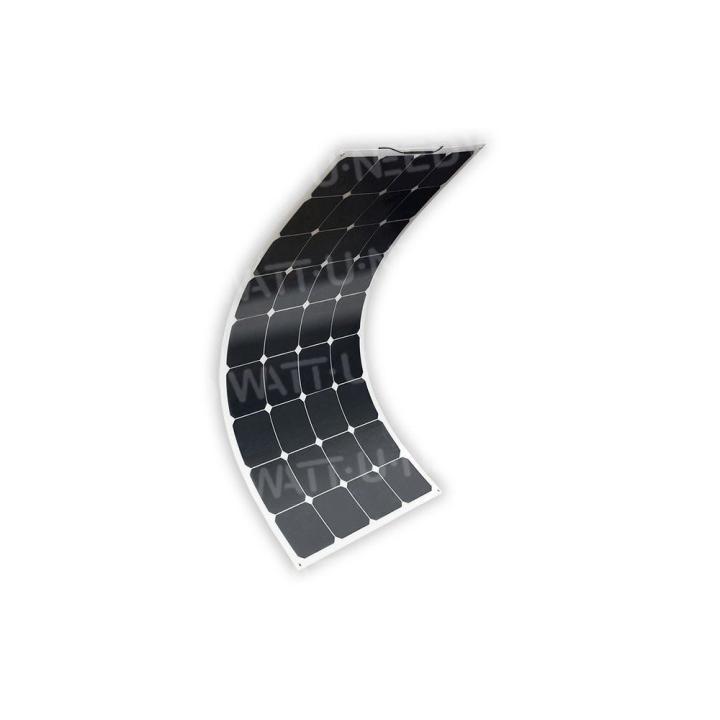

Solar panel MX FLEX 100Wp

Flexible MX FLEX 100Wp solar panels are suitable for marine camping or mobile use. You can also use them in other circumstances such as on remote sites or for professional use.

Perfect for charging the batteries of your boat, campervan or to feed an autonomous system. Ultra flexible and really light, they are highly resistant to saline environments, wet weather and even trampling!

The MXFLEX panel adapt perfectly and easily to wherever you want to place them. Through its flexible and extremely lightweight weight (1.7 Kg), you can easily fix the roof of a boat, the roof of an RV or even the hood of a car ... its limits are those of your imagination.

The waterproof junction box at the front of the panel and MC4 connectors allow you to connect quickly and easily.

With its back contact monocrystalline cells with high efficiency (22%), the FLEX MX panels integrate the best in terms of photovoltaic technology!

The cells optimize the performance of the panel when it is in low light conditions, maximizing the performance of the panel by bad weather.

The fastening points located on the four corners allow you to fix it easily everywhere.

• Power: 100Wp
• Voltage by max. power: 19,8 V
• Open circuit voltage: 23,4V
• Intensity by max. power: 5,05A
• Dimensions: 1185 x 540 x 3 mm
• Weight: 1.7 Kg

EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A

Adopts an aluminum heat sink that allows high reliability in high temperature environments.
PWM solar regulators protect your batteries from discharge and overload, ensuring that their lifespan is optimized.

The model 10A (LS1024B) can accommodate up to 250 watts of solar panels *

Capacity: 10, 20 or 30 amps.
Tension: 12v or 24V
Temperature compensation
2-year warranty.
Technology: 'linkpopup id'pwm'.
Fully programmable if used with its display

In a 24V system

Technical data
