Class 1 stand-alone photovoltaic kit Delong

€4,739.53
Tax included
config-ac-10pan-5kva
0768563821271

This self-consumption solar kit with storage combines high-performance photovoltaic panels, a reliable hybrid inverter, and a high-capacity lithium battery.
It allows you not only to directly consume your solar production but also to store the surplus for use at night or during peak demand.
Thanks to its operation without grid injection, it does not require a compliance certificate, which simplifies administrative procedures.

Key advantages:

  • Optimized solar energy production for self-consumption.

  • Battery storage to use your electricity at any time.

  • Powerful and easy-to-install hybrid inverter.

  • No compliance certificate required due to the absence of grid injection.

  • Scalable and adaptable solution according to your specific needs.

Estimated production and savings:
Each solar panel delivers a power of 450 Wp. With this kit, you can produce around 4,895 kWh per year, representing potential savings of about €1,468.5. These estimates are indicative for central France, based on a reference rate of €0.30/kWh.

Why choose this kit?

  • Complete solution including panels, inverter, and 15 kWh lithium battery.

  • Reliable components from leading brands.

  • Significant reduction in your energy bill.

  • Simplified installation without heavy administrative constraints.

  • Possibility to customize the kit (additional panels or batteries).

This kit includes

  • 10XHT-SAAE Jupiter 450W Bifacial N-Type TOPCon | Full Black Premium High-Performance Solar Panel
  • 1XWKS Evo Circle PRO 6.5 kVA 48V Hybrid Inverter | Innovation and Performance
  • 1X2X4mm2 solar cable with MC4 type (sold per metre)
  • 1X6mm² earth cable (sold by the meter)
  • 2XSchneider single-phase 25A circuit breaker
  • 1XDifferential switch type A 2P 63A 300ma
  • 1XWaterproof legrand 8 modules box
  • 1XZJBENY DC single 1 input and 1 output 1000V 32A surge protection cabinet
  • 1XBattery cable 2x25mm2 - 2m
  • 1XWKS / Pylontech Communication Cable
  • 1XDelong Top Energy 15kWh Lithium Battery 51.2V 314 Ah | High Capacity
Request a quote

Select products from the sections below
Panneaux
info
Choix de l'onduleur
info
Choix du système de montage
info
No product selected
No products selected
Price per unit
€0.00  (Tax incl.)
Câblage et connectique
info
2X4mm² Solar cable with MC4 (by the metre)
2X4mm2 solar cable with MC4 type (sold per metre)
Price per unit
€78.09  (Tax incl.)

Cable length

Câblage et connectique
info
6mm² earth cable (sold by the meter)
6mm² earth cable (sold by the meter)
Price per unit
€75.90  (Tax incl.)

Earth cable

Protections et accessoires AC
info
Schneider Breaker mono 25A
Schneider single-phase 25A circuit breaker
Price per unit
€19.40  (Tax incl.)
Protections et accessoires AC
info
Differential switch type A 2P 63A 300ma
Differential switch type A 2P 63A 300ma
Price per unit
€98.80  (Tax incl.)
Protections et accessoires AC
info
Legrand waterproof box 8 modules
Waterproof legrand 8 modules box
Price per unit
€69.99  (Tax incl.)
Protections et accessoires DC
info
Accessoires batteries
info
Battery cable 2x25mm2 - 2m
Battery cable 2x25mm2 - 2m
Price per unit
€48.25  (Tax incl.)
Accessoires batteries
info
WKS / Pylontech Communication Cable
WKS / Pylontech Communication Cable
Price per unit
€10.30  (Tax incl.)
Choix de la batterie
info
Accessoires batterie Delong
info
No product selected
No products selected
Price per unit
€0.00  (Tax incl.)
Cotisation nvironnementale obbtligatoire
info
No product selected
No products selected
Price per unit
€0.00  (Tax incl.)

Comments (0)

No customer reviews for the moment.

Your needs, our selection

Store your surplus solar production for later use, get rid of the grid.

The basic kit contains 10 solar panels, a WKS EVO Circle 5.6 kVA single-phase inverter, solar cables to connect the panels to the inverter, the panel mounting system is available as an option. (The mounting system as well as the cabling and protections can be modified to suit your needs).

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.




installation panneaux solaires sur toiture

Benefits

Energy independence / reduced dependence on the grid

The kit enables you to produce your own electricity and store any surplus, so you're less subject to fluctuations or power cuts from the public grid.



Long-term savings

Even if the initial investment is high, over several years, with the estimated savings, the return on investment can be attractive.



Combined generation & storage

Having a battery means you can use electricity even when there's no sun (nights, very cloudy days). This improves self-consumption.



Sustainability and respect for the environment

Reduced carbon footprint, fewer emissions linked to the production of electricity from conventional sources.

Long-lasting battery, certified components.






icone bebat

Important notice for our customers in Belgium: An environmental contribution of €342.47 excluding VAT will be applied to the purchase of each Delong TOP 15 kWh lithium battery.
More information at the bottom of the page.


Image presentation -panneaux

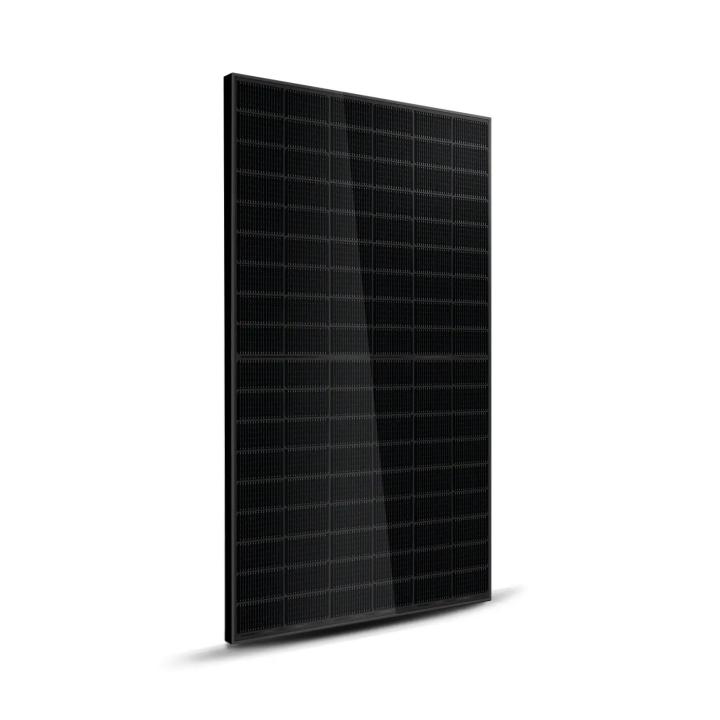

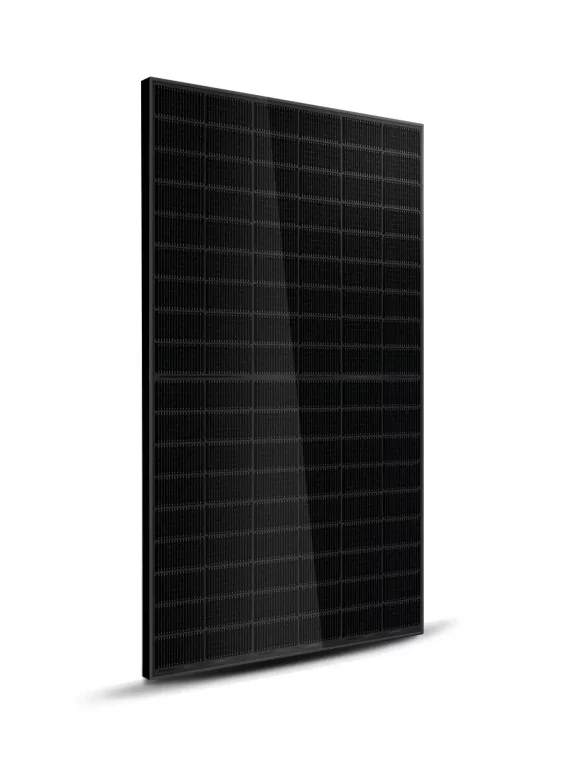

Solar panels

Selected from the latest technologies, this panel offers unrivalled efficiency.

See its product sheet in our panels section to find out more.

And don't forget, we offer you the flexibility to choose the panel model you prefer.

We invite you to consult our solar production simulator to find out exactly what your solar production will be.

Different types of cells


Icone cellule

Perc
(Passivated Emitter and Rear Cell)

Icone cellule

N-Type

Icone cellule

HJT

Efficacité

Efficiency

Approximately 19-22 Approx. 20-23 Approximately 21-24

icone euro

Cost

Moderate High Very high

Icone température

Temperature coefficient

Approximately

-0.3 to 0.4% per °C
Approx.

-0.3% per °C
Approximately

-0.2% per °C

Icone dégradation

Annual degradation

Approx. 0.5 - 07 Approximately 0.4 - 0.5% Less than 0.5% per year

icone durabilité

Durability

Good Very good Excellent

Voir les panneaux




Hybrid inverters: WKS Evo Circle vs WKS Evo MAX II

Choose the UPS that suits your needs:

Onduleur WKS EVO Circle WKS EVO Max II

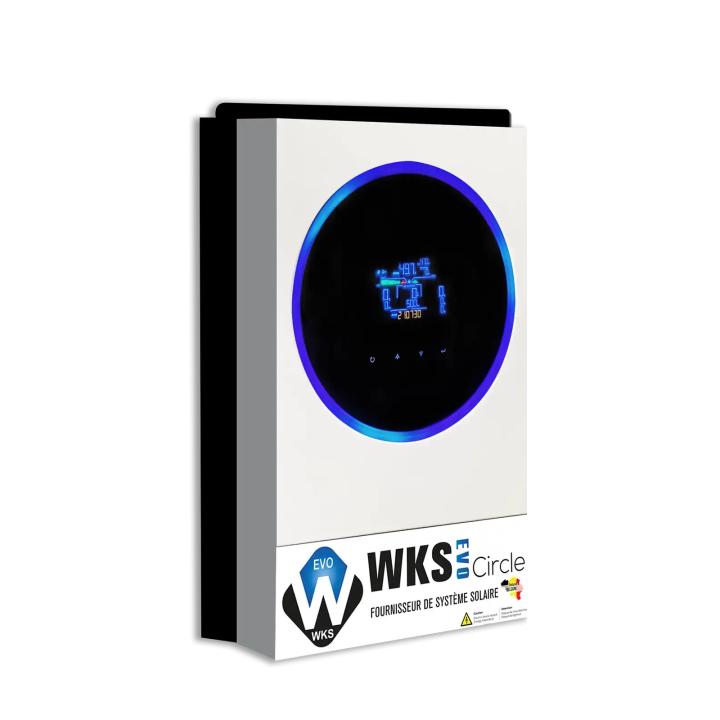

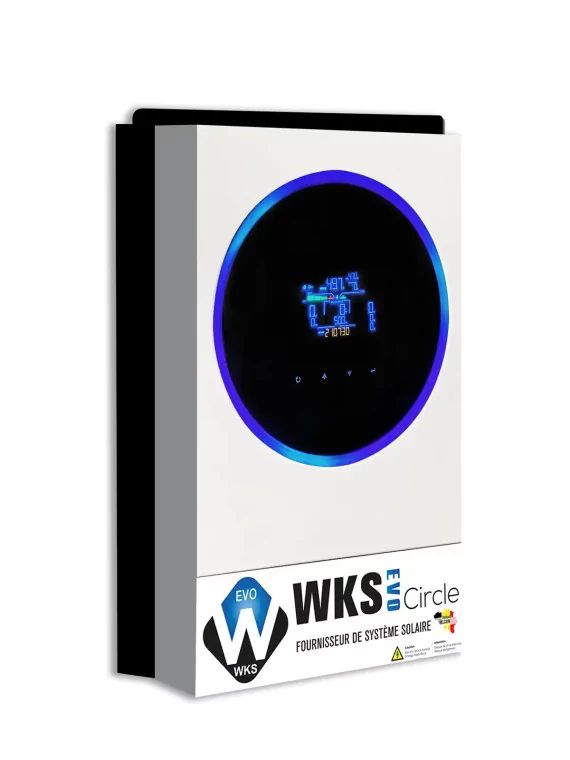

The WKS Evo Circle 5.6 kVA 48 V

is a compact, high-performance, connected hybrid inverter combining intelligent solar energy management, high reliability, ease of use and scalability. It represents a practical, modern solution for domestic installations seeking energy autonomy.
The WKS Evo MAX II 10 kVA 48 V

is a high-performance, scalable solar hybrid inverter designed for high-demand or semi-collective residential installations. It stands out for its high power, operational flexibility and intelligent interfaces.

Comparison table

Specifications WKS Evo Circle 5.6 kVA (48 V) WKS Evo MAX II 10 kVA (48 V)
Rated power 5.6 kVA / 5600 W 10 kVA / 10 000 W
Max PV power ≈ 6,000 Wp (1 MPPT, 120 A) ≈ 10,000 Wp (2 MPPT, 2 × 150 A)
MPPT range 120-430 V (Voc max: 450 V) wider, up to 500 V (depending on doc)
Max. efficiency ≈ 93 % > 95 %
Max AC load 120 A 200 A (according to doc)
Modularity (parallel) Yes, up to 9 units Yes, up to 6 units
Interface & control USB, RS232, RS485, Wi-Fi, decorative LEDs 5″ colour LCD screen, USB, Wi-Fi, RS485, CAN-BUS, BMS, LEDs
Advanced functions Auto backup mode, pure sine wave Energy prioritisation (PV/battery/grid), programmable timer, DC output
Maintenance Standard Replaceable fan, dust kit


video



A collection of videos to help you understand everything

Theme Objective / Benefit
Technical labels icone Decoding inverter information to make the right choice
Measuring DC voltage icone Using a voltmeter to measure DC current
Protection box Icone Securing your installation: differential + earth
Connecting inverters and Pylontech batteries icones Optimising installation and wiring
Lightning protection box (polarity) icones Avoid polarity reversal
Lightning arrester box (earthing) Icone Understanding earthing
Connecting panels to an inverter IconeMaximising solar yield
AC IN/OUT connection icones Correct electrical connection
AC wiring (neutral/phase) icones Secure AC installation
Pylontech battery → WKS Circle inverter icone Ensure optimum performance
Communication cable icone Reliable system connection
Inverter pre-start icone Pre-launch checks
Inverter-powered circuits icone Ensuring correct operation & safety
Standard hybrid inverter start-up icone Understanding indications & voltage
Basic UPS + lithium battery parameters icone Optimising settings & performance






Delong 15

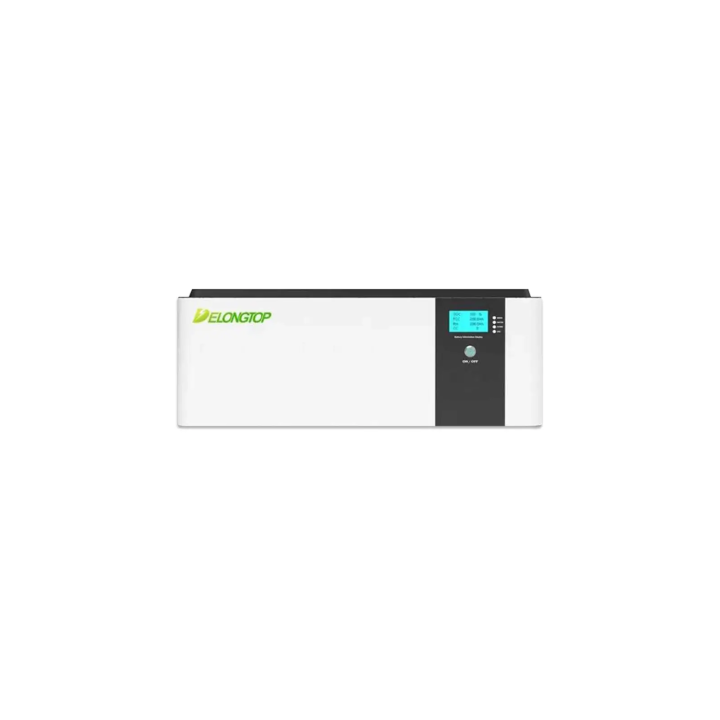

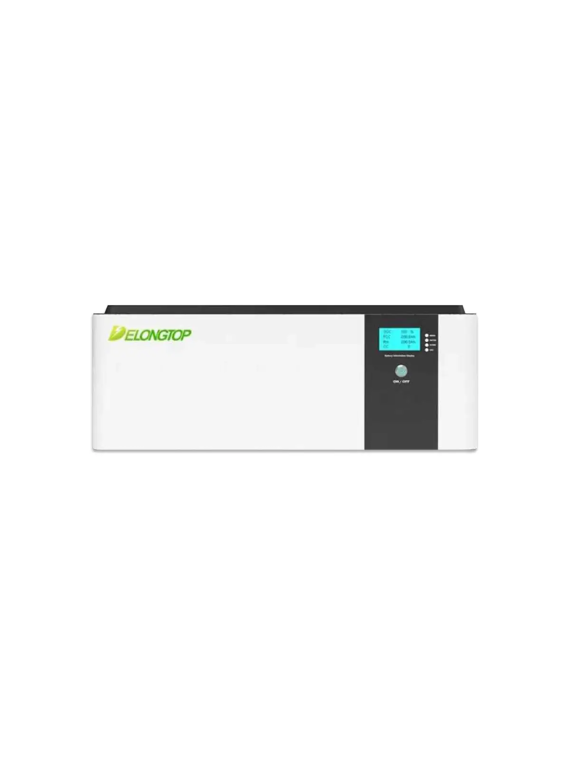

Lithium storage options: Delong Prismatic 15kWh

This LiFePO₄ battery offers a nominal capacity of 15 kWh (with a real usable capacity of ~16 kWh) at a voltage of 51.2 V and 314 Ah, presented in a modular, stackable and mobile format

Technology and durability

- Uses prismatic CALB (or BYD depending on version) cells, renowned for their reliability, safety and long life (up to 6,500 cycles, or around 12 years).

- Features an integrated intelligent BMS (battery management system), guaranteeing greater protection and a more reliable battery.

Design and compatibility

- Designed to be stackable, it increases total capacity to 61.44 kWh by combining several units.

- Compatible with major inverters via RS485, CAN, or RS232 for simple integration into various systems (residential, commercial or off-grid).

- CE-certified product, suitable for long-term installations with a 10-year warranty.

- Sold without support base - please order separately.

Use

This battery is ideal for storing solar energy (or other sources), providing reliable energy autonomy. It can be used for self-consumption in the home, deployed in off-grid systems or as a back-up energy reserve. Its modular nature means that capacity can be adjusted as required. Integration is via standard interfaces, facilitating monitoring and management via the BMS.

voir produit


illustration

Possible uses/needs for this kit

For what type of customer is this kit suitable, and in what situations?



- Isolated house or off-grid
If the customer is in an area with no or very expensive grid connection, this kit can cover a large part - or even all - of the customer's needs.
- Self-consumption with storage
For homes connected to the grid, this kit allows you to significantly reduce your bill by consuming the energy produced and stored, with very little resale of the surplus.
- Places subject to frequent power cuts
If the grid is unreliable or unstable, this kit can provide back-up power via the battery + inverter (backup mode).
- Secondary buildings, chalets, cabins
Can power a chalet, workshop or second home independently.
- Agriculture / farm buildings
If you need energy on a farm, for pumping, lighting, machines that don't require a huge power peak.
- Ecological transition project / property development
For people who want to reduce their environmental impact, or enhance the value of their home by adding a green energy source.





bebat

Specific information for Belgian customers - Bebat tax

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Delong Top 15 kWh battery is subject to a mandatory environmental levy.

An amount of €342.47 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation.



Please note When purchasing lithium batteries, please add the corresponding product "Environmental contribution Bebat Delong Energy - 15kWh" according to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

This tax only applies to Belgian customers and only to Pylontech batteries.






Connection to the WKS EVO Circle inverter

Raccordement sur l'onduleur WKS EVO Circle

config-ac-10pan-5kva

Data sheet

Solar kit type
Kit 230V AC avec batterie
Inverter power
5000VA
Kit output voltage
230V
Type of need
Off-grid
Battery storage
With storage
Wind turbine
Without
Number of panels
10 panels
Voltage
230V
Battery
Kit with battery
Panel type
Rigids
Mains re-injection
off-grid

Specific References

UPC
768563821271
EAN13
0768563821271
