Kit oversized 10Kva Fronius 27Kwc

Wattuneed

14 606,07 € tax incl.

Add to cart

Équipements
Descriptions équipements
Customize

Choice of panels

See product
Solar panel JNL Solar monocrystallin 320 Wc full black

config

167,60 €

QTT

See product
Solar Panel Q.Cells DUO-G9 330Wc Full Black

config

157,95 €

QTT

See product
Solar panel Q.Cells DUO-G9 335Wc Full Black

config

175,45 €

QTT

See product
Solar panel JNL Solar monocrystallin 375 Wc

config

188,95 €

QTT

See product
Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

config

209,95 €

QTT

See product
TrinaSolar Vertex 385Wc Full Black Solar Panel

config

194,68 €

QTT

See product
Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

config

204,26 €

QTT

See product
TrinaSolar Vertex S 390Wc Full Black Solar Panel

config

211,30 €

QTT

See product
TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

config

214,01 €

QTT

See product
Hyundai 395 Wc Ultra Black Solar Panel

config

228,28 €

QTT

See product
Solar panel Hyundai 400 Wc

config

245,62 €

QTT

Choix de l'onduleur

See product
Fronius Symo 10.0-3-M (2MPPT) Tri

config

2 568,27 €

QTT

Choice of mounting system

49.1
Sélectionné

Slate roof attachment kit

55
Sélectionné

Tile roof attachment kit

127
Sélectionné

Fixing kit on ground structure

37.28
Sélectionné

Tin roof attachment kit

82.62
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Tile roof attachment kit

config

55,00 €

QTT

See product
Fixing kit on ground structure

config

127,00 €

QTT

See product
Tin roof attachment kit

config

37,28 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

82,62 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

CABLING AND CONNECTORS

See product
2X4mm2 solar cable with Type MC4 (sold by the meter - 20m)

config

90,80 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Earth cable 1x6 mm2 10m

config

14,50 €

QTT

See product
2X4mm² Solar cable with MC4 (by the metre)

config

4,60 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

See product
Triple MC4-like connector male + female

config

24,00 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

AC guards and accessories

See product
Schneider mono 2A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 4A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 6A circuit breaker

config

14,70 €

QTT

See product
Schneider mono 10A circuit breaker

config

17,60 €

QTT

See product
Schneider mono 16A circuit breaker

config

8,60 €

QTT

See product
Schneider mono 20A circuit breaker

config

8,60 €

QTT

See product
Schneider single-phase 25A circuit breaker

config

16,00 €

QTT

See product
Schneider mono 40A circuit breaker

config

16,70 €

QTT

See product
Schneider 16A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 20A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 25A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 40A tetra circuit breaker

config

53,40 €

QTT

See product
Schneider Breaker tetra 50A

config

183,68 €

QTT

See product
Differential switch type A 2P 63A 30ma

config

85,39 €

QTT

See product
Differential switch type A 4P 40A 300ma

config

82,00 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

69,50 €

QTT

See product
AC ZJBENY box set with 25A 230V socket

config

140,00 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
ZJBENY AC 25A 230V Lightning Box

config

125,25 €

QTT

DC guards and accessories

See product
Paralleling Box 5 inputs with lightning arrester and switch

config

270,00 €

QTT

See product
ZJBENY DC single-surge arrestor box

config

143,00 €

QTT

See product
1000V 32A DC double surge protector ZJBENY

config

231,00 €

QTT

See product
DC 500V 32A disconnector box

config

129,00 €

QTT

See product
DC 500V 40A Switch

config

68,00 €

QTT

See product
DC 2P 1000V 32A Switch - with enclosure

config

56,00 €

QTT

See product
Double DC Cut-out and lightnin protection box

config

551,98 €

QTT

See product
DC Cut-out and lightning protection box 20A

config

262,85 €

QTT

See product
DC Cut-out and protection box 40A

config

457,03 €

QTT

See product
Lightning protection box with 2 input

config

471,00 €

QTT

More info

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to suit the kit to your needs. You can also see the details of the selected products directly below the price.

This kit is sized with the general purpose of powering an isolated site or a stand-alone installation.

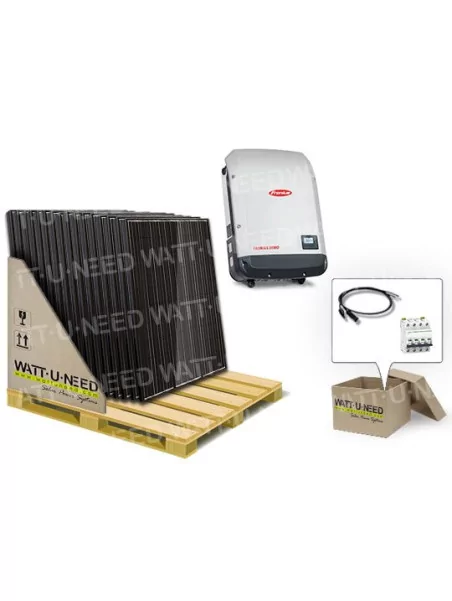

The basic composition of the kit contains 30 JNL Solar 300 Wc solar panels, a Fronius 27kWc inverter, solar cables to connect the panels to the inverter and the inverter to your electrical panel, the panel mounting system is available as an option. (The assembly system as well as the wiring and protections are changeable to meet your needs).



SOLAR PANELS:

In its basic version, this Photovoltaic system will bring you on average 9Kwh per sunny day. Productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.

We invite you to consult our solar production simulator to determine exactly what your solar production will be.

20-year warranty at 80% of rated power.



INVERTER:

MultiSolar hybrid inverters are the ideal solution for fueling a home with self-consumption Yes make an isolated site self-sufficient. This inverter can be used to power consumers up to 3000W. The built-in regulator allows you to take up to 4500Wc of panels. It is possible to put him in the public network or generator for recharge the batteries. Totally set up via the LCD screen of the inverter. SAV provided in-house, spare parts available

2-year warranty



CABLE AND CONNECTORS:

All cables and connection are pre-wired in our workshops. Our kits are very easily mounted by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.



assembly:

The installation of this kit is very simple. Our instructions are clear and allow easy editing without any special knowledge. We answer all your questions before, during and after installing your system.



guarantee:

All products have an individual warranty.
Panels guaranteed 20 years at 80% of rated power.
Fronius inverter guaranteed 5 years.


JNL SOLAR 300Wp Monocrystalline Solar Panel Full Black (this product is subject to change depending on the product technology and your panel selection)



JNL Solar 300 Wc Monocristallin Full black solar panel



JNL Solar is dedicated to the development, operation, maintenance of solar power plants, the manufacture of research and development rings and the manufacture of solar modules and solar cells.
It has equipped a state-of-the-art professional automatic production line and has state-of-the-art technology and craftsmanship.
JNL Solar has participated in national and international energy investment plans, such as the United States, Germany, France, Spain, Japan, India, South Africa, South Korea, Canada, etc. and all power plants are successful on the grid and production wells.



Characteristics



Peak Power (Pmax)300
Module efficiency18,33%
Max. Power Tension Vmp (V)33,54
Max. Power Current Amplifier (A)8,95
Empty tension Voc (V)39,53
Current short-circuit Isc (A)9,6
Power tolerance-0, 10W
Maximum system voltage (V)DC 1000V
Number of bypass diodes3
Grilled fuse current15A
STC: Irradiance 1000W/m2, Cell temperature 25oC, Air mass AM1.5 Measurement tolerance: -3%
Potentially induced degradation (PID) free, IEC61215, IEC61730, increased snow load up to 5400Pa.
Dimensions [mm]1650x992x35
Weight (kg)18,5
Type of solar cells156.75mm x 156.75mm (5BB)
Junction boxIP67
Mechanical loading5400Pa
frameBlack anodized aluminium
Cables4mm2, 1000mm
connectorMC4 or compatible
glass3.2mm
Operating temperature-40C - 85C
Nominal temperature of the measuring cell47 degrees Fahrenheit

Fronius Symo 10.0-3-M (2MPPT) TriFronius Symo 10.0-3-M (2MPPT) Tri



The Fronius Symo is one of the smartest and most efficient inverters available on the market. The Transformer-Free Inverter Fronius Symo is the three-phase inverter for all plant sizes. The high voltage of the system, a wide range of input voltage and two MPP trackers give it maximum flexibility in the design of the installation.



mark: Fronius

model: Symo 10.0-3-M

power: 10 kW

Dimensions LxHxP: 725 x 510 x 225 mm

weight: 34.8 kg

guarantee: 5 years old



ENTRY DATAFronius Symo 10.0-3-M
Maximum input current (Idc max1 / Idc max2)27.0 A / 16.5 A
Current max. short circuit (MPP1 / MPP2)40.5 A / 24.8 A
Min. input voltage (Udc min)200 V
Injection start tension (Udc start)200 V
Nominal enercised voltage (Udc,r)600 V
Maximum input voltage (Udc max)1,000 V
MPP voltage range
(Umpp min - Max Umpp)
270 - 800V
Number of MPP trackers2
Number of DC connectors3 + 3
Max. PV generator power
(Max Pdc)
15.0 kWpeak
EXIT DATA
ACE nominal power (Pac,r)10,000 W
Maximum output power.10,000 VA
Maximum output current (Iac max)20 A
Network coupling (Uac,r)3-NPE 400 V / 230 V or 3-NPE 380 V / 220 V
Min. output voltage (Uac min)260 / 150 V
Maximum output voltage (Uac max)485 / 280 V
Frequency50 Hz / 60 Hz
Frequency range (fmin - fmax)45 - 65 Hz
Harmonic distortion rate< 2%
Power factor (cosac,r)0 - 1 ind. / cap.
GENERAL DATA
size
(height x width x depth)
725 x 510 x 225 mm
weight34.8 kg
Protection indexIP 66
Protective class1
Power category (DC / AC)1)2 / 3
Nocturnal consumption< 1 W
Inverter conceptNo transformer
coolingCooling by regulated air
assemblyInterior and exterior editing
Room temperature range-40C to 60C
Moisture from the air allowed0% to 100%
DC Connection TechnologyHead-to-head born: 6 DC poles and 6 DC poles / 2.5 mm2 - 16 mm2
AC Connection TechnologyScrew Bornier: 5 AC poles / 2.5 mm2 - 16 mm2



Specifications

Type of needSelf-consumption
Wind TurbinWithout
Output Kit voltage230V
Battery storageWithout storage
Number of panels30 panels
Batterykit without battery
Grid reinjectionWith
