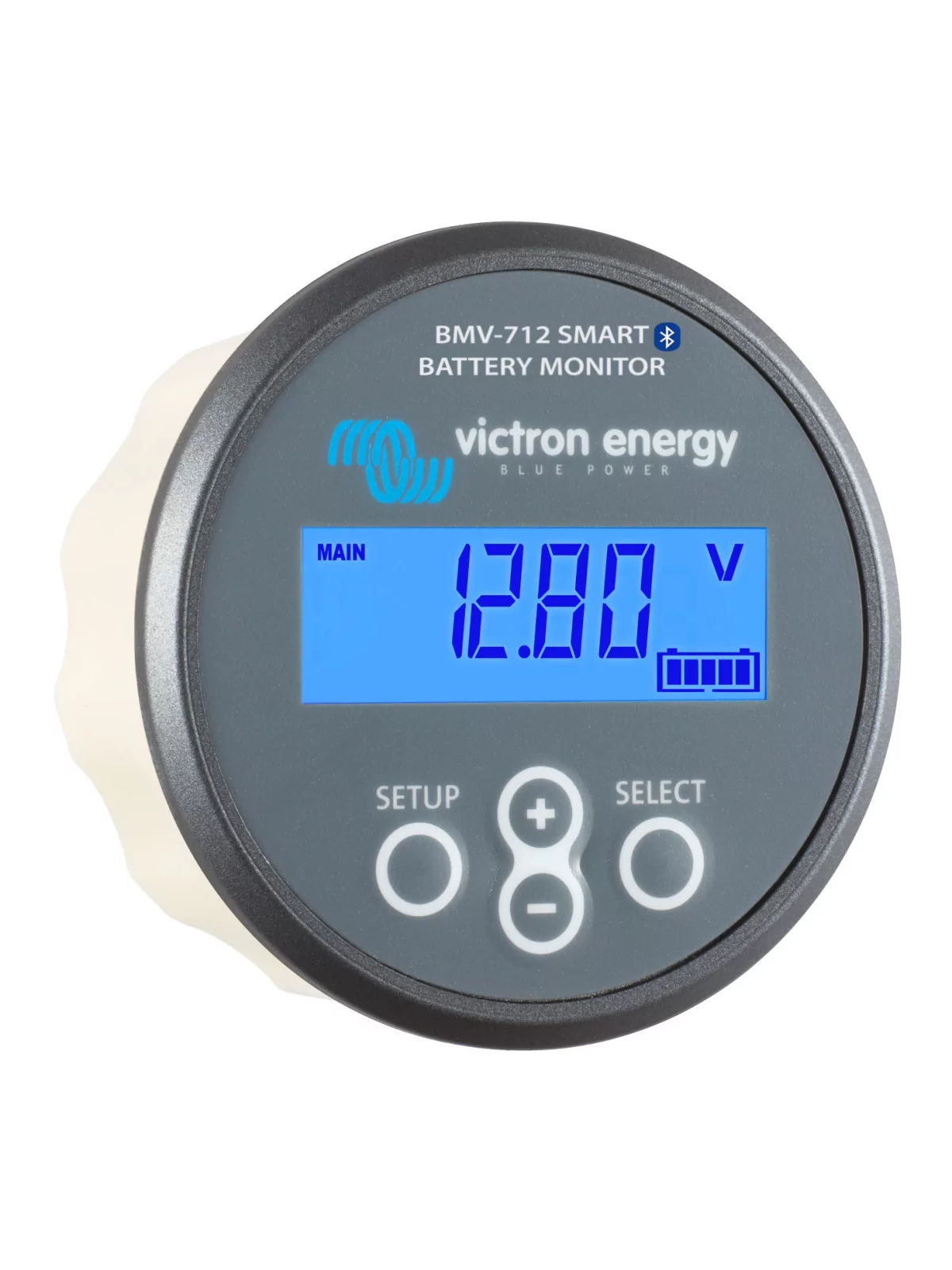

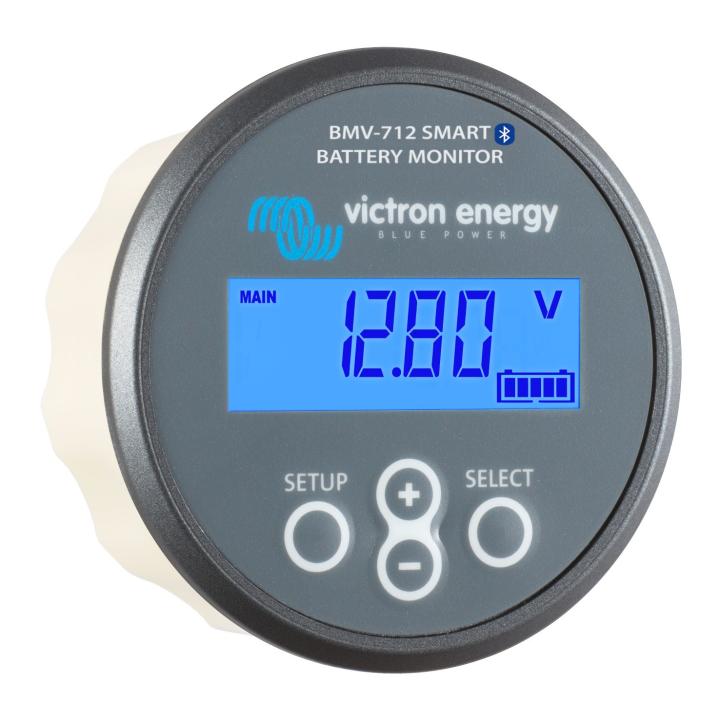

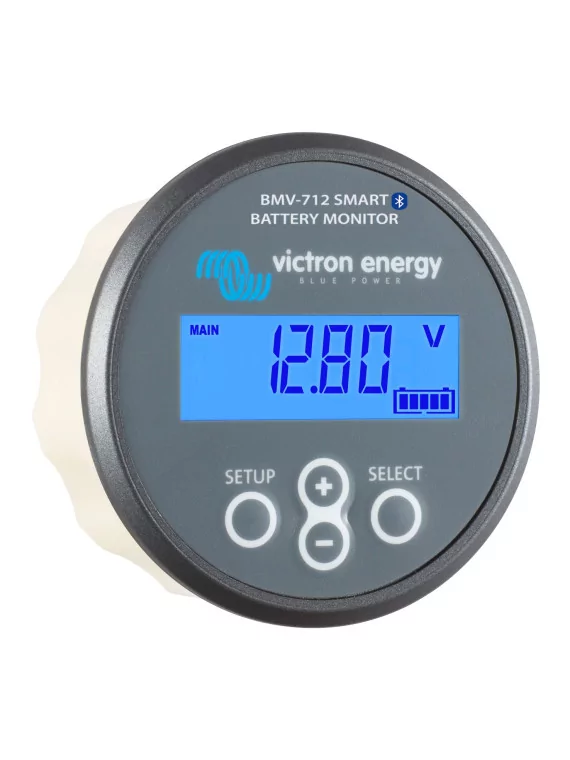

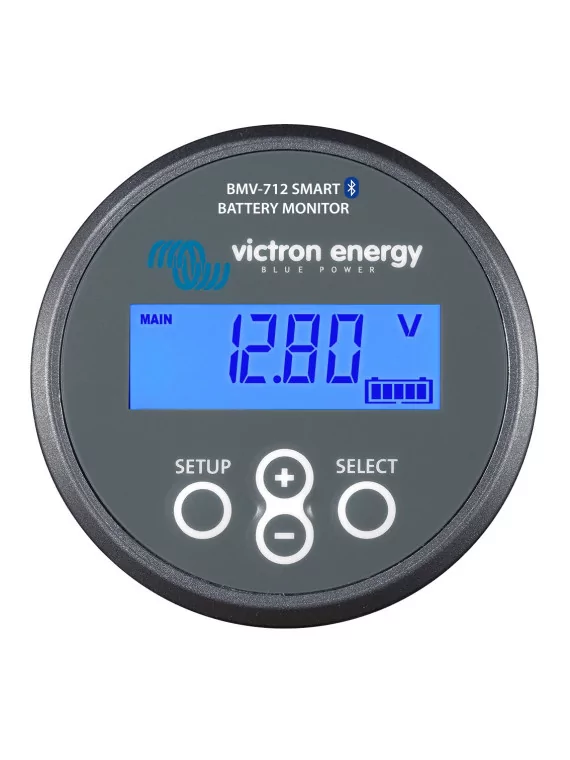

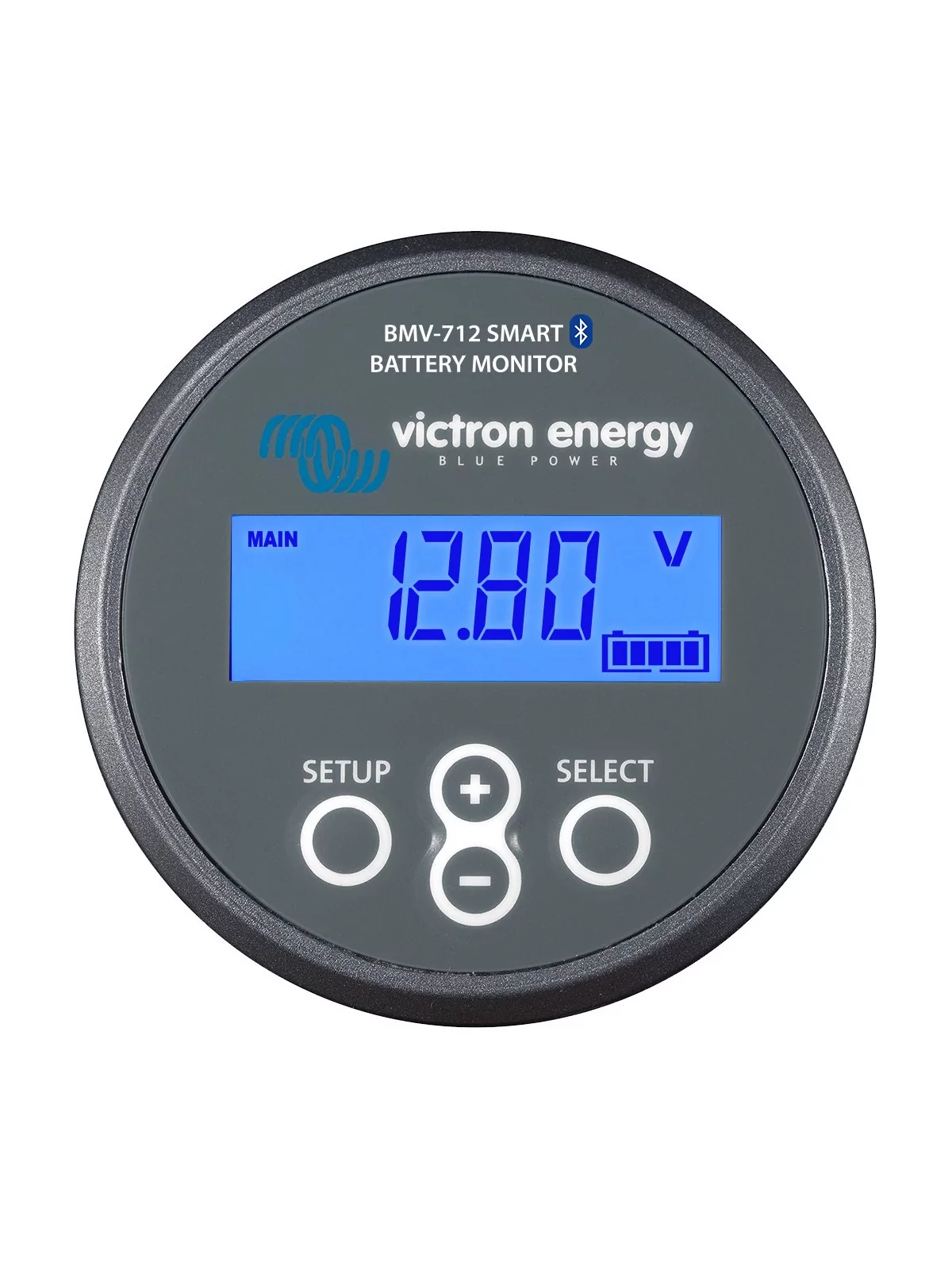

    Victron BMV-712 Smart battery monitor

    $184.5
    BAM030712000 (R)
    0712971138452

    Victron solar battery monitors - BMV-712 SMART Series calculate ampere-hour consumption and battery charge level.

    With integrated Bluetooth, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth implemented in most other Victron Energy products, wireless communication between products will simplify system installation and improve performance.

    Victron BMV-712 Smart...

    $184.5

    "Victron high precision solar battery controller "

    Contrôleur de batterie VictronVictron BMV-712 series battery monitors calculate ampere-hour consumption and battery charge level. Consumption is calculated by the flow of current into and out of the battery. Microprocessor-programmed algorithms enable precise control of battery consumption.

    With integrated Bluetooth, the BMV Smart is ready for the age of the Internet of Things (IoT). With Bluetooth implemented in most other Victron Energy products, wireless communication between products will simplify system installation and improve performance.


    Description

    Download Victron Bluetooth application

    Use a Smartphone or other device with a Bluetooth connection to

    • customize your settings,

    • monitor all crucial data on a single screen,

    • view data history, and to

    • update the software when new features become available.

    Easy installation

    All electrical connections are made by quick connectors on the shunt's printed circuit board (PCB). The shunt is connected to the controller using a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m). No other components are required.

    Other parts supplied are a dial for square or round screens, a fixing ring for rear mounting, and the screws required for front mounting.


    Median voltage control

    A bad cell, or a bad battery, can destroy a large and expensive battery bank. When batteries are connected in series, a timely warning can be produced by measuring the median voltage. Please refer to section 5.2 of the BMV manual for further information.

    We recommend our Battery Balancer - BMS012201000 - to optimize the life of lead-acid batteries connected in series.


    Very low current draw from the battery

    Current consumption: 0.7 Ah per month (1 mA) @12 V and 0.6 Ah per month (0.8 mA) @ 24 V

    Lithium-ion batteries in particular have almost no power left when discharged to a standstill at low voltage.

    After a shutdown due to low cell voltage, the power reserve of a lithium-ion battery is around 1 Ah for every 100 Ah of battery power. The battery will be damaged if the remaining power reserve is extracted from the battery. For example, a residual current of 10 mA can damage a 200 Ah battery if the system is left discharged for more than 8 days.


    Bistable alarm relay

    Prevents increased current draw in the event of an alarm.


    Other functions

    • Battery voltage, current, power, ampere-hours consumed and state of charge

    • Remaining autonomy according to current consumption

    • Programmable visual and audible alarm:

    • Programmable relay to switch off non-critical loads, or to start a generator if required.

    • A 500 A fast connection shunt and a connection kit

    • Possibility of shunt with a capacity of up to 10,000 A.

    • VE communication port.Direct

    • Recording of numerous historical events that can be used to evaluate usage patterns and battery condition.

    • Wide supply voltage range: 9.5 - 95 V

    • High current measurement resolution: 10 mA (0.01 A)

    • An additional input for measuring voltage (from a second battery), temperature or median voltage, and setting the corresponding relays and alarms.

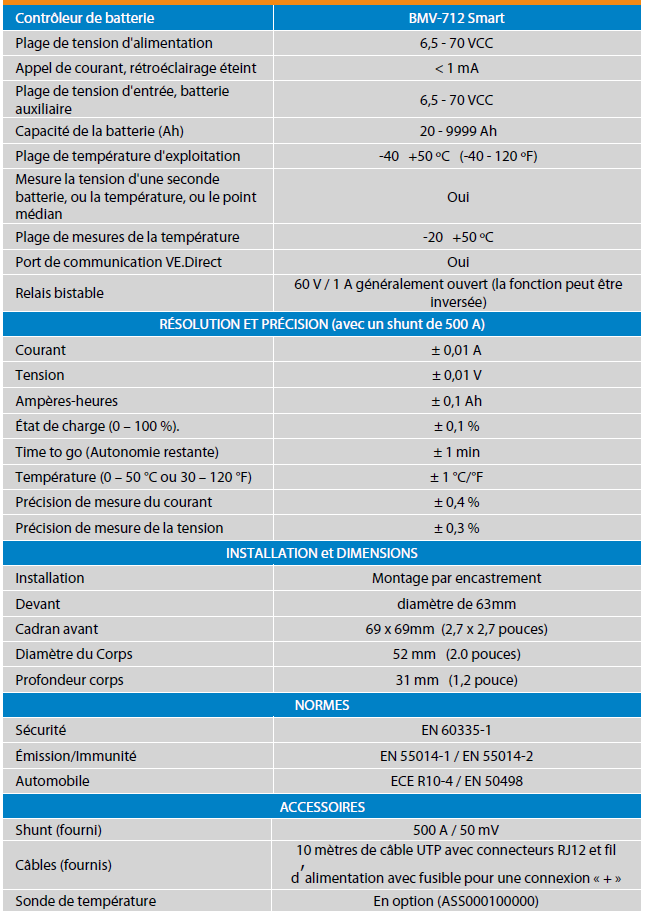

    Technical specifications

    caractéristiques

    BAM030712000 (R)

    Specific References

    New

    Download

    Manual Victron BMV EN-FR

    Download (1.73MB)

    Datasheet BMV 712 Smart FR

    Download (198.21KB)

    Datasheet BMV 712 Smart EN

    Download (198.84KB)
