Immersed pump Grundfos SP 30
€1,769.75
Tax included
10021
0712971135901

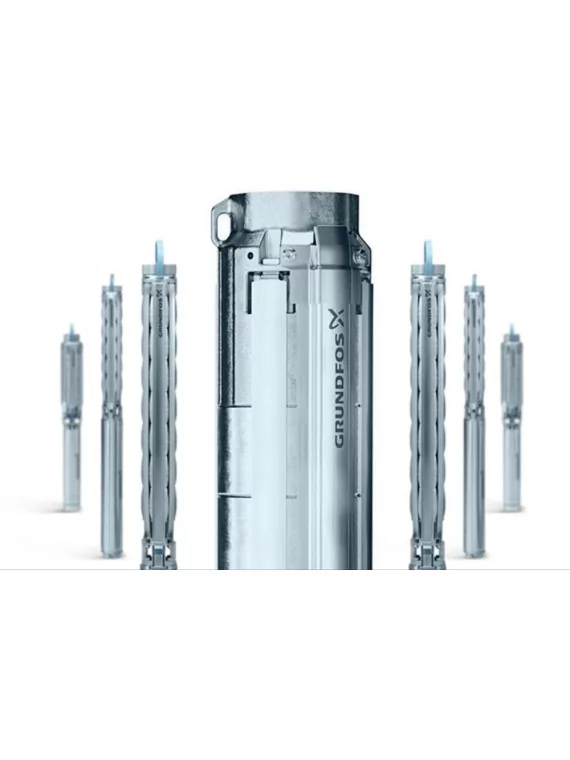

Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range.
The SP 30 pumps are recommended for a 75% return at a height between 5 m and 275 m for a flow between 24 m³/h and 32 m³/h.
-petit%20logo.png){kind=logo}
Reliable and resistant, a pump for multiple applications
Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range. Manufactured entirely in stainless steel, corrosion-resistant, the SP pumps are ideal for a multitude of applications.
SP Grundfos pumps represent what it does best in hydraulics. Designed to provide optimal performance during periods of high demand, the SP pumps offer low long-term costs and a high operating reliability regardless of the application.

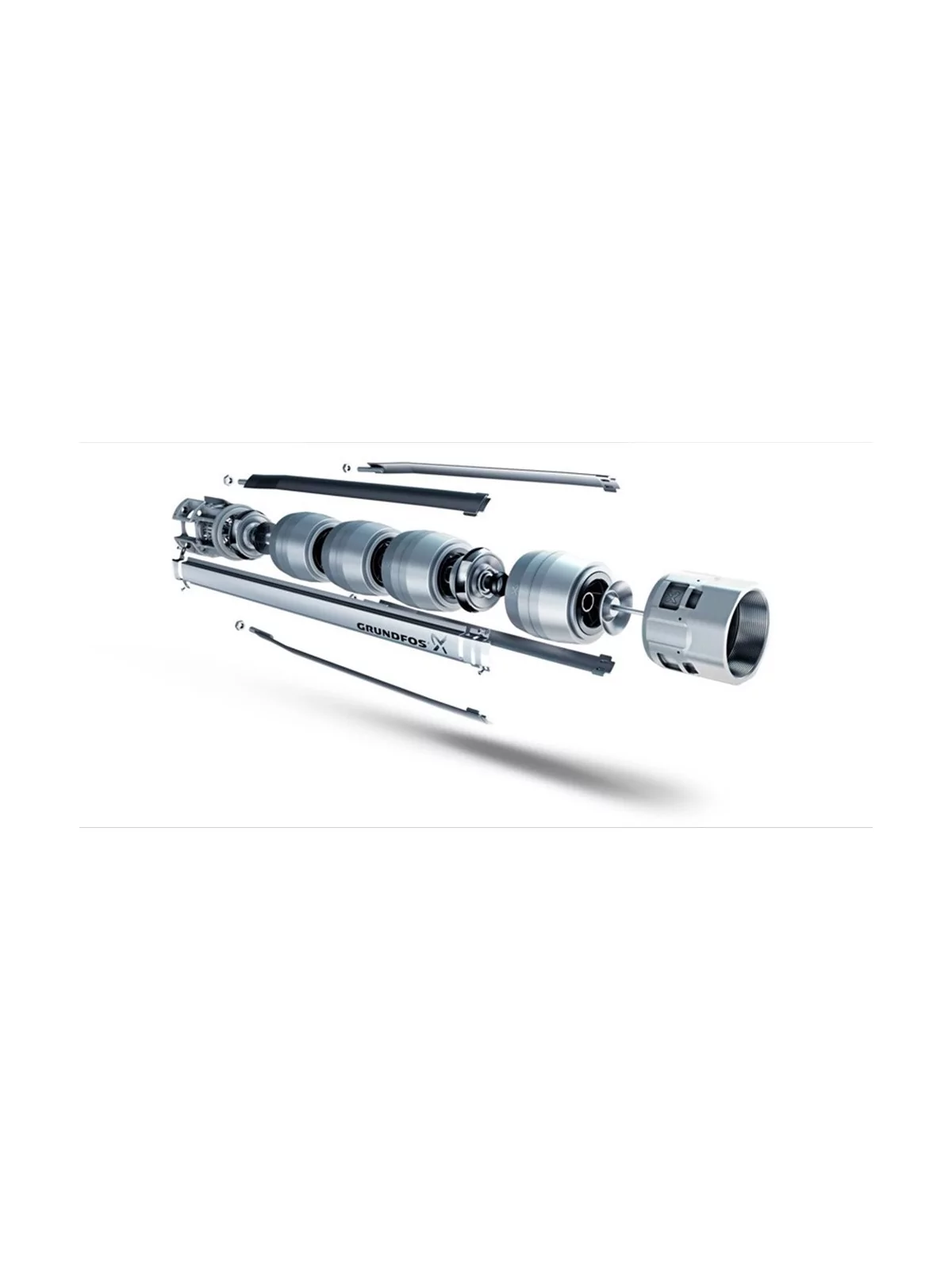

The range SP Grundfos is characterized by a high-performanceone high level of resistance to the sand and abrasivesone protection against the breakdown of the engine and a easy maintenance. A comprehensive system of monitoring and control is available for a constant optimization of the pumping system.
The SP pumps are suitable for the following applications
- Groundwater of the network of water supply
- Irrigation in horticulture and agriculture
- Water table drawdown
- Overpressure
- Industrial applications
Features and benefits

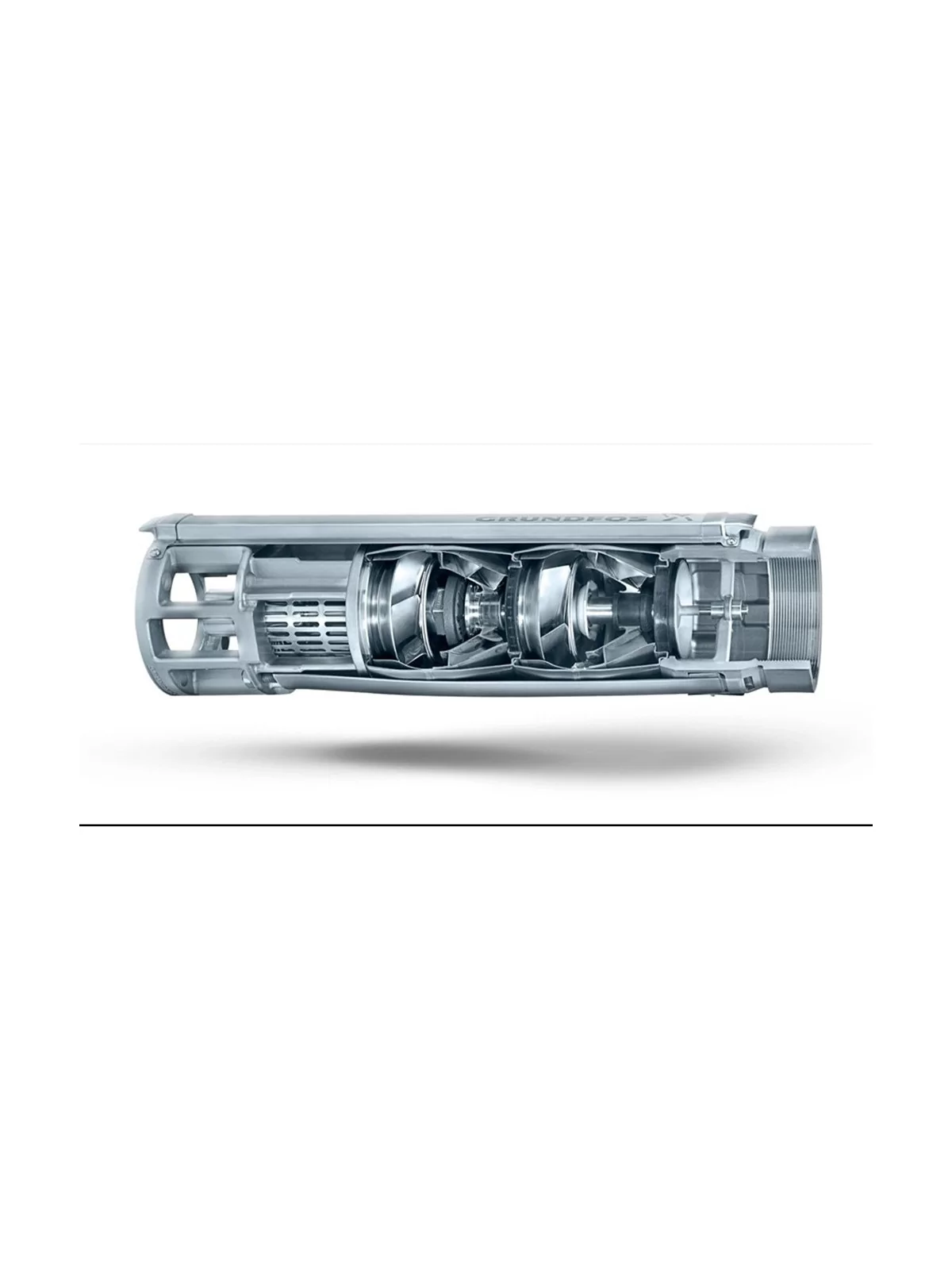

- Hydraulics at the forefront of technology, for high performance and low operating costs
- Interior and exterior 100% stainless steel
- Resistance to the sand
- Resistance to corrosive water
- Protection against the breakdown of the engine
- Protection against dry running

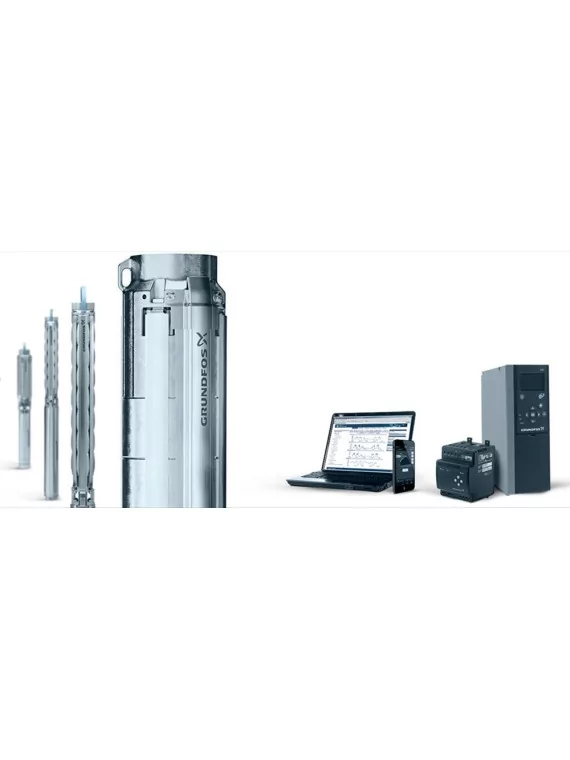

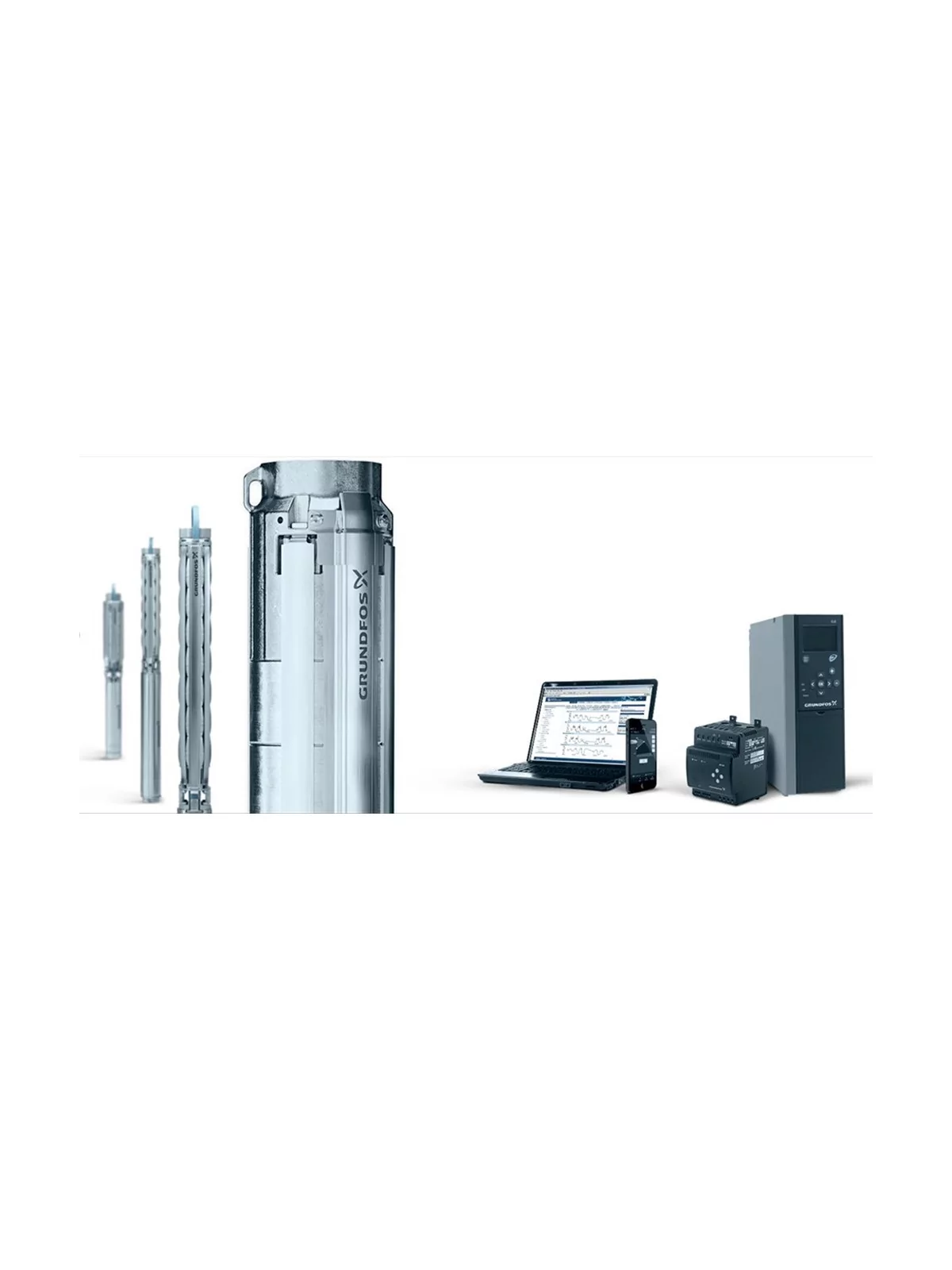

- Monitoring, protection and communication via the MP 204 protection unit and the R100 remote controller
In brief
- High-performance
- Corrosion resistance

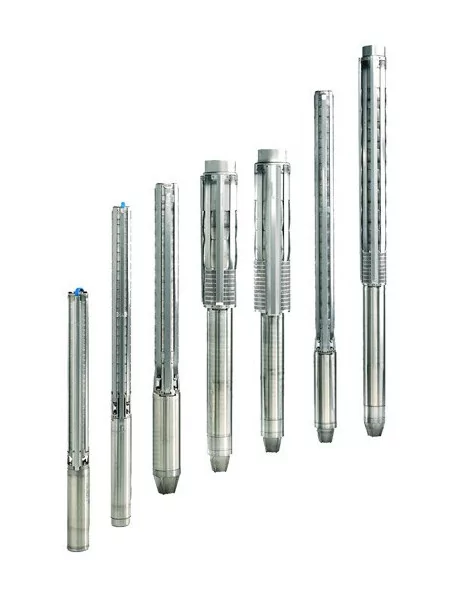

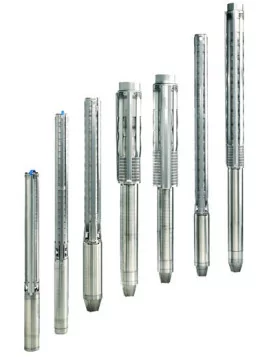

- Full range of pumps and motors
| Pump SP 30A | SP 30-1 | SP 30-2 | SP 30-3 | SP 30-4 | SP 30-5 | SP 30-6 | SP 30-7 | SP 30-8 | SP 30-9 | SP 30-10 | SP 30-11 | SP 30-12 | SP 30-13 | SP 30-14 | SP 30-15 | SP 30-16 |
| Temperature liquid | + 40 ° C max | |||||||||||||||
| Index of protection | IP 68 | |||||||||||||||
| MEI | ≥ 0.5 | |||||||||||||||
| Materials | Stainless Steel AISI 304 | |||||||||||||||
| Floors | 30 | |||||||||||||||
| Voltage | 3 x 230V or 3 x 400V | |||||||||||||||
| Diameter pump | 6 " | |||||||||||||||
| Motor diameter | 4 " | 6 " | ||||||||||||||
| Connection | PR 3 | |||||||||||||||
| Power (kW) | 1.1 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 9.2 | 9.2 | 9.2 | 11 | 11 | 13 | 13 | 15 |
| In (A) 3x230V | 6.2 | 10 | 14.6 | 17.6 | 24.2 | 24.2 | 32 | 32 | 39.5 | 39.5 | 39.5 | 45 | 45 | 54.5 | 54.5 | 62 |
| In (A) 3 x 400V | 3.4 | 5.5 | 7.9 | 9.6 | 13.6 | 13.6 | 17.6 | 17.6 | 21.8 | 21.8 | 21.8 | 24.8 | 24.8 | 30 | 30 | 34 |
| Cable (m) | 1.7 | 2.5 | 5 | |||||||||||||
| Pump SP 30A | SP 30-17 | SP 30-18 | SP 30-19 | SP 30-20 | SP 30-21 | SP 30-22 | SP 30-23 | SP 30-24 | SP 30-25 | SP 30-26 | SP 30-27 | SP 30-28 | SP 30-29 | SP 30-30 | SP 30-31 |
| Temperature liquid | + 40 ° C max | ||||||||||||||
| Index of protection | IP 68 | ||||||||||||||
| MEI | ≥ 0.5 | ||||||||||||||
| Materials | Stainless Steel AISI 304 | ||||||||||||||
| Floors | 30 | ||||||||||||||
| Voltage | 3 x 230V or 3 x 400V | ||||||||||||||
| Diameter pump | 6 " | ||||||||||||||
| Motor diameter | 6 " | ||||||||||||||
| Connection | PR 3 | ||||||||||||||
| Power (kW) | 15 | 18.5 | 18.5 | 18.5 | 18.5 | 22 | 22 | 22 | 22 | 22 | 26 | 26 | 26 | 26 | 26 |
| In (A) 3x230V | 62 | 76.5 | 76.5 | 76.5 | 76.5 | 87.5 | 87.5 | 87.5 | 87.5 | 87.5 | 100 | 100 | 100 | 100 | 100 |
| In (A) 3 x 400V | 34 | 42 | 42 | 42 | 42 | 48 | 48 | 48 | 48 | 48 | 57 | 57 | 57 | 57 | 57 |
| Cable (m) | 5 | ||||||||||||||

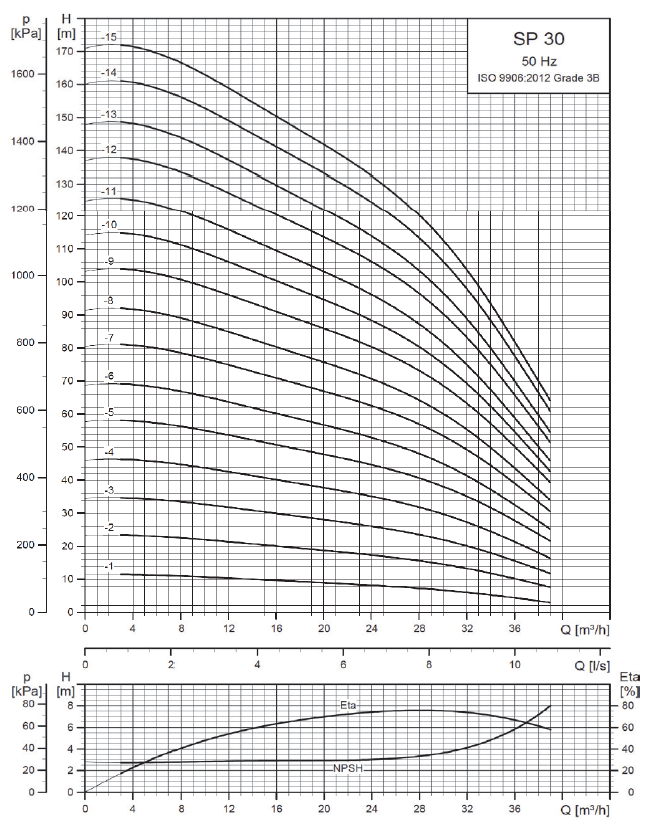

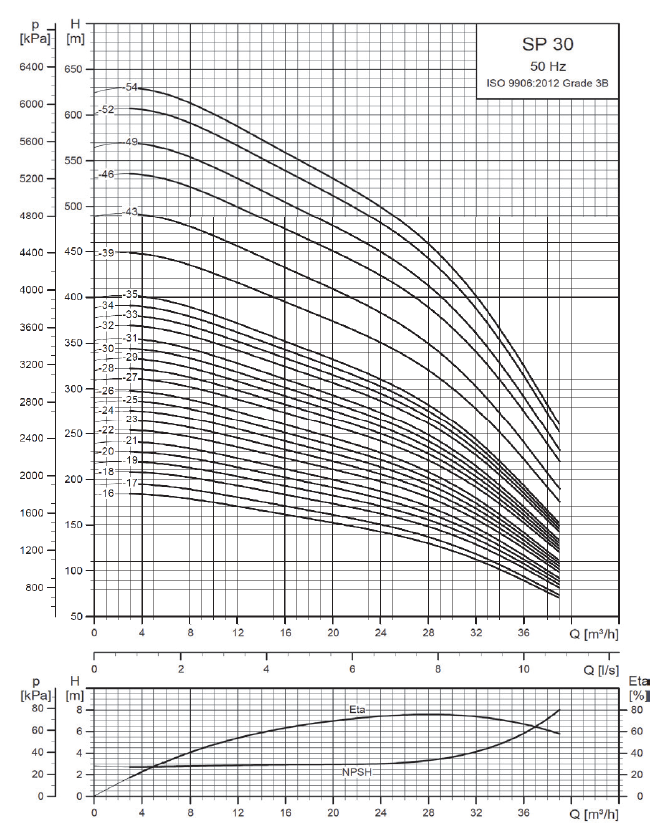

| Height and flow advice | Height (m) | Height min (m) | Flow min. height recommended | Max for height min. recommended flow | Performance |
| SP 30-1 | 7 | 5 | 24 m³/h | 32 m³/h | 75% |
| SP 30-2 | 17 | 14 | |||
| SP 30-3 | 25 | 20 | |||
| SP 30-3 | 35 | 27 | |||
| SP 30-5 | 44 | 35 | |||
| SP 30-6 | 53 | 42 | |||
| SP 30-7 | 62 | 50 | |||
| SP 30-8 | 70 | 55 | |||
| SP 30-9 | 80 | 63 | |||
| SP 30-10 | 90 | 70 | |||
| SP 30-11 | 95 | 75 | |||
| SP 30-12 | 105 | 85 | |||
| SP 30-13 | 115 | 90 | |||
| SP 30-14 | 123 | 98 | |||
| SP 30-15 | 132 | 105 | |||
| SP 30-16 | 140 | 110 | |||
| SP 30-17 | 150 | 115 | |||
| SP 30-18 | 160 | 125 | |||
| SP 30-19 | 170 | 130 | |||
| SP 30-20 | 175 | 140 | |||
| SP 30-21 | 180 | 147 | |||
| SP 30-22 | 195 | 160 | |||
| SP 30-23 | 205 | 165 | |||
| SP 30-24 | 213 | 170 | |||
| SP 30-25 | 220 | 175 | |||
| SP 30-26 | 225 | 180 | |||
| SP 30-27 | 240 | 190 | |||
| SP 30-28 | 250 | 200 | |||
| SP 30-29 | 255 | 205 | |||
| SP 30-30 | 260 | 210 | |||
| SP 30-31 | 275 | 215 |
