Immersed pump Grundfos SP 3A

Grundfos

1 217,26 € tax incl.

Options

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range.

The SP 3A pumps are recommended for a 60% efficiency at a height between 20m and 150m for a flow rate between 2,4m³ / h and 3,6m³ / H.

Logo Grundfos

More details

More info

Grundfos SP

" Reliable and robust, a pump for multiple applications "

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.









The pumps are suitable for:

  • Groundwater supply to waterworks

  • Irrigation in horticulture and agriculture

  • Groundwater lowering

  • Pressure boosting

  • Industrial applications.





Features and benefits

  • State-of-the-art hydraulics provide high efficiency and low operating costs

  • 100 % stainless steel inside and outside

  • Sand resistant

  • Resistant to aggressive water

  • Motor burnout protection

  • Dry-running protection

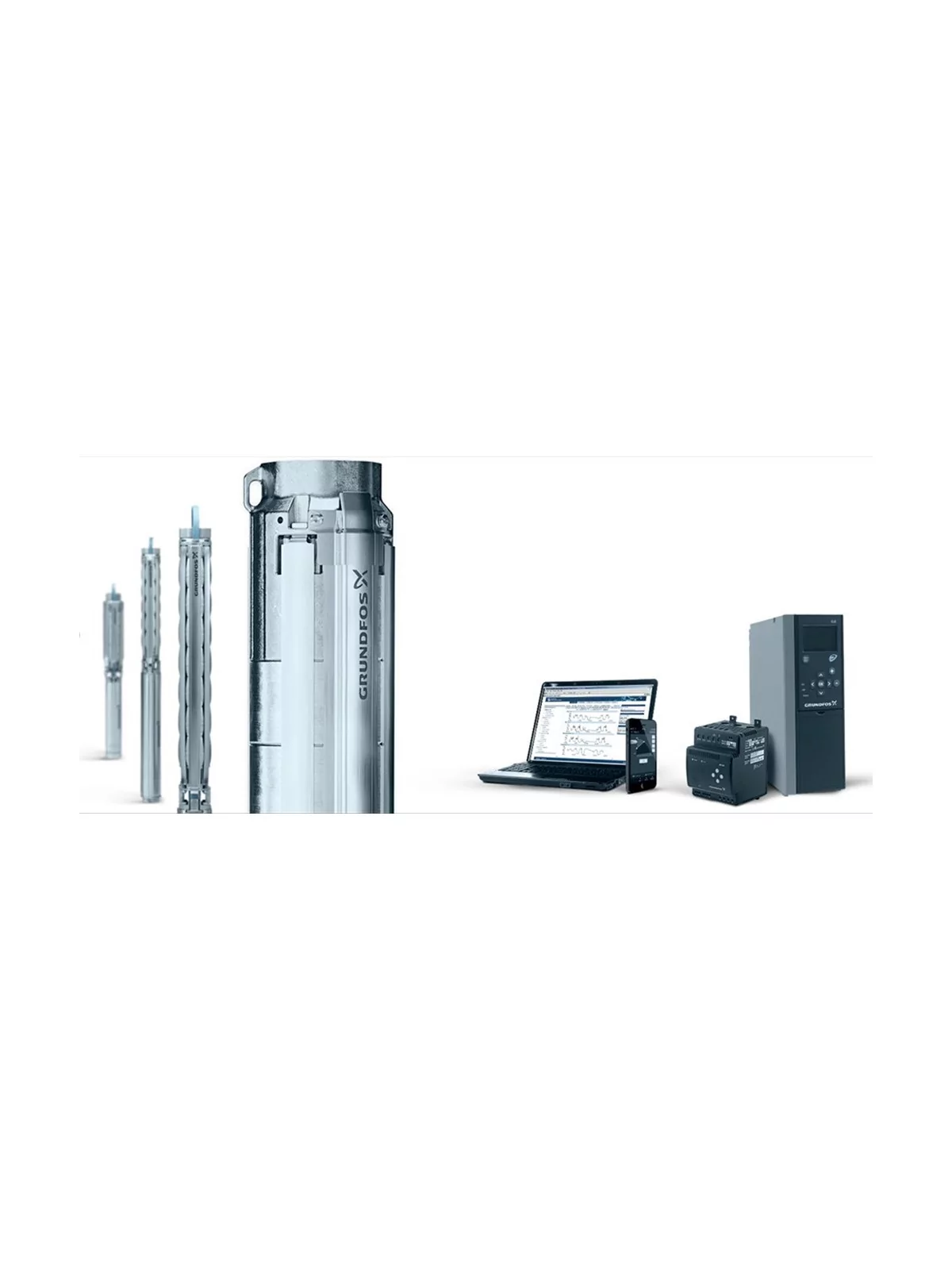

  • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control.









In short :

  • High efficiency

  • Corrosion-resistant

  • Complete range of pumps and motors SP System


Pump SP 3ASP 3A-6SP 3A-9SP 3A-12SP 3A-15SP 3A-18SP 3A-22SP 3A-25SP 3A-29
Liquid temperature+40 °C max
Protection classIP 68
MEI≥ 0,7
MaterialStainless steel AISI 304
Stages3
Voltage3x 230V or 3x 400V
Pump diameter4"
ConnectionRp 1 1/4
Power (kW)0,370,550,751,11,11,51,52,2
In (A) 3x 400V1,42,22,33,43,43,44,25,5
Cable (m)1,7

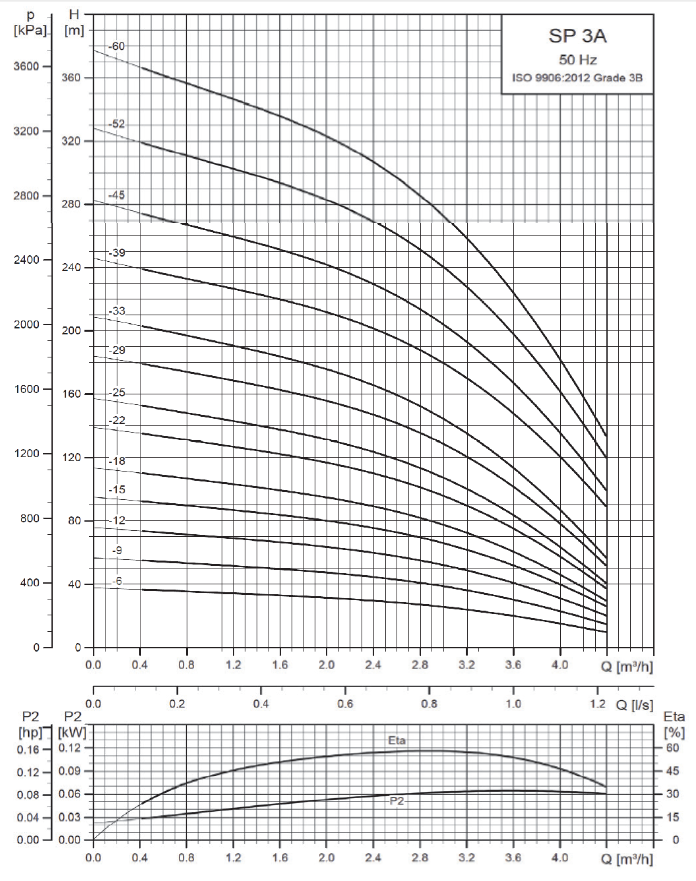

Recommended Height and FlowSP 3A-6SP 3A-9SP 3A-12SP 3A-15SP 3A-18SP 3A-22SP 3A-25SP 3A-29
Height max (m)3545607590110120150
Height min (m)20354055607580100
Min flow (at the max. height recommended)2,4 m³/h
Max flow (at recommended height min)3,6 m³/h
Yield60%
