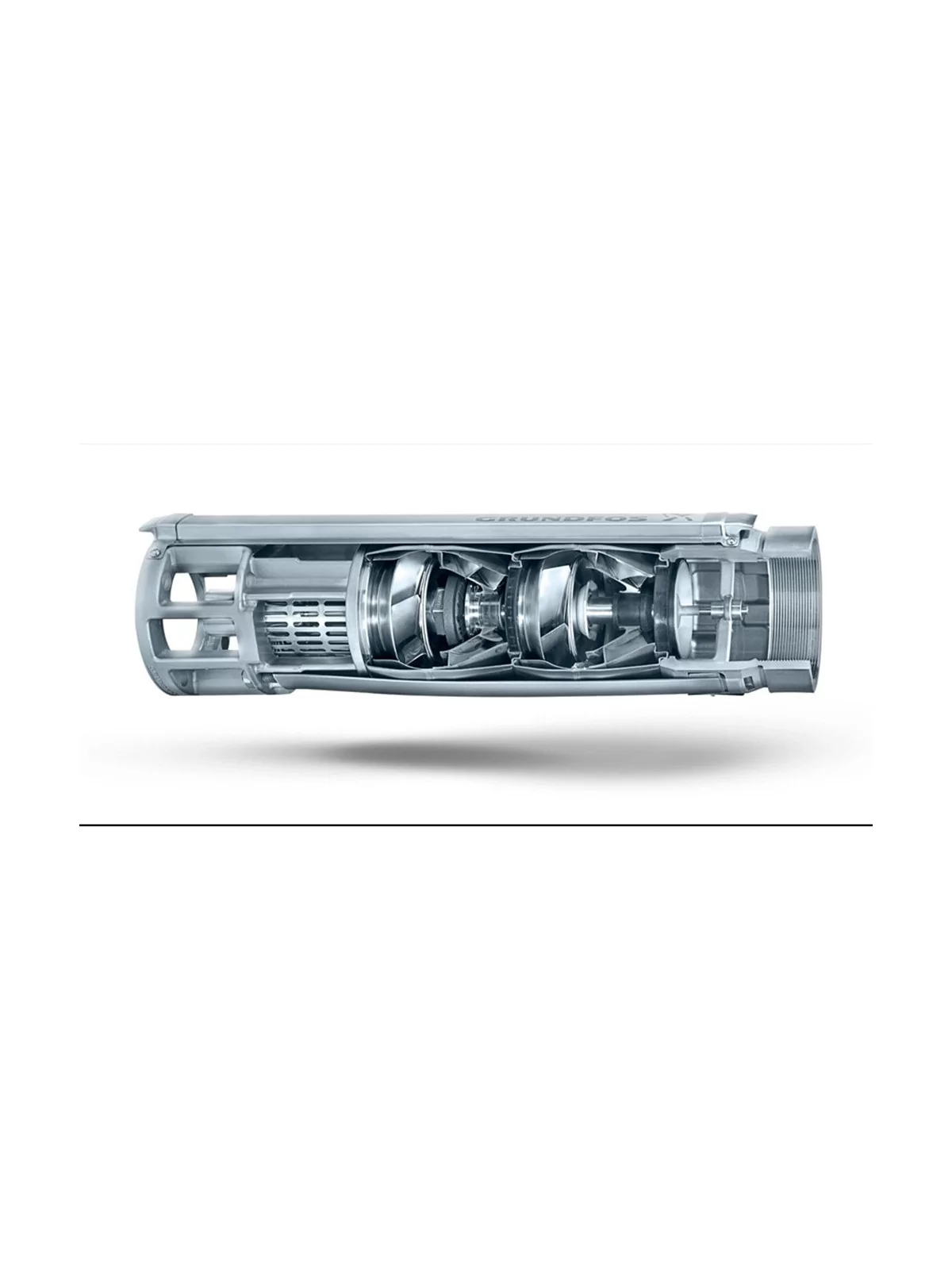

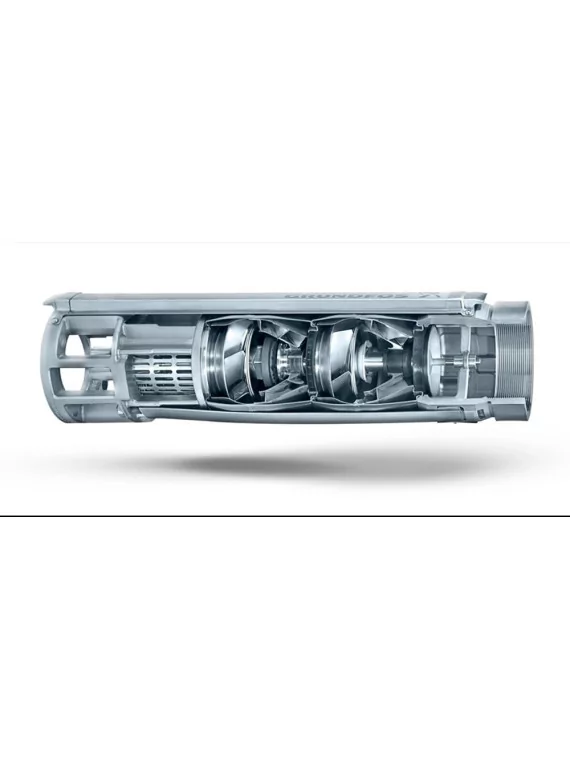

Immersed pump Grundfos SP 2A

Grundfos

1 190,64 € tax incl.

Options

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range.

The SP 2A pumps are recommended for a 50% efficiency at a height between 20m and 230m for a flow rate between 1.6m³ / h and 2m³ / h.

Logo Grundfos

More details

More info

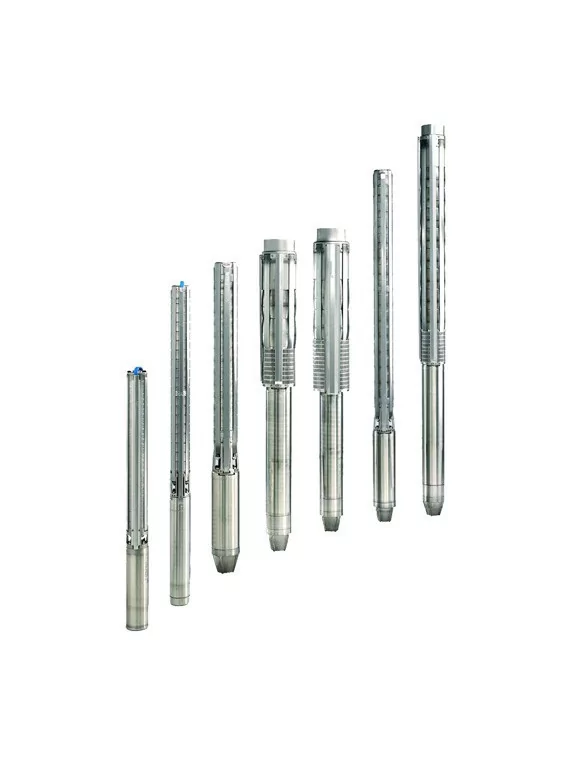

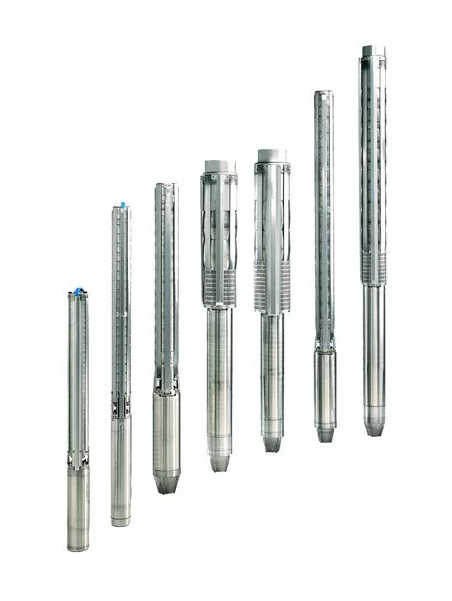

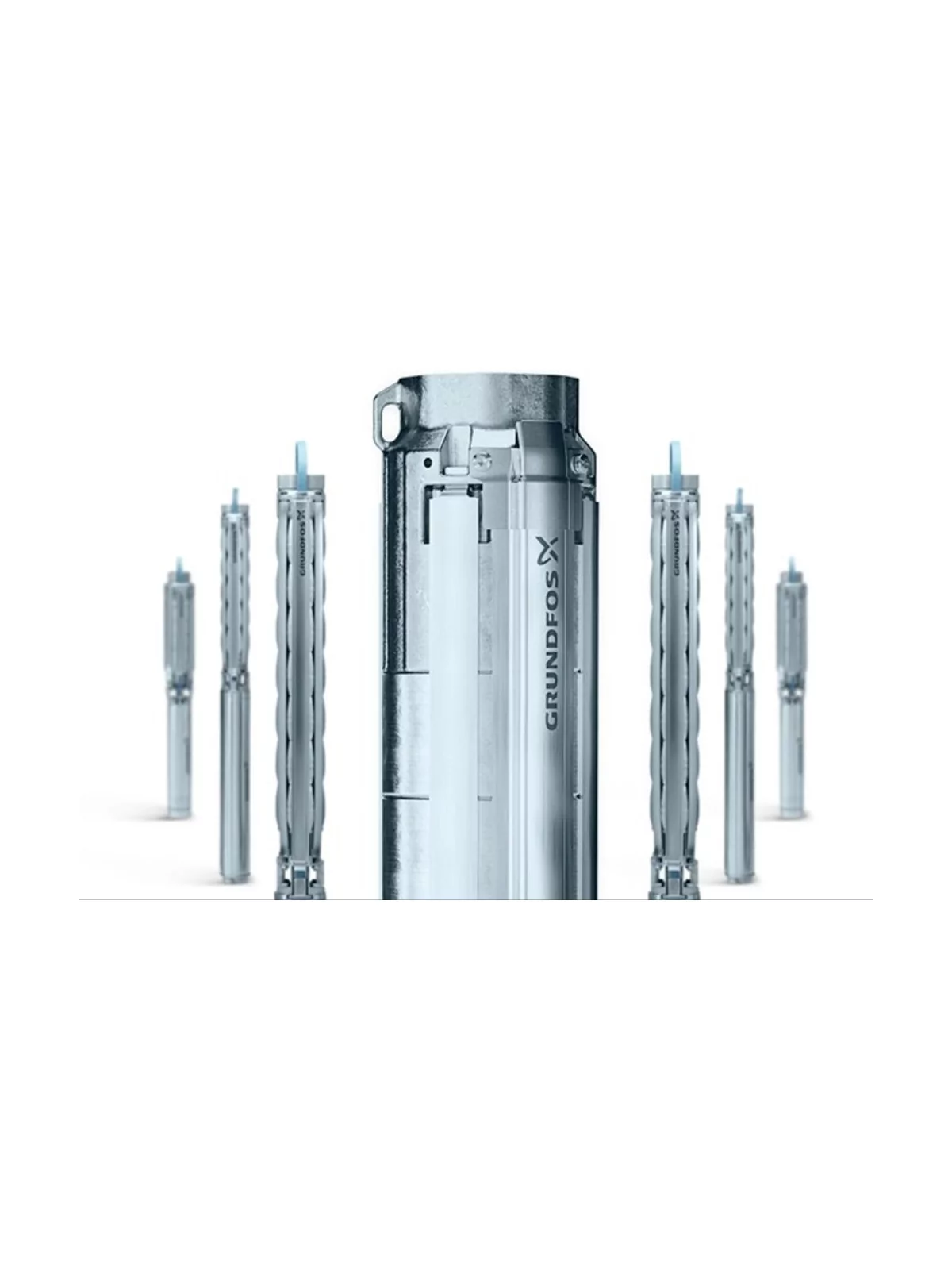

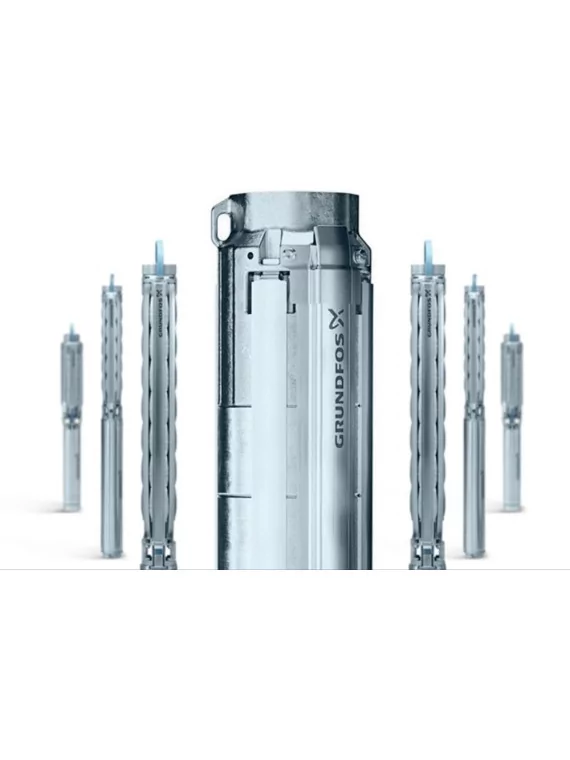

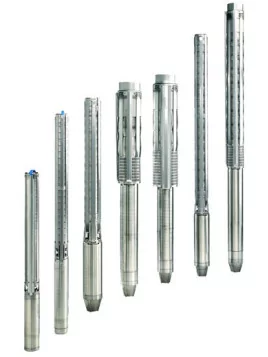

Grundfos SP

" Reliable and robust, a pump for multiple applications "

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.









The pumps are suitable for:

  • Groundwater supply to waterworks

  • Irrigation in horticulture and agriculture

  • Groundwater lowering

  • Pressure boosting

  • Industrial applications.





Features and benefits

  • State-of-the-art hydraulics provide high efficiency and low operating costs

  • 100 % stainless steel inside and outside

  • Sand resistant

  • Resistant to aggressive water

  • Motor burnout protection

  • Dry-running protection

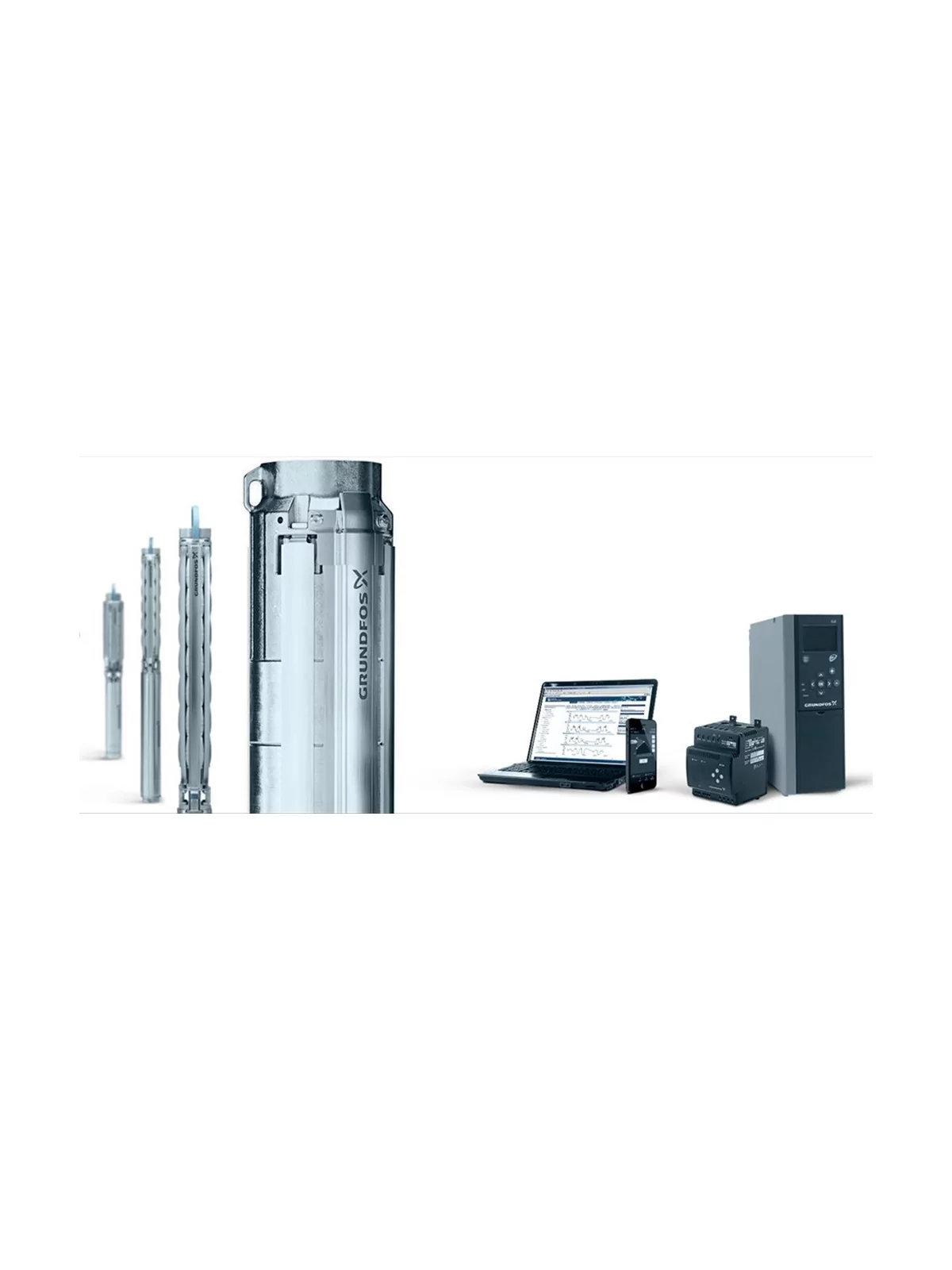

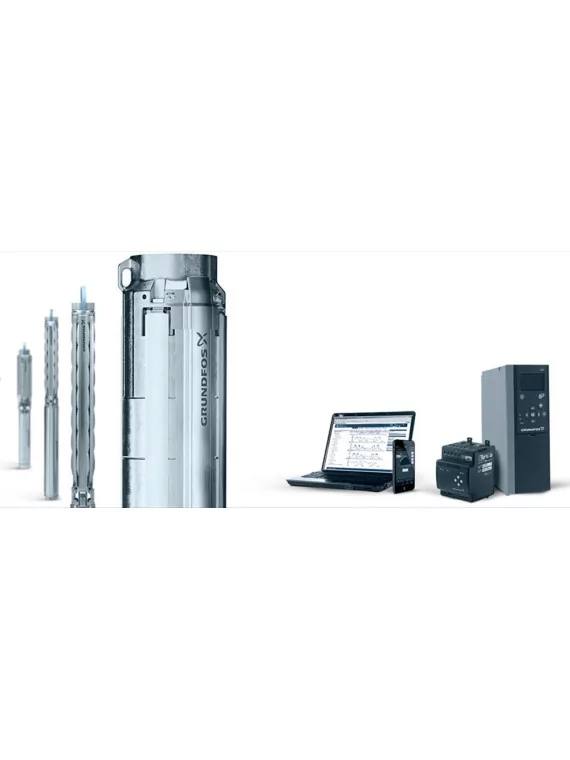

  • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control.









In short :

  • High efficiency

  • Corrosion-resistant

  • Complete range of pumps and motors SP System


Pump SP 2ASP 2A-6SP 2A-9SP 2A-13SP 2A-18SP 2A-23SP 2A-28SP 2A-33SP 2A-40SP 2A-48
Liquid temperature+40 °C max
Protection classIP 68
MEI≥ 0,7
MaterialStainless steel AISI 304
Stages2
Voltage3x 230V or 3x 400V
Pump diameter4"
ConnectionRp 1 1/4
Power (kW)0,370,370,550,751,11,51,52,22,2
In (A) 3x 400V1,41,42,22,33,43,44,25,55,5
Cable (m)1,7

Recommended Height and FlowSP 2A-6SP 2A-9SP 2A-13SP 2A-18SP 2A-23SP 2A-28SP 2A-33SP 2A-40SP 2A-48
Height max (m)35406085110130150190230
Height min (m)2035507090110130160190
Min flow (at the max. height recommended)1,6 m³/h
Max flow (at recommended height min)2,0 m³/h
Yield50%
