Tile roof mounting kit

Dhs792.02
Tax included
0803
0712971132665

Fastening kit for photovoltaic panels.
Suitable for all types of tiled roofs.

Choose number of panels and layout (portrait/landscape) in the options.

Suitable for tiles with a maximum overlap of 11 to 12cm.

This kit contains all you need to mount your photovoltaic panels on a tiled roof.
Simply select in the options the number of panels in portrait or landscape layout on your roof >> the contents of the fixing kit are automatically adapted.

Suitable for tiles with a maximum overlap of 11 to 12cm

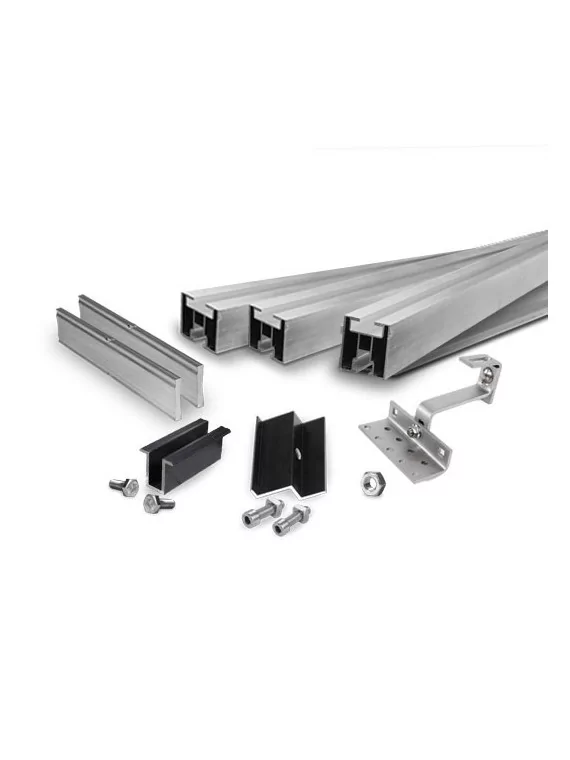

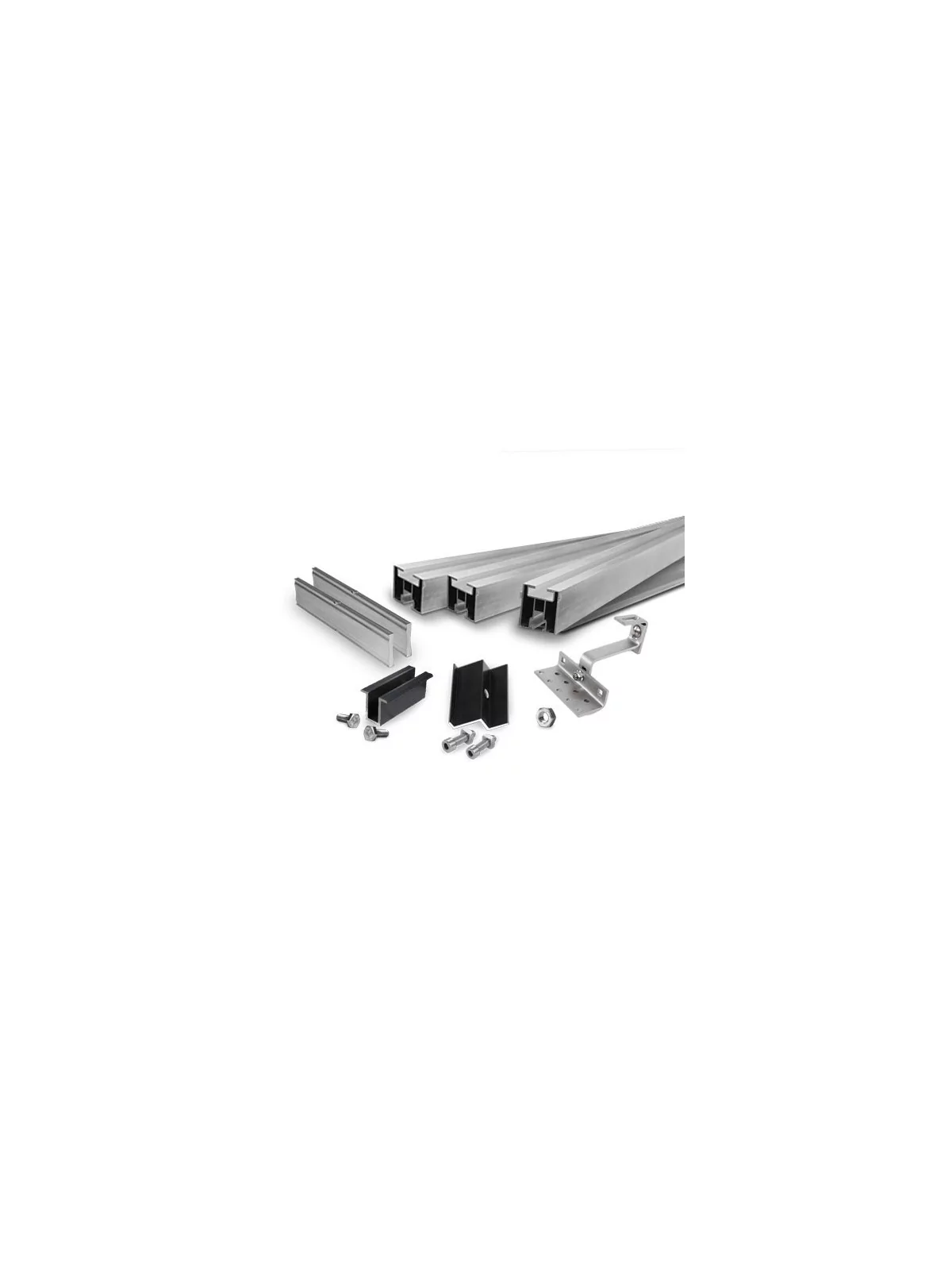

Fastening kit contents

Rail de fixation pour panneaux solaires

40x40 mm aluminum rail

Aluminum rail for mounting the solar panel. Custom rail available on request.

>> Find out more about 40x40 rail

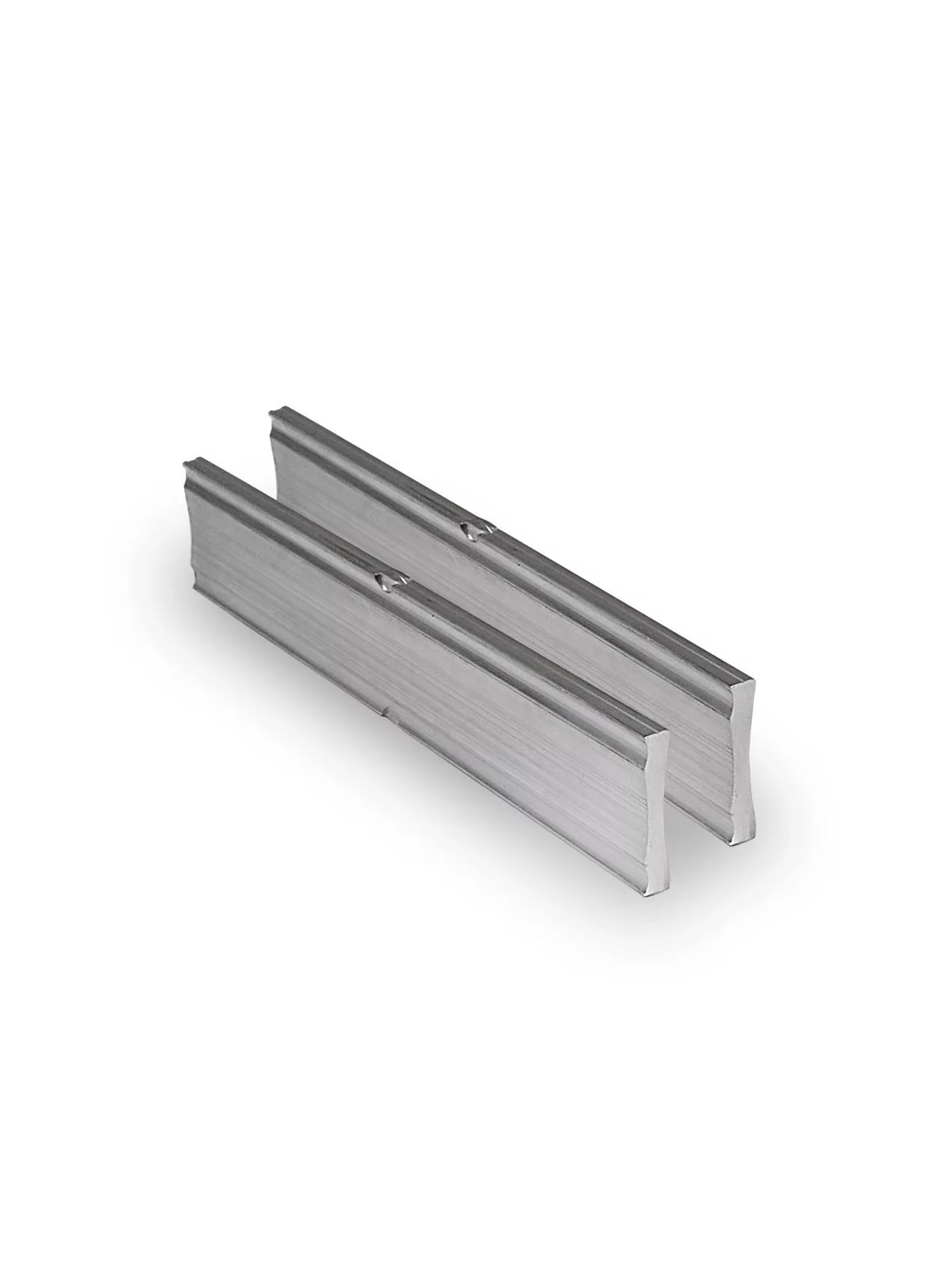

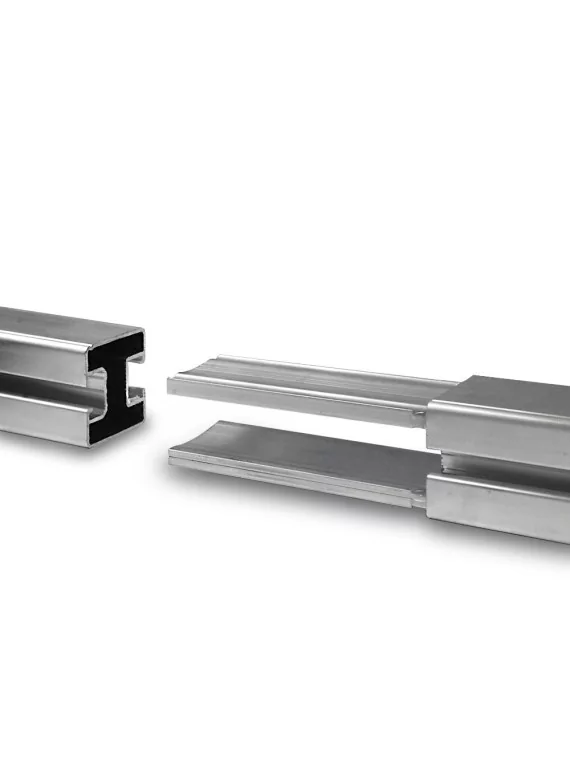

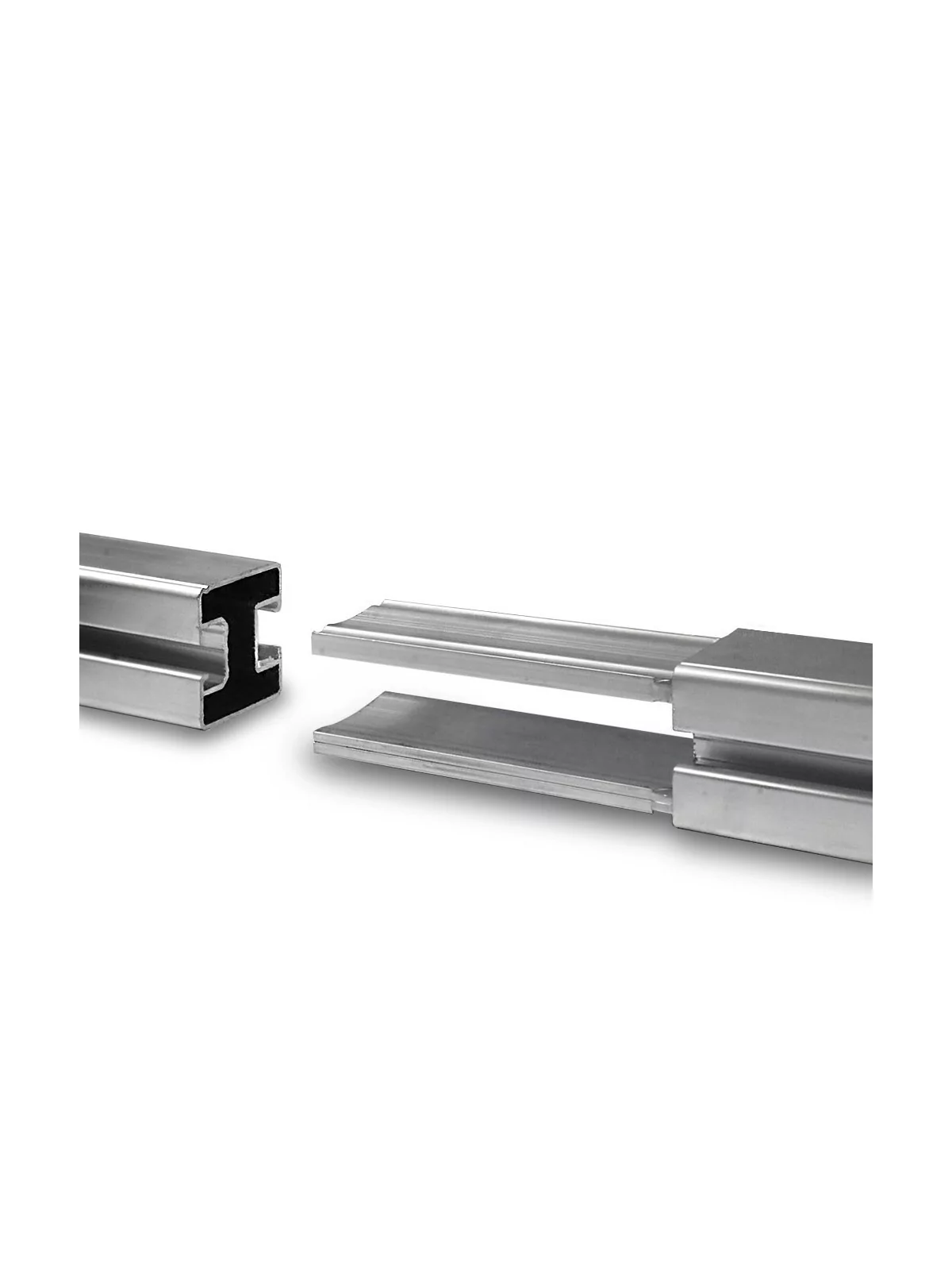

Jonction pour rails

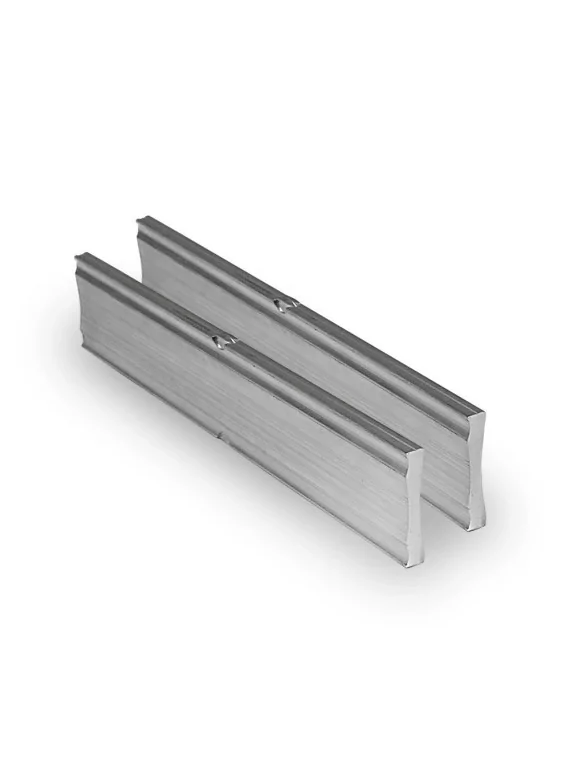

Rail connector - 2 fastening bars

These 2 bars are used to securely join 2 pieces of rail together without screws or tools! Simply insert the connecting bars into the two pieces of rail to be joined.

>> Find out more about the rail connector

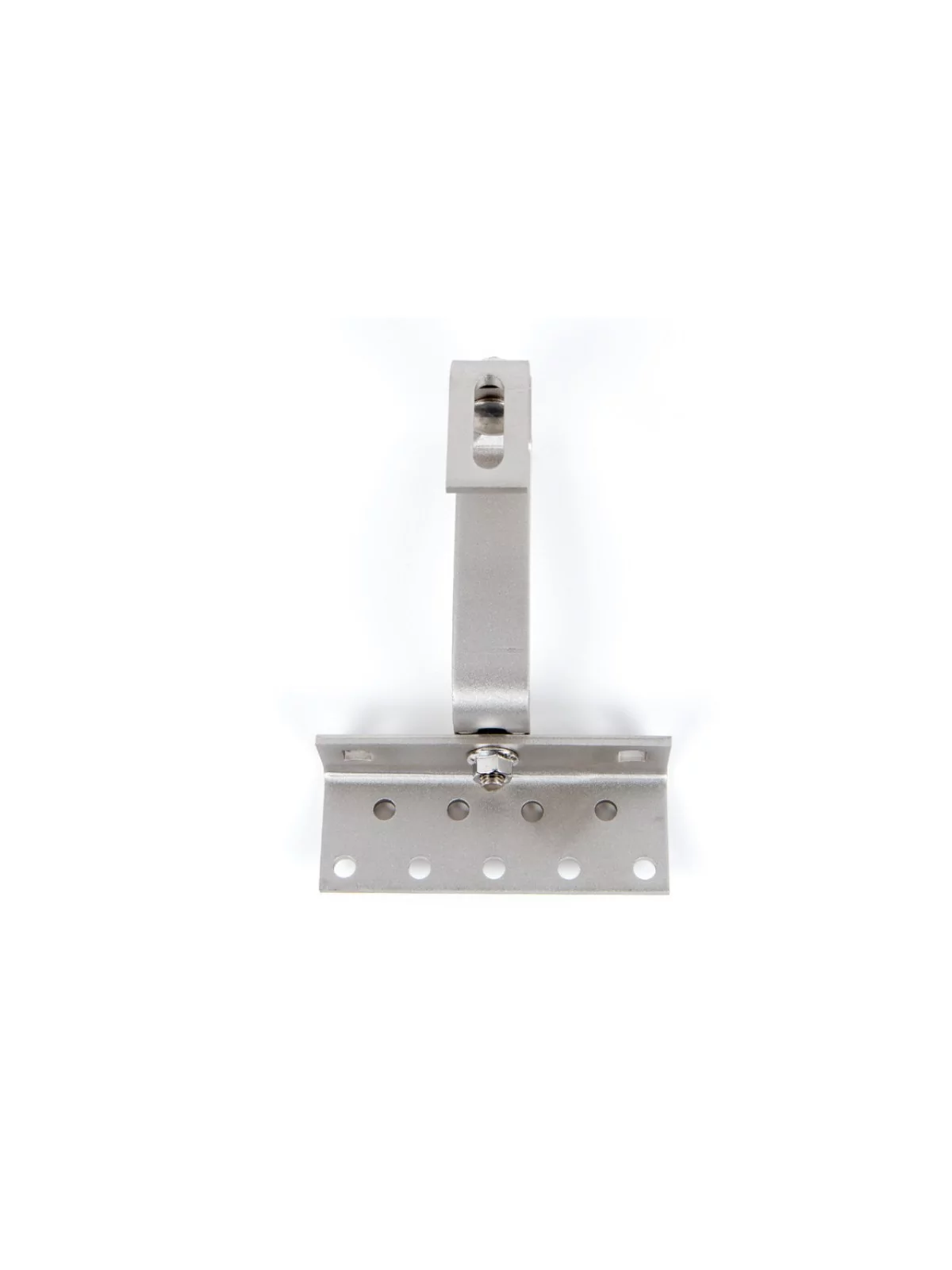

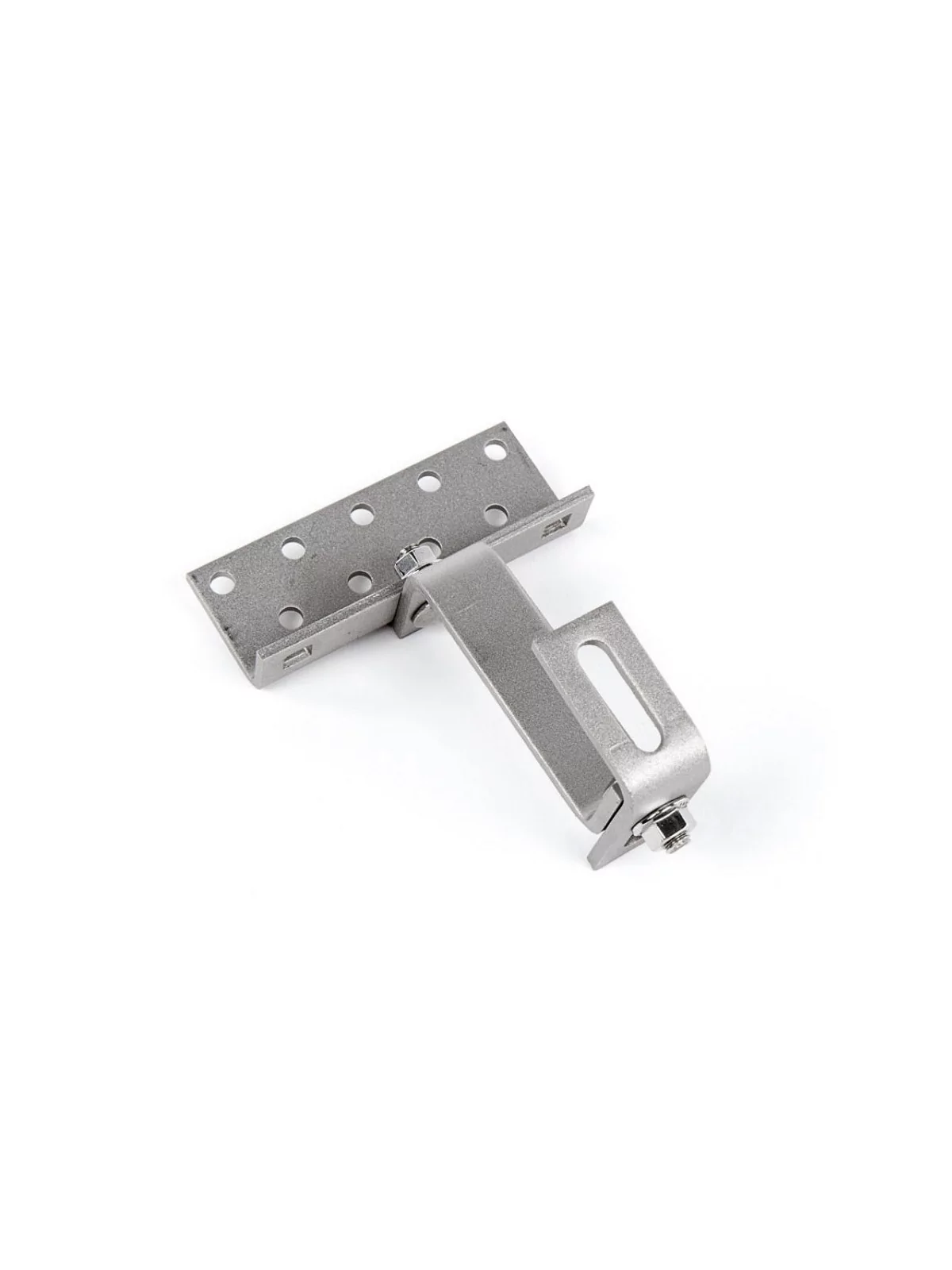

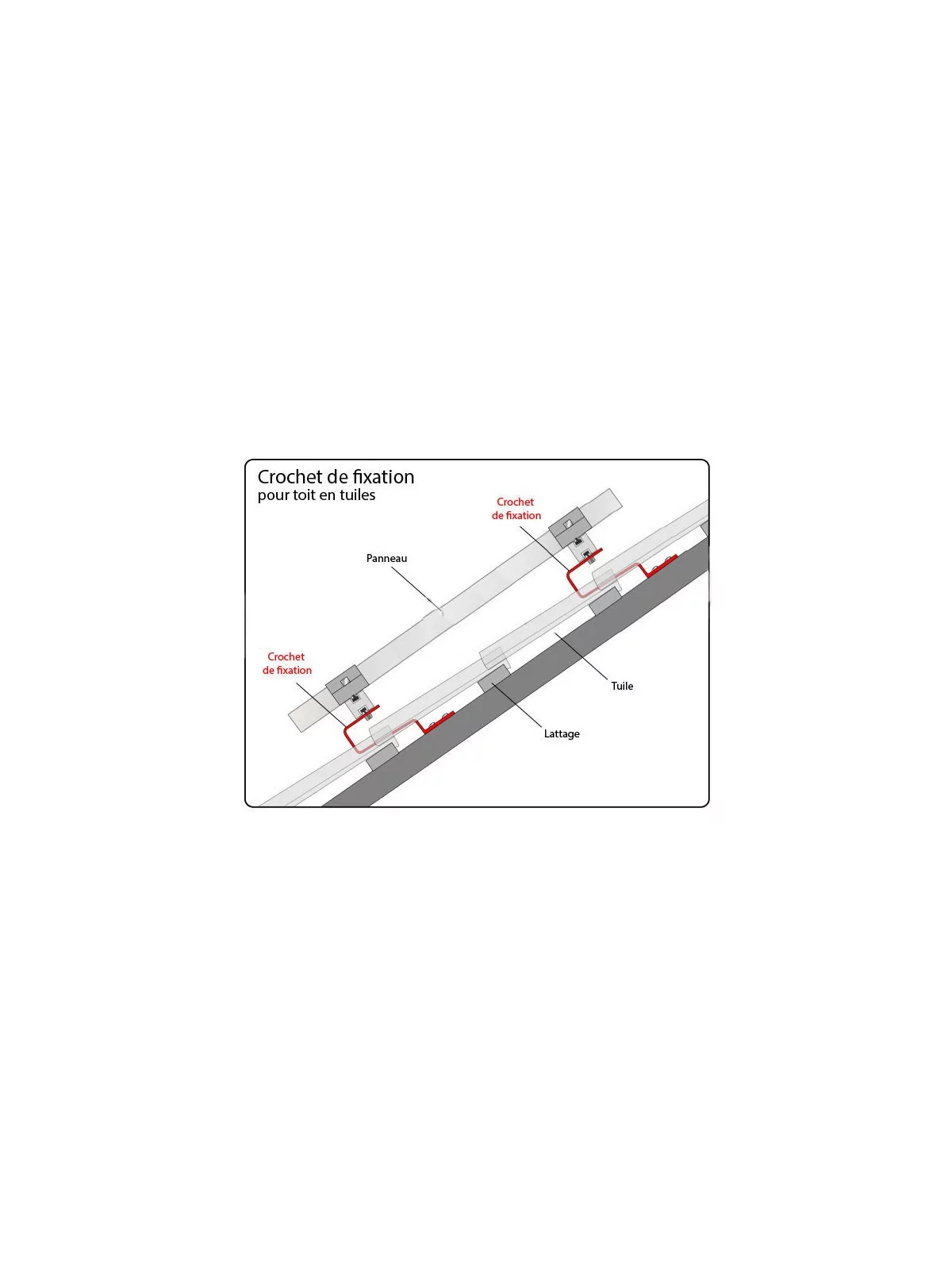

Crochet de fixation pour panneaux sur toit en tuile

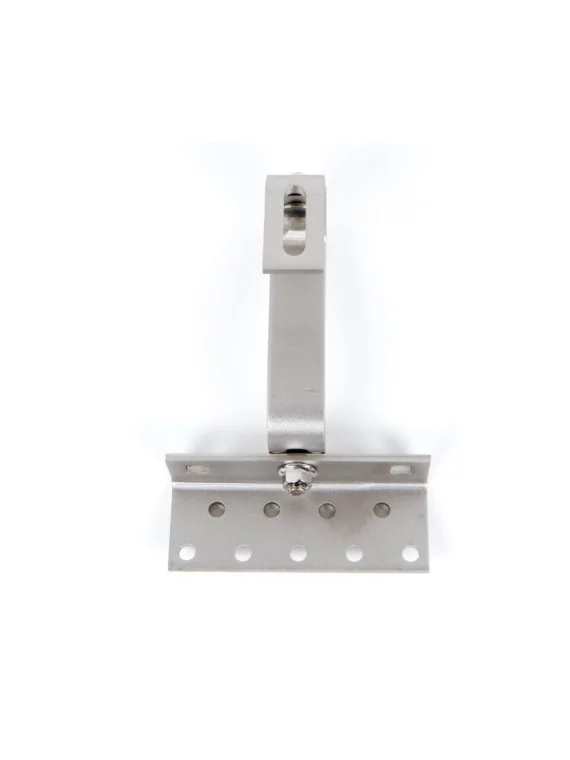

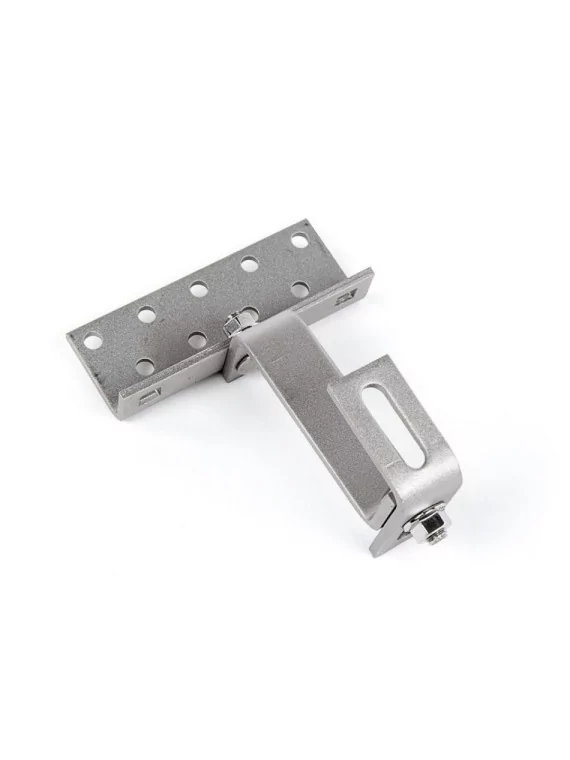

Double-adjustable fixing hook for tiled roofs

This hook is fastened to the roof to secure the aluminum rail that supports the solar panel.
The hook's double adjustment allows it to adapt to any lathing height, and can also recover any roof waves.

>> Find out more about the Double-adjustable hook for tiled roofs

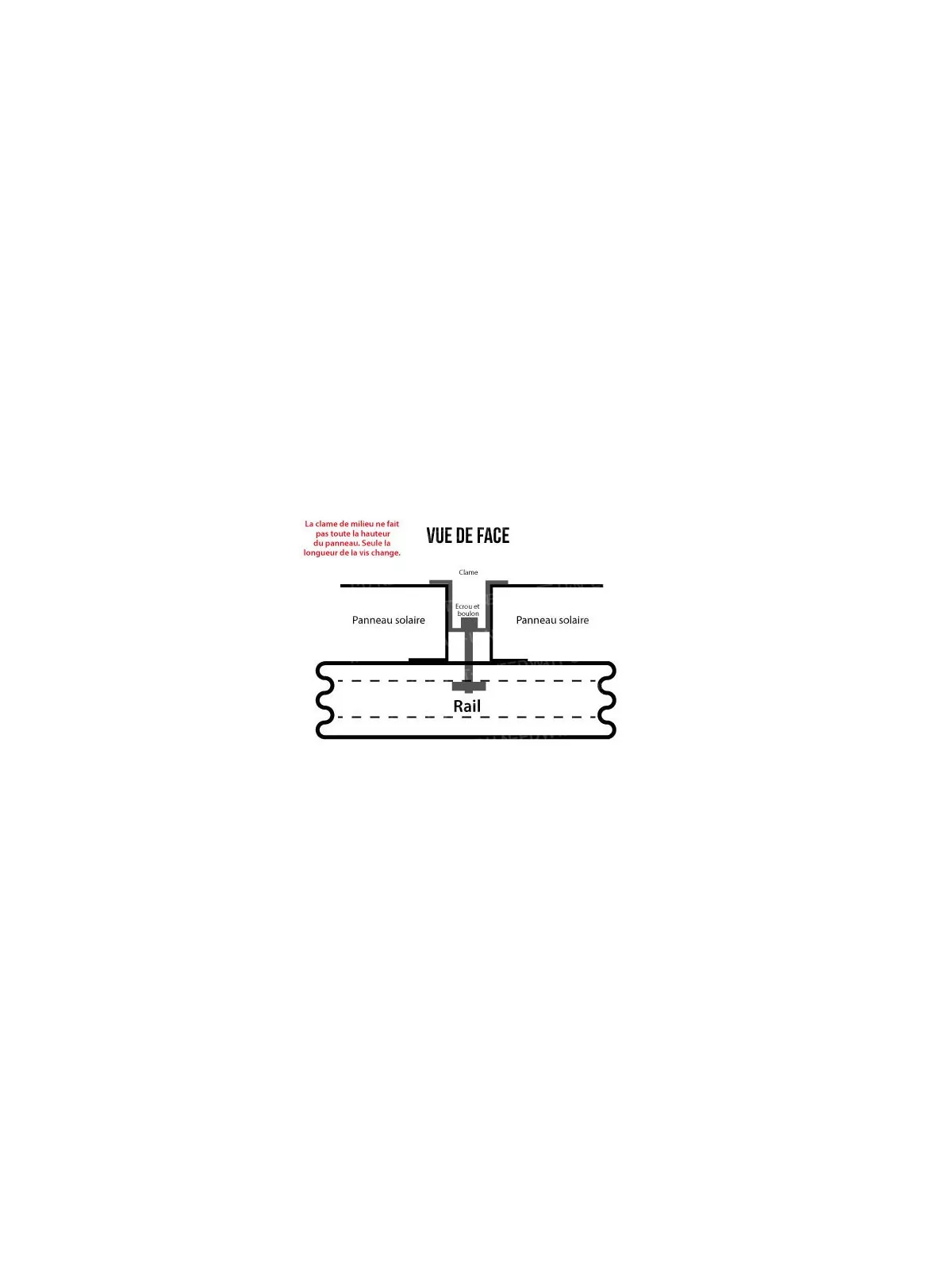

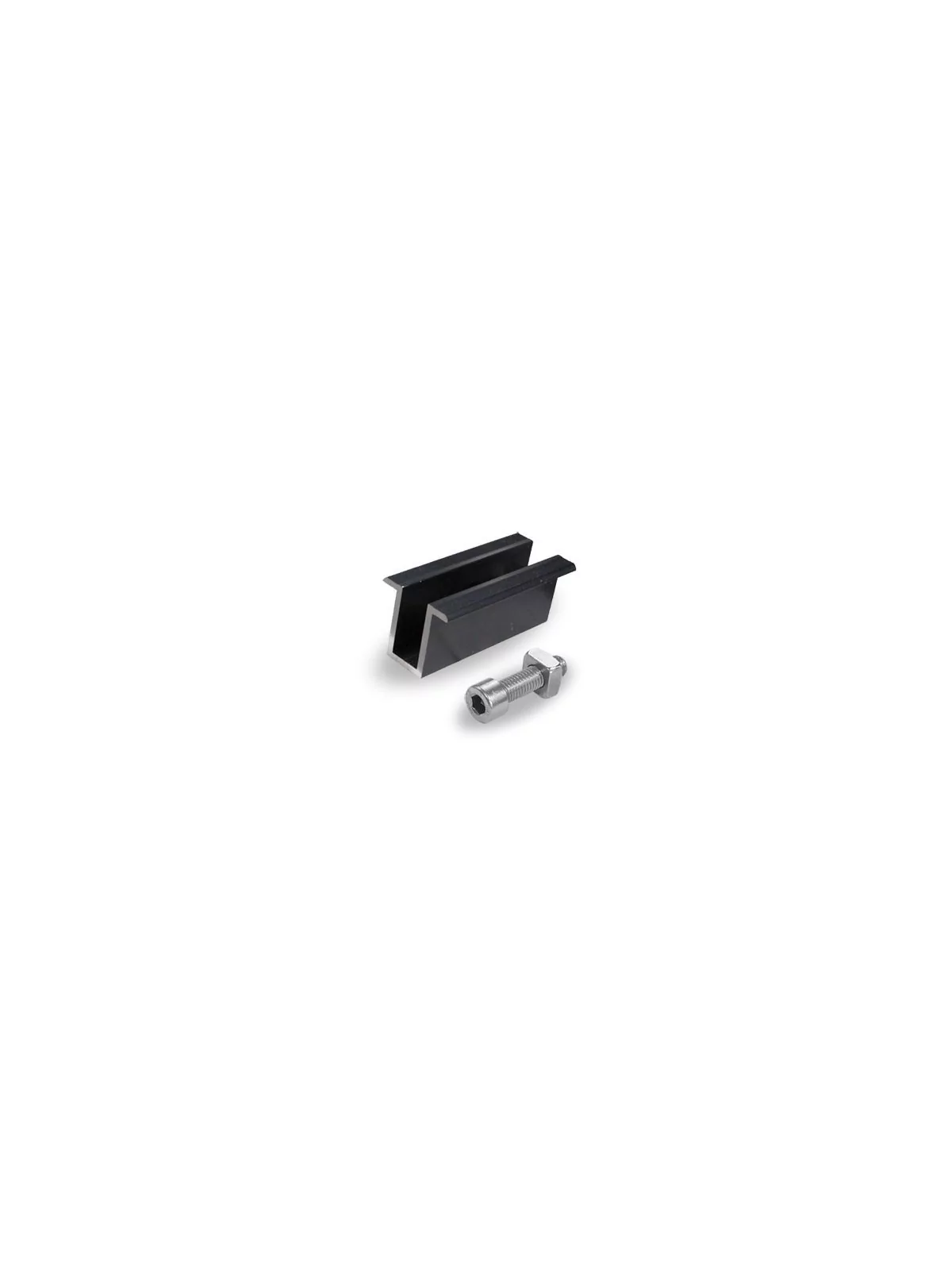

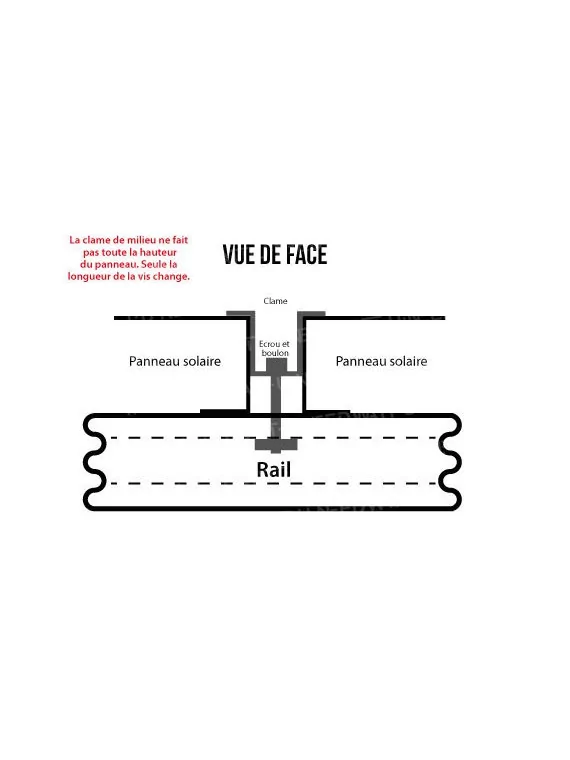

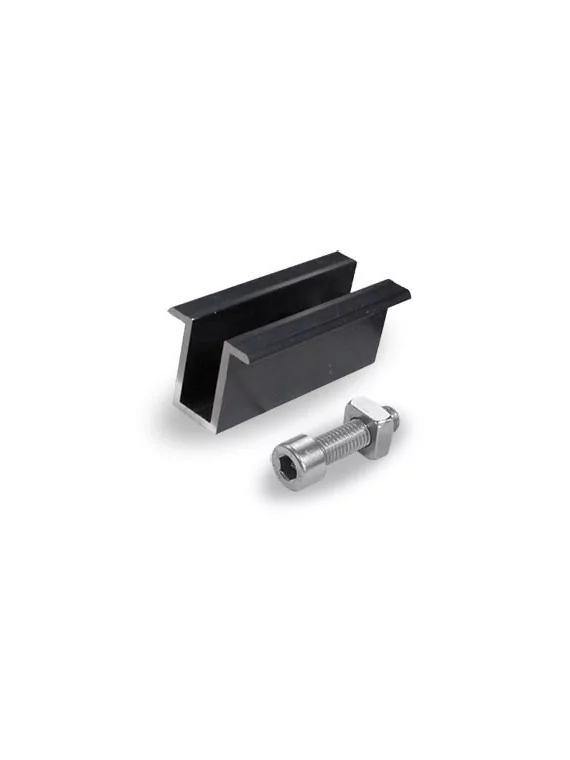

Clame de milieu pour panneaux sur toit en tuile

Clame de milieu - panel fastening

Clam for internal mounting of photovoltaic panels. Height adjustable to suit solar panel frame height: 35 - 50mm. Fixes to aluminum rail with stainless steel bolt and nut (supplied).

Option: Height to be chosen according to panel frame height.

>> Find out more about the middle clamp

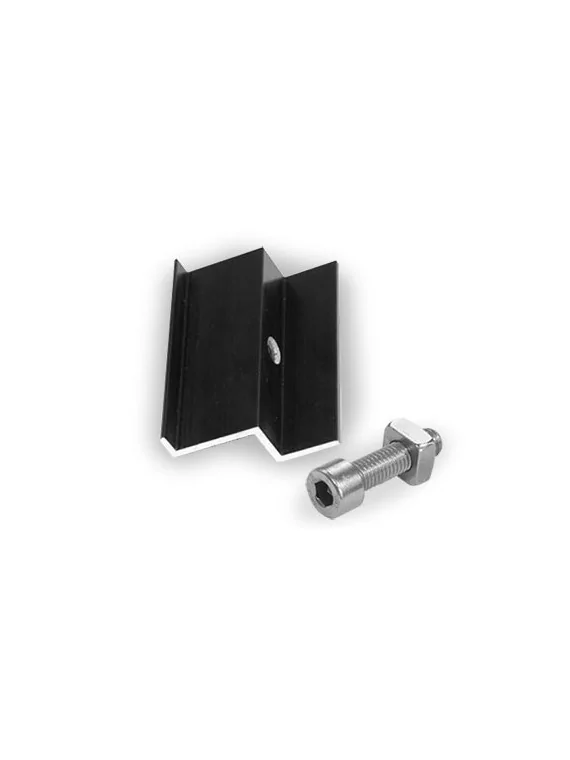

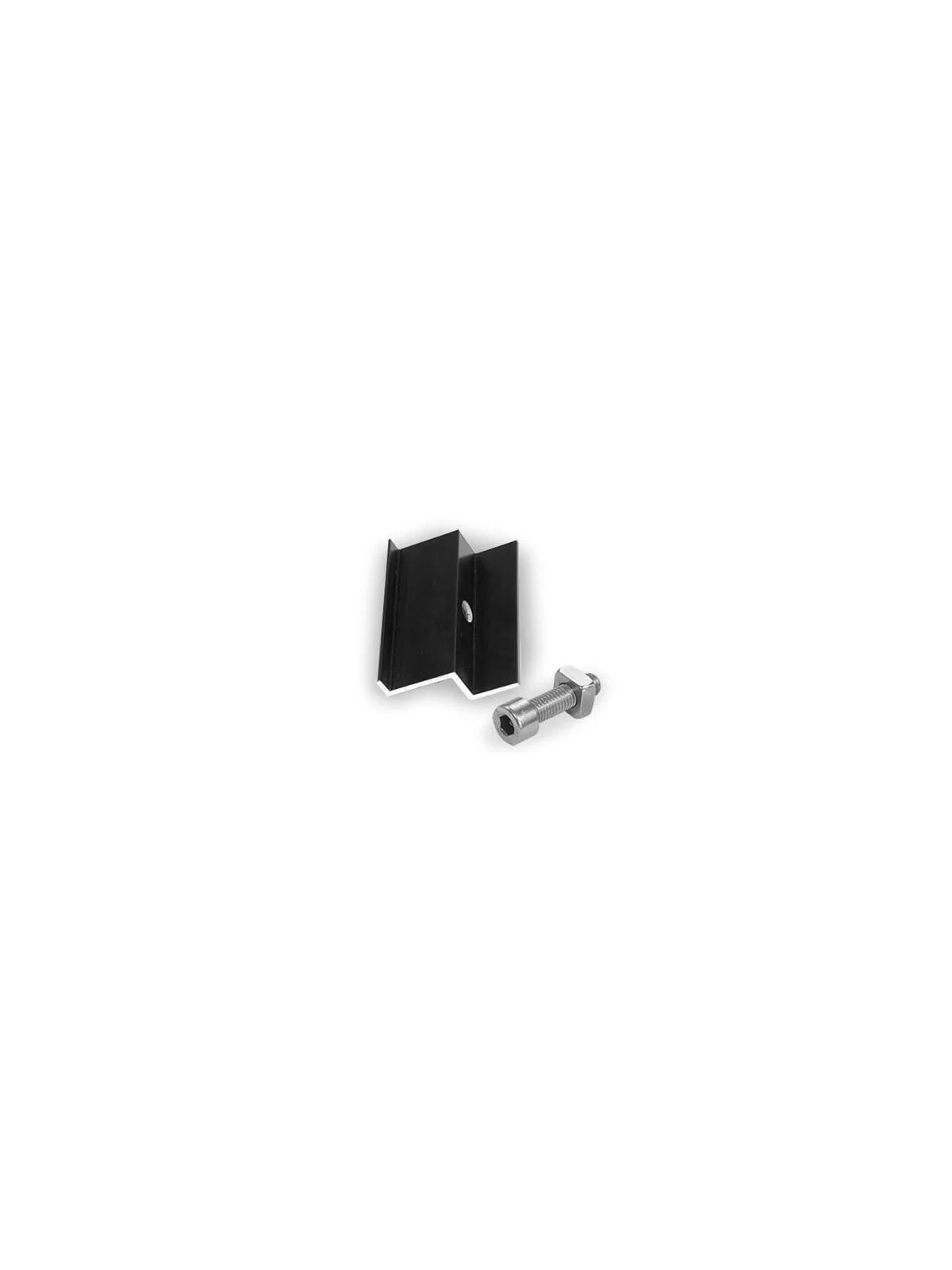

Clame de fin pour panneaux sur toit en tuile

Clame de fin - panel fastening

Clame for external panel fixing. Available heights: 35mm - 40mm - 45mm - 47mm - 50mm. Fixes to aluminum rail with bolt and nut (supplied).

>> Find out more about the end clam

schéma montage de panneaux solairesHow do I choose the right kit for my panels?

The fixing kit is suitable for all tiled roofs. Thanks to its options, it can be adapted to the layout of your panels.

Fasteners are compatible with standard panel sizes.

1. Select number of panels in portrait or landscape

Select the number of panels per row in portrait or landscape format.

For example, the layout shown opposite requires 3x the Fixing Kit product:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 landscape panels
> 3rd kit for row 3: 2 landscape panels

2. Select the right clame for your panel

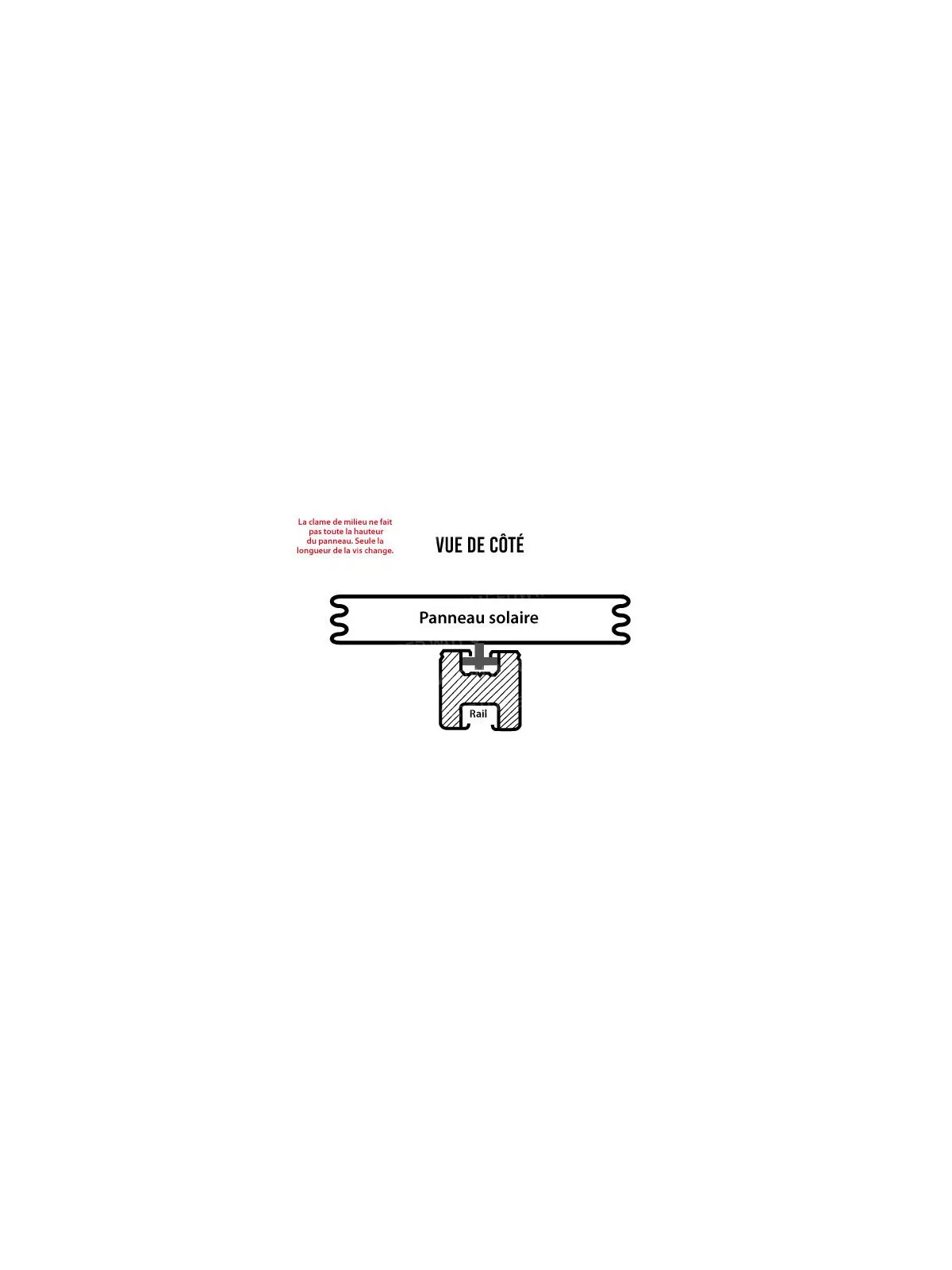

The clamp is used to secure the panel to the aluminum rail. Its height must correspond to the thickness of your panel's frame, so that it can be securely fastened to the rail.

Available panel heights: 35 - 40 - 45 - 47 - 50 mm

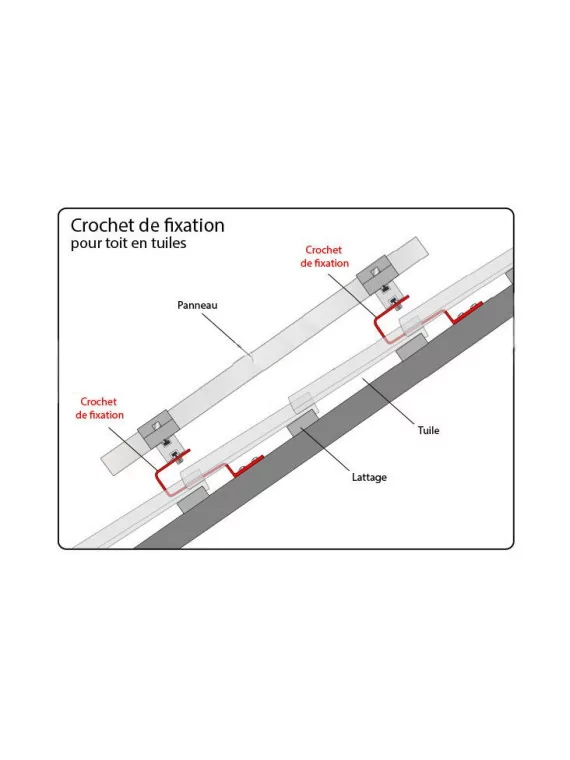

Installation diagram for solar panel mounting brackets

Schéma de montage sur toit tuiles

Details of materials supplied according to panel quantity

Portrait panels
Number of panels Rail (m) Rail detail* Junction Double adjustment hook Middle clamp End clamp
1 panel 2,4 (2 x 1,20m) 0 4 0 4
2 panels 4,8 (2 x 2,40m) 0 6 2 4
3 panels 7,2 (4 x 1,80m) 2 8 4 4
4 panels 9,6 (4 x 2,40m) 2 10 6 4
5 panels 12 (4 x 2,40m et 2 x 1,20m) 4 12 8 4
6 panels 14,4 (6 x 2,40m) 4 14 10 4
7 panels 16,8 (6 x 2,40m et 2 x 1,20m) 6 16 12 4
8 panels 19,2 (8 x 2,40m) 6 18 14 4
9 panels 21,6 (8 x 2,40m et 2 x 1,20m) 8 20 16 4
10 panels 24 (10 x 2,40m) 8 22 18 4
11 panels 26,4 (10 x 2,40m et 2 x 1,20m) 10 24 20 4
12 panels 28,8 (12 x 2,40m) 10 26 22 4
13 panels 31,2 (12 x 2,40m et 2 x 1,20m) 12 28 24 4
14 panels 33,6 (14 x 2,40m) 12 30 26 4
15 panels 36 (14 x 2,40m et 2 x 1,20m) 14 32 28 4
16 panels 38,4 (16 x 2,40m) 14 34 30 4
17 panels 40,8 (16 x 2,40m et 2 x 1,20m) 16 36 32 4
18 panels 43,2 (18 x 2,40m) 16 38 34 4
19 panels 45,6 (18 x 2,40m et 2 x 1,20m) 18 40 36 4
20 panels 48 (20 x 2,40 m) 18 42 38 4



Landscape panels
Number of panels Rail (m) Rail detail* Junction Double adjustment hook Middle clamp End clamp
1 panel 3,6 (2 x 1,80m) 0 4 0 4
2 panels 7,2 (4 x 1,80m) 2 6 2 4
3 panels 10,8 (6 x 1,80m) 4 10 4 4
4 panels 14,4 (8 x 1,80m) 6 12 6 4
5 panels 18 (10 x 1,80m) 8 16 8 4
6 panels 21,6 (12 x 1,80m) 10 18 10 4
7 panels 25,2 (14 x 1,80m) 12 22 12 4
8 panels 28,8 (16 x 1,80m) 14 24 14 4
9 panels 32,4 (18 x 1,80m) 16 28 16 4
10 panels 36 (20 x 1,80m) 18 30 18 4
11 panels 39,6 (22 x 1,80m) 20 34 20 4
12 panels 43,2 (24 x 1,80m) 22 36 22 4
13 panels 46,8 (26 x 1,80m) 24 40 24 4
14 panels 50,4 (28 x 1,80m) 26 42 26 4
15 panels 54 (30 x 1,80m) 28 46 28 4
16 panels 57,6 (32 x 1,80m) 30 48 30 4
17 panels 61,2 (34 x 1,80m) 32 52 32 4
18 panels 64,8 (36 x 1,80m) 34 54 34 4
19 panels 68,4 (38 x 1,80m) 36 58 36 4
20 panels 72 (40 x 1,80m) 38 60 38 4



* The details of the rails are given as an indication and depend on the size of the panels (which varies the lengths of the rails).


0803

Data sheet

Mounting
Toit en tuile

Specific References

UPC
712971132665
EAN13
0712971132665
New

Installation guide Tile roof photovoltaic mounting kit

Step-by-step instructions for installation on tiled roofs

? Before you start

This guide takes you through the complete installation of your photovoltaic tile roof mounting kit. Follow each step methodically to ensure a safe, long-lasting installation.

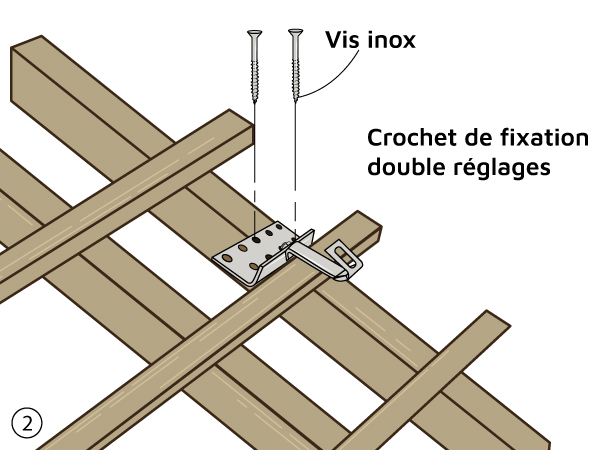

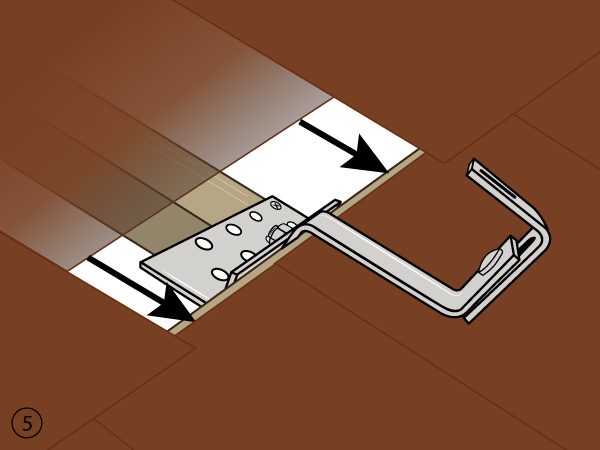

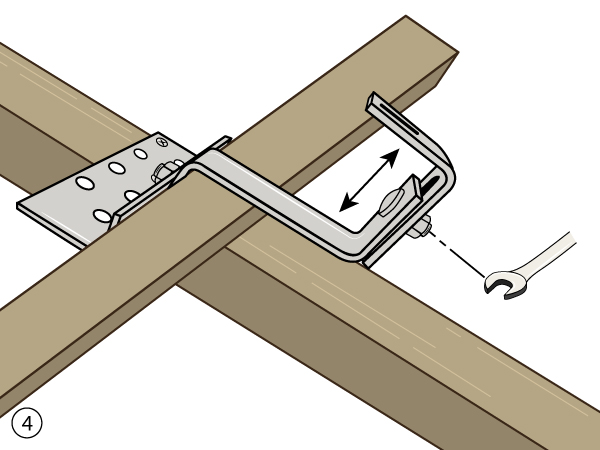

1 INSTALLING TILE HOOKS

? Hardware

Double-adjustable tile hooks, stainless steel screws, drill, wood bit

? Installation

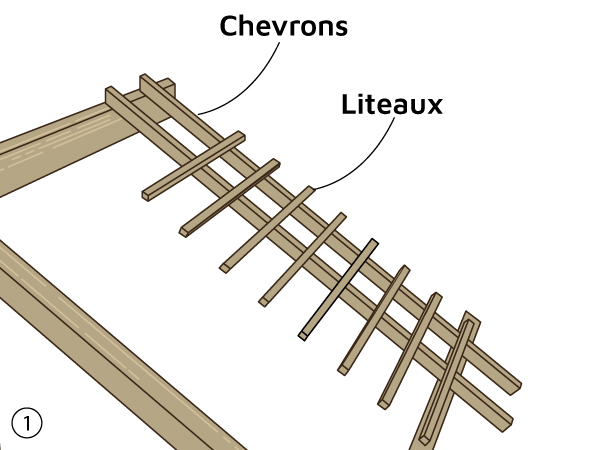

1. Marking: precisely identify rafters for secure fixing
2. Positioning: Place the hook in the hollow of a tile.
3. Fixing: Use only stainless steel screws
4. Adjustment: Adjust height with vertical adjustment system
5. Finishing: Carefully replace top tile

⭐ Tile system benefits

  • Watertightness: Maintains the integrity of the roof
  • Strength: Attaches directly to the rafters
  • Adjustment: Double-adjustment system for perfect fit

✅ Controls

Solid fixing Stainless steel screws used Height adjusted Tile replaced
Rail 40x40Repérage chevronsRail 40x40Rail 40x40Rail 40x40

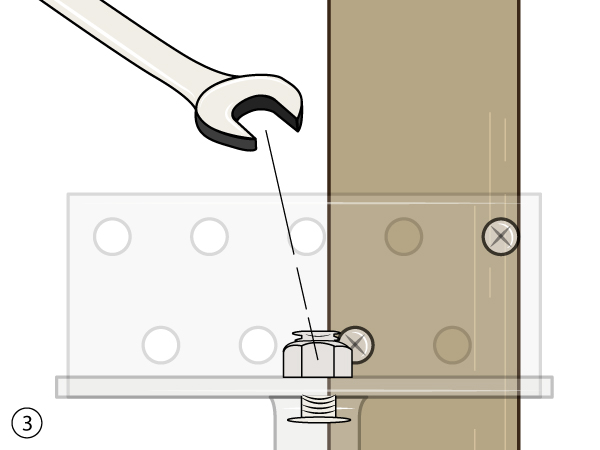

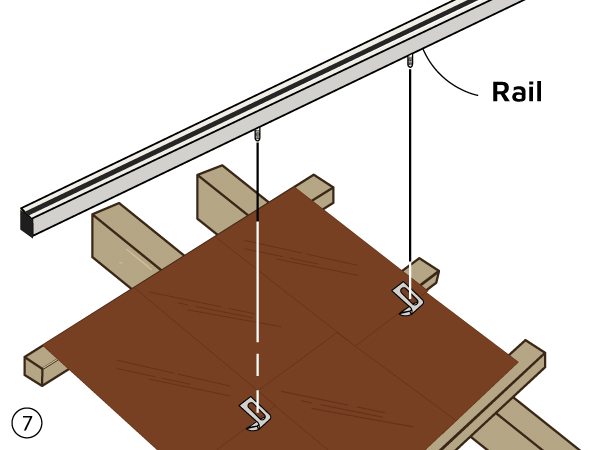

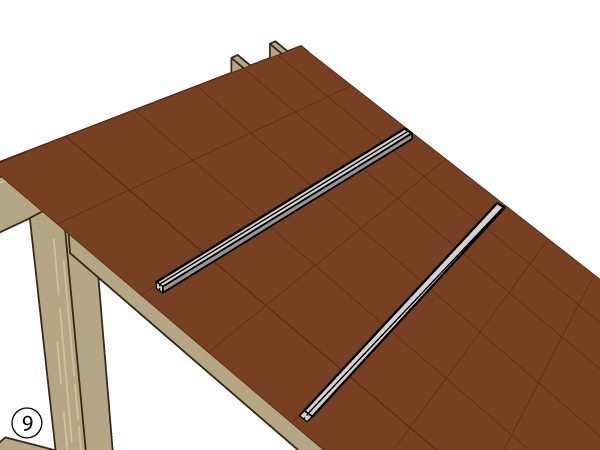

2 ALUMINUM RAIL INSTALLATION

? Hardware

40x40 aluminum rails, M10 bolts, nuts, wrench

? Installation

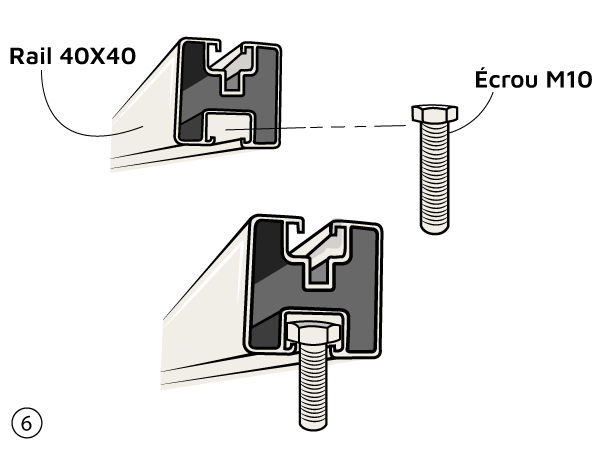

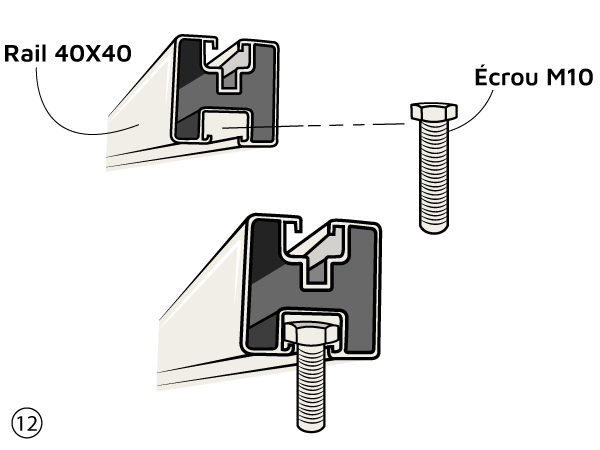

1. Insertion: Slide an M10 bolt into the square rail guide.
2. Positioning: Insert the bolt into the oblong hole of the hook.
3. Alignment: Check for perfect alignment before final tightening.
4. Adjustment: Align parallel to the roof

⭐ Advantages aluminum rails

  • Lightweight: Strong, lightweight aluminum material
  • Precision: Square slide for exact positioning
  • Durability: Optimal weather resistance

✅ Controls

Rails aligned Bolts tightened Roof parallelism Solid fastening
Rail 40x40Rail 40x40Rail 40x40Rail 40x40

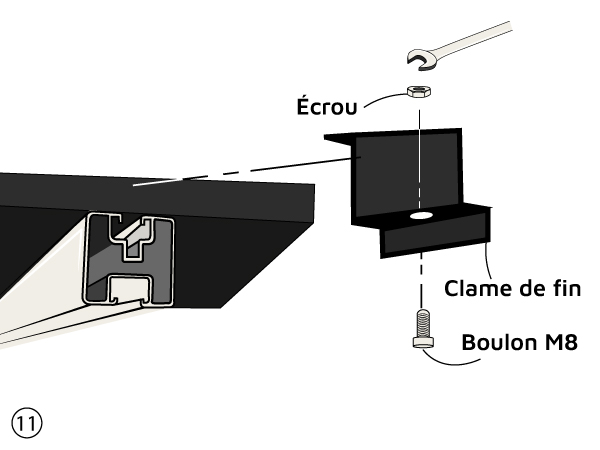

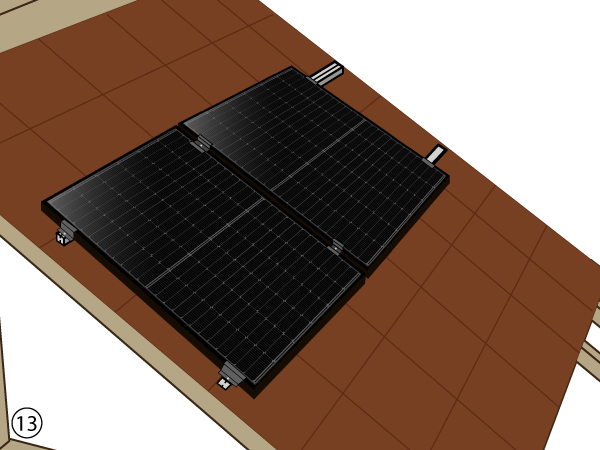

3 FASTENING CLAMPS AND PANELS

? Hardware

End clamps (4), middle clamps (depending on config.), M8 bolts

⚙️ Cam configuration

1 panel: 4 end slats at 4 corners
Several panels: 4 end clamps + middle clamps between panels

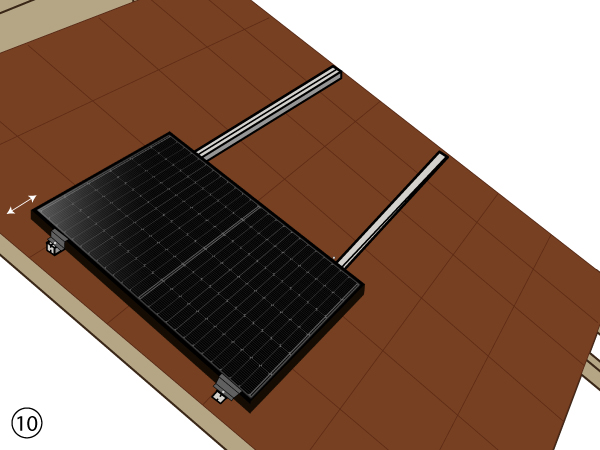

? Installation

1. Positioning: Start at an outer edge with 1 cm margin.
2. Clamps: Attach two outer clamps to the ends
3. Checking: Check parallelism with ridge cap
4. Joining: Use middle clamps to join the panels.

⭐ Advantages

  • Safety: Firm hold, weather resistance
  • Flexibility: Modular system, can be dismantled
  • Precision: Exact positioning, perfect alignment

✅ Controls

Well-positioned slats Margin respected Ridge parallelism Stable installation
Rail 40x40Rail 40x40Rail 40x40Installation finale

? Installation complete!

Your photovoltaic system on a tiled roof is now ready. Please make a final check of all fastenings and panel alignment before commissioning.

⚠️ For your own safety, have your system checked by a qualified professional.

2025 WattUNeed - Photovoltaic Installation Guide
