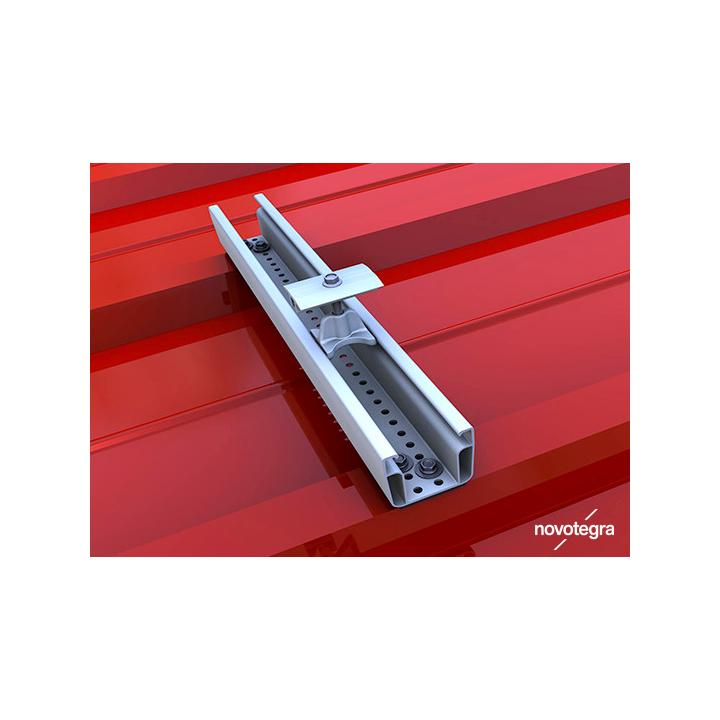

Trapezoidal steel roof fixing light + NVT middle clamp
Specially designed to ensure a solid and durable fixing to steel roofing.
Product details
Steel roof mounting kit
€52.51
Tax included
0807
0712971129481
Fixing kit for steel roofing – Novotegra
Optimise the installation of your solar panels with this high-performance mounting kit for steel roofing. Designed for quick and efficient installation, it also ensures electrical conductivity between the mounting system and the roof, guaranteeing safety and durability.
- Quick and reliable installation
- Compatible with landscape and portrait orientation for maximum flexibility
- Number of panels configurable according to your needs
- Premium quality materials for optimal longevity
Ideal for any industrial or residential roofing project, this kit combines performance, safety and ease of installation.
✅
Compatibilités vérifiées
▼
Compatible avec :
AIKO NEOSTAR 2S MONO GLASS-GEN2 460Wp
€108.35
Voir le produit →
AIKO NEOSTAR 3S+ DUAL GLASS-GEN3 470Wp
€120.00
Voir le produit →
Leapton N-Type 450Wp TOPCon bifacial
€84.95
Voir le produit →
Leapton N-Type 500Wp TOPCon bifacial
€109.50
Voir le produit →
Luxen LUXNERI Series N5 N-Type 500Wc bifacial...
€96.80
Voir le produit →
Palette 37X AIKO NEOSTAR 2S MONO GLASS-GEN2 460Wp
€3,892.90
Voir le produit →
Affichage de 6 sur 10 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
Contents of the solar panel mounting kit – Steel roof
The number of components in the kit varies depending on the number of panels.

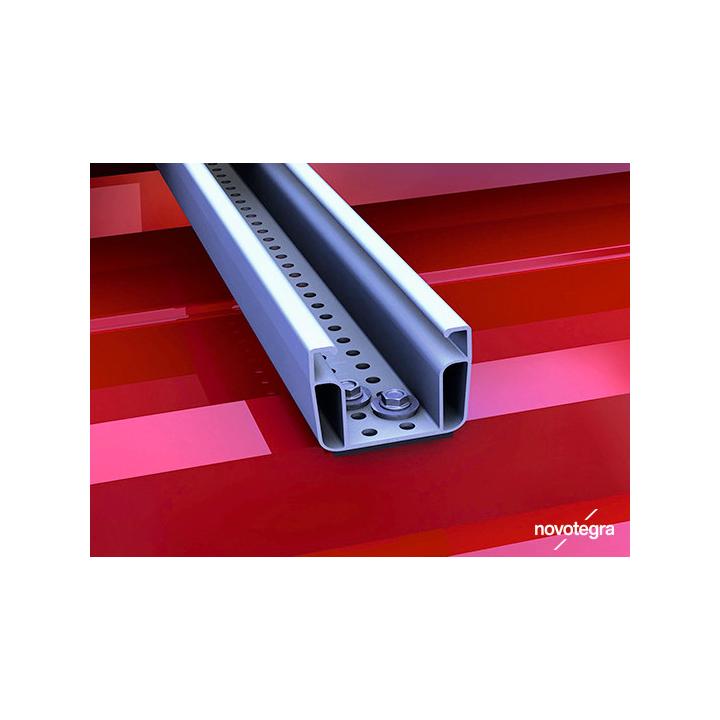

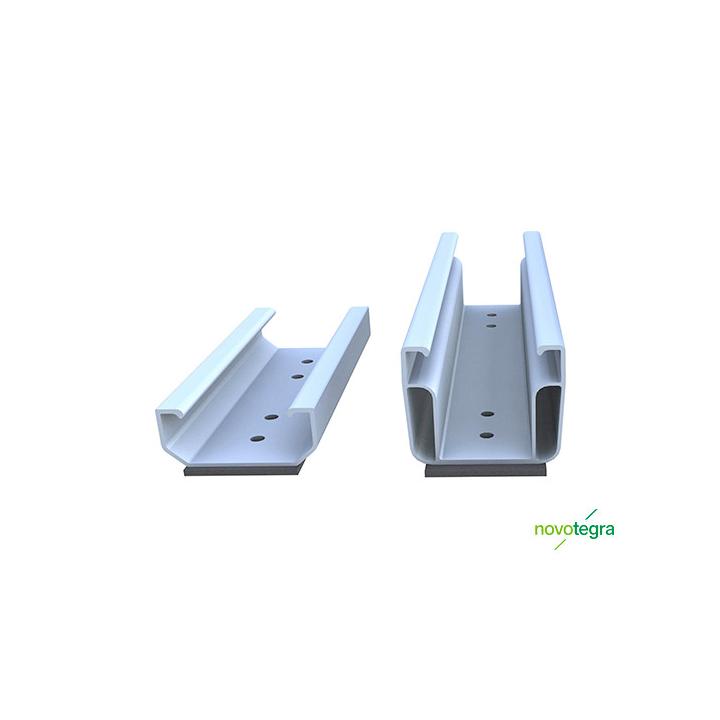

Light trapezoidal steel sheet fixing + end clamp NVT
Designed to ensure quick, secure and durable installation of your steel roofing panels.
Product details

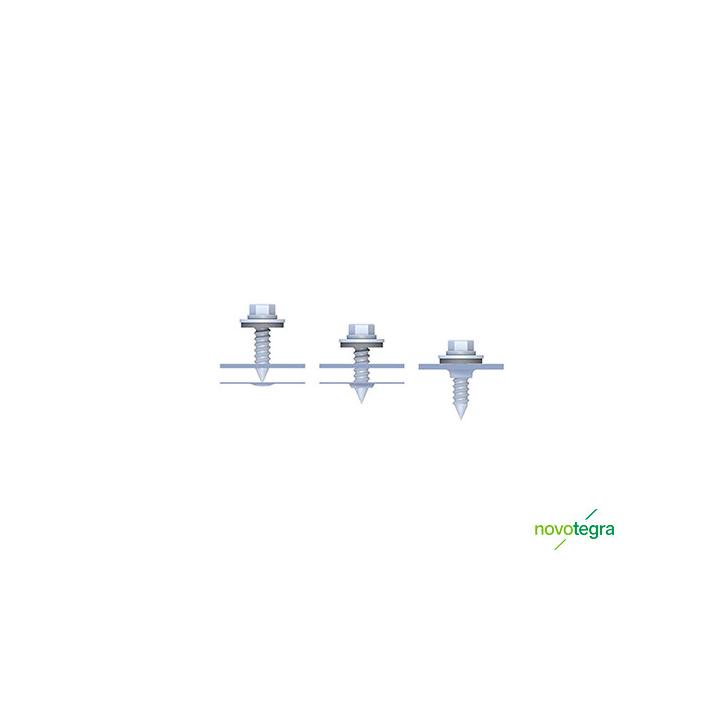

RP-T2 self-drilling screw
Robust screws designed to securely fasten solar kits to steel roofing, ensuring quick and durable installation.
Product details
Rayvolt grounding clips
Ensure electrical continuity and grounding.
Product detailsAdvantages of the fastening system:
Minimalist, fully pre-assembled components for quick installation. Economical materials and ultra-simple handling. High-performance direct fastening thanks to certified thin sheet metal screws, with no chips to remove. Quick assembly with very few tools.

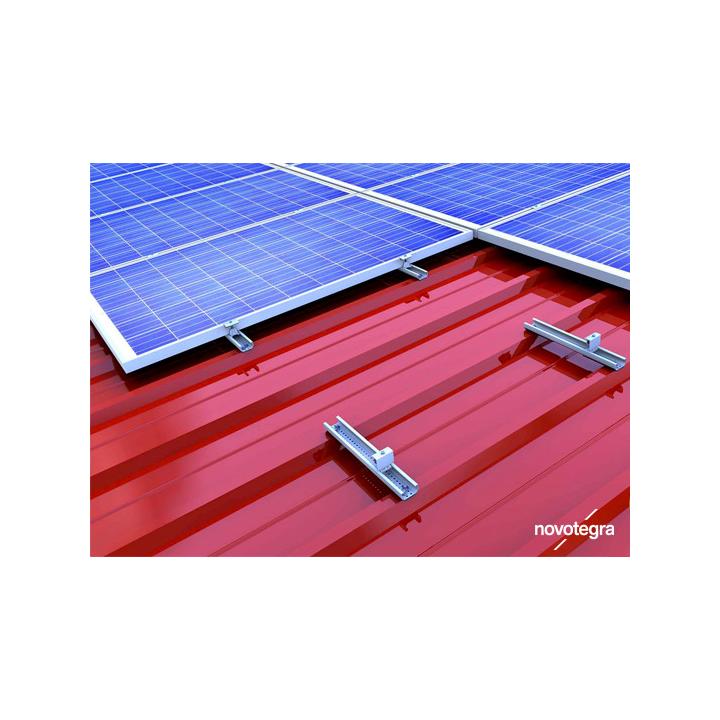

Installation of the solar panel fixing kit on a steel roof
- Prepare tools and materials — drill, screws, rails and specific steel roofing fasteners.
- Positioning of fasteners — marking of top/bottom points to ensure panel alignment.
- Fixing the rails to the corrugations of the steel roofing for maximum hold.
- Installing the solar panels on the rails, adjusting and tightening.
- Safety tips — wear gloves and safety glasses, and work in pairs.
This tutorial guides you step by step through the clean and safe installation of your solar kit on a steel roofing panel.
Details of the equipment supplied depending on the number of panels
| Number of panels | Rail with centre clamp | Rail with end clamp | Self-tapping screws | Rayvolt |
|---|---|---|---|---|
| 1 panel | 0 | 4 | 16 | 1 |
| 2 panels | 2 | 4 | 24 | 2 |
| 3 panels | 4 | 4 | 32 | 3 |
| 4 panels | 6 | 4 | 40 | 4 |
| 5 panels | 8 | 4 | 48 | 5 |
| 6 panels | 10 | 4 | 56 | 6 |
| 7 panels | 12 | 4 | 64 | 7 |
| 8 panels | 14 | 4 | 72 | 8 |
| 9 panels | 16 | 4 | 80 | 9 |
| 10 panels | 18 | 4 | 88 | 10 |
| 11 panels | 20 | 4 | 96 | 11 |
| 12 panels | 22 | 4 | 104 | 12 |
| 13 panels | 24 | 4 | 112 | 13 |
| 14 panels | 26 | 4 | 120 | 14 |
| 15 panels | 28 | 4 | 128 | 15 |
| 16 panels | 30 | 4 | 136 | 16 |
| 17 panels | 32 | 4 | 144 | 17 |
| 18 panels | 34 | 4 | 152 | 18 |
| 19 panels | 36 | 4 | 160 | 19 |
| 20 panels | 38 | 4 | 168 | 20 |
* Rail details are provided for information purposes only and depend on the size of the panels.
FAQ - Fixing kit for steel roofing
1. Is this kit suitable for all types of steel roofing?
Yes, this kit is compatible with most steel roofing.
2. Can I install this kit myself?
Absolutely. The kit is designed for easy installation with basic tools. Follow the guide provided and take the necessary precautions when working at height.
3. Is this kit weather-resistant?
Yes, it is made of galvanised or stainless steel with an anti-corrosion coating, ensuring optimal protection against rain, wind and UV rays.
4. Is the kit compatible with solar panels?
Yes, this kit is designed to be compatible with most solar panels, ensuring secure and stable mounting on steel roofing.
5. Are any special tools required for installation?
No, the kit can be installed with standard tools (drill, spanner, screwdriver). No specialised tools are required.
0807
Data sheet
- Mounting
- Sheet metal and steel roof
Specific References
- UPC
- 712971129481
- EAN13
- 0712971129481
