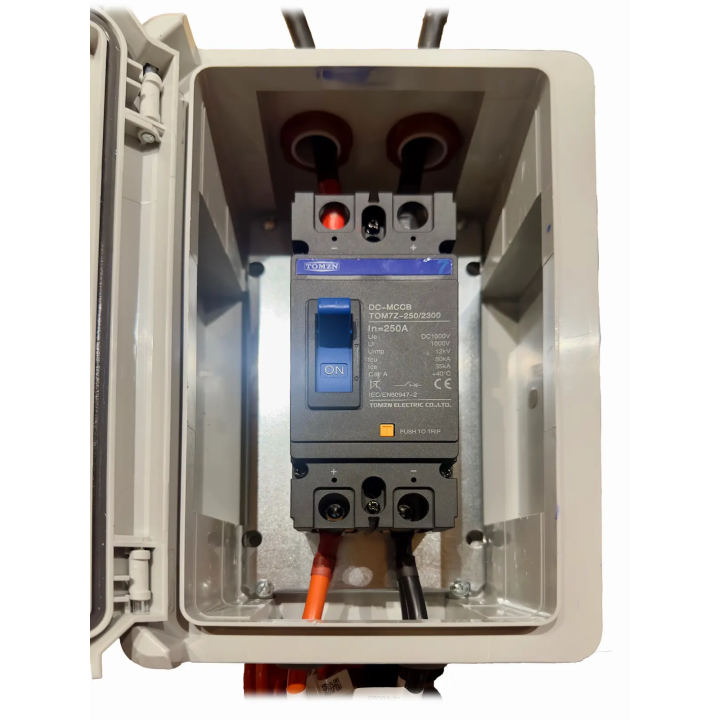

250A protective enclosure for Pylontech battery
250A protective enclosure for Pylontech battery
250A protective enclosure for Pylontech battery
250A protective enclosure for Pylontech battery

250A protective enclosure for Pylontech battery

€365.76
Tax included
Coffret-protection-250A-Pylontech
0768563823800

The 250A protection box for Pylontech batteries is a complete, ready-to-install solution for securing domestic and professional energy storage systems. This robust IP65 enclosure includes a 2P 250A DC1000V TOMZN circuit breaker, two 50 mm² cables for connecting the inverter and two pairs of cables for Pylontech batteries. It provides effective protection against overloads, short circuits and connection errors, while centralising the direct current for your installations. Easy to install and maintain, this box is ideal for photovoltaic systems, hybrid installations and modular battery parks. Compatible with Pylontech US3000 and US5000 batteries, it ensures reliability, performance and scalability for all your DC equipment, inverters and energy storage systems. With this 250A protection box, optimise the safety and longevity of your Pylontech batteries while simplifying the installation and maintenance of your energy system.

250A Protection Box for Pylontech Batteries – Ready to Install


The 250A protection box for Pylontech batteries is a turnkey solution for securing your energy storage installations. Designed to protect your batteries and inverters, it centralises direct current and offers maximum protection against overloads and short circuits.





Box contents

This box is delivered complete and ready to install:

  • IP65 box: Total protection against dust and water splashes
  • 2 x 50 mm² cables with terminals: Direct connection to the inverter
  • 2P 250A DC1000V TOMZN - TOM7Z circuit breaker: Main protection against overload and short circuits
  • 2 pairs of Pylontech battery cables: Secure connection for your battery packs





How the box works

The box is designed to protect and distribute power reliably:

  • Pylontech batteries are connected via the cables supplied with the box
  • The 2P 250A circuit breaker protects the entire circuit against overload and short circuit
  • The 50 mm² cables enable a direct and secure connection to the inverter

Principle: The current from the batteries passes through the 250A circuit breaker before supplying the inverter, ensuring maximum safety and protection.





Typical applications

  • Residential or professional installations with Pylontech US3000 / US5000 batteries
  • Modular parallel storage systems
  • Complete protection for PV + storage or hybrid installations





Advantages of the cabinet

  • Turnkey solution: cabinet, cables and circuit breaker included
  • Quick and easy installation
  • Maximum protection against overload and short circuit
  • Secure connection to inverter and batteries
  • Reduced maintenance thanks to the resettable circuit breaker





Commissioning

  1. Check that the 250A circuit breaker is in the OFF position
  2. Connect the battery cables to the Pylontech packs
  3. Connect the 50 mm² cables to the inverter
  4. Observe the polarity (+ red, - black)
  5. Set the circuit breaker to the ON position and check that it is working properly

For more details, see our Pylontech battery installation guide.





Safety and maintenance

  • 2P 250A circuit breaker: Resettable, overload and short-circuit protection
  • High-section 50 mm² cables: Reliable connection and minimal losses
  • IP65 enclosure: Total protection against dust and water splashes
  • Simple maintenance: visual inspection and periodic circuit breaker testing





FAQ - 250A protection box for Pylontech batteries

1. What is this protection box used for?

The box protects your Pylontech batteries against overcurrent and short circuits and ensures optimal safety for the electrical installation.

2. Is this box compatible with all Pylontech batteries?

Yes, it is designed to be compatible with the most common Pylontech battery models, including the US2000 and US3000 series. Always check the capacity and rated current of your battery.

3. Can I install this box myself?

Installation is possible for users with electrical experience, but we strongly recommend that you hire a qualified professional to ensure safety.

4. Is the box resistant to outdoor conditions?

Yes, it is made of sturdy, insulating material, suitable for indoor use and protected against dust and moisture. For outdoor use, provide an additional waterproof enclosure.

5. What tools are required for installation?

You will need standard power tools such as a screwdriver, pliers and possibly a spanner for the connections. No special tools are required.

Coffret-protection-250A-Pylontech

Data sheet

Type of electrical equipment
Protection box

Specific References

UPC
768563823800
EAN13
0768563823800
MPN
Coffret-protection-250A-Pylontech
