    Kit Pocket Wifi SolaX Power

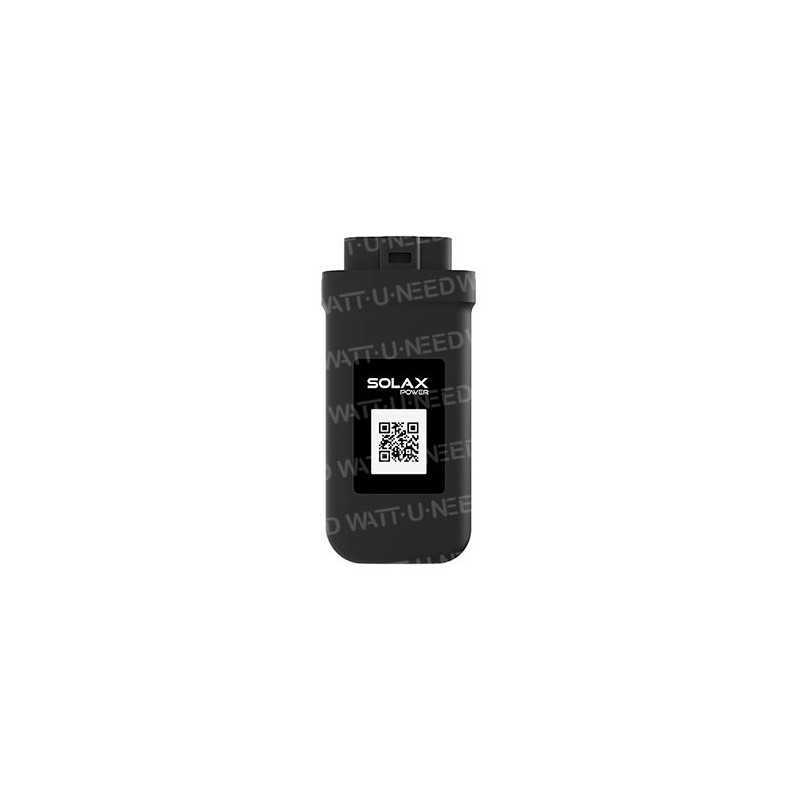

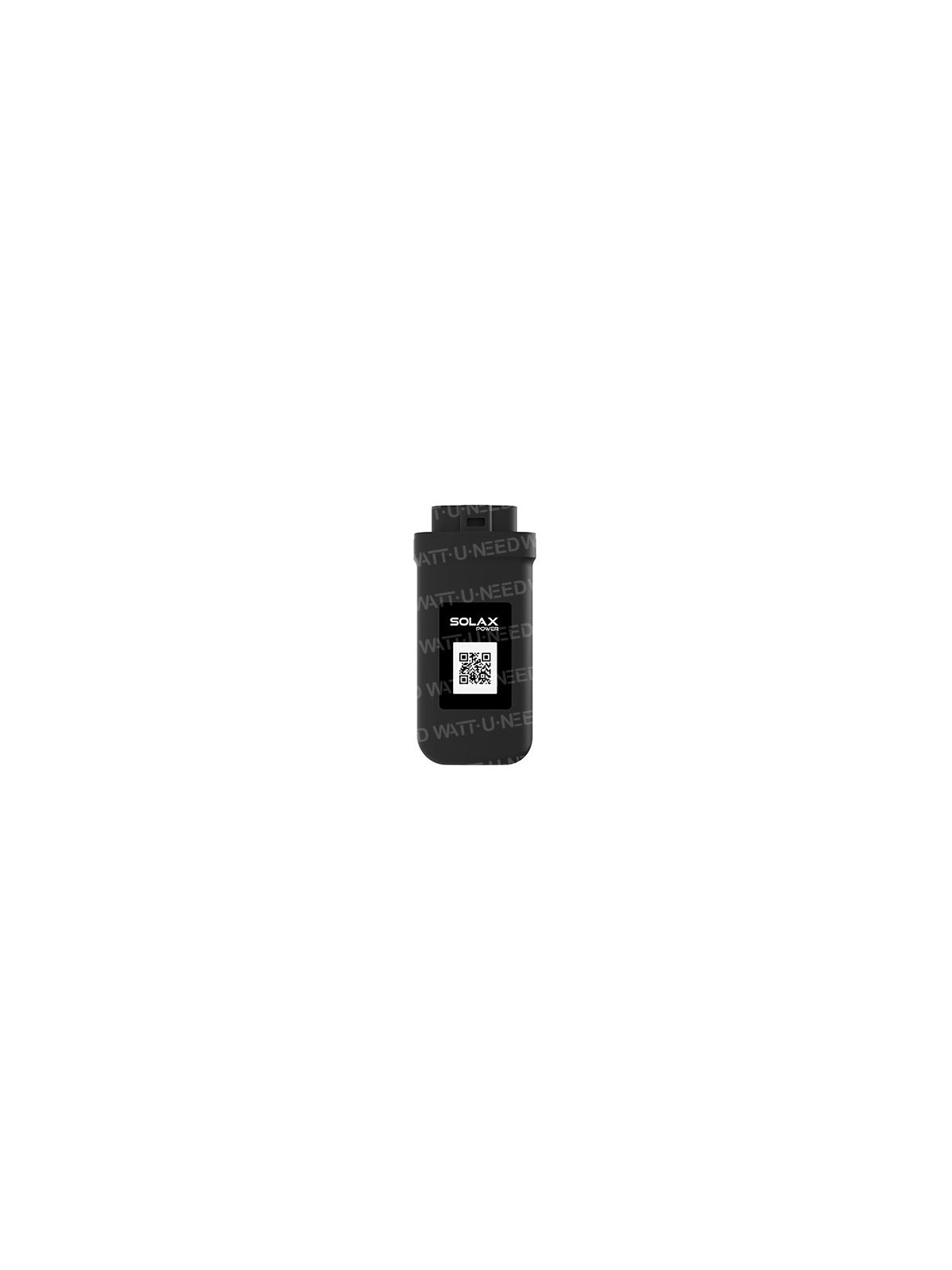

    Solax pocket WiFi interface V3.0

    €31.70
    Tax included
    Solax-pocket-WiFi-V3.0
    0712971136632
    • Quick installation with "Plug & Play" function
    • IP 65 waterproof designs
    • Stable data transmission
    • Online data storage and recovery



    Compatible with the following SolaX inverters: X1 mini from version 3.1, X1-Boost from version 3.3, X1-Hybrid G4, X3 MIC/Pro G2, X3 Hybrid G4.2.



    100% secure payments

    Solax pocket WiFi interface...

    €31.70

    SolaX Pocket WiFi Interface V3.0



    SolaX Power offers remote monitoring for all its products via the SolaX Cloud, an intelligent and multifunctional monitoring platform that can be accessed either remotely or through a wired connection. Whether residential or commercial PV systems, centralized management and monitoring of PV systems saves time and money. Thanks to the SolaX Cloud, PV system operators and installers can always consult key and up-to-date data.



    Harness the power of WiFi with our Pocket WiFi dongle, connect to a local network within 50m of the installation to allow access to the SolaX Cloud monitoring platform.



    SolaX Cloud - Intelligent Monitoring

    • Visualized energy graphs
    • Weather information by geolocation
    • Remote access to UPS control
    • Compatible with any web browser

    Whether residential or commercial PV systems, centralized management and monitoring of PV systems saves time and money. With the SolaX Cloud, PV system operators and installers can always view key and up-to-date data.

    Designed for the end user and installers, the SolaX Cloud is the ideal real-time monitoring solution. Control systems via the cloud and perform maintenance and updates of key inverters from anywhere in the world.


    How do I identify the UPS version?

    You can identify the UPS version by the first letters or digits of SN on the outside of the package.

    SN-SolaX



     VersionSNType of Pocket WiFi Solax
    X1-MINIG1.0XMPocket WiFi V2.0
    G2.0XMT
    G2.1XMU
    G2.15XM2
    G3.0XM3
    G3.1XM3APocket WiFi V3.0
    X1-BOOSTG1.0XBPocket WiFi V2.0
    G2.0XBT
    G3.0XBE
    G3.1XBU
    G3.15XB31
    G3.2XB32
    G3.3XB33Pocket WiFi V3.0
    X3-MICG1.0MCPocket WiFi V2.0
    MCU
    G1.1MU
    G2.0MC2Pocket WiFi V3.0
    X1 PROG1.0PMPocket WiFi V2.0
    G1.1PU
    G2.0MPTPocket WiFi V3.0

    Characteristics



    ModelPocket WiFi V3.0
    Power supply5V 260mA DC
    Wireless moduleWiFi 2.4 Ghz
    Antenna gain3dBi
    Data transfer interval5 mins
    Size95.5 x 45.7 x 28.5 mm
    Weight50g
    Degree of protectionIP65
    Operating temperature-40°C ~ +85°C
    Compatible with inverters from:X1 mini version V3.1
    X1 Boost version V3.3
    X1 Hybrid G4
    X3 MIC/PRO G2
    X3 Hybrid G4,
    Solax-pocket-WiFi-V3.0

    Data sheet

    Video Youtube 1 - ID
    Et8WfdYeiiA
    Video Youtube 2 - ID
    Do3jdSFRPgs
    Video Youtube 3 - ID
    AkyQ2mEeL_I

    Specific References

    UPC
    712971136632
    EAN13
    0712971136632
    New

    Download

    Solax Pocket WiFi V3 datash-EN

    Download (465.07KB)
