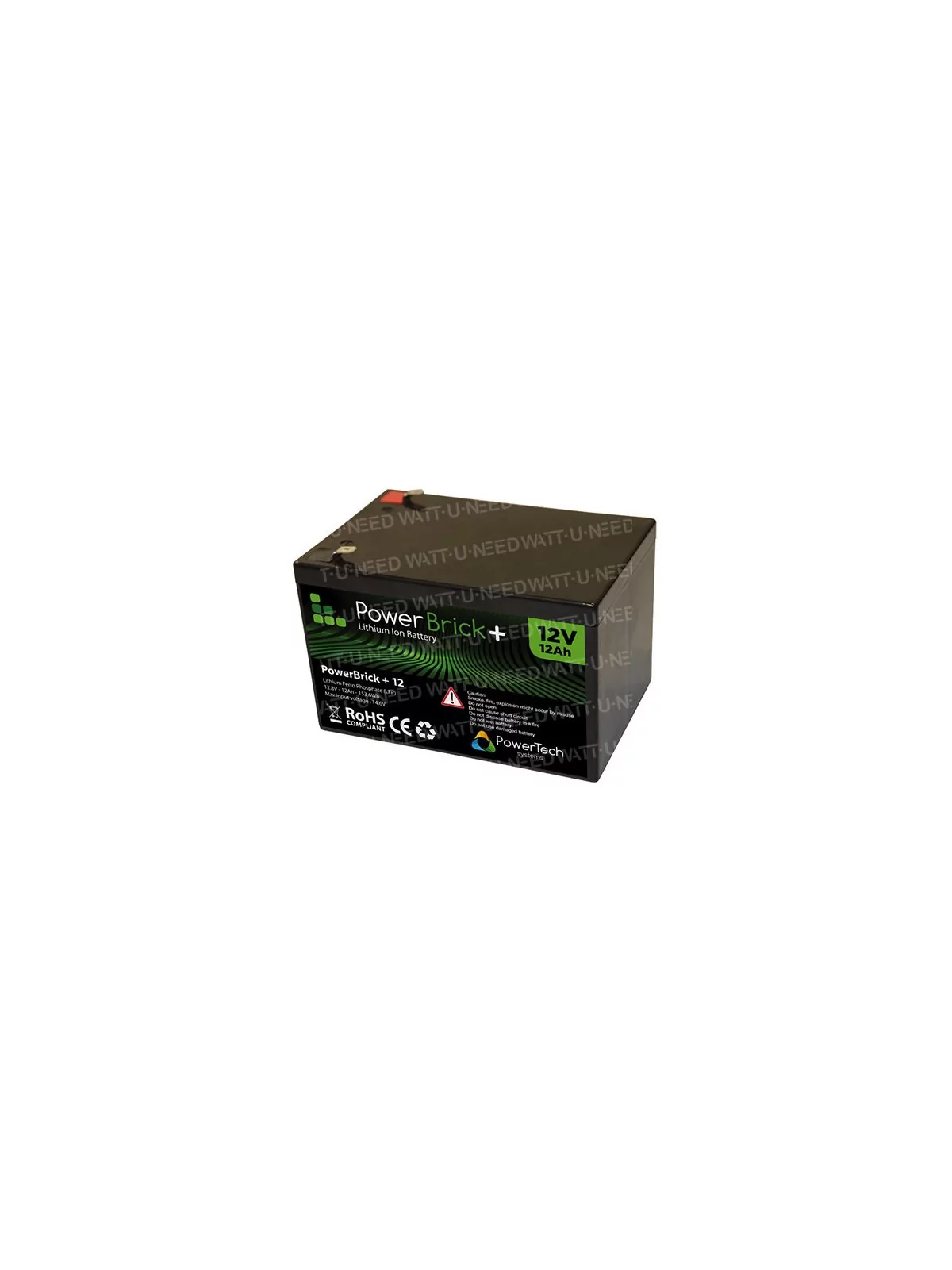

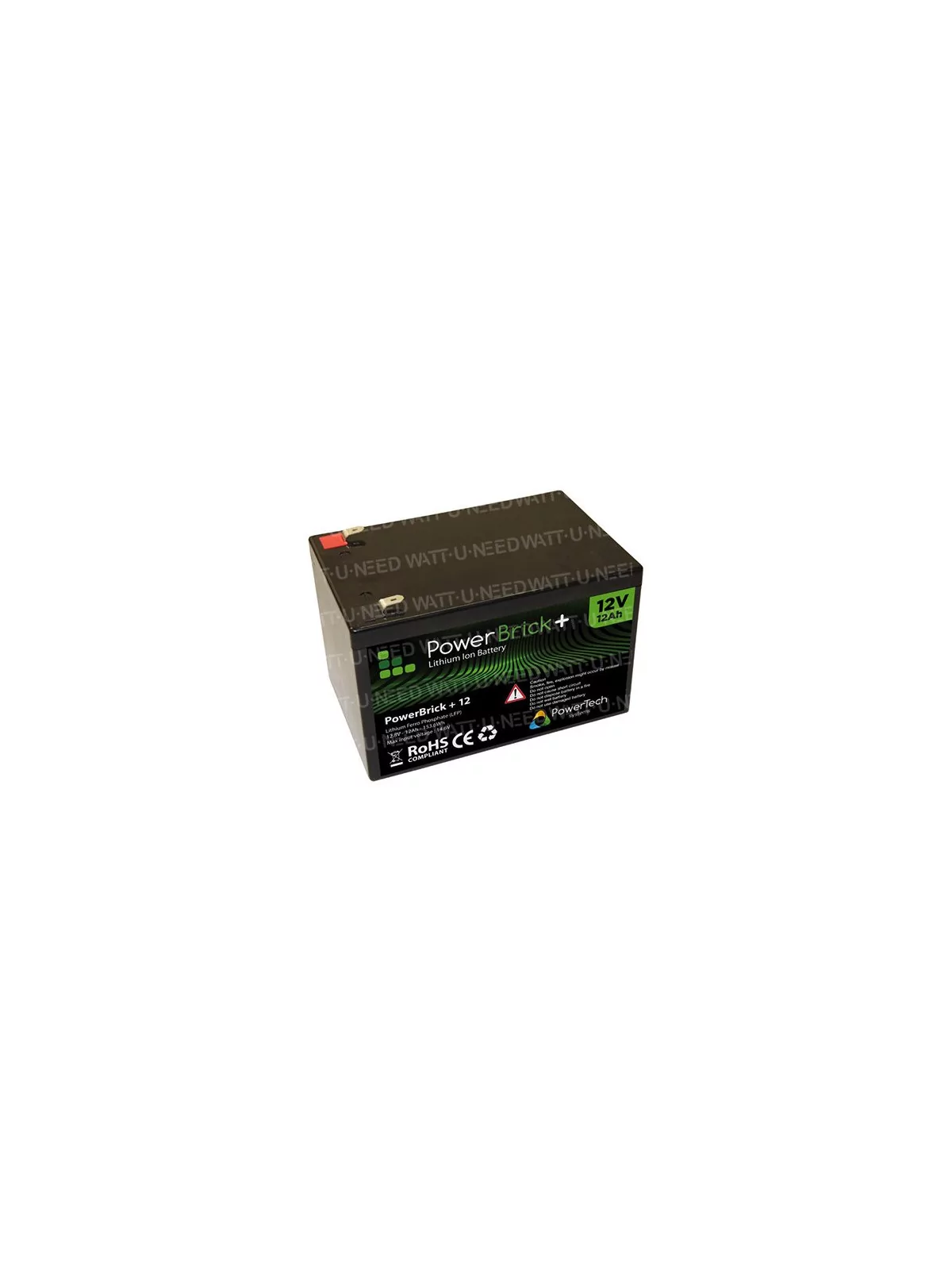

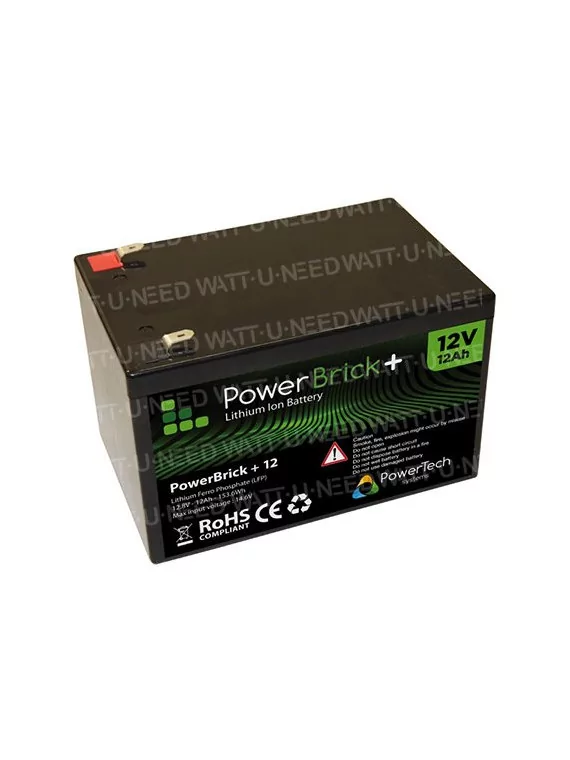

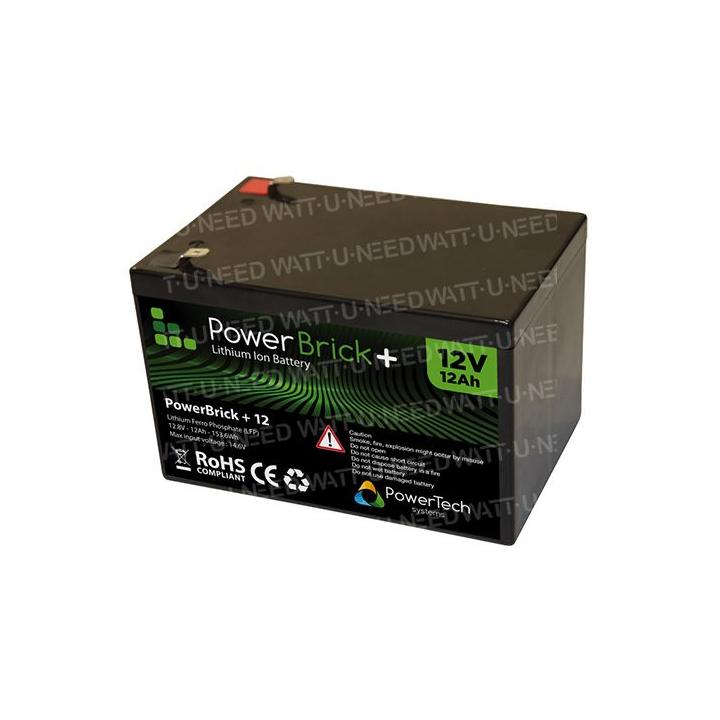

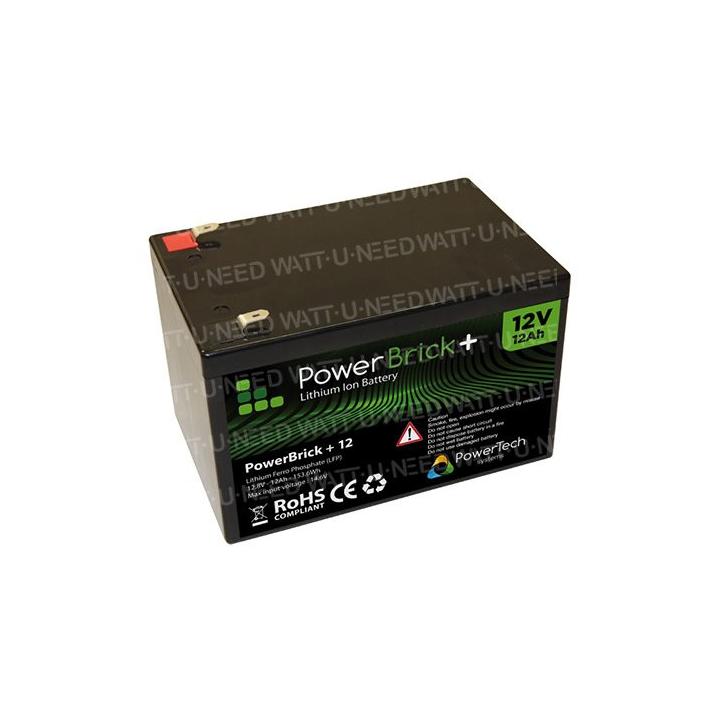

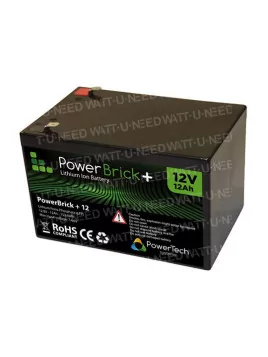

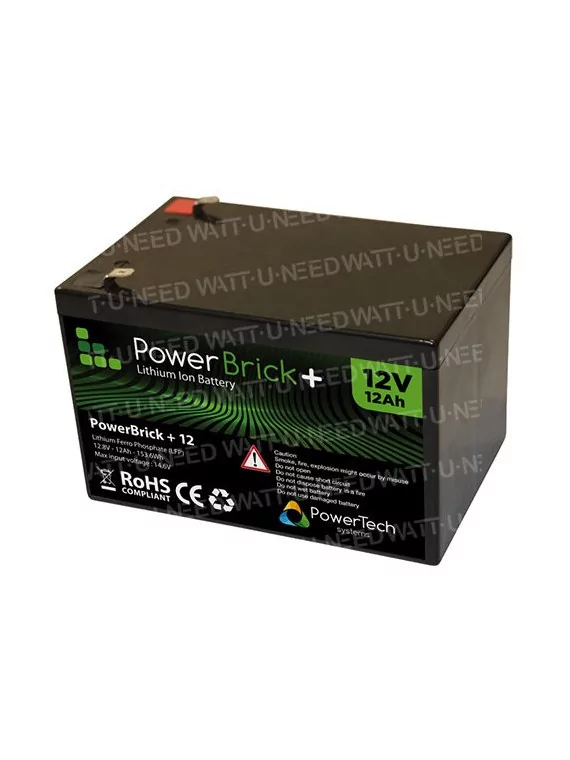

    Batterie lithium PowerBrick+ 12V 12Ah
    Batterie lithium PowerBrick+ 12V 12Ah
    Batterie lithium PowerBrick+ 12V 12Ah
    Batterie lithium PowerBrick+ 12V 12Ah
    Batterie lithium PowerBrick+ 12V 12Ah

    Batterie lithium PowerBrick+ 12V 12Ah PB+12/12

    $114.0
    PB+12/12
    0712971137806

    PowerBrick+ 12V 12Ah: The Compact and High-Performance Lithium Battery

    The PowerBrick+ 12V 12Ah battery is an ideal energy storage solution for mobile and stationary applications. Thanks to its Lithium Iron Phosphate (LFP) technology, it offers long life, optimal safety, and high energy density. Its compact size and light weight make it easy to install and transport.

    Why choose the PowerBrick+ 12V 12Ah battery?

    • Exceptional longevity: Over 3000 charge/discharge cycles at 100% depth of discharge.
    • Enhanced safety: LFP technology, built-in BMS, IP65 waterproof case.
    • Performance: High energy density, low self-discharge, high efficiency.
    • Flexibility: Possible series and parallel assembly, compatible with many applications.
    • Easy installation: Lightweight, compact dimensions, can be mounted in any position.

    Ideal for:

    • Motorhome: Power your 12V equipment autonomously.
    • Boat: Ensure reliable backup power.
    • Standalone solar systems: Store solar energy produced.
    • Industrial applications: Power electronic devices, robotics.

    Key Features:

    • Capacity: 12Ah
    • Nominal voltage: 12.8V
    • Technology: Lithium Iron Phosphate (LFP)
    • Built-in BMS: Optimal protection
    • Compact dimensions: 151mm x 98mm x 95mm
    • Lightweight: 1.55 kg

    Ready to equip your project? Contact us for a personalized study and a free quote.

    Batterie lithium...

    $114.0

    background PowerBrick 12V

    PowerBrick+ 12V 12Ah battery module: a compact, high-performance solution

    Batterie PowerBrick 12V 12AhThe PowerBrick+ 12V-12Ah lithium-ion battery offers maximum safety thanks to the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.

    The PowerBrick 12V-12Ah incorporates an innovative control system (BMS) in its casing, ensuring a very high level of safety during use. The BMS constantly monitors and balances the battery cells, to protect the battery and extend its life. The BMS also protects the battery from mishandling: deep discharge, overcharging, etc.

    The PowerBrick+ range has been designed to replace lead-acid batteries, offering quadruple the energy density for the same weight and size.
    Thanks to its technology, the PowerBrick+ 12V-12Ah lithium battery can be installed in any position (upright, on its side or upside down).

    The electrical parameters of the PowerBrick+ 12V-12Ah lithium battery are fully compatible with those of a 12V AGM lead-acid battery. In the vast majority of cases, the charging system can be retained unchanged, and no additional accessories are required for replacement.

    Since a PowerBrick+ battery can be discharged to 100% of its capacity, a lead-acid AGM battery can be replaced by a PowerBrick+ with a capacity 2x lower than that of the lead-acid battery (e.g.: a PowerBrick+ 50Ah replaces a 100Ah AGM battery).

    The PowerBrick+ 12V-12Ah lithium battery has a nominal voltage of 12.8V. It can be easily assembled in series (up to 4 batteries in series) and in parallel (up to 15 batteries).

    The voltage of the final assembly can be 12V and up to 48V (for 4 packs assembled in series), which meets the needs of virtually all electrical applications for traction, solar or wind storage, servicing, robotics, carts, etc.

    The battery is protected by a splash-proof, dust-proof ABS case (IP65).

    PowerBrick+ products are lightweight, compact, high-performance and can be used for all types of applications. PowerBrick+ directly replaces old-generation 12V batteries (VRLA, AGM or OPZ lead-acid batteries), which are inefficient and harmful to the environment (use of heavy metals and complex recycling).

    The PowerBrick+ range comes with a 2-year commercial warranty, extendable to 5 years.

    Lithium LiFePo 12Ah batteries

      • Extremely long life: from 3,000 cycles to several tens of thousands
      • Deep discharges possible (up to 100%)
      • Completely safe Lithium Iron Phosphate technology (no risk of explosion or auto-ignition)
      • BMS
      • (Battery Management System) integrated into the case:
      • maximizes battery life AND safety
      • No lead, no rare earths, no acid, no outgassing
      • Calendar life > 10 years
      • Excellent temperature resistance (-20°C to +60°C)
      • Flexible system :
      • up to 16 packs in parallel and 4 in series
      • Constant power throughout discharge (low internal resistance)
      • Very low Peukert losses (energy efficiency >98%)
      • Very low self-discharge (<3% per month)
      • No memory effect
      • Weight saving >50% and 40% smaller footprint than lead-acid batteries
      • Certification: CE, RoHS, UN 38.3

    Key points

    • 12V-12Ah battery pack in Lithium Iron Phosphate (LiFePO4 - LFP) technology
    • Nominal voltage: 12.8V
    • Stored energy: 154 Wh
    • New high-performance watertight cylindrical cell
    • 3000 cycles at 100% DoD @ 1C (see technical graphs)
    • 4500 cycles at 80% DoD @ 1C (see technical graphs)
    • 98% energy efficiency
    • Weight: 1.55Kg
    • Dimensions: 151mm x 98mm x 95mm
    • Instantaneous peak discharge current: 140A ±20A (max 100mS)
    • Continuous discharge current: 24A (307W)
    • Maximum discharge current (< 30s): 30A (384W)
    • Maximum charge current :
    • 12A
    • Total safety ensured by a BMS (Battery Management System) integrated into the
    • case
    • Monitoring of cell current and voltage, temperature, cell balancing, etc.
    • Intelligent balancing algorithm
    • 100% maintenance-free
    • Series assembly from 12V to 48V (1 to 4 units in series)
    • Parallel assembly up to 16 units (12V-192Ah / 2.46kWh)
    • Robust design in an insulated, watertight casing (protection class: IP65)
    • Operating temperature under load: 0°C to +60°C
    • Operating temperature under discharge: -20°C to +60°C
    • Watertight ABS casing (IP65)
    • CE, RoHS and UN38.3 certification
    • 2-year commercial warranty as standard, extendable to 5 years

    Dimensions

    Dimensions PowerBrick 12V 12Ah


    Specifications

    ELECTRICAL
    Rated voltage12.8 V
    Rated capacity12 Ah
    Energy153,6 Wh
    Internal resistance≤ 50mΩ
    Number of cycles>3000 cycles
    Self-discharge< 3% per month
    Energy efficiency> 98%
    STANDARD LOAD
    Charge voltage14.4 V ± 0.2V
    Charging modeCC/CV : Constant Current / Constant Voltage
    Standard charging current (max. continuous current)6 A (Max continuous: 12 A)
    BMS cut-off voltage14.8 V ± 0.1V
    STANDARD DISCHARGE
    Instantaneous peak discharge current140 A ± 20 A (max 100mS)
    Direct discharge current24 A (307 W)
    Maximum discharge current (< 30s)30 A (384 W)
    BMS cut-off voltage10 V
    ENVIRONMENT
    Charging temperature0°C to +60°C
    Discharge temperature-20°C to +60°C
    Storage temperature0°C to +50°C @60±25% relative humidity
    IP protectionIP 65
    MECHANICS
    Cell typeCylindrique
    BoxABS
    Dimensions (W x D x H)151 x 98 x 95 mm
    Weight1,55 kg

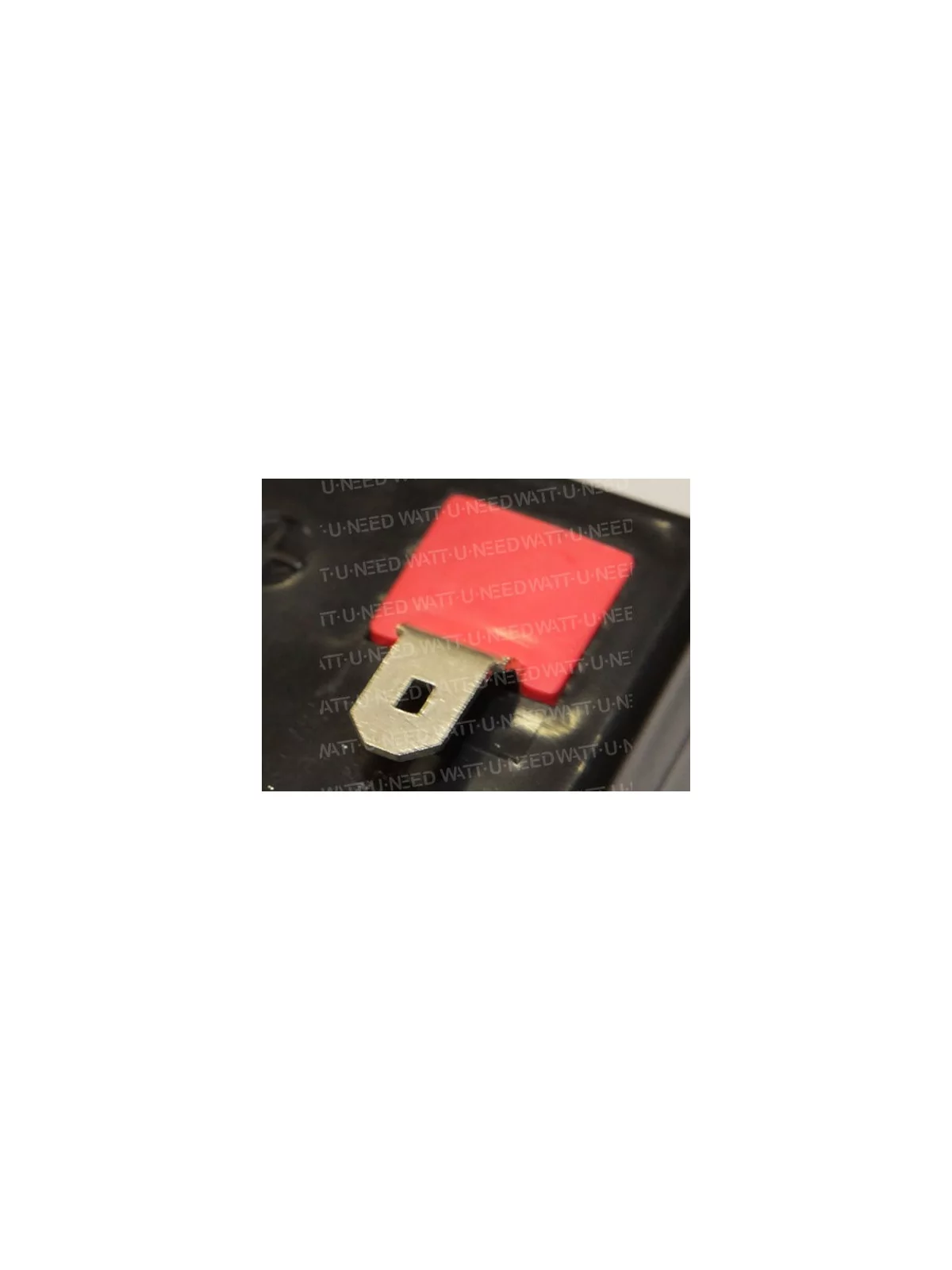

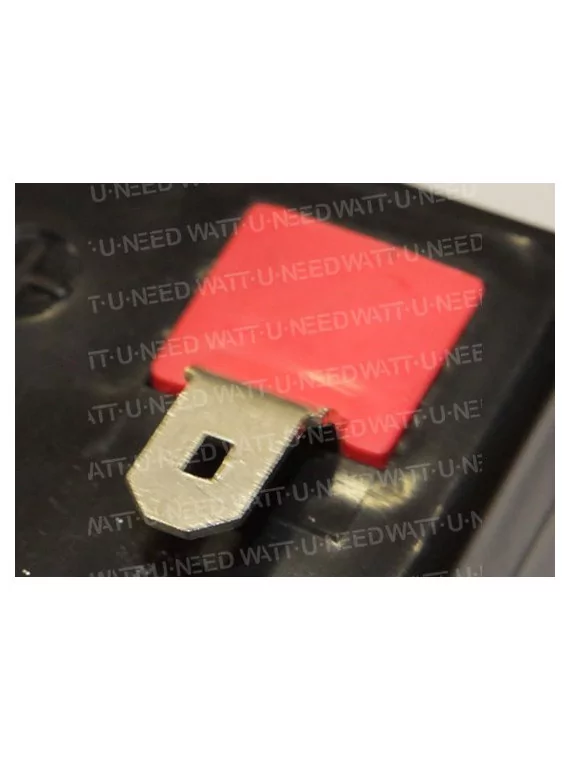

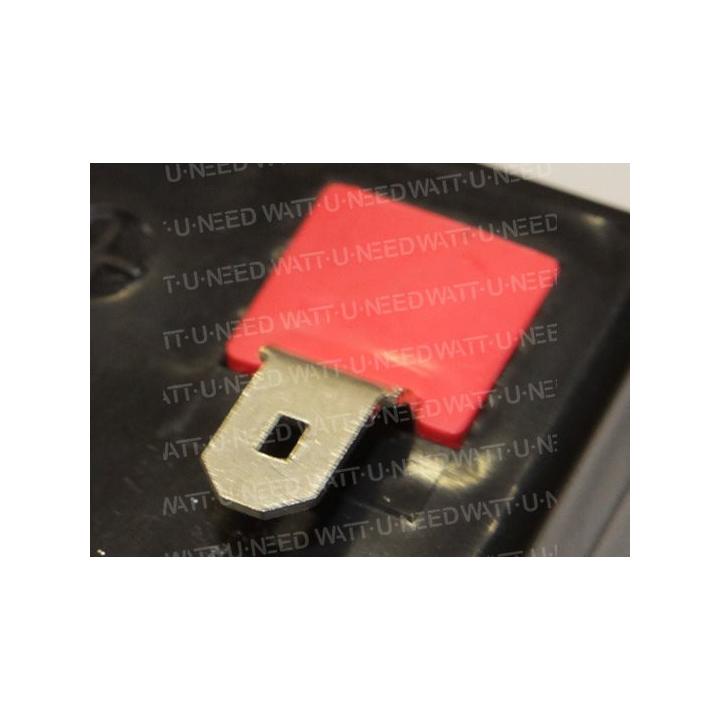

    TerminalClip Faston 6,35 mm
    PB+12/12

    Data sheet

    Voltage
    12V
    Technology
    Lithium
    Battery capacity
    12Ah
    Weight
    1,55 kg
