PowerBrick+ PB+48/72 lithium battery – 72 Ah 51.2 V LiFePO4 3.69 kWh | Bluetooth

Name: PowerBrick+ PB+48/72 lithium battery – 72 Ah 51.2 V LiFePO4 3.69 kWh | Bluetooth
Brand: PowerBrick+
SKU: PB+48/72
Price: 1712.6 EUR
Availability: InStock

€1,712.60

Tax included

Reference: PB+48/72

EAN13: 0768563817038

The PowerBrick+ PB+48/72 lithium battery is designed for 48 V solar battery energy storage, particularly for self-consumption. It provides 3.69 kWh at 51.2 V with a capacity of 72 Ah in LiFePO4 chemistry, and uses cylindrical cells in an ABS casing. The integrated BMS monitors charging/discharging, temperature and balancing for cyclic use.

Specifications: It delivers 3.69 kWh (51.2 V, 72 Ah) with energy efficiency > 98%, and has 3,000 cycles at 100% DoD @ 1C and 4,500 cycles at 80% DoD @ 1C.
Cells: It is based on cylindrical LiFePO4 cells, which are suitable for cyclic energy storage use.
BMS + communication: The integrated BMS monitors current, cell voltage and temperature, and manages balancing with a BMS cut-off set at 59.2 V on charge and 40 V on discharge.
Compatibility + scalability: It can be assembled in series with up to 4 units (up to 192 V) and in parallel with up to 16 units to increase capacity.

background PowerBrick+ 48V 72Ah

48V 72Ah Lithium Battery: Optimise Your System with Bluetooth Monitoring

Batterie PowerBrick+ 48V 72Ah The PowerBrick+ 48V-72Ah Lithium-Ion battery offers maximum safety thanks to the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.

The PowerBrick 48V-72Ah incorporates an innovative control system (BMS) in its casing, ensuring a very high level of safety during use. The BMS constantly monitors and balances the battery cells, to protect the battery and extend its life. The BMS also protects the battery from mishandling: deep discharge, overcharging, etc.

The PowerBrick+ range has been designed to replace lead-acid batteries, offering quadruple the energy density for the same weight and size.
Thanks to its technology, the PowerBrick+ 48V-72Ah lithium battery can be installed in any position (upright, on its side or upside down).

The electrical parameters of the PowerBrick+ 48V-72Ah lithium battery are fully compatible with those of a 48V AGM lead-acid battery. In the vast majority of cases, the charging system can be retained unchanged, and no additional accessories are required for replacement.

Since a PowerBrick+ battery can be discharged to 100% of its capacity, a lead-acid AGM battery can be replaced by a PowerBrick+ with a capacity 2x lower than that of the lead-acid battery (e.g.: a PowerBrick+ 50Ah replaces a 100Ah AGM battery).

The PowerBrick+ 48V-72Ah lithium battery has a nominal voltage of 51.2V. It can be easily assembled in series (up to 4 batteries in series) and in parallel (up to 15 batteries).

The voltage of the final assembly can be 48V and up to 192V (for 4 packs assembled in series), which meets the needs of virtually all electrical applications for traction, solar or wind storage, servicing, robotics, carts, etc.

The battery is protected by a splash-proof, dust-proof ABS case (IP65).

PowerBrick+ products are lightweight, compact, high-performance and can be used for all types of applications. PowerBrick+ directly replaces old-generation batteries (VRLA, AGM or OPZ lead-acid batteries) in 48V, which are inefficient and harmful to the environment (use of heavy metals and complexity of recycling).

The PowerBrick+ range comes with a 2-year commercial warranty, extendable to 5 years.

LiFePo 72 Ah Lithium batteries

Extremely long service life: from 3,000 cycles to several tens of thousands
Deep discharges possible (up to 100%)
Completely safe Lithium Iron Phosphate technology (no risk of explosion or auto-ignition)
(Battery Management System) integrated into the case:
maximizes battery life AND safety
No lead, no rare earths, no acid, no outgassing
Calendar life > 10 years
Excellent temperature resistance (-20°C to +60°C)
Flexible system :
up to 16 packs in parallel and 4 in series
Constant power throughout discharge (low internal resistance)
Very low Peukert losses (energy efficiency >98%)
Very low self-discharge (<3% per month)
No memory effect
Weight saving >50% and 40% smaller footprint than lead-acid batteries
Certification: CE, RoHS, UN 38.3

Key points

48V-72Ah battery pack in Lithium Iron Phosphate (LiFePO4 - LFP) technology
Nominal voltage: 51.2V
Stored energy: 3.69 kWh
New high-performance watertight cylindrical cell
3000 cycles at 100% DoD @ 1C (see technical graphs)
4500 cycles at 80% DoD @ 1C (see technical graphs)
98% energy efficiency
Weight: 31.2Kg
Dimensions: 500mm x 239mm x 217mm
Instantaneous peak discharge current: 250A ±30A (max 100mS)
Continuous discharge current: 90A (4.61kW)
Maximum discharge current (< 30s): 130A (6.7kW)
Maximum charging current: 70A
Total safety provided by a BMS (Battery Management System) integrated in the case
Monitoring of cell current and voltage, temperature, cell balancing, etc.
Intelligent balancing algorithm
100% maintenance-free
Series assembly from 48V to 192V (1 to 4 units in series)
Parallel assembly up to 16 units (48V-1152Ah / 59.0kWh)
Robust design in an insulated, watertight casing (protection class: IP65)
Operating temperature on load: 0°C to +60°C
Operating temperature on discharge: -20°C to +60°C
Watertight ABS casing (IP65)
CE, RoHS and UN38.3 certification
2-year commercial warranty as standard, extendable to 5 years

Dimensions

Dimensions PowerBrick+ 48V 72Ah

Specifications

Electrical
Nominal tension	51.2 V
Nominal capacity	72 Ah
Energy	3.69 Wh
Internal resistance	≤ 50m
Number of cycles	>3000 cycles
Self-unloading	< 3% per month
energy efficiency	> 98%
CHARGE STANDARD
Charge tension	57.6 V - 0.8V
Charge mode	CC/CV: Constant Current / Constant Voltage
Standard charge current (Continuous maxi current)	35 A / 70 A
BMS cut-off voltage	59.2 V - 0.4V
STANDARD DISCHARGE
Instant peak discharge current	250 A - 30 A (max 100mS)
Continuous discharge current	90 A (4.61 kW)
Maximum discharge current (< 30s)	130 A (6.57 kW)
BMS cut-off voltage	40 V
environment
Charge temperature	0C to 60C
Discharge temperature	-20C to 60C
Storage temperature	0C to 50C -60±25% relative humidity
Protection IP	IP 66
mechanics
Cell type	cylindrical
package	ABS
Dimensions (L x P x H)	500 x 239 x 217
weight	31.2 kg

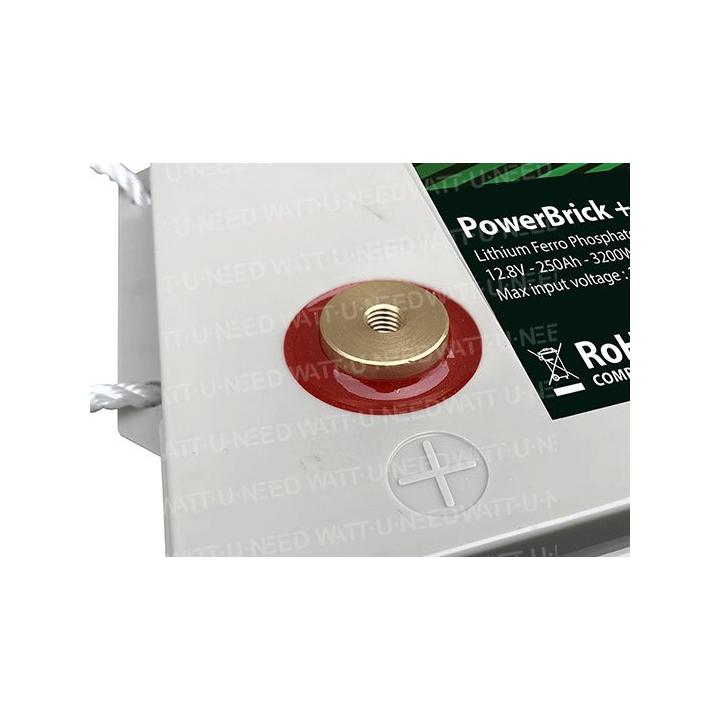

terminal	Bolt M8

Reference PB+48/72

Data sheet

Cycles: 3000
More than 3000 cycles
Storage temperature: 0°C to +50°C @60±25% relative humidity
Voltage: 48V
Technology: Lithium
Battery capacity: 72 Ah
Width: 500 mm
Height: 217 mm
Thickness: 280 mm
Load current: 35 A / 70 A max.
Max. discharge current: 130 A (6.57 kW)
IP protection: IP65
Rated capacity: 72 Ah
Weight: 31,2 kg
Video Youtube 1 - ID: TSkV5tpVDq8
Discharge temperature: -20°C to +60°C
Load temperature: 0°C to +60°C
Charging voltage: 57.6 V ± 0.8V
BMS cut-off voltage: Charge standard 59.2 V ± 0.4V
Décharge standard 40 V
Instantaneous peak discharge current: 250 A ± 30 A (max 100mS)
DC discharge current: 90 A (4.61 kW)
Courant de charge standard: 35 A (Max continuous: 70A)
