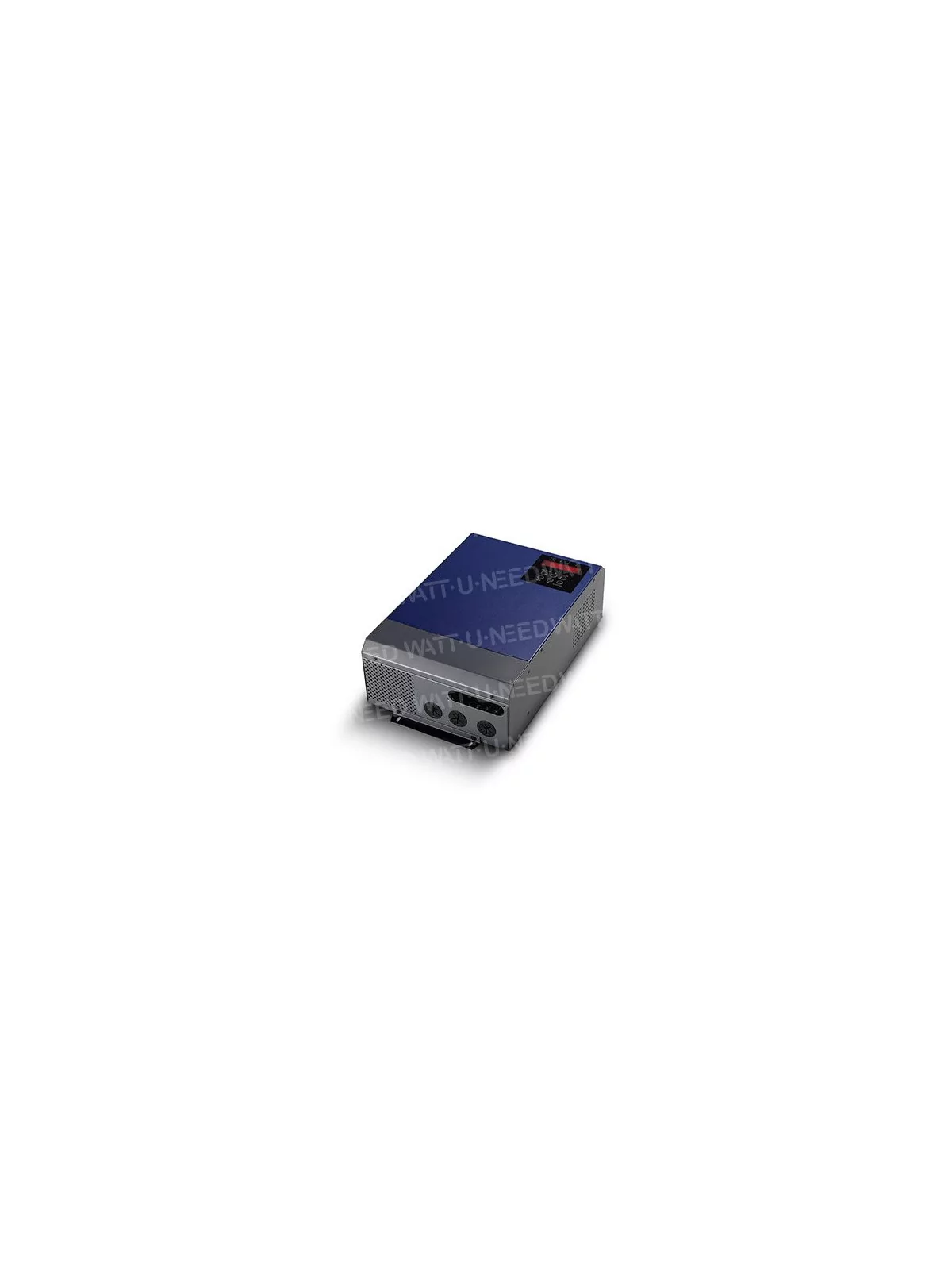

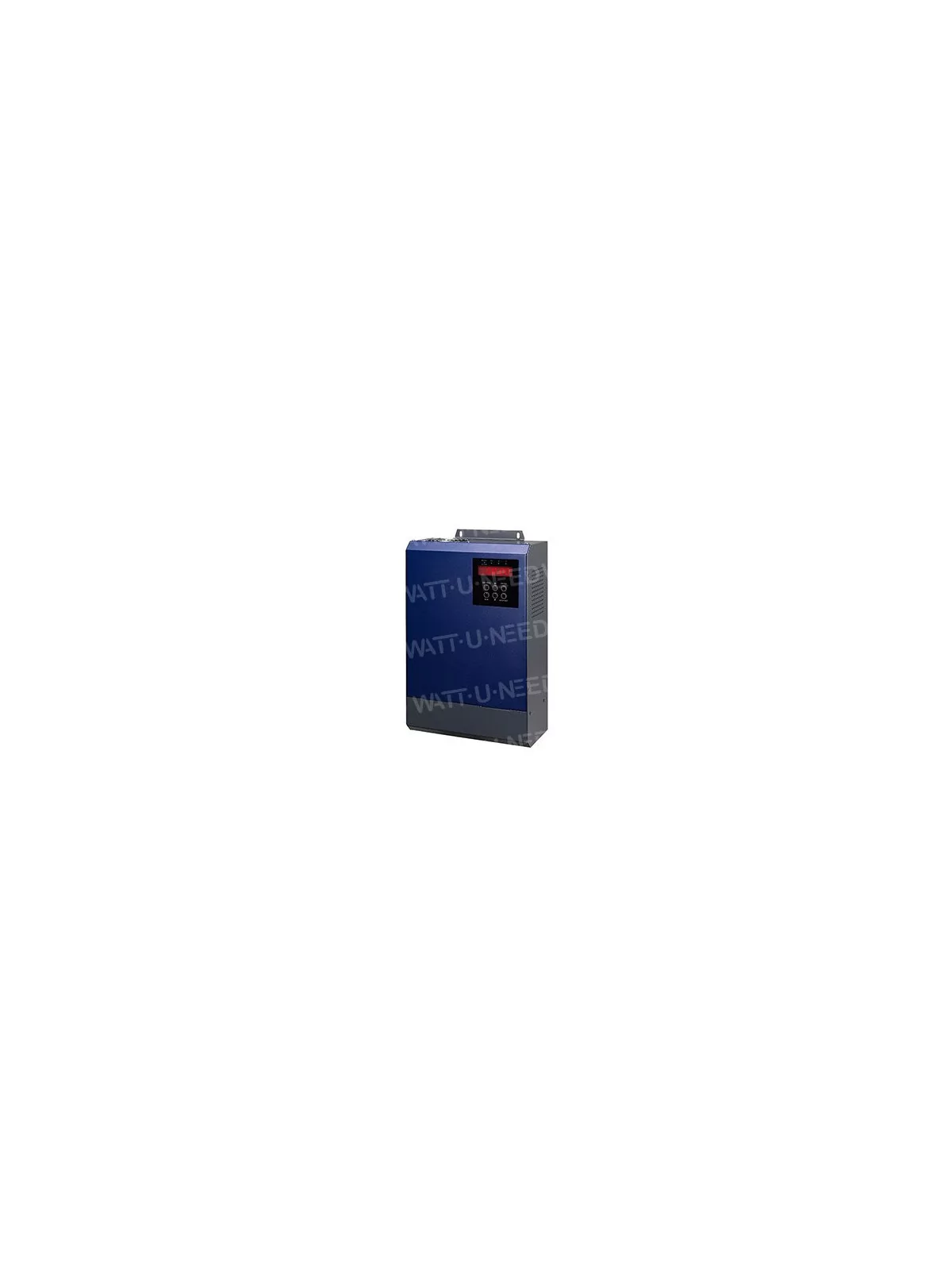

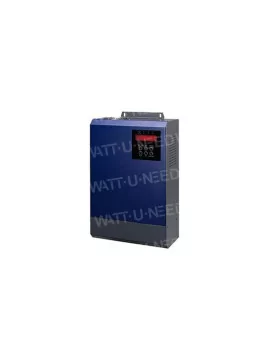

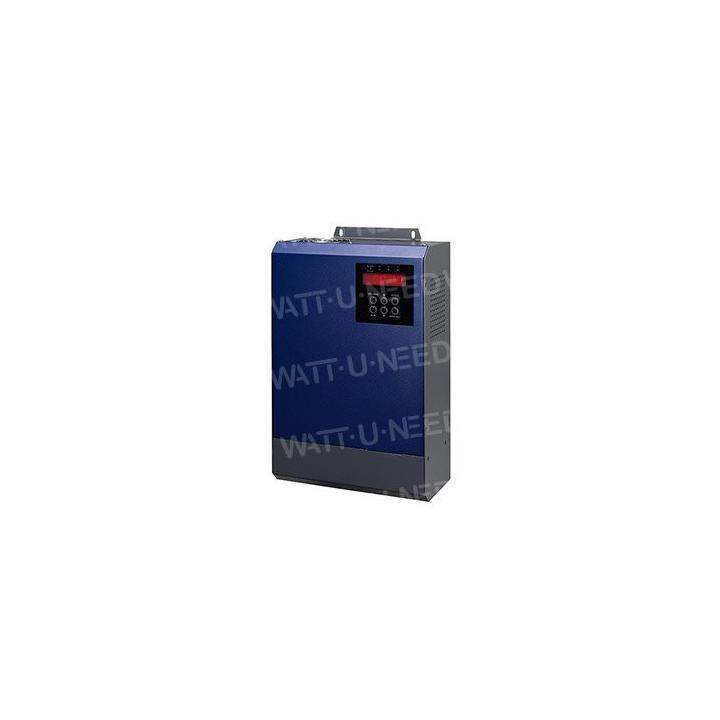

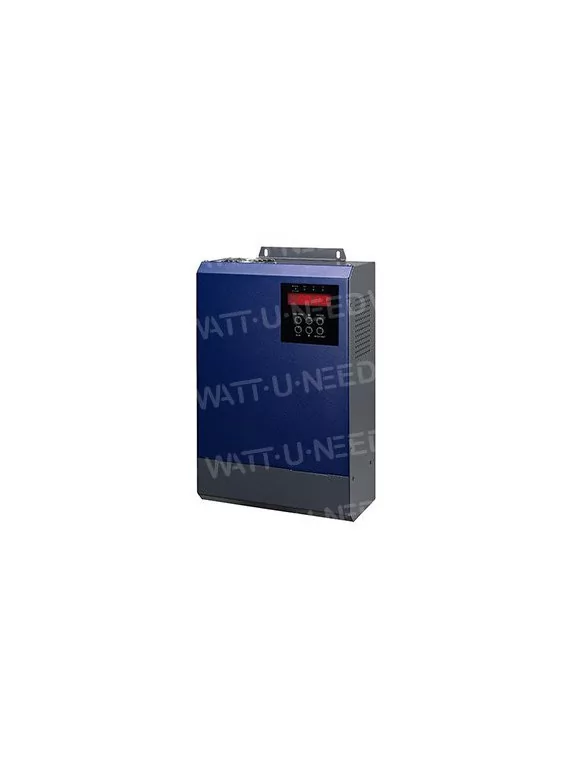

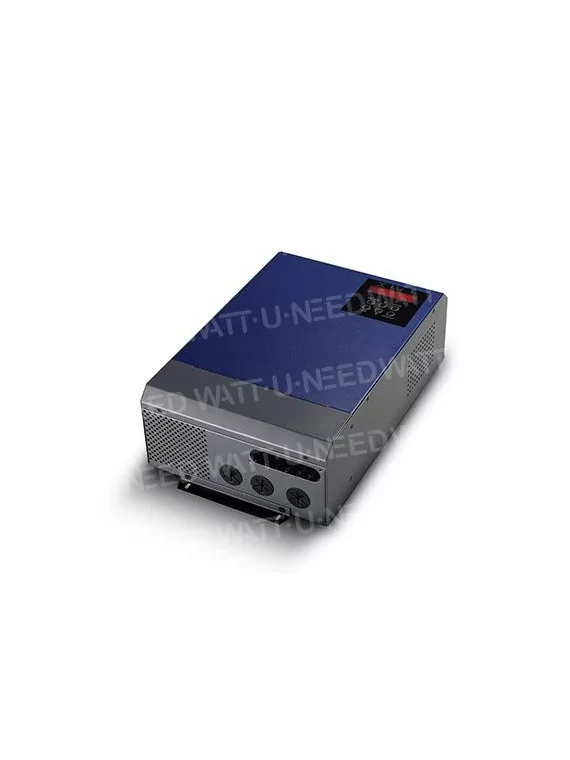

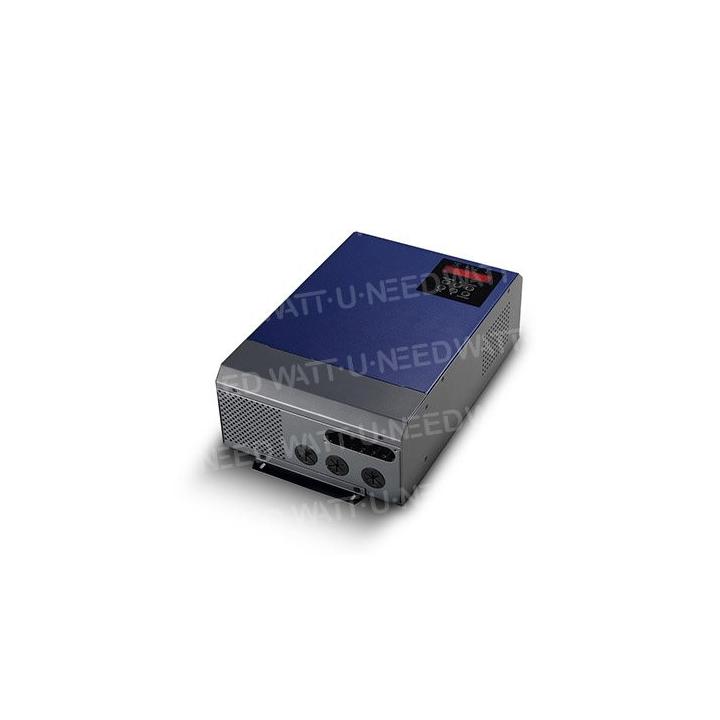

Inverter for solar pump 2.2kW to 11kW
€429.85
Tax included
10270
0712971138537
Easy to install, the solar pump inverter is environmentally friendly with a long service life and low maintenance costs. The integrated MPPT ensures you get the best power output and optimizes the performance of the solar water pump inverter throughout the day, as it automatically starts and stops according to the intensity of solar radiation.
The solar pump inverter with three-phase input and output is environmentally friendly, with a long service life and low maintenance costs.
The integrated MPPT ensures you get the best power output and optimizes water pump performance throughout the day, as it automatically starts and stops according to the intensity of solar radiation.
Key features
- Integrated MPPT solar charger
- Supports single-phase or three-phase asynchronous motors depending on model
- Supports single-phase AC input when PV energy is insufficient (only for LS model 2,2KW model only)
- Integrated integral protection and self-diagnostics
- Soft-start function prevents water hammer effect and extends system life cycle
- LEDs and full display screen for real-time system status
- Remote monitoring via RS-485
This solar inverter is specially designed to power the water pump. The following illustration shows the basic application for this inverter. It also includes PV modules and remote float switches for a complete operating system.
Specifications
| Model | |
| .2KW LS | |
| .2 KW | |
| .5 KW | 11 KW |
| Rated output | 2200 W (3HP) ; (supports 0.75~3HP water pump) |
2200 W (3HP) ; (supports 0,75~3HP) |
7500 W (10HP) (Supports a 3~10HP water pump) |
11000 W (15HP) (Supports a 10~15 HP water pump) |
| PV INPUT (DC) |
| Nominal DC voltage / Maximum DC voltage | 320 VDC / 450 VDC | 540 VDC / 800 VDC | 540 VDC / 800 |
| VDC | 540 VDC / 800 VDC |
| Starting voltage | 120 VDC | 250 VDC | 250 VDC | 250 VDC |
| MPPT voltage range | 120 VDC ~ 420 VDC | 250 VDC |
| ~ 780 VDC | 250 VDC ~ 780 VDC | 250 VDC ~ 780 VDC |
| Number of MPP trackers |
| AC INPUT |
| Input voltage | 220 / 230 / 240 VAC (- | ||
| 15%~+10%) | N/A | N/A | N/A |
| Input frequency | 47 Hz ~ 63 Hz | N/A | N/A |
| OUTPUT |
| Nominal voltage | 220 / 230 / 240 VAC |
| x 380 / 400 / 415 / 440 VAC | |
| x 380 / 400 / 415 / 440 VAC | |
| x 380 / 400 / 415 / 440 VAC |
| Efficiency | > | |||
| 97% | ||||
| Rated output current | 14 A | |
| A | 15 A | 22 A |
| Motor type | Single-phase | Three-phase asynchronous motor | Three-phase asynchronous motor | Three-phase asynchronous motor |
| Frequency accuracy | |||
| 0,2 % | |||
| PROTECTION |
| Total protection | Protection against phase loss, dry running, | |||
| motor stall, low sunlight, overvoltage, undervoltage, overcurrent, overvoltage, overtemperature and short-circuit |
||||
| ENVIRONMENT |
| ~ 45°C at 100% full load, 46°C ~ 60°C power reduction |
| Operating humidity | < | |||
| 5% RH (non-condensing) | ||||
| PHYSICAL |
| Dimension ( L x W x H) | 110 x 230 x 342 mm | |||
| Net weight |
| ,5 |
| ,5 |
| Mechanical protection type | IP20 | |||
| INTERFACE |
| Communication port | RS-232 / RS-485 | |||
10270
Data sheet
- MPPT/PWM
- MPPT
- Number of MPPT
- 1 MPPT
